Viewing IMU Data with Jetson

Viewing IMU Data with Jetson1. Connecting the Device2. Viewing Device Status3. Installing Driver Libraries3.1 Download the Python driver library file3.2 Transferring files3.3 Installing Driver Libraries4. View IMU data5. Precautions

1. Connecting the Device

This tutorial uses Jetson Nano B01 as an example.

Connect the IMU attitude sensor to the host's USB port using a Type-C cable.

2. Viewing Device Status

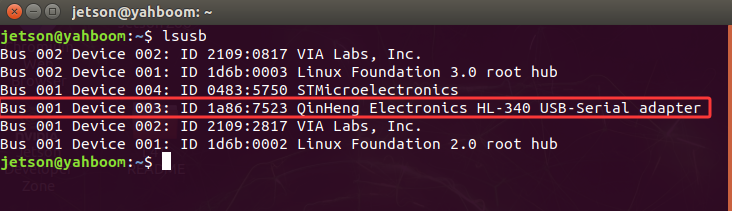

View Device ID


xxxxxxxxxx
lsusb

View Device Number


xxxxxxxxxx
ll /dev/ttyU*

3. Installing Driver Libraries

3.1 Download the Python driver library file

The latest version of the driver library, named YbImuLib.zip, is provided in the data folder.

3.2 Transferring files

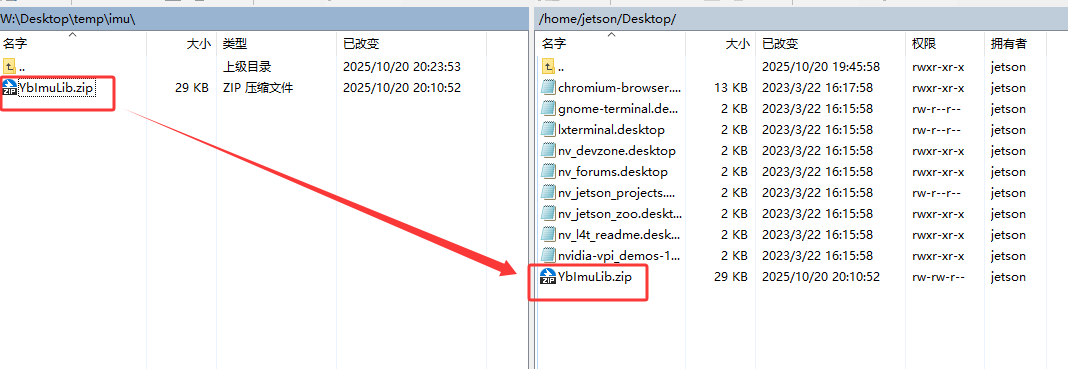

Drag the compressed driver library file onto the Jetson desktop using WinSCP software.

The driver library file can be deleted after successful installation.

If you are unfamiliar with using WinSCP to transfer files, please refer to the following webpage for detailed WinSCP installation and operation instructions:

File Transfer (Jetson Nano 4 GB)

3.3 Installing Driver Libraries

Open the terminal on your Jetson Nano and enter the following command to extract the files.

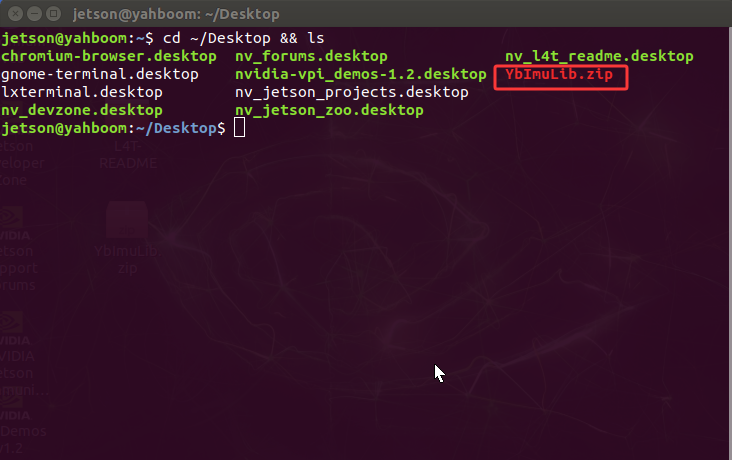

Access the desktop and check if the file exists; the target file is highlighted in the red box.


xxxxxxxxxx
 cd ~/Desktop && ls

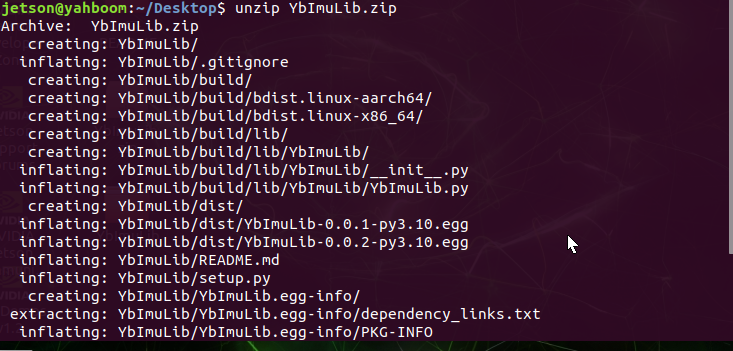

Unzip the file


xxxxxxxxxx
unzip YbImuLib.zip

Enter the driver library folder


xxxxxxxxxx
cd YbImuLib

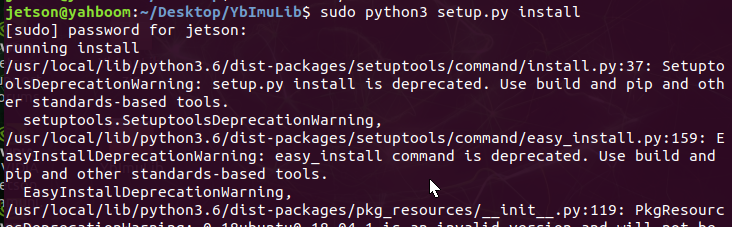

Run the installation command. If you see the version number displayed at the end, the installation was successful. This command will overwrite any previously installed Rosmaster_Lib driver library.


xxxxxxxxxx
sudo python3 setup.py install

Install required libraries


xxxxxxxxxx
sudo pip3 install pyserial
sudo pip3 install smbus2

4. View IMU data

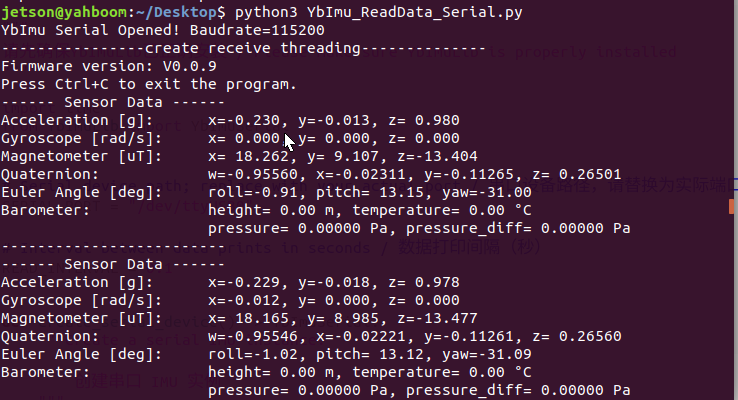

Refer to the 3.2 File Transfer operation, use WinSCP to transfer the YbImu_ReadData_Serial.py file to the Jetson, and then run the command


xxxxxxxxxx
python3 YbImu_ReadData_Serial.py

Note: The above data reads are for the 9-axis IMU. Data from the 6-axis IMU is not available for the magnetometer and barometer, and data from the 9-axis IMU is not available for the barometer.

5. Precautions

If the device ID can be found on the Orin series motherboard, but the device number cannot be found, you can refer to the following commands to install the ch34x driver:


sudo apt remove brltty
git clone https://github.com/clhchan/CH341SER.git
cd CH341SER
make -j6
sudo make install
sudo modprobe ch34x
