Welcome to ROS Robot Expansion Board repository

0. Precautions

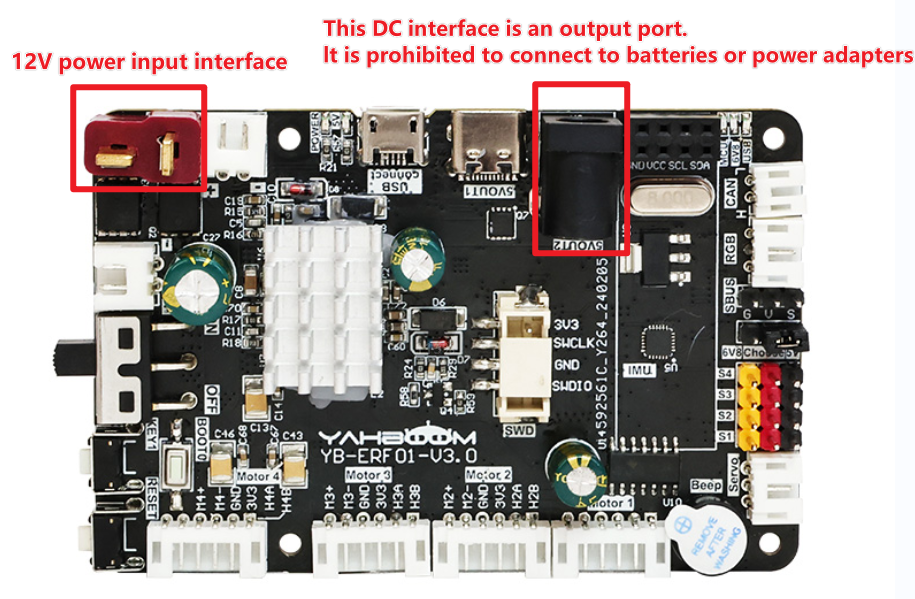

Do not plug the battery or power supply into the 5V-DC output interface. This interface is only used for output, not input!! If inserted incorrectly, it will cause serious damage to the expansion board hardware!!

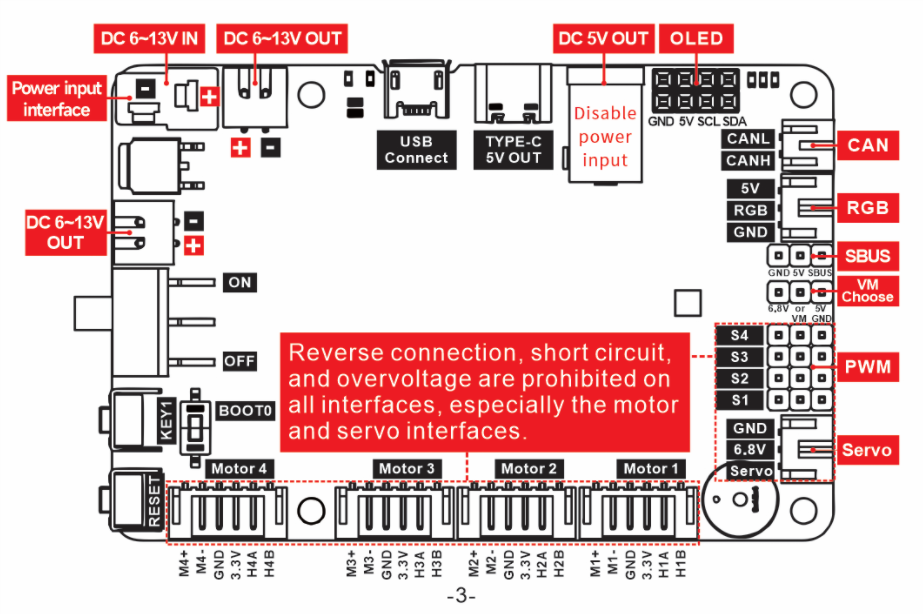

Note: V1.0/2.0/3.0 interfaces are in the same position.

Expansion Board Introduction_V3.0
