2. Lidar following
Lidar following
Note: The virtual machine needs to be in the same LAN as the car, and the ROS_DOMAIN_ID needs to be consistent. You can check [Must read before use] to set the IP and ROS_DOMAIN_ID on the board.
1. Program function description
The car connects to the agent and runs the program. The radar on the car scans the nearest object within the set range, and adjusts its own speed based on the set tracking distance to maintain a certain distance from the object. Parameters such as the radar detection range and obstacle avoidance detection distance can be adjusted through the dynamic parameter adjuster.
2. Start and connect to the agent

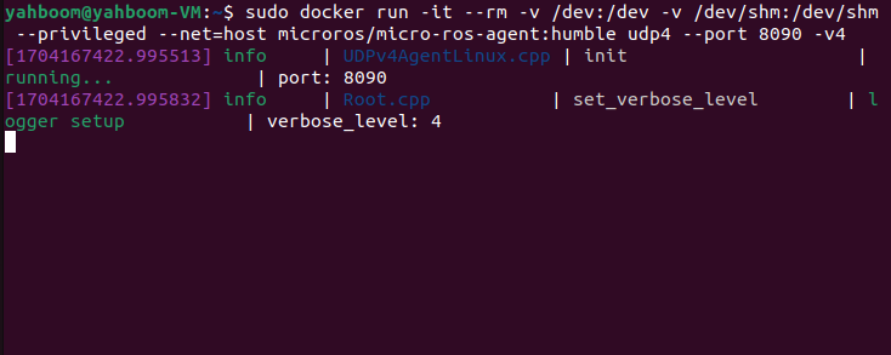

Taking the supporting virtual machine as an example, enter the following command to start the agent
sudo docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble udp4 --port 8090 -v4

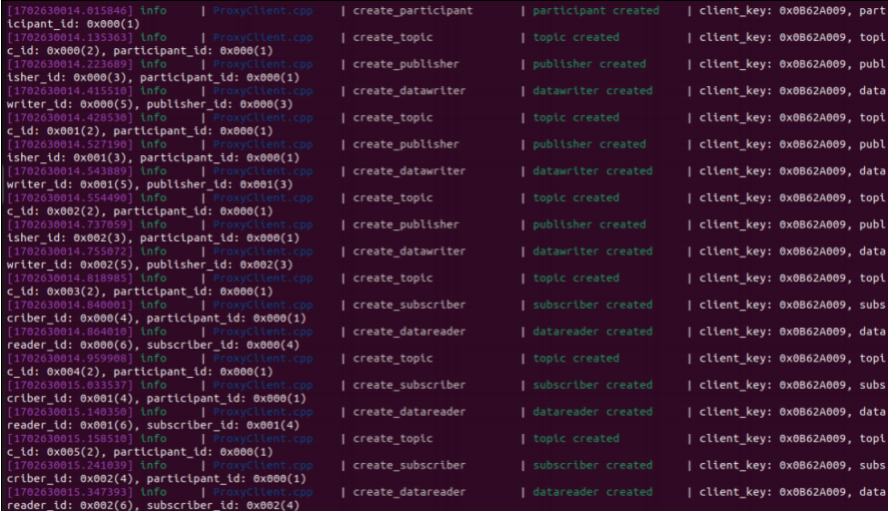

Then, turn on the car switch and wait for the car to connect to the agent. The connection is successful, as shown in the figure below.
3. Start the program
Enter the following command in the terminal to start:
ros2 run yahboomcar_laser laser_Tracker

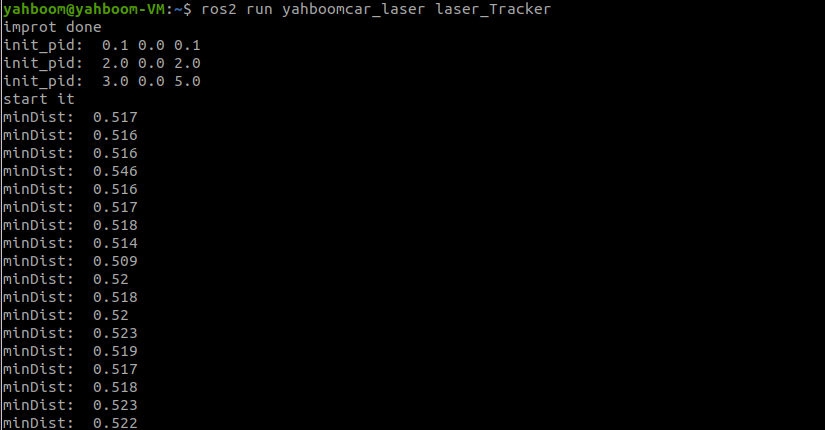

After the program is started, it will search for the nearest object within the radar scanning range and maintain a set distance from it. Move the tracked object slowly, and the car will track the movement of the object. You can set some parameters through the dynamic parameter adjuster. Enter the following command at the terminal:
ros2 run rqt_reconfigure rqt_reconfigure

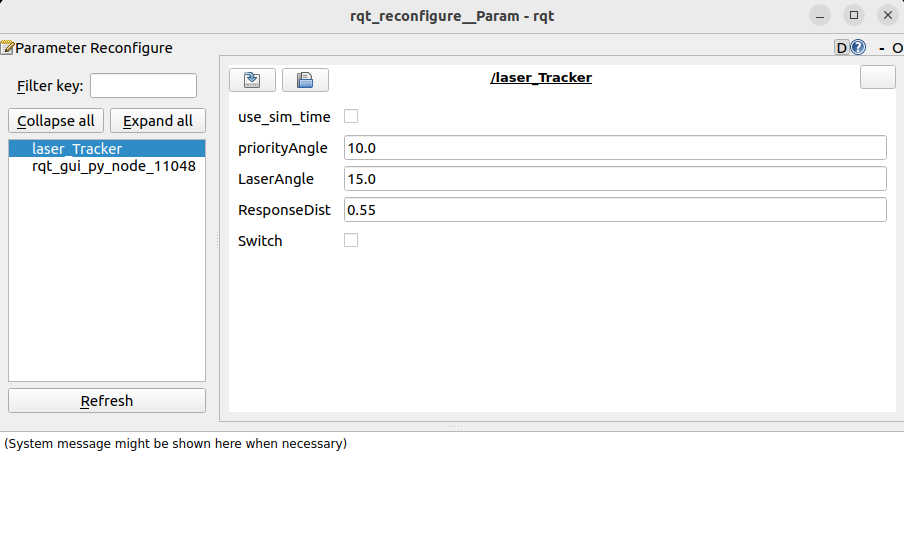

Note: There may not be the above nodes when you first open it. You can see all nodes after clicking Refresh. The displayed laser_Tracker is the node tracked by the radar.
The above parameter description：
- priorityAngle：Radar priority detection angle
- LaserAngle：Radar detection angle
- ResponseDist：tracking distance
- Switch：Game switch
After modifying the above parameters, you need to click on the blank space to transfer the parameters into the program.
4. Code analysis
Source code reference path (taking the supporting virtual machine as an example):
/home/yahboom/yahboomcar_ws/src/yahboomcar_laser/yahboomcar_laser
laser_Tracker，The core code is as follows,
#Create a radar subscriber to subscribe to radar data and remote control data and a speed publisher to publish speed data
self.sub_laser = self.create_subscription(LaserScan,"/scan",self.registerScan,1)
self.sub_JoyState = self.create_subscription(Bool,'/JoyState',
self.JoyStateCallback,1)
self.pub_vel = self.create_publisher(Twist,'/cmd_vel',1)
#Radar callback function: Process the subscribed radar data. There is a priorityAngle here, which indicates the range of priority radar detection. If there are objects within this range, priority will be selected for tracking. The set angle is 10 degrees.
ranges = np.array(scan_data.ranges)
for i in range(len(ranges)):
angle = (scan_data.angle_min + scan_data.angle_increment * i) * RAD2DEG
if abs(angle) < self.priorityAngle:
if 0 < ranges[i] < (self.ResponseDist + offset):
frontDistList.append(ranges[i])
frontDistIDList.append(angle)
elif abs(angle) < self.LaserAngle and ranges[i] > 0:
minDistList.append(ranges[i])
minDistIDList.append(angle)
#Find the nearest object minDistID
if len(frontDistIDList) != 0:
minDist = min(frontDistList)
minDistID = frontDistIDList[frontDistList.index(minDist)]
else:
minDist = min(minDistList)
minDistID = minDistIDList[minDistList.index(minDist)]
#According to the object that needs to be tracked, calculate the angular velocity and linear velocity, and then publish the velocity data
if abs(minDist - self.ResponseDist) < 0.1: minDist = self.ResponseDist
velocity.linear.x = -self.lin_pid.pid_compute(self.ResponseDist, minDist)
ang_pid_compute = self.ang_pid.pid_compute(minDistID/48, 0)
if minDistID > 0: velocity.angular.z = ang_pid_compute
else: velocity.angular.z = ang_pid_compute
velocity.angular.z = ang_pid_compute
if abs(ang_pid_compute) < 0.1: velocity.angular.z = 0.0
self.pub_vel.publish(velocity)
