8. Brush
8. Brush
1、synopsis
MediaPipe is a data stream processing machine learning application development framework developed and open-source by Google. It is a graph based data processing pipeline that enables the construction of various forms of data sources, such as video, frequency, sensor data, and any time series data. MediaPipe is cross platform and can run on embedded platforms (such as Raspberry Pi), mobile devices (iOS and Android), workstations, and servers, while supporting mobile GPU acceleration. MediaPipe provides cross platform, customizable ML solutions for real-time and streaming media. The core framework of MediaPipe is implemented in C++and provides support for languages such as Java and Objective C. The main concepts of MediaPipe include Packets, Streams, Calculators, Graphs, and Subgraphs.
The characteristics of MediaPipe：
- End to end acceleration: Built in fast ML inference and processing that can accelerate even on regular hardware。
- Build once, deploy anytime, anywhere: Unified solution suitable for Android, iOS, desktop/cloud, web, and IoT。
- Instant solution: A cutting-edge ML solution that showcases all features of the framework。
- Free and open source: Framework and solution under Apache 2.0, fully scalable and customizable.
2、Brush

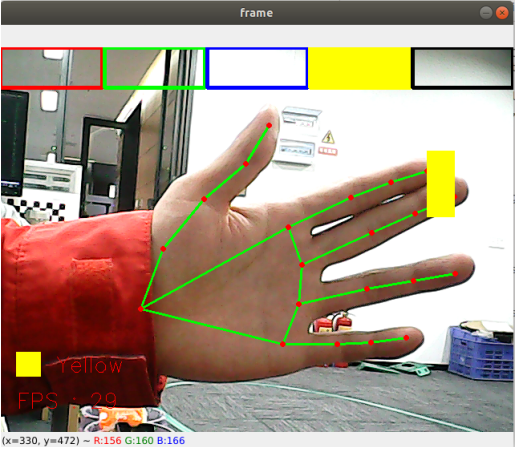

When the index finger and middle finger of the right hand are combined, the state is selected. At the same time, the color selection box pops up. When the two fingertips move to the corresponding color position, select the color (black is the eraser); The index finger and middle finger start as a painting state and can be drawn arbitrarily on the drawing board.
2.1、activate
- First set the proxy IP for the ROS-wifi image transfer module, for specific steps, please see the basic use of 1. The use of ROS-wifi image transfer module in micros car tutorial, this tutorial will not be elaborated.
- Linux system connects to ROS-wifi image transfer module, start docket, enter the following command to connect ROS-wifi image transfer module
#Use the provided system for direct inputsh start_Camera_computer.shxxxxxxxxxx#Systems that are not data:docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble udp4 --port 9999 -v4

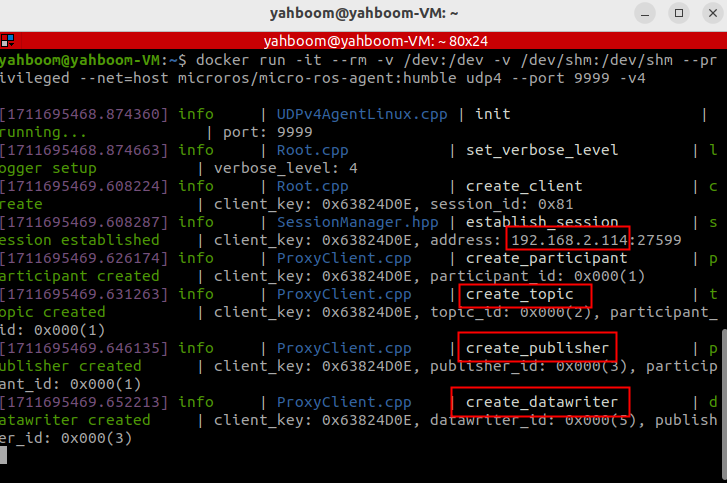

If the preceding information is displayed, the proxy connection is successful
- Open a new terminal and execute the following command
xxxxxxxxxxros2 run yahboom_esp32_mediapipe 09_VirtualPaint
- Notes
- "If the camera angle is not centered, the Linux system needs to connect to the car agent. Please refer to the specific steps for development preparation before proceeding with tutorial 0. which provides essential information for a quick start (must-read). This tutorial will not provide further elaboration."
- After connecting the car's agent, enter the following command
xxxxxxxxxxros2 run yahboom_esp32_mediapipe control_servo
After the steering engine is in the center, press "ctrl+C" to end the program.
- If the camera picture is upside down, see 3. Camera picture correction (must-read) tutorial, this tutorial is no longer explained
2.2、Code parsing
xxxxxxxxxx~/yahboomcar_ws/src/yahboom_esp32_mediapipe/yahboom_esp32_mediapipe/09_VirtualPaint.py
xxp = yp = pTime = boxx = 0tipIds = [4, 8, 12, 16, 20]imgCanvas = np.zeros((480, 640, 3), np.uint8)brushThickness = 5eraserThickness = 100top_height = 50Color = "Red"ColorList = { 'Red': (0, 0, 255), 'Green': (0, 255, 0), 'Blue': (255, 0, 0), 'Yellow': (0, 255, 255), 'Black': (0, 0, 0),}
class handDetector: def __init__(self, mode=False, maxHands=2, detectorCon=0.5, trackCon=0.5): self.tipIds = [4, 8, 12, 16, 20] self.mpHand = mp.solutions.hands self.mpDraw = mp.solutions.drawing_utils self.hands = self.mpHand.Hands( static_image_mode=mode, max_num_hands=maxHands, min_detection_confidence=detectorCon, min_tracking_confidence=trackCon ) self.lmDrawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 0, 255), thickness=-1, circle_radius=15) self.drawSpec = mp.solutions.drawing_utils.DrawingSpec(color=(0, 255, 0), thickness=10, circle_radius=10)
def findHands(self, frame, draw=True): self.lmList = [] img_RGB = cv.cvtColor(frame, cv.COLOR_BGR2RGB) self.results = self.hands.process(img_RGB) if self.results.multi_hand_landmarks: for handLms in self.results.multi_hand_landmarks: if draw: self.mpDraw.draw_landmarks(frame, handLms, self.mpHand.HAND_CONNECTIONS, self.lmDrawSpec, self.drawSpec) else: self.mpDraw.draw_landmarks(frame, handLms, self.mpHand.HAND_CONNECTIONS) for id, lm in enumerate(self.results.multi_hand_landmarks[0].landmark): h, w, c = frame.shape cx, cy = int(lm.x * w), int(lm.y * h) # print(id, cx, cy) self.lmList.append([id, cx, cy]) return frame, self.lmList
def fingersUp(self): fingers=[] # Thumb if (self.calc_angle(self.tipIds[0], self.tipIds[0] - 1, self.tipIds[0] - 2) > 150.0) and ( self.calc_angle( self.tipIds[0] - 1, self.tipIds[0] - 2, self.tipIds[0] - 3) > 150.0): fingers.append(1) else: fingers.append(0) # 4 finger for id in range(1, 5): if self.lmList[self.tipIds[id]][2] < self.lmList[self.tipIds[id] - 2][2]: fingers.append(1) else: fingers.append(0) return fingers
def get_dist(self, point1, point2): x1, y1 = point1 x2, y2 = point2 return abs(math.sqrt(math.pow(abs(y1 - y2), 2) + math.pow(abs(x1 - x2), 2)))
def calc_angle(self, pt1, pt2, pt3): point1 = self.lmList[pt1][1], self.lmList[pt1][2] point2 = self.lmList[pt2][1], self.lmList[pt2][2] point3 = self.lmList[pt3][1], self.lmList[pt3][2] a = self.get_dist(point1, point2) b = self.get_dist(point2, point3) c = self.get_dist(point1, point3) try: radian = math.acos((math.pow(a, 2) + math.pow(b, 2) - math.pow(c, 2)) / (2 * a * b)) angle = radian / math.pi * 180 except: angle = 0 return abs(angle)
class MY_Picture(Node): def __init__(self, name,ColorROS,ColorListROS): super().__init__(name) self.bridge = CvBridge() self.sub_img = self.create_subscription( CompressedImage, '/espRos/esp32camera', self.handleTopic, 1) #获取esp32传来的图像 self.hand_detector = handDetector(detectorCon=0.85) self.Color = ColorROS self.ColorList = ColorListROS self.boxx = 0 self.xp = 0 self.yp = 0 self.top_height = 50 def handleTopic(self, msg): start = time.time() frame = self.bridge.compressed_imgmsg_to_cv2(msg) frame = cv.resize(frame, (640, 480)) h, w, c = frame.shape cv.waitKey(10)
frame,lmList = self.hand_detector.findHands(frame, draw=False) if len(lmList) != 0: # print(lmList) # tip of index and middle fingers x1, y1 = lmList[8][1:] x2, y2 = lmList[12][1:] fingers = self.hand_detector.fingersUp() if fingers[1] and fingers[2]: # print("Seclection mode") if y1 < self.top_height: if 0 < x1 < int(w / 5) - 1: self.boxx = 0 self.Color = "Red" if int(w / 5) < x1 < int(w * 2 / 5) - 1: self.boxx = int(w / 5) self.Color = "Green" elif int(w * 2 / 5) < x1 < int(w * 3 / 5) - 1: self.boxx = int(w * 2 / 5) self.Color = "Blue" elif int(w * 3 / 5) < x1 < int(w * 4 / 5) - 1: self.boxx = int(w * 3 / 5) self.Color = "Yellow" elif int(w * 4 / 5) < x1 < w - 1: self.boxx = int(w * 4 / 5) self.Color = "Black" cv.rectangle(frame, (x1, y1 - 25), (x2, y2 + 25), self.ColorList[self.Color], cv.FILLED) cv.rectangle(frame, (self.boxx, 0), (self.boxx + int(w / 5), self.top_height), self.ColorList[self.Color], cv.FILLED) cv.rectangle(frame, (0, 0), (int(w / 5) - 1, self.top_height), self.ColorList['Red'], 3) cv.rectangle(frame, (int(w / 5) + 2, 0), (int(w * 2 / 5) - 1, self.top_height), self.ColorList['Green'], 3) cv.rectangle(frame, (int(w * 2 / 5) + 2, 0), (int(w * 3 / 5) - 1, self.top_height), self.ColorList['Blue'], 3) cv.rectangle(frame, (int(w * 3 / 5) + 2, 0), (int(w * 4 / 5) - 1, self.top_height), self.ColorList['Yellow'], 3) cv.rectangle(frame, (int(w * 4 / 5) + 2, 0), (w - 1, self.top_height), self.ColorList['Black'], 3) if fingers[1] and fingers[2] == False and math.hypot(x2 - x1, y2 - y1) > 50: # print("Drawing mode") if self.xp == self.yp == 0: self.xp, self.yp = x1, y1 if self.Color == 'Black': cv.line(frame, (self.xp, self.yp), (x1, y1), self.ColorList[self.Color], eraserThickness) cv.line(imgCanvas, (self.xp, self.yp), (x1, y1), self.ColorList[self.Color], eraserThickness) else: cv.line(frame, (self.xp, self.yp), (x1, y1), self.ColorList[self.Color], brushThickness) cv.line(imgCanvas, (self.xp, self.yp), (x1, y1),self.ColorList[self.Color], brushThickness) cv.circle(frame, (x1, y1), 15, self.ColorList[self.Color], cv.FILLED) self.xp, self.yp = x1, y1 else: self.xp = self.yp = 0 imgGray = cv.cvtColor(imgCanvas, cv.COLOR_BGR2GRAY) _, imgInv = cv.threshold(imgGray, 50, 255, cv.THRESH_BINARY_INV) imgInv = cv.cvtColor(imgInv, cv.COLOR_GRAY2BGR) frame = cv.bitwise_and(frame, imgInv) frame = cv.bitwise_or(frame, imgCanvas) end = time.time() fps = 1 / (end - start) text = "FPS : " + str(int(fps)) cv.putText(frame, text, (20, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1) cv.rectangle(frame, (20, h - 100), (50, h - 70), self.ColorList[self.Color], cv.FILLED) cv.putText(frame, self.Color, (70, h - 75), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1) cv.imshow('frame', frame)
def main(): global Color,ColorList print("start it") rclpy.init() esp_img = MY_Picture("My_Picture",Color,ColorList) try: rclpy.spin(esp_img) except KeyboardInterrupt: pass finally: esp_img.destroy_node() rclpy.shutdown()The main process of the program: subscribe to the image from esp32, through MediaPipe to do the relevant recognition, and then through opencv to display the processed image.
