Install and start microros agent

Note: Docker startup mode and source code startup mode can be installed on the same system at the same time, but only one of the startup modes can be selected at startup. Under normal circumstances, it is simple and convenient to use the docker startup method. It is recommended to use the Docker startup method.

1、1. Docker starts the microros agent

This time, the microros agent is started through docker, so the system docker needs to be set up first. The relevant docker environment has been set up in the factory system and can be run directly.

Docker starts WIFI proxy

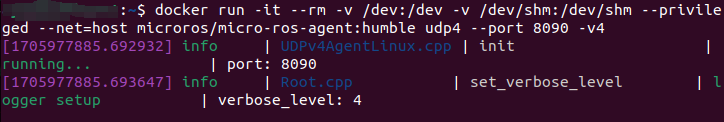

docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble udp4 --port 8090 -v4

Among them, --port 8090 is the network port number, and -v4 is the LOG printing level. The higher the value, the more printing will be done. Modifications can be made according to actual conditions.

If you need to end the proxy, press Ctrl+C in the terminal to exit the proxy.

Note that you cannot close the terminal directly, otherwise docker will continue to run in the background.

If the microcontroller starts the reconnection agent multiple times, causing ROS2 to search for multiple identical nodes, it does not actually affect the use. Press Ctrl+C to end the agent, then reset the microcontroller and reconnect to the agent.

Docker starts serial port agent

xxxxxxxxxx

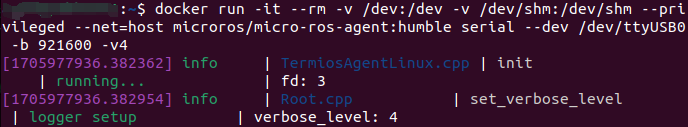

docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble serial --dev /dev/ttyUSB0 -b 921600 -v4

Among them, --dev /dev/ttyUSB0 is the serial port device number, and -b 921600 is the baud rate. Modifications can be made according to actual conditions.

If you need to end the proxy, press Ctrl+C in the terminal to exit the proxy.

Note that you cannot close the terminal directly, otherwise docker will continue to run in the background.

If the microcontroller starts the reconnection agent multiple times, causing ROS2 to search for multiple identical nodes, it does not actually affect the use. Press Ctrl+C to end the agent, then reset the microcontroller and reconnect to the agent.

Agent startup failure

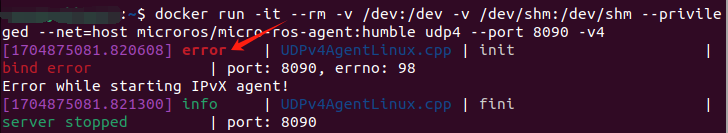

The microROS agent can only be opened in one terminal. If a terminal has already opened the microROS agent in the background, an error will be reported when opening the agent again. Please press Ctrl+C on the original agent terminal to exit the agent and then run the agent.

If the agent fails to be started the next time because the terminal is closed directly, you can restart the virtual machine/computer or manually end docker to solve the problem.

How to manually end docker:

Please first query the current docker process number and end the current agent docker process.

xxxxxxxxxx

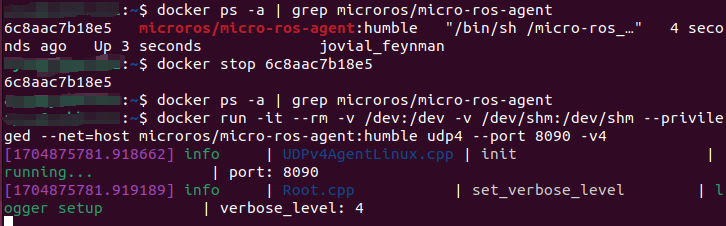

docker ps -a | grep microros/micro-ros-agent
docker stop xxxxxxxxxx
docker run -it --rm -v /dev:/dev -v /dev/shm:/dev/shm --privileged --net=host microros/micro-ros-agent:humble udp4 --port 8090 -v4

2、Source code to start microros agent

Install tinyxml2 dependencies

Enter the following command in the terminal to install tinyxml2

xxxxxxxxxx
cd ~/
git clone https://github.com/leethomason/tinyxml2.git
cd tinyxml2
mkdir build
cd build
sudo cmake ..
sudo make
sudo make install

Install python3-rosdep tool

Enter the following command in the terminal to install the rosdep tool. You can skip it if you have already installed it.

xxxxxxxxxx
sudo apt install python3-rosdep

Compile micro_ros_setup environment

Activate the ROS2 environment variable. Here we take the humble version as an example. If it is already activated, you can skip the activation step.

source /opt/ros/humble/setup.bash

Create and enter the workspace uros_ws in the user directory

xxxxxxxxxx
mkdir ~/uros_ws && cd ~/uros_ws
mkdir src

Download the micro_ros_setup file to the src folder

xxxxxxxxxx
git clone -b $ROS_DISTRO https://github.com/micro-ROS/micro_ros_setup.git src/micro_ros_setup

Initialize rosdep

xxxxxxxxxx
sudo rosdep init

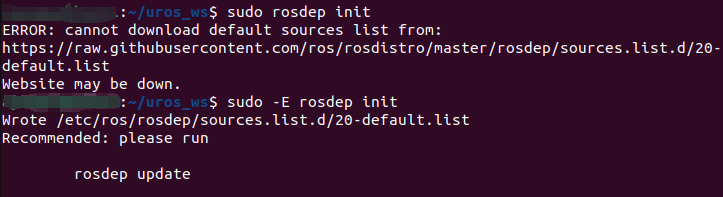

If there is a network problem, please add the -E parameter

xxxxxxxxxx
sudo -E rosdep init

If errors are reported in the above steps and rosdep still cannot be initialized, you can create a new 20-default.list file in the /etc/ros/rosdep/sources.list.d/ directory, add the following content, and then proceed to the next step.

​x
# os-specific listings first
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/osx-homebrew.yaml osx

# generic
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/base.yaml
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/python.yaml
yaml https://raw.githubusercontent.com/ros/rosdistro/master/rosdep/ruby.yaml
gbpdistro https://raw.githubusercontent.com/ros/rosdistro/master/releases/fuerte.yaml fuerte

# newer distributions (Groovy, Hydro, ...) must not be listed anymore, they are being fetched from the rosdistro index.yaml instead

Update rosdep and install related driver packages

xxxxxxxxxx

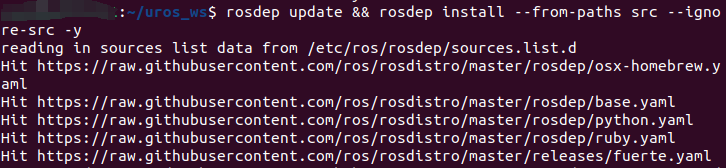

rosdep update && rosdep install --from-paths src --ignore-src -y

Compile workspace

xxxxxxxxxx

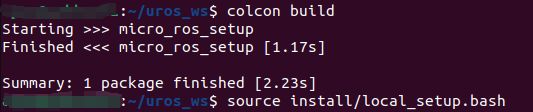

colcon build

Activate micro_ros_setup environment

xxxxxxxxxx
source install/local_setup.bash

Compile micro_ros_agent environment

xxxxxxxxxx

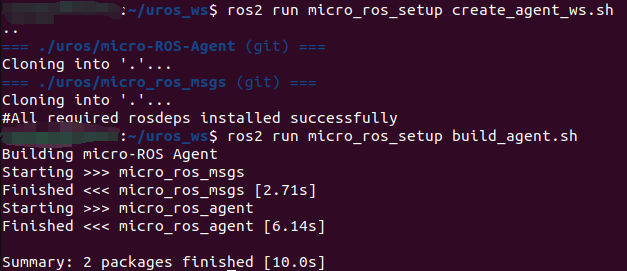

ros2 run micro_ros_setup create_agent_ws.sh
ros2 run micro_ros_setup build_agent.sh

If an error occurs when compiling build_agent.sh, please compile again.

Source code to start microros agent

Activate micro_ros_agent agent environment

xxxxxxxxxx
source ~/uros_ws/install/local_setup.sh

ROS2 source code starts WIFI agent

xxxxxxxxxx
ros2 run micro_ros_agent micro_ros_agent udp4 --port 8090 -v4

Among them, --port 8090 is the network port number, and -v4 is the LOG printing level. The higher the value, the more printing will be done. Modifications can be made according to actual conditions.

If you need to end the proxy, press Ctrl+C in the terminal to exit the proxy.

ROS2 source code starts serial port agent

xxxxxxxxxx

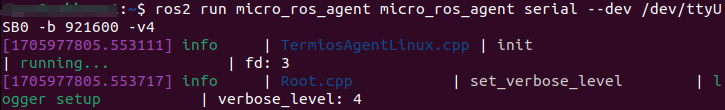

ros2 run micro_ros_agent micro_ros_agent serial --dev /dev/ttyUSB0 -b 921600 -v4

Among them, --dev /dev/ttyUSB0 is the serial port device number, and -b 921600 is the baud rate. Modifications can be made according to actual conditions.

If you need to end the proxy, press Ctrl+C in the terminal to exit the proxy.
