2. Environment setup

Note: The supporting virtual machine has already set up the environment, so there is no need to set it up again. Here is the work that needs to be done on a new motherboard or virtual machine.

The configuration of the virtual machine environment is as follows:

Ubuntu20.04 + ROS-Noetic+ OpenCV 4.2+Python3.8

2.1. Install related dependencies

Terminal input,

xxxxxxxxxx
sudo apt install libgflags-dev ros-$ROS_DISTRO-image-geometry ros-$ROS_DISTRO-camera-info-manager ros-$ROS_DISTRO-image-transport ros-$ROS_DISTRO-image-publisher libgoogle-glog-dev libusb-1.0-0-dev libeigen3-dev

2.2. Create a ROS workspace

Take the creation of a workspace named orbbec_ws in the ~ directory as an example.

Input in the terminal,

xxxxxxxxxx
mkdir -p ~/orbbec_ws/src

Unzip the "source" folder, copy the Orbbec-ros-sdk folder to ~/orbbec_ws/src, and then input the following command to compile,

xxxxxxxxxx
cd ~/orbbec_ws
catkin_make

After the compilation is complete, input the following command to open and edit the ~/.bashrc file,

xxxxxxxxxx
sudo vim ~/.bashrc

Press the [i] key to enter the editing mode, add the workspace to the environment variable, and add the last sentence of the file,

xxxxxxxxxx
source ~/orbbec_ws/devel/setup.bash

Press [ESC] to exit the editing mode, then input [:] and then input [wq] and press Enter, save and exit, then input the following command to refresh,

xxxxxxxxxx
source ~/.bashrc

2.3. Install the camera udev rule file

Terminal input,

xxxxxxxxxx
cd ~/orbbec_ws/src/orbbec-ros-sdk/script
sudo chmod 777 install.sh
sudo bash install.sh

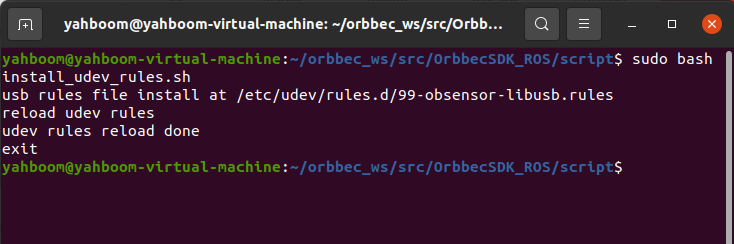

After the installation is complete, it is best to restart.

Enter the following command to verify,

xxxxxxxxxx
#astraproplus
ll /dev/astro_pro_plus
#gemini
ll /dev/gemini*

The following content indicates successful binding

astraproplus displays,

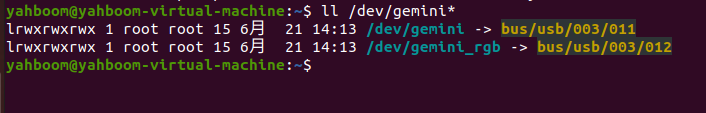

gemini2 displays,

2.4, Use the camera

Terminal input,

xxxxxxxxxx
#astraproplus
roslaunch orbbec_camera astra.launch
#gemini
roslaunch orbbec_camera gemini.launch

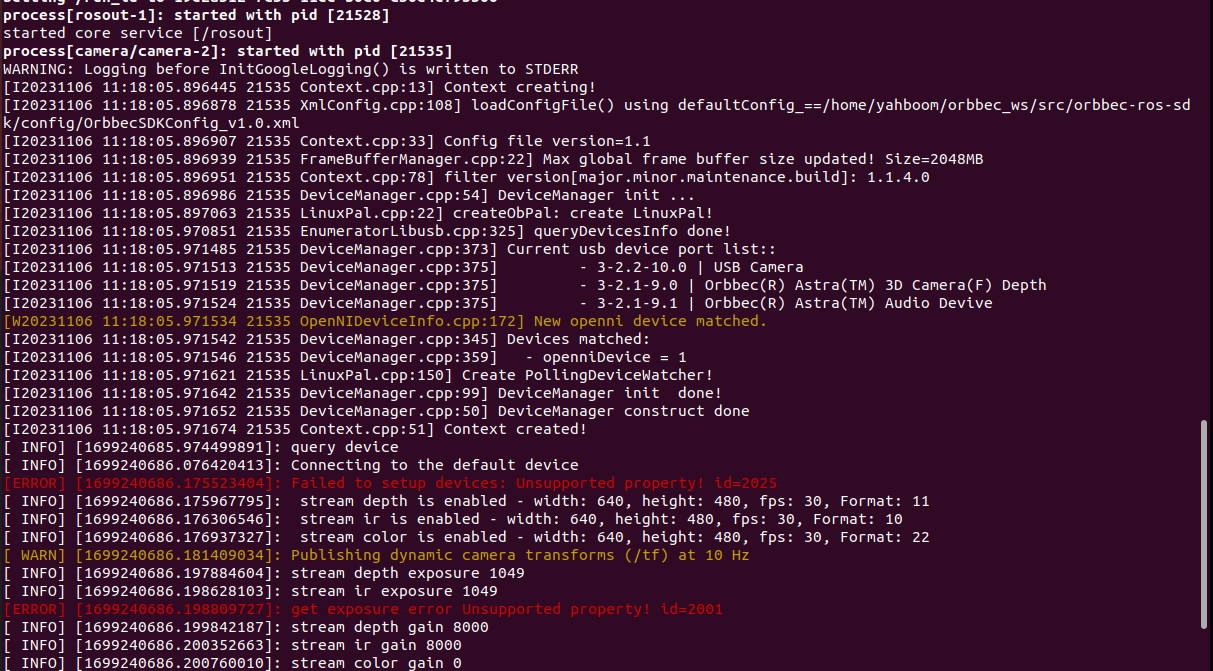

astraproplus camera

The red error and yellow warning are because the SDK is compatible with multiple cameras and the corresponding camera model is not found. The log printed by the terminal does not affect the use.

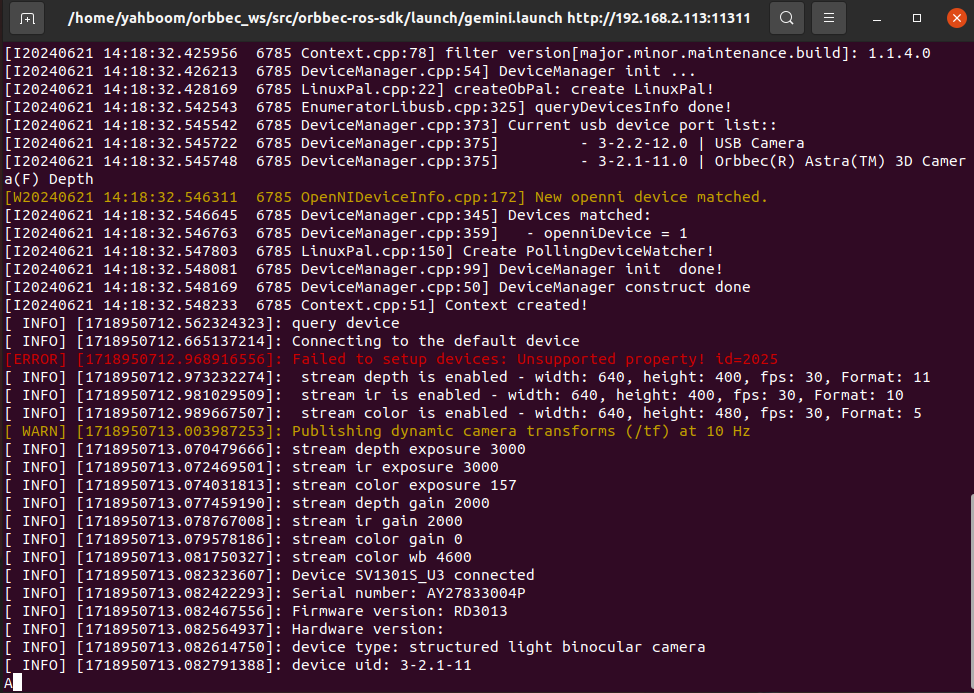

gemini camera

Use rviz to view the image, input in the terminal,

xxxxxxxxxx
rviz

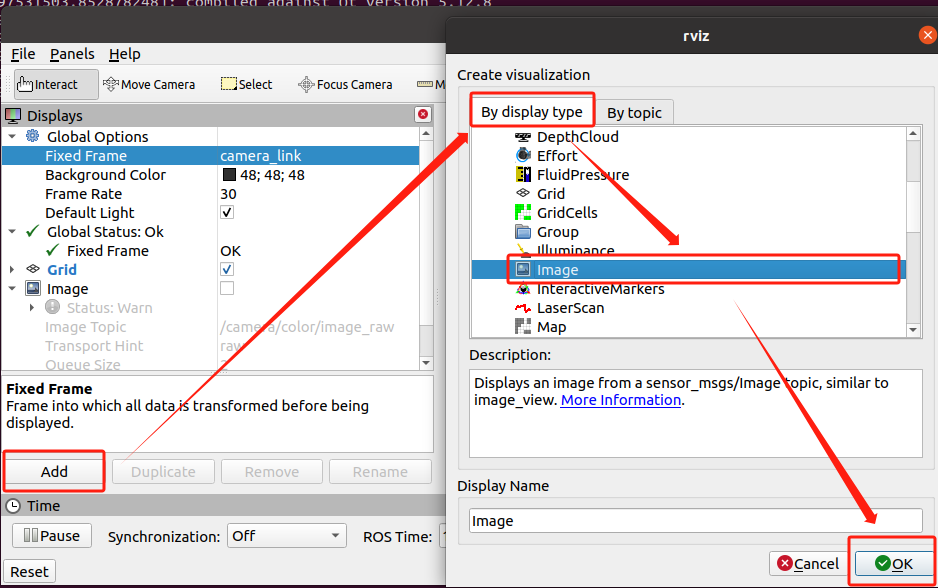

Change Fixed Frame to camera_link, then install as shown below, add Image display plug-in,

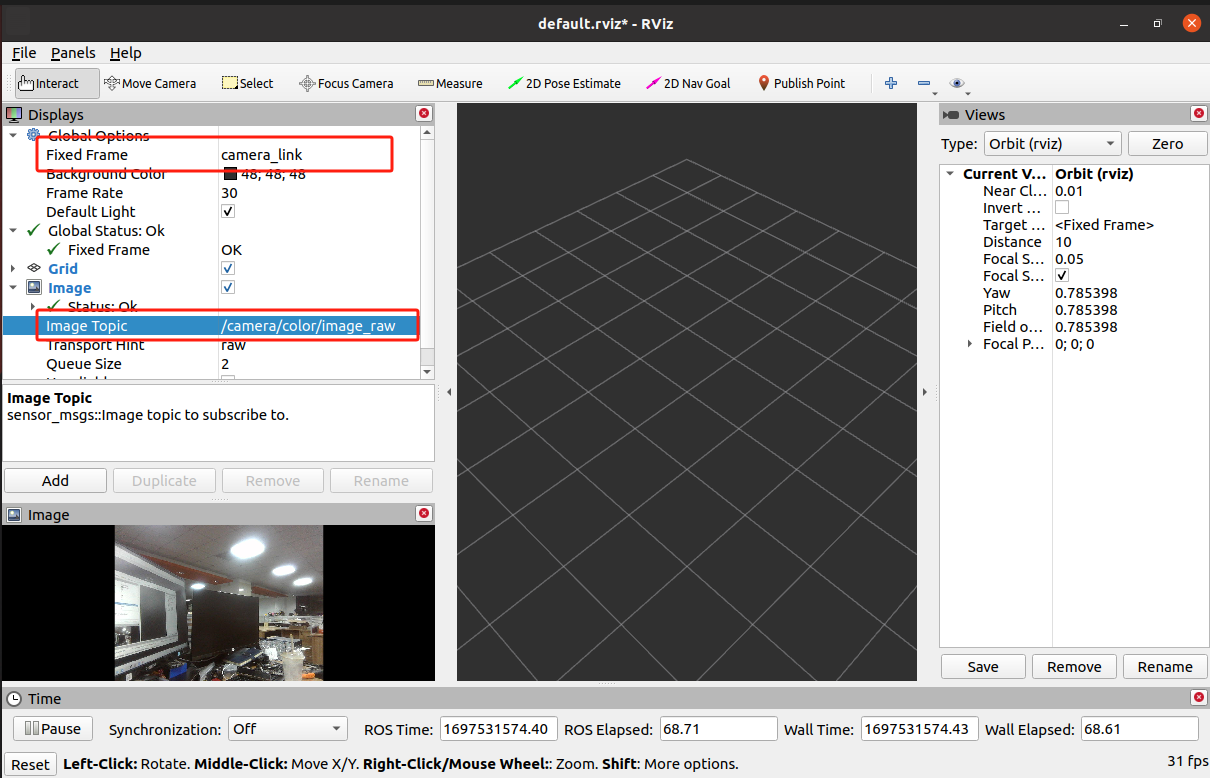

Then, click Image, select Display color image in the Image Topic column: /camera/color/image_raw

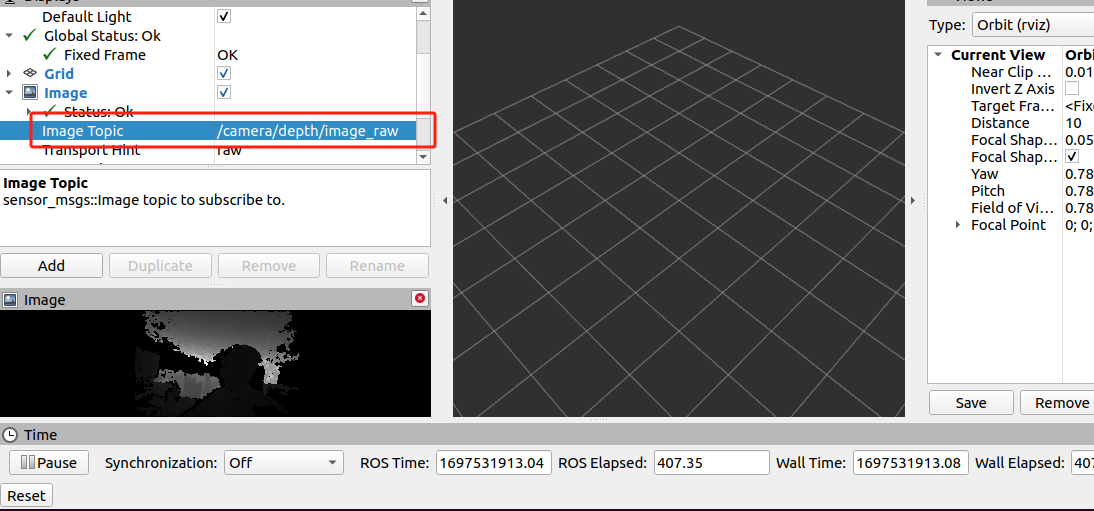

Also in Image Select the depth image in the Topic column: /camera/depth/image_raw

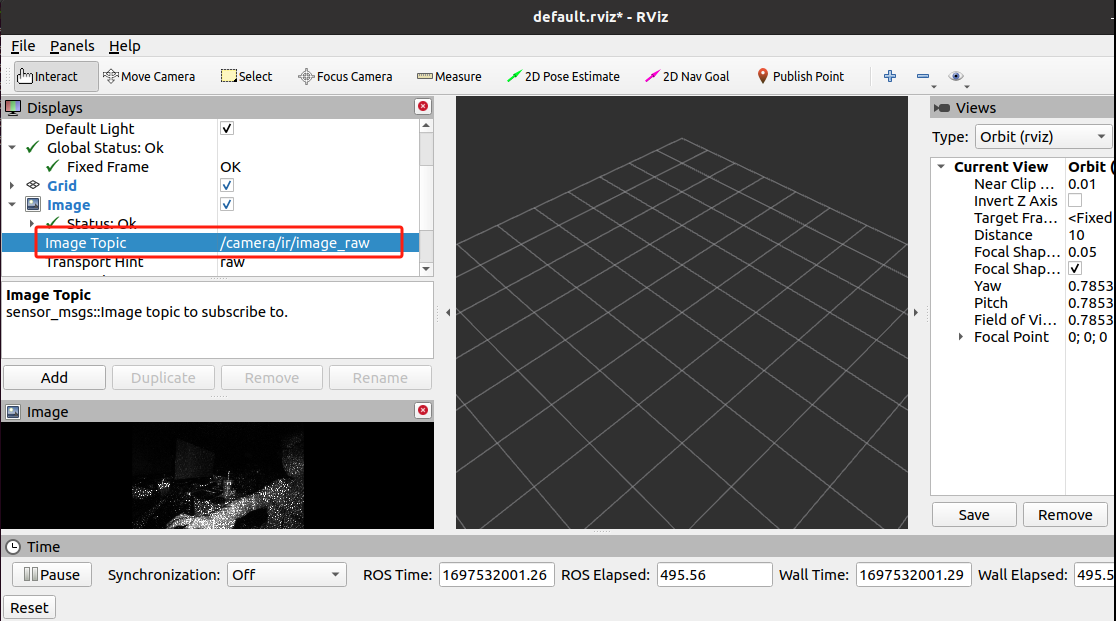

Also select the IR image in the Image Topic column: /camera/ir/image_raw
