6. ROS2 Nodes

1. Node Introduction

Regardless of the communication method used, the construction of communication objects relies on nodes. In ROS2, each node generally corresponds to a single functional module (for example, a radar driver node might be responsible for publishing radar messages, while a camera driver node might be responsible for publishing image messages). A complete robotic system may consist of many nodes working together. In ROS2, a single executable file (C++ program or Python program) can contain one or more nodes.

2. Node Creation Process

1. Create a Program File
2. Import Related ROS Libraries
3. Write Node Functions
4. Write the Configuration File
5. Compile and Run

3. Hello World Node Example

This section uses the Python package as an example.

3.1. Creating the Python Package

Replace -workspace with your actual workspace path.

xxxxxxxxxx
cd workspace/src
ros2 pkg create pkg_helloworld_py --build-type `ment_python` --dependencies `rclpy` --node-name `helloworld`

3.2. Writing Code

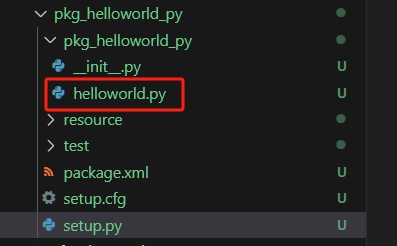

Executing the above command will create pkg_helloworld_py and a helloworld.py file for writing the node:

Delete the original helloworld.py Write the following code:

xxxxxxxxxx
​
import rclpy                                     # ROS2 Python interface library
from rclpy.node import Node                      # ROS2 node class
import time
​
"""
Create a HelloWorld node and log "Hello World" during initialization.
"""
class HelloWorldNode(Node):
    def __init__(self, name):
        super().__init__(name)                     # Initialize the ROS2 node parent class
        while rclpy.ok():                          # Check if the ROS2 system is running properly
            self.get_logger().info("Hello World")  # Output ROS2 logs
            time.sleep(0.5)                        # Sleep control loop time
​
def main(args=None):                               # Main entry point for the ROS2 node
    rclpy.init(args=args)                          # Initialize the ROS2 Python interface
    node = HelloWorldNode("helloworld")            # Create and initialize the ROS2 node object
    rclpy.spin(node)                               # Loop and wait for ROS2 to exit.
    node.destroy_node()                            # Destroy the node object
    rclpy.shutdown()                               # Close the ROS2 Python interface
​

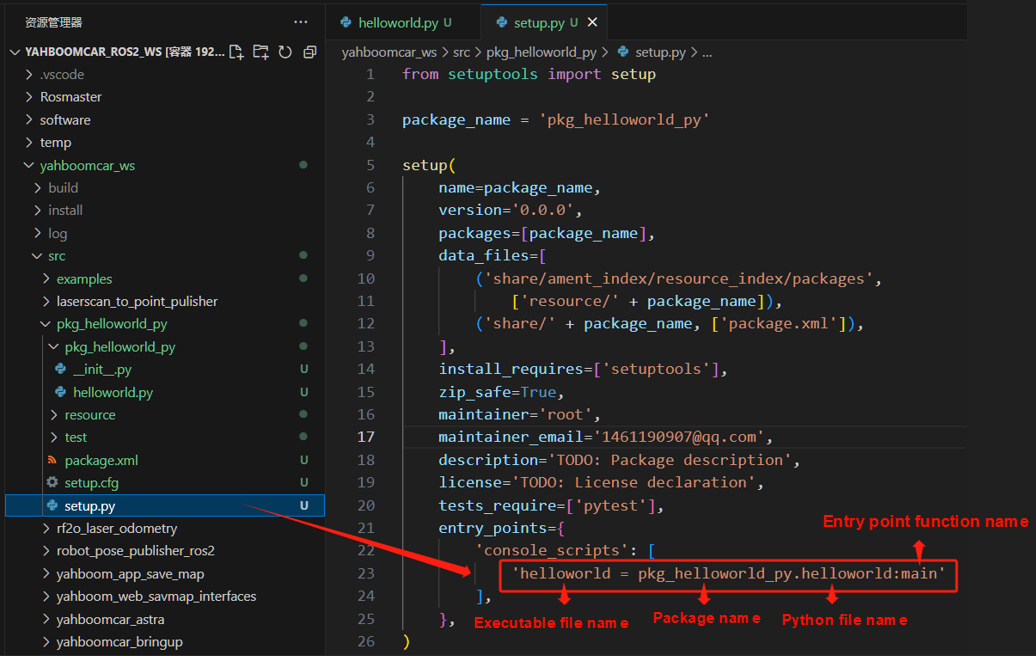

After writing the code, you need to set the package's compilation options to let the system know the entry point for the Python program. Open the package's setup.py file and add the following entry point configuration:

3.3. Compiling the Package

• Compiling the Package

xxxxxxxxxx
colcon build --packages-select pkg_helloworld_py

• Refresh the environment variables in the workspace

xxxxxxxxxx
source install/setup.bash

3.4. Running the Node

xxxxxxxxxx
ros2 run pkg_helloworld_py helloworld

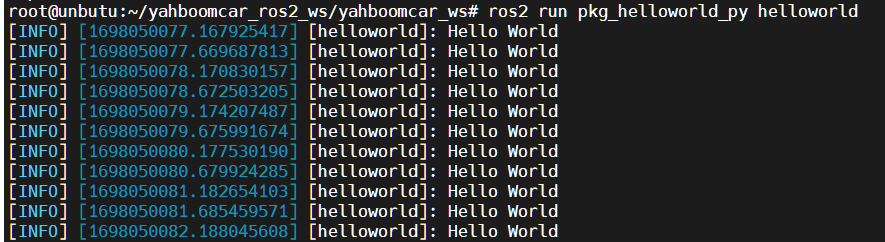

After running successfully, you can see the "Hello World" string being printed in a loop in the terminal:
