Flash new system to the onboard eMMC

Tutorial Demonstrates Burning an NVIDIA Official System Image to the Onboard EMMC using the Jetson AGX Orin Official Kit

Note:The SSD purchased with this product contains a factory image. To avoid data loss due to accidental operation, please ensure that the SSD is not inserted into the motherboard before proceeding!

1. Hardware Connection

1.1 Flashing Mode

Plug the power adapter into the Jetson AGX Orin motherboard. Press and hold the flash button, then press the reset button once, and release the flash button to enter flashing mode.

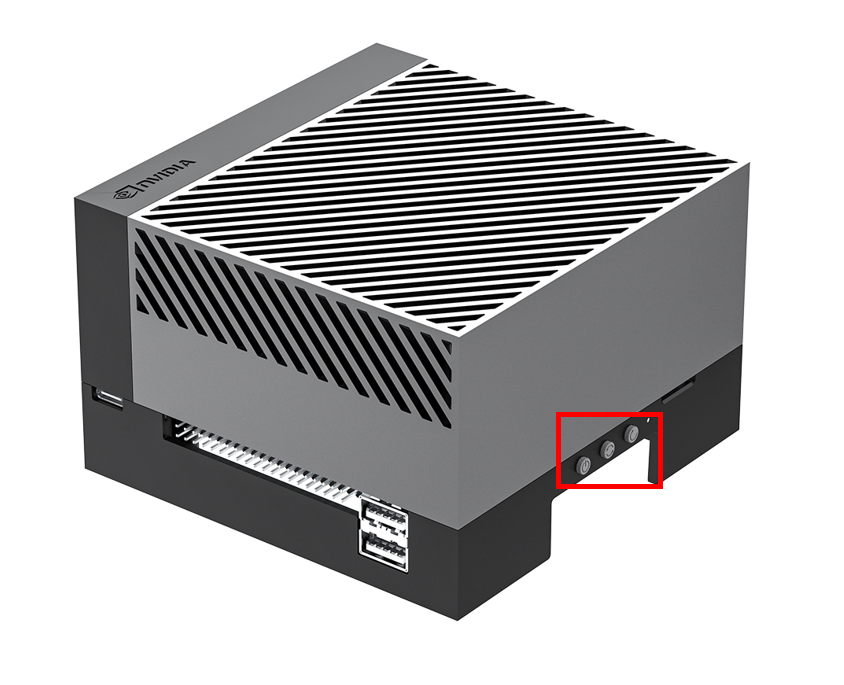

As shown in the image below, the three buttons from left to right are the power button, flash button, and reset button.

1.2 Motherboard Connection

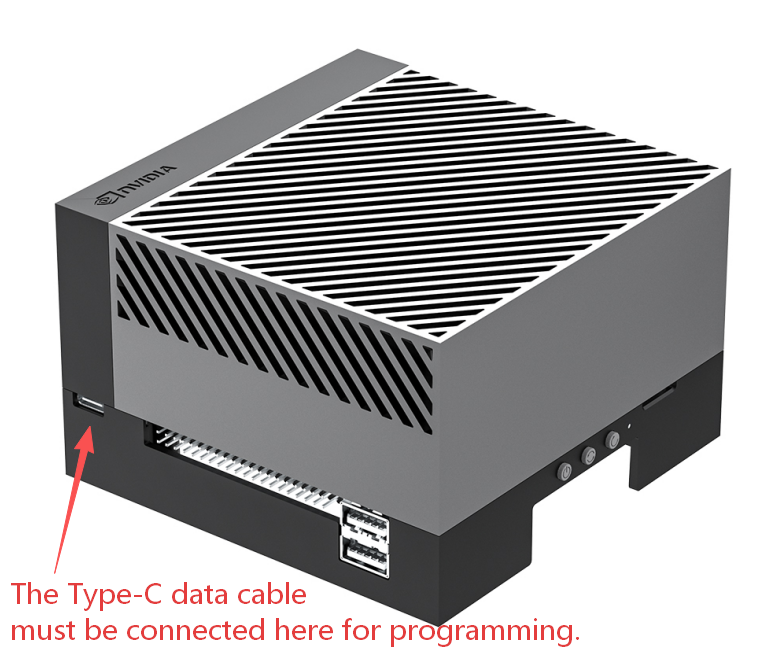

The Jetson AGX Orin motherboard requires a power adapter and a Type-C data cable. The Type-C cable connects to the computer's USB port for data transfer, and the other end must connect to the Type-C port next to the 40-pin header on the Jetson AGX Orin motherboard.

2. Software Connection

This tutorial uses VMware Workstation 17 Pro for system flashing!

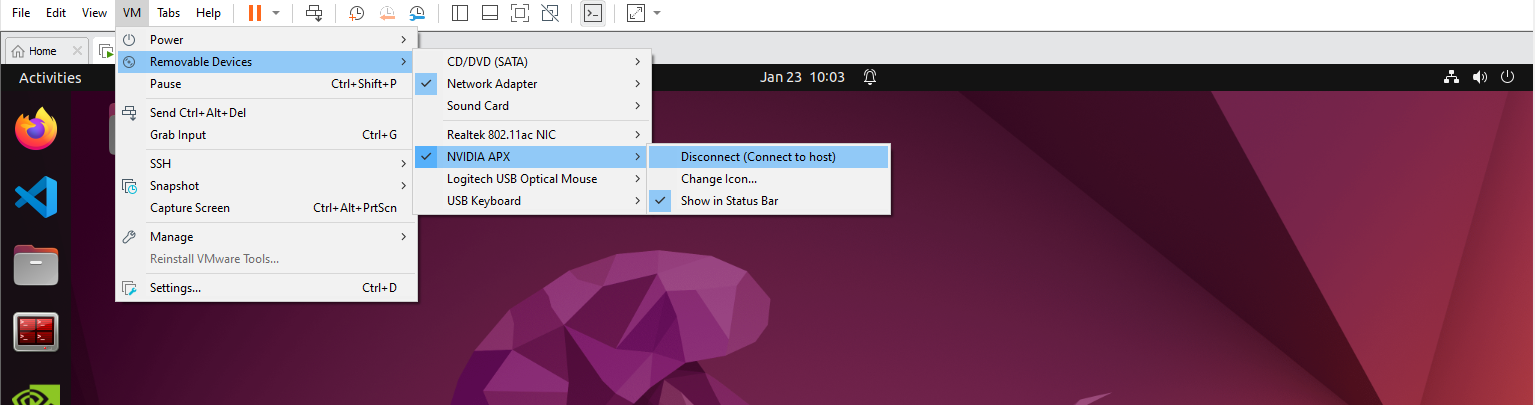

After starting the virtual machine, select the following in the menu bar: Virtual Machine → NVIDIA APX → Confirm the connection status with the virtual machine

3. Using SDK Manager

Using SDK Manager requires prior account registration and login. Please complete the registration and login process yourself!

Using our virtual machine, SDK Manager is not required. If you cannot update SDK Manager, you can reinstall it following the tutorial below.

3.1 SDK Manager Download

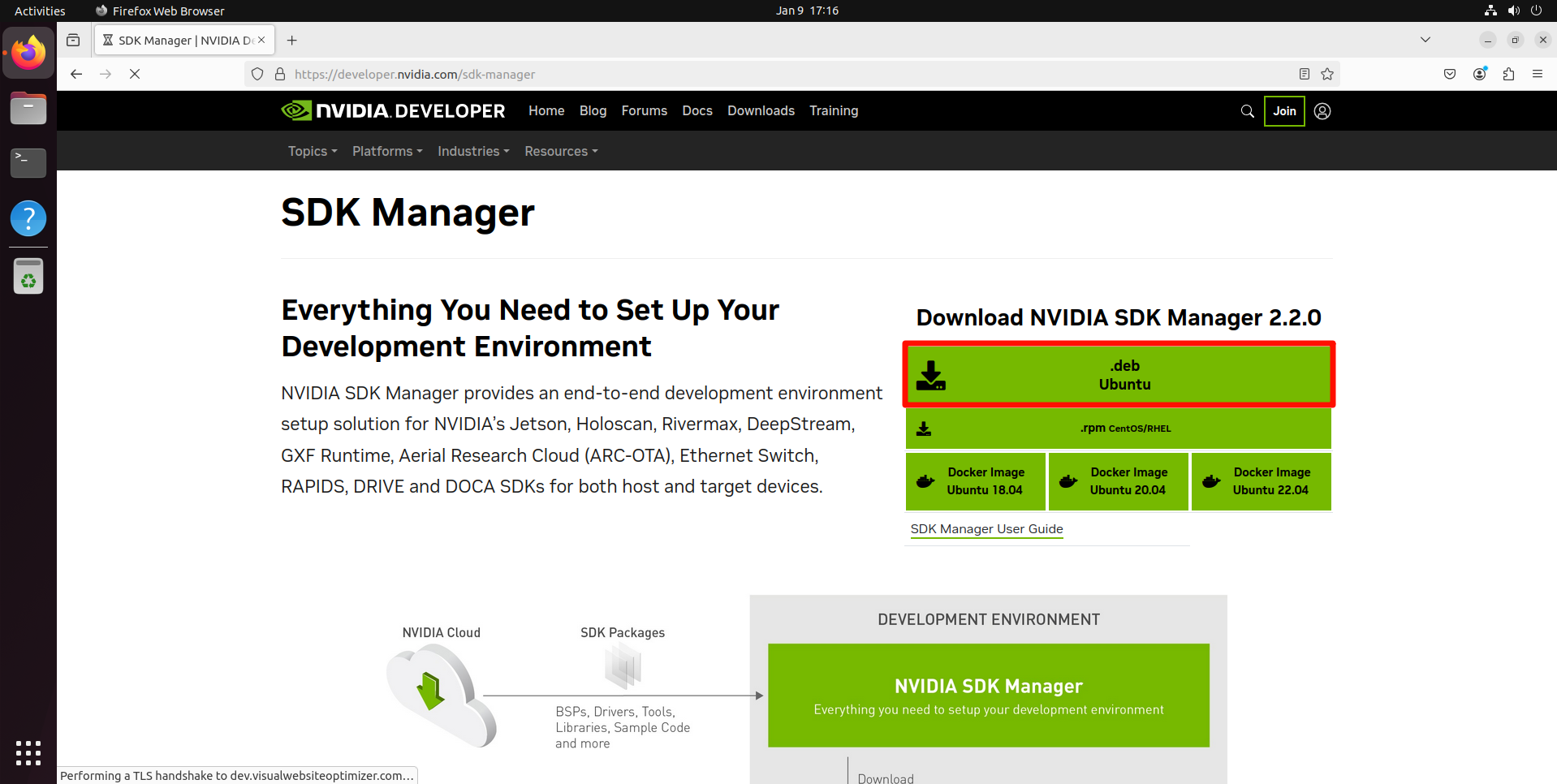

Official Website: https://developer.nvidia.com/sdk-manager

3.2 SDK Manager Installation

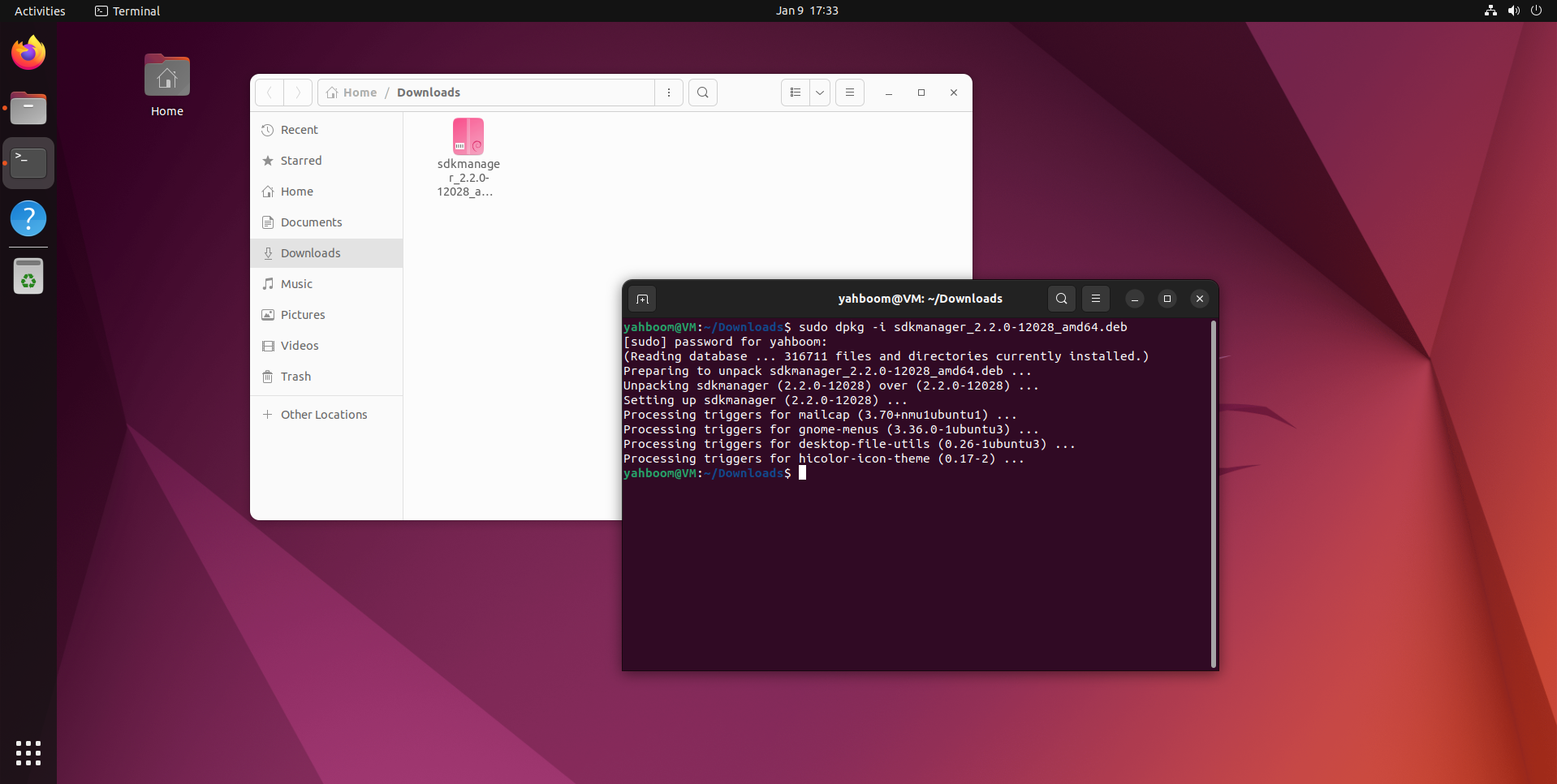

Go to the folder containing the installation package and run the installation command:

xxxxxxxxxx
sudo dpkg -i sdkmanager_2.2.0-12028_amd64.deb

Fix Dependencies: On a clean system, installing sdkmanager may result in an error message. You can run the following command and then rerun the installation command:

xxxxxxxxxx
sudo apt --fix-broken install -y

3.3 Starting and Logging into the Account

Find the SDK Manager application icon in the system application menu bar or enter the following command in the terminal to start it:

xxxxxxxxxx
sdkmanager
# To burn an older version of Jetpack, you need to use the command: sdkmanager --archived-versions

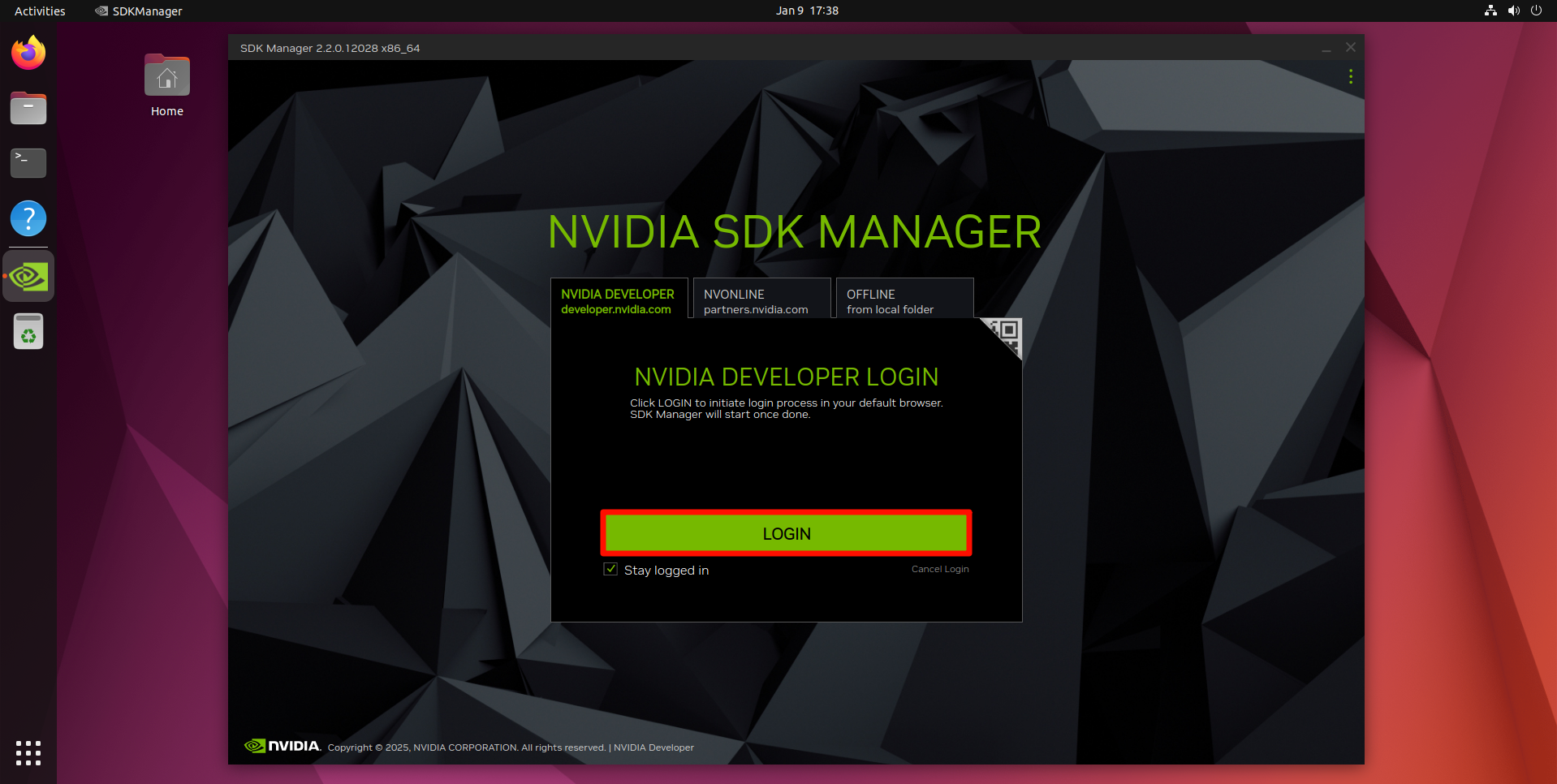

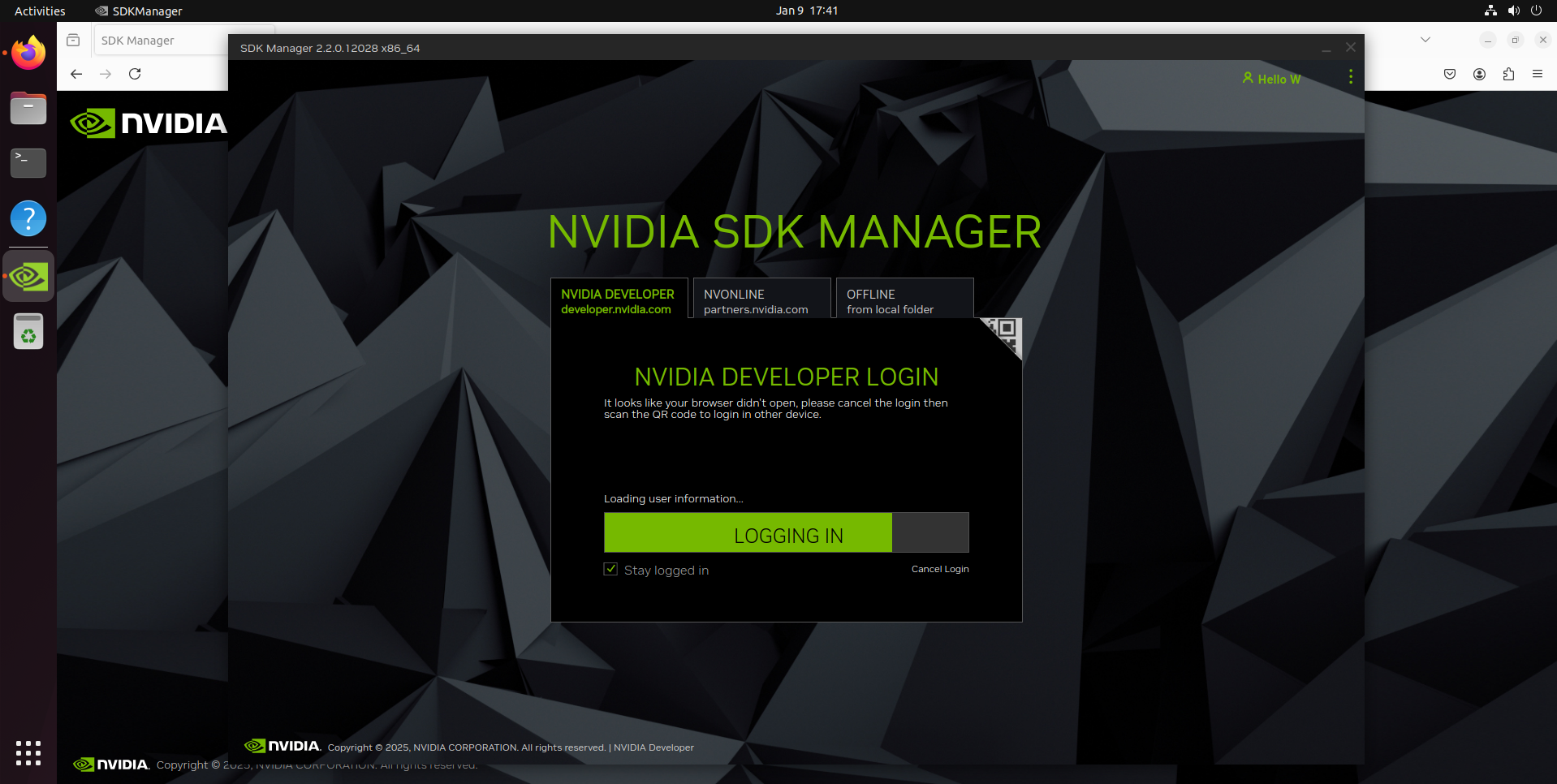

After clicking login, the browser login page will automatically pop up:

Enter your previously registered account and password to enter the software:

3.4 Motherboard Selection

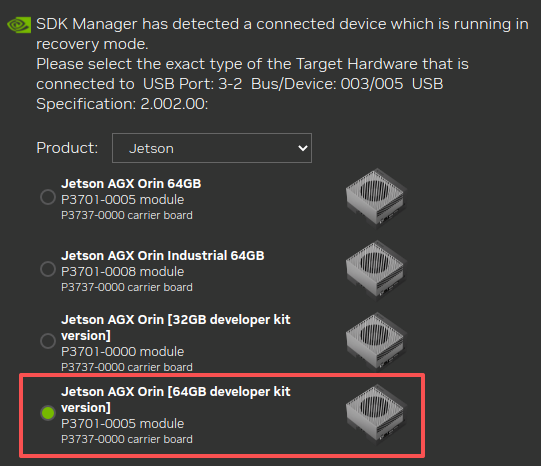

Select according to your motherboard model: Official kit selection is Jetson AGX Orin [64GB developer kit version]

3.5 STEP 1

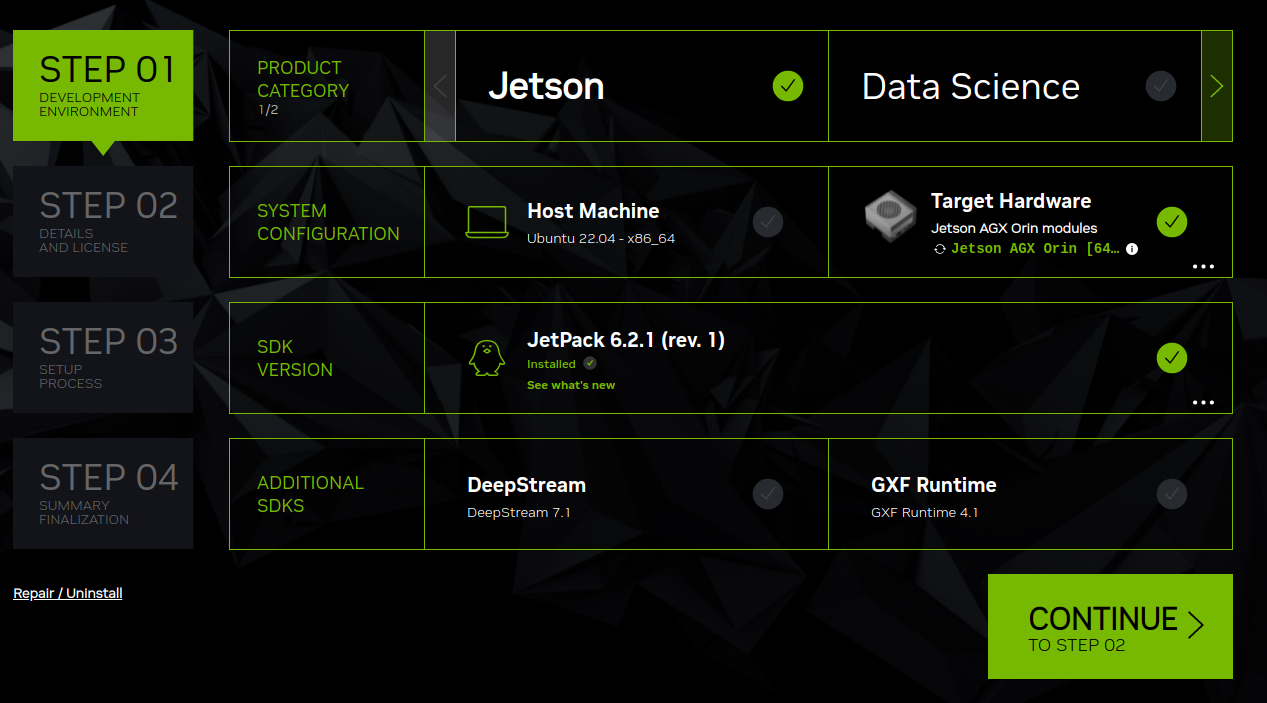

Select the options below and confirm they match. Then click CONTINUE:

3.6 STEP 2

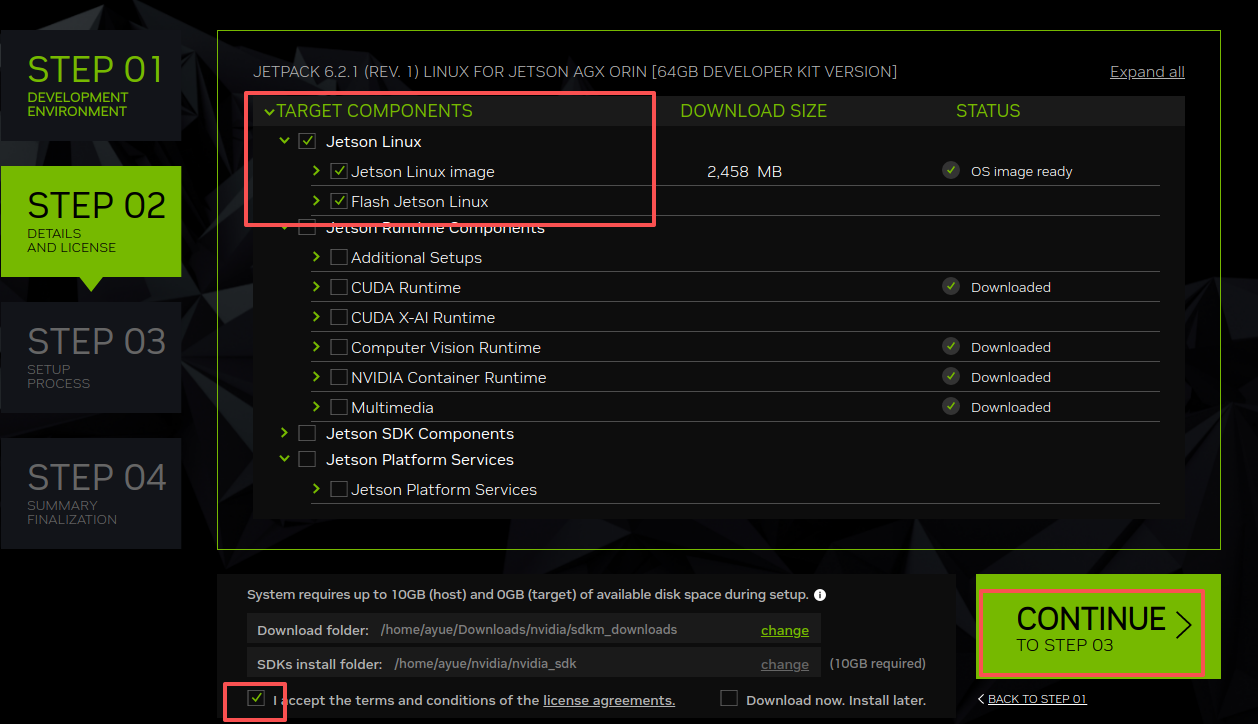

Select the options below and confirm they match. Then click CONTINUE:

3.7 STEP 3

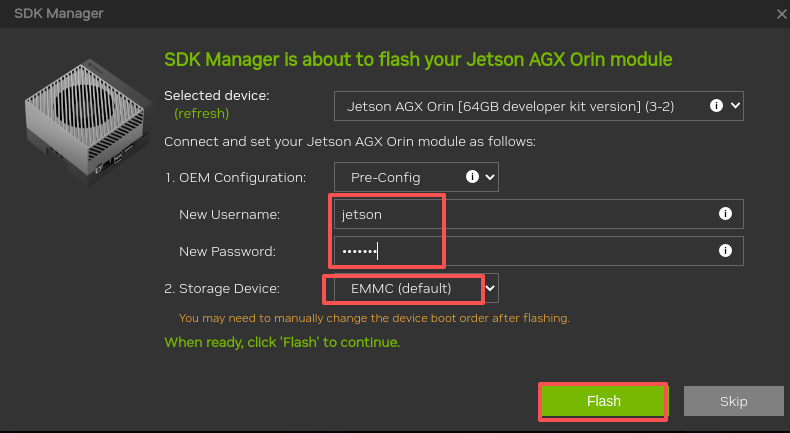

Here, select the username and password, choose to burn to EMMC, and then click Flash to start the burning process.

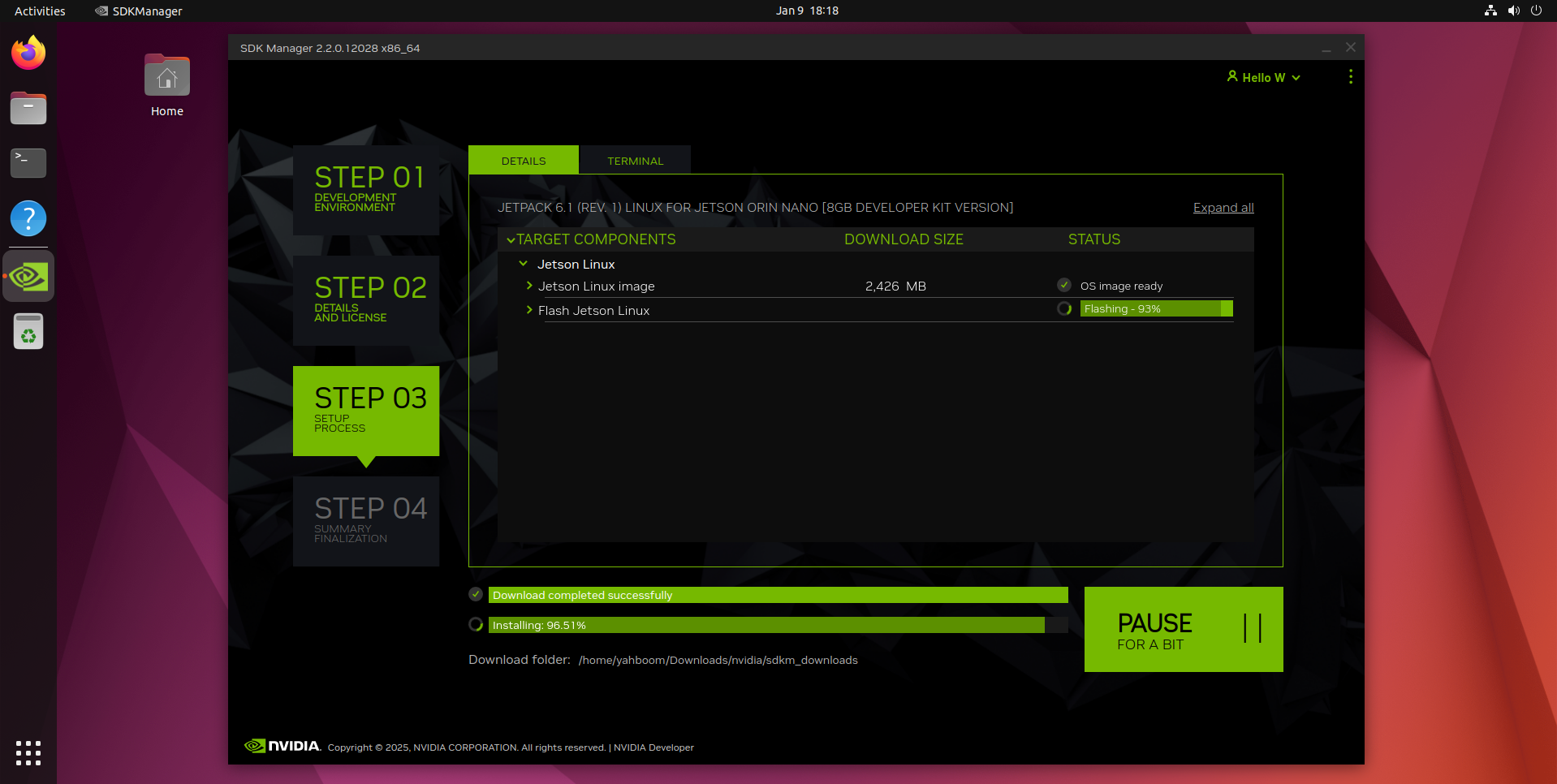

Wait for the system to download and install. The virtual machine automatically controls the connection and disconnection of devices throughout the process, but for more than 95% of the progress, you need to monitor the SDK Manager's system burning progress. Once disconnected and not automatically reconnected to the virtual machine, you need to manually connect the motherboard to the virtual machine immediately:

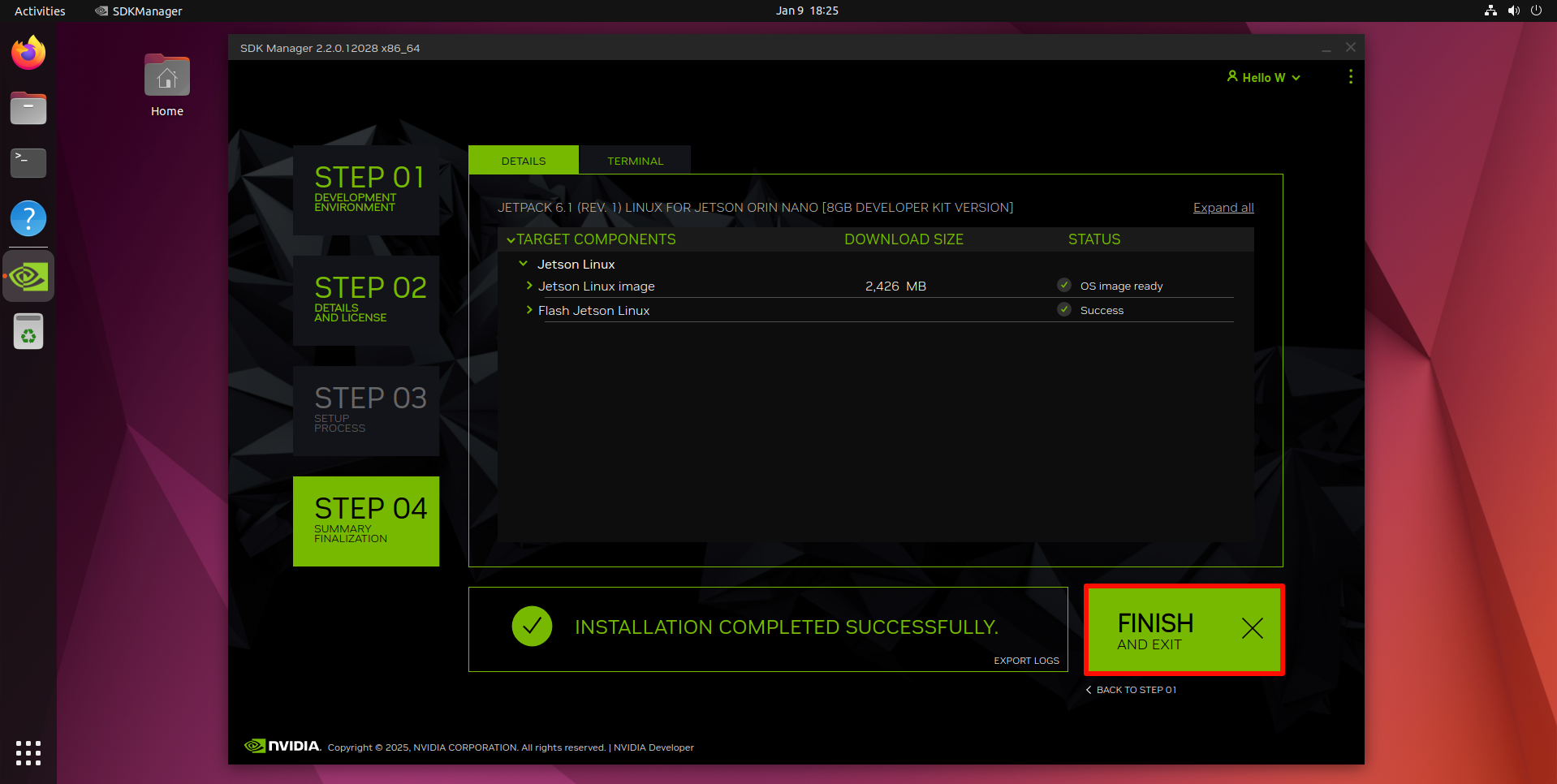

3.8 STEP4

4 Start the System

After successfully burning the system using the SDK Manager, the system will automatically boot up and connect the monitor, keyboard, and mouse to the motherboard for easy initial system setup.

4.1 Normal Mode

The Jetson AGX Orin motherboard powers on in normal mode.

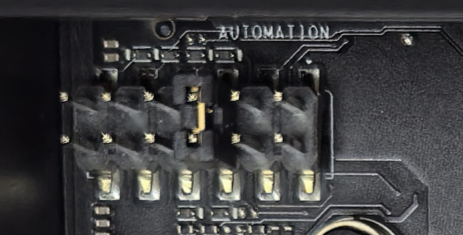

Note: Please keep the AUTOMATION header on the bottom in its default position, as shown in the image below.

4.2 System Booting

Connect the Jetson motherboard to the DP cable, network cable, and Type-C cable, and finally use the power adapter to power the Jetson motherboard.

xxxxxxxxxx
The Jetson AGX Orin series motherboard requires a monitor to display images and perform VNC remote access.

4.3 System Settings

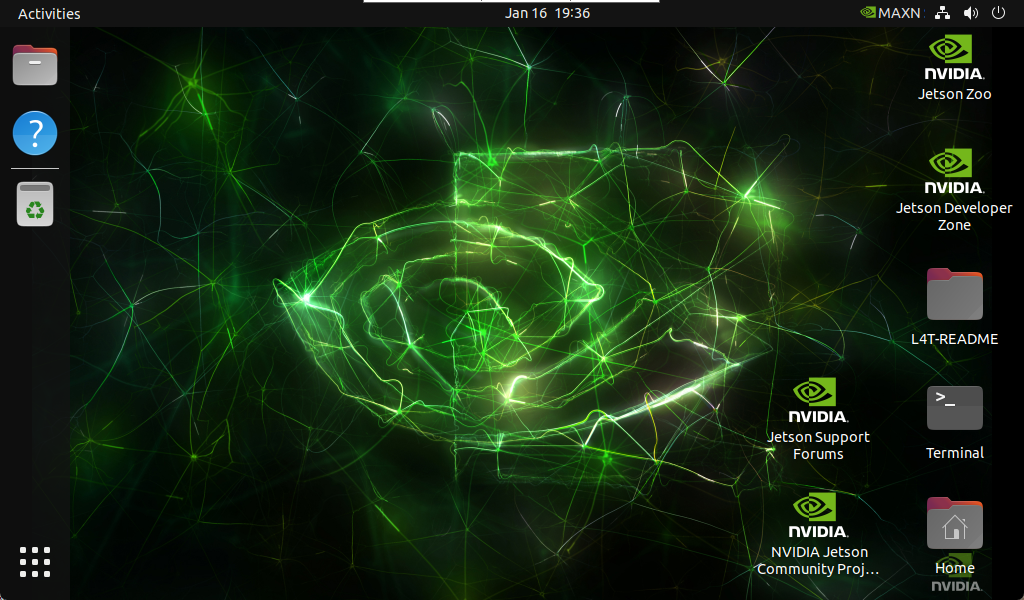

After booting the system, users can follow the system prompts to configure system options. The process is relatively simple and will not be demonstrated.

Frequently Asked Questions

Unrecognized Device

1. Check in the virtual machine software's device settings to see if the USB device is connected to the virtual machine.
2. Disconnect the motherboard's power adapter and Type-C data cable. Power on again, press and hold the flashing button, then press the reset button, release the flashing button, and re-enter flashing mode. Finally, connect the virtual machine again using the Type-C data cable.
