05.Serial communication
Serial Communication Function
Serial Communication Function1. GPIO Pin Diagram2. Serial Port Testing2.1 Installing cutecom2.2 Using cutecom3. Experimental Results

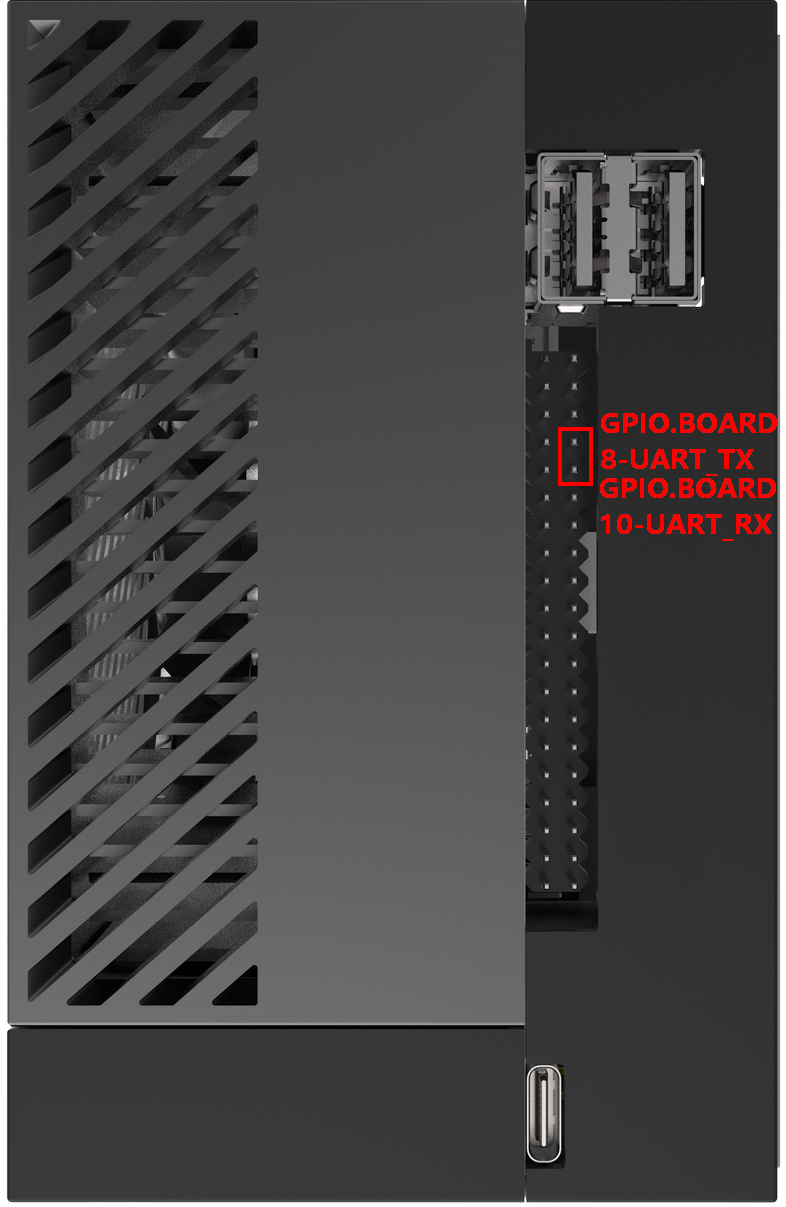

1. GPIO Pin Diagram
GPIO.BOARD pin 8 corresponds to GPIO.BCM 14, GPIO.BOARD pin 10 corresponds to GPIO.BCM 15:
2. Serial Port Testing

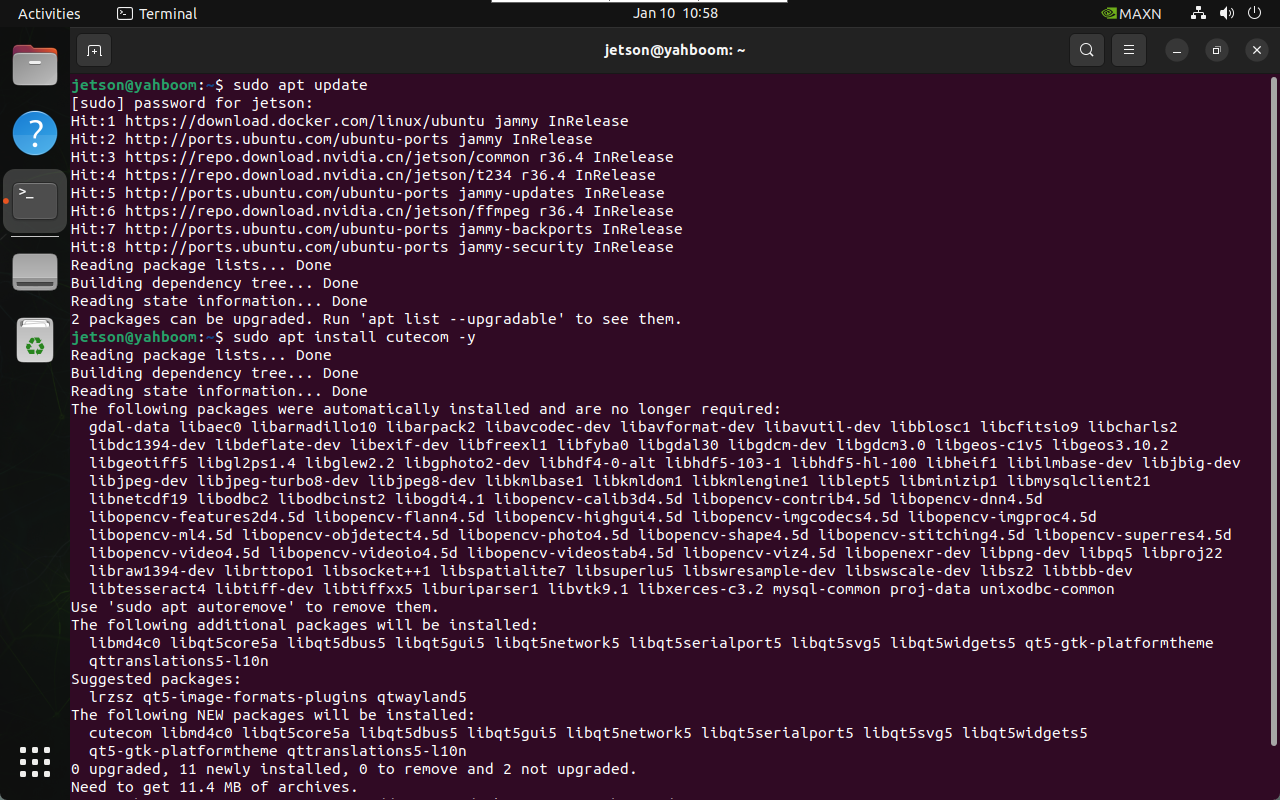

2.1 Installing cutecom
sudo apt updatesudo apt install cutecom -y
2.2 Using cutecom

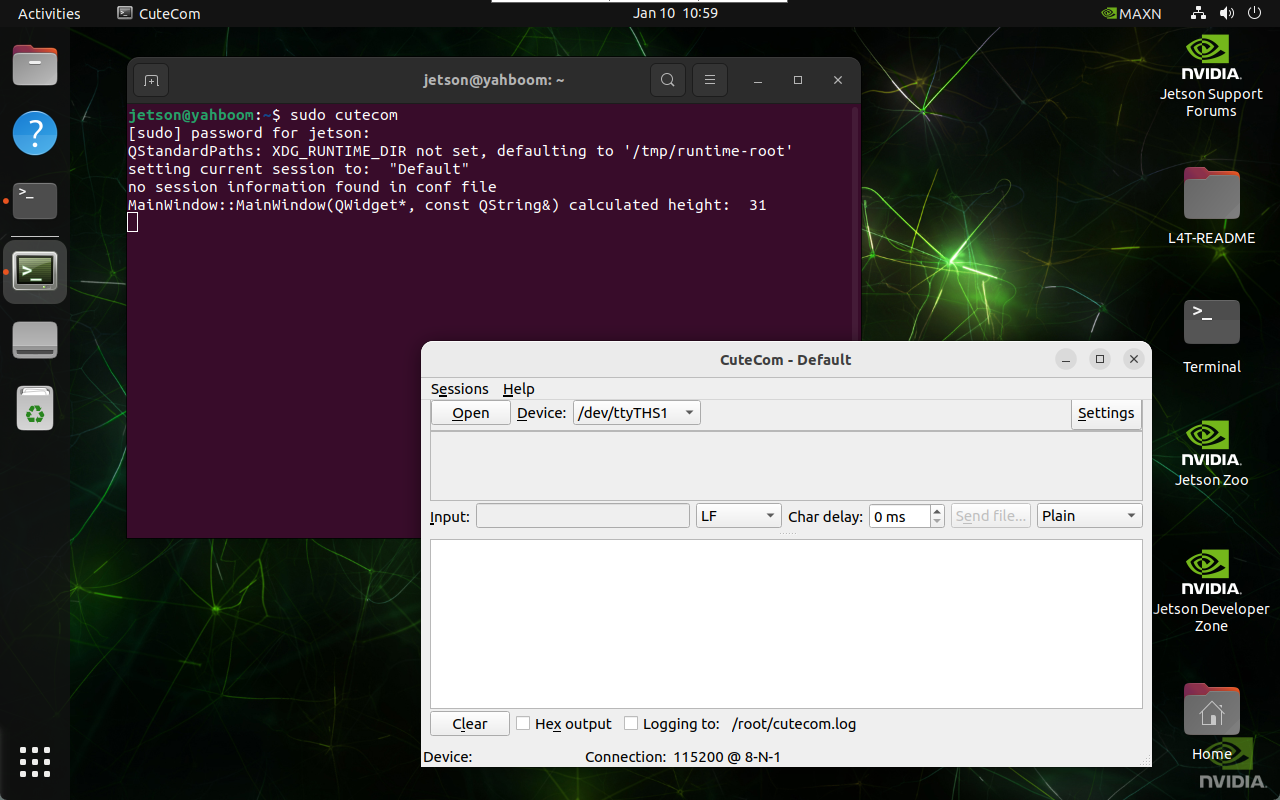

Start cutecom in the terminal:
xxxxxxxxxxsudo cutecom
3. Experimental Results
Short-circuit GPIO.BOARD 8 and GPIO.BOARD 10 pins using jumper caps or DuPont wires.

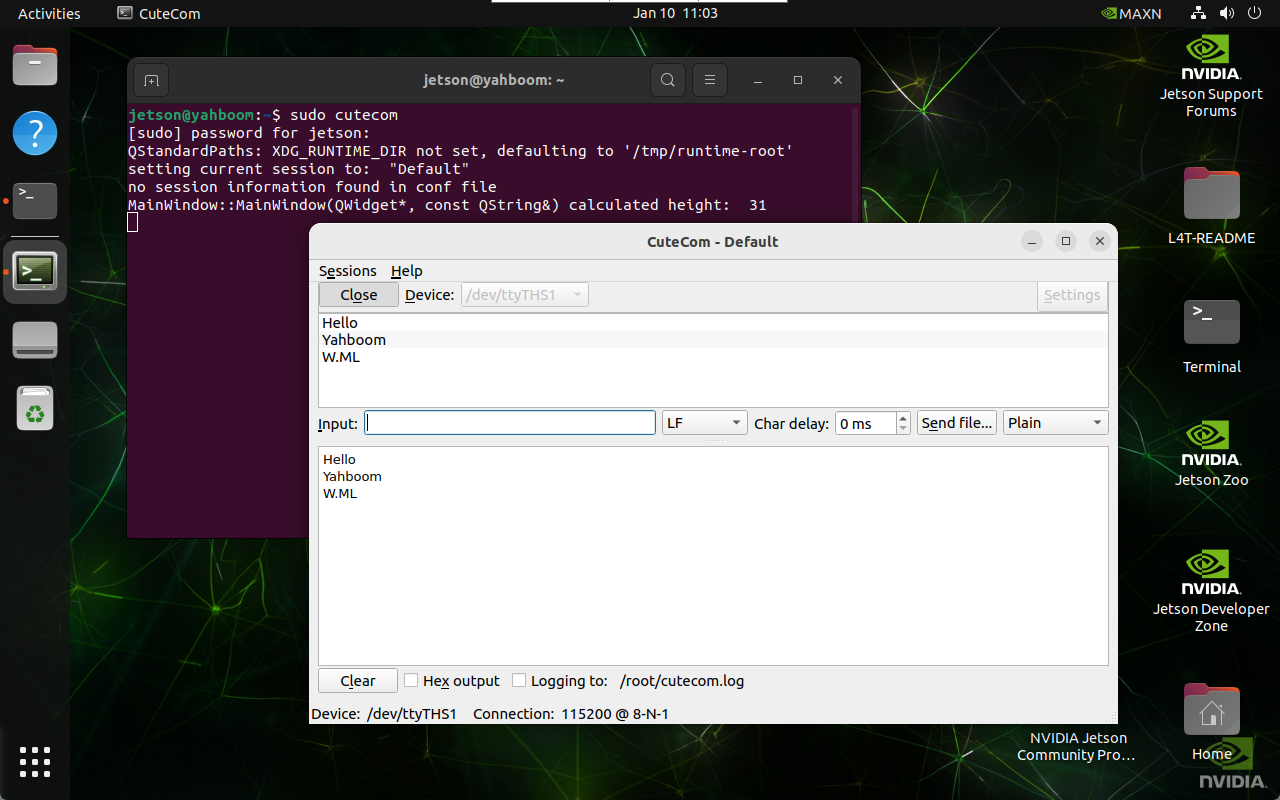

Open the /dev/ttyTHS1 serial port using cutecom: Enter the data to be sent via the serial port in Input. The upper window displays the data sent via /dev/ttyTHS1, and the lower window displays the data received via /dev/ttyTHS1:
Caution: Do not connect incorrectly or cause a short circuit. Errors may damage the motherboard hardware!
