GPIO Output Function

1. GPIO Pin Diagram

GPIO.BOARD pin 13 corresponds to GPIO.BCM pin 27:

2. Running the Program

Currently, some GPIO output control functions are malfunctioning because some pin device trees are only configured with input functions by default, thus output cannot be enabled! **

cd ~/jetson-gpio/samples

xxxxxxxxxx
export JETSON_MODEL_NAME=JETSON_AGX_ORIN

xxxxxxxxxx
sudo python3 simple_out.py

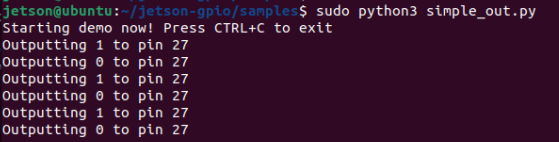

3. Program Results

Using DuPont wires to bring out GPIO.BOARD 13 and GND pins, a multimeter can be used to measure the pin voltage changes:

Caution: Do not connect incorrectly or cause a short circuit. Errors may damage the motherboard hardware!
