Welcome to Muto S2 Robot repository

3. Robot assembly tutorial

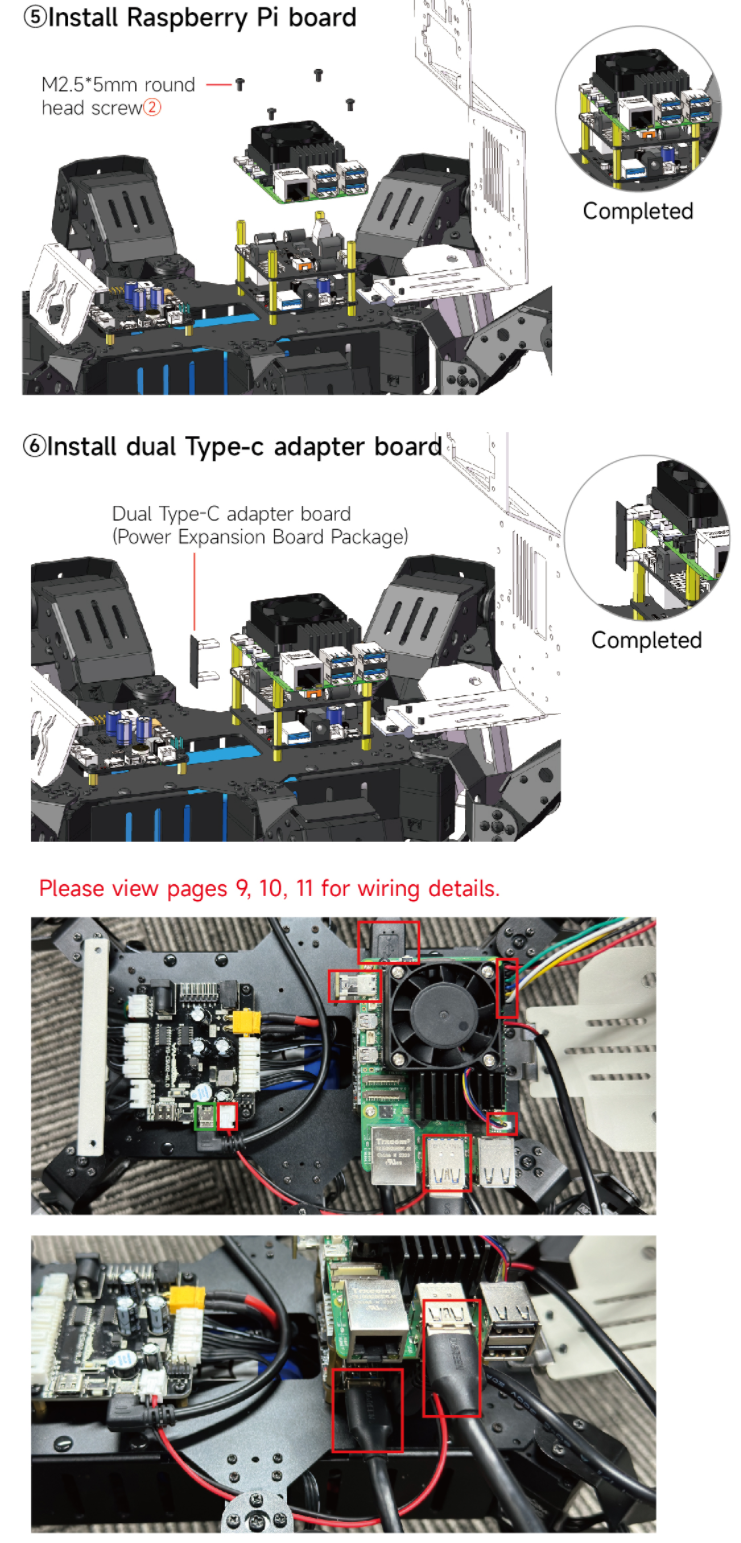

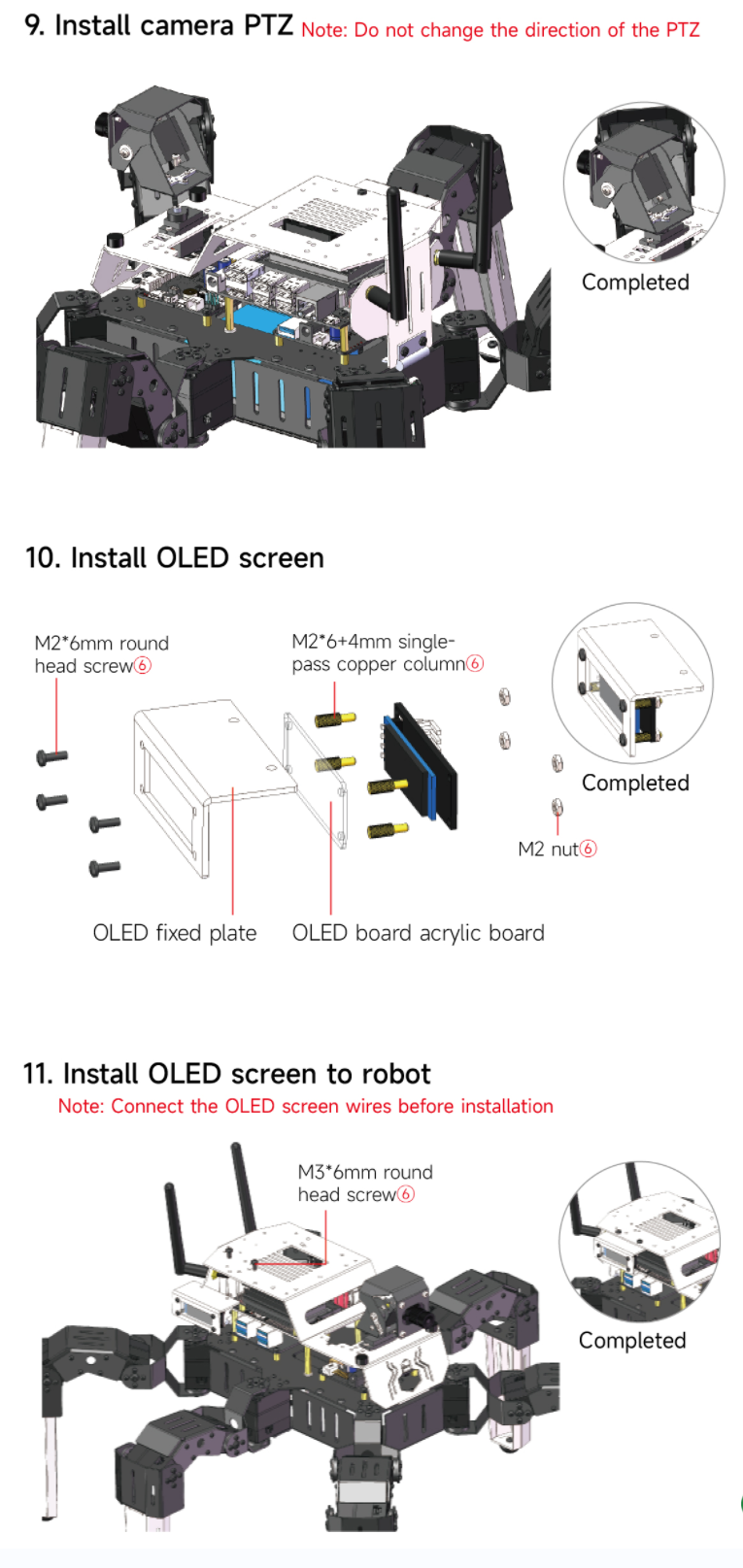

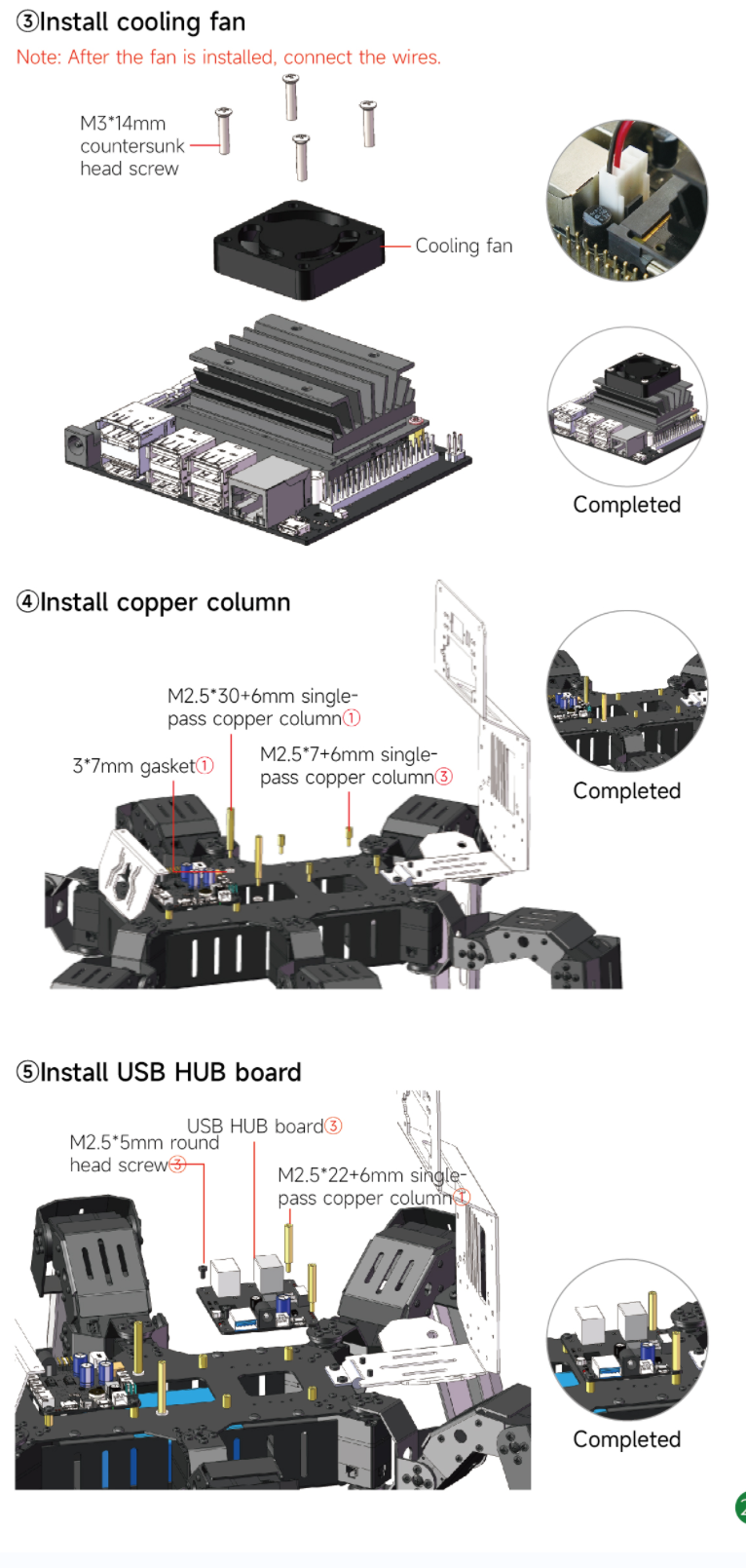

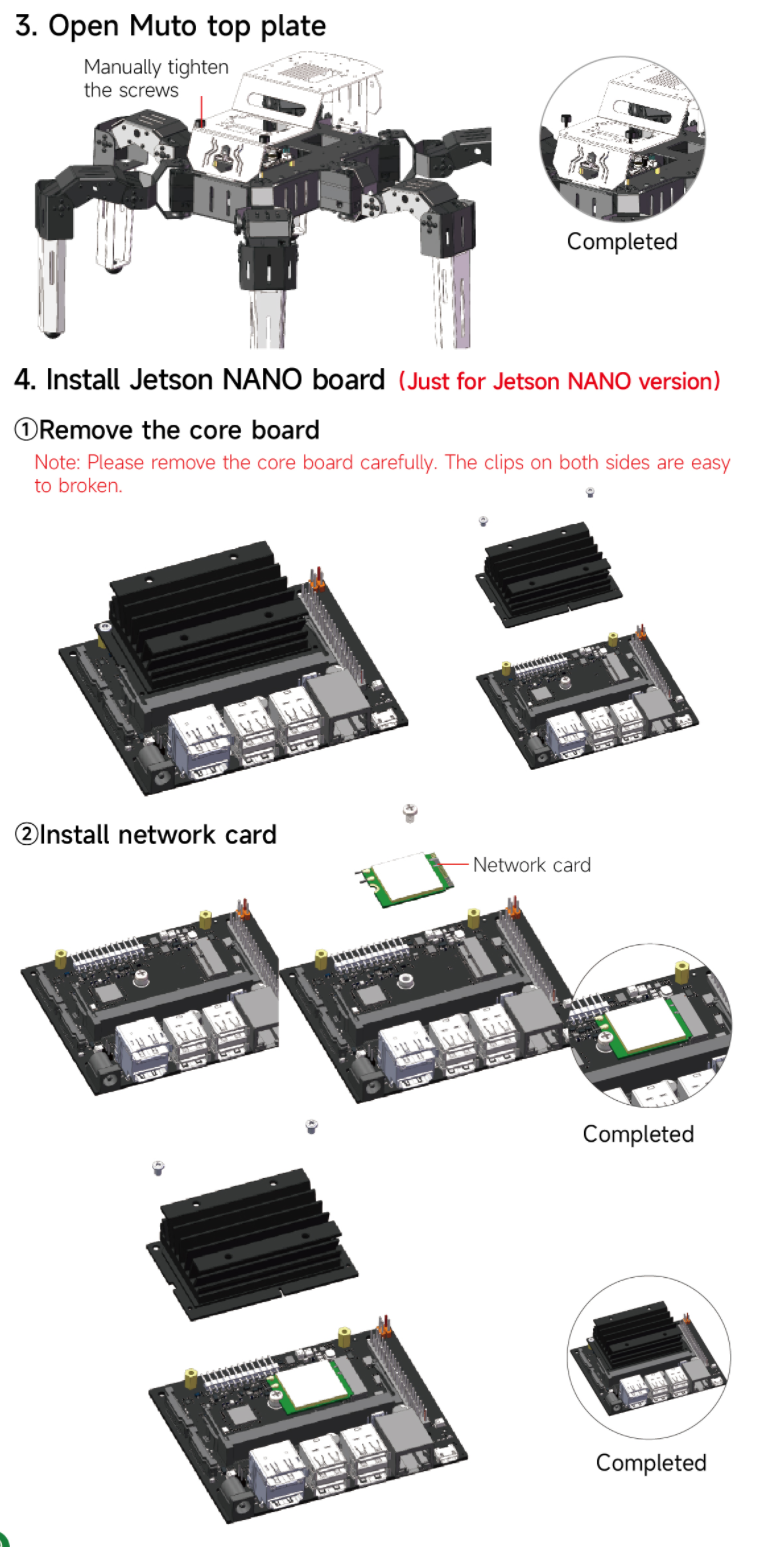

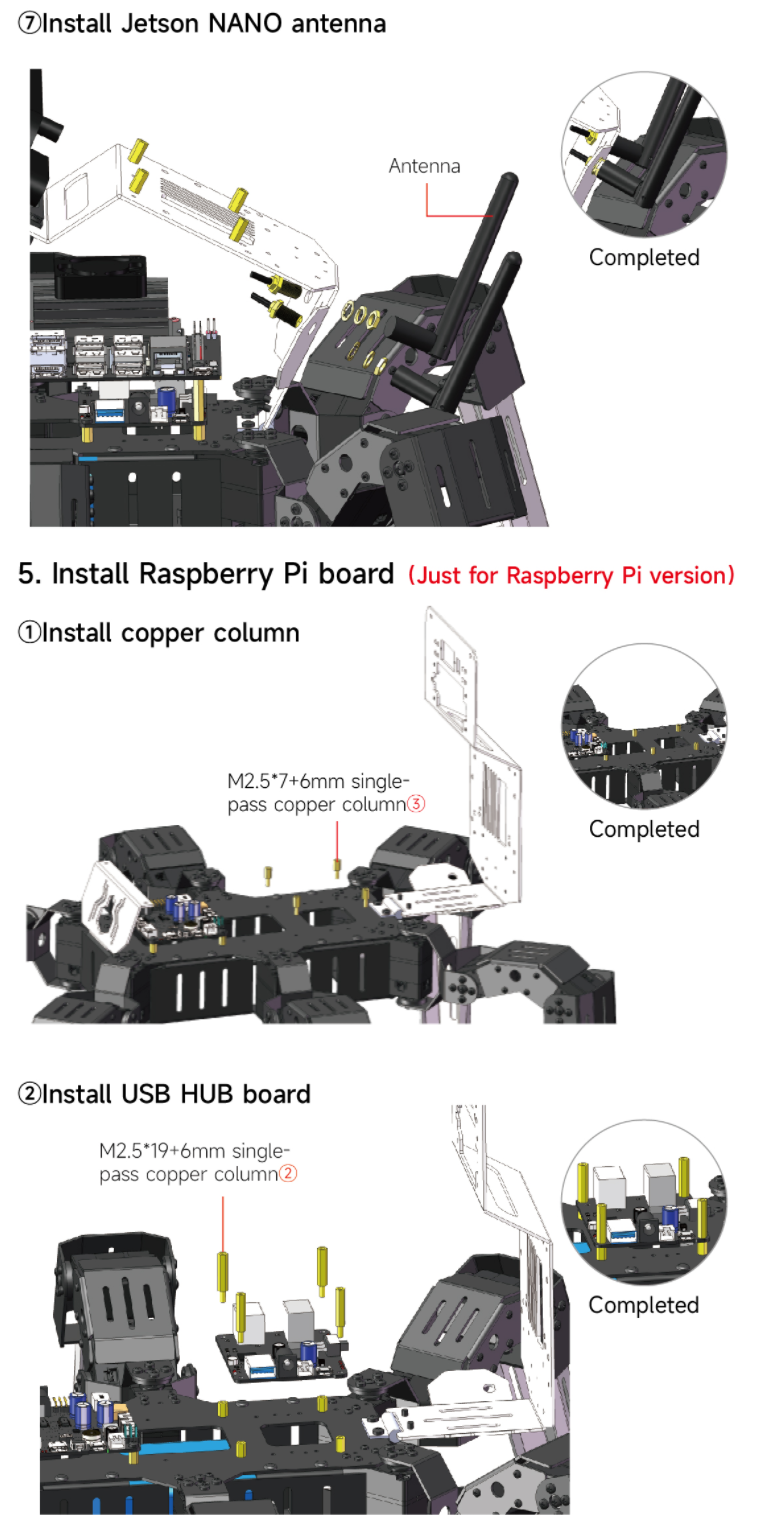

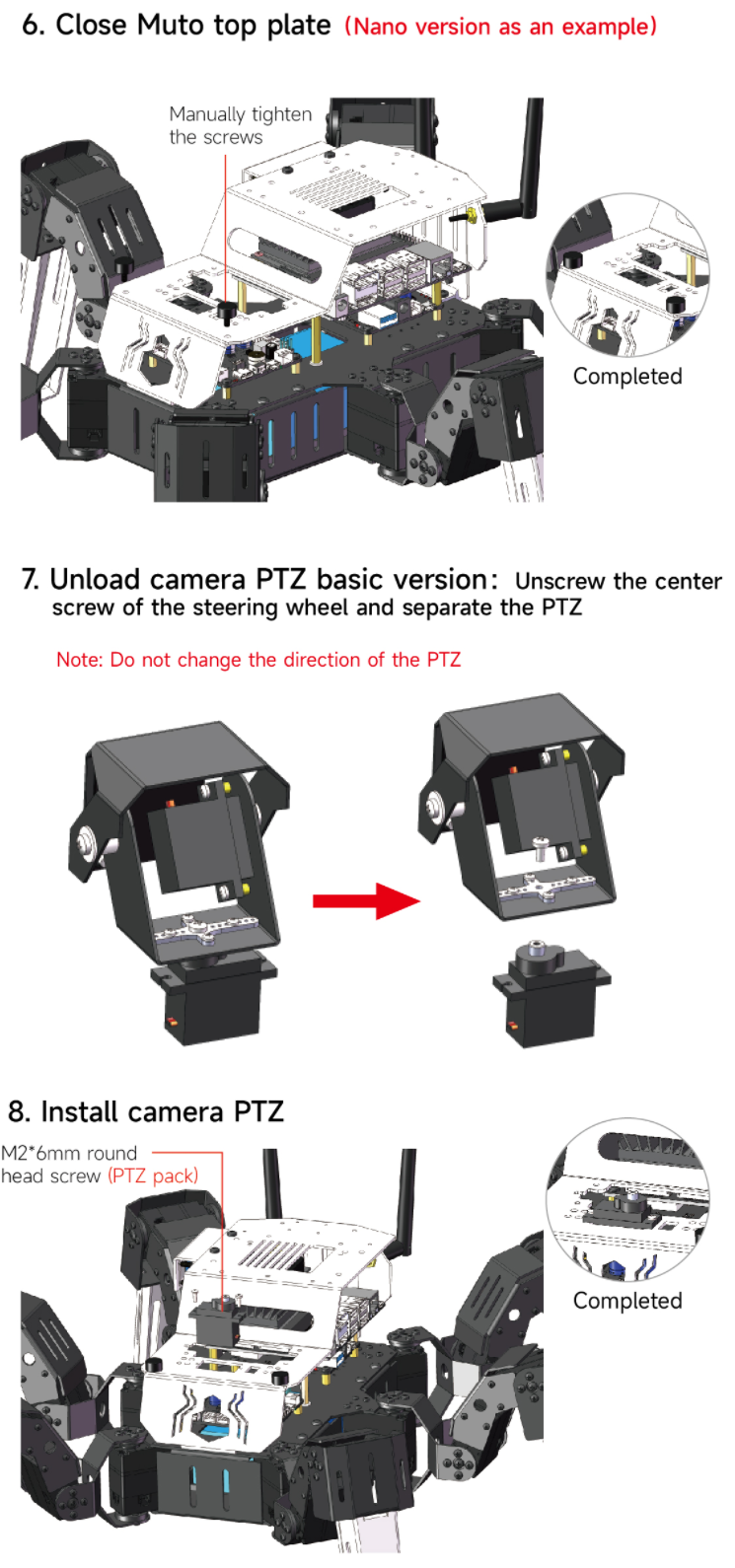

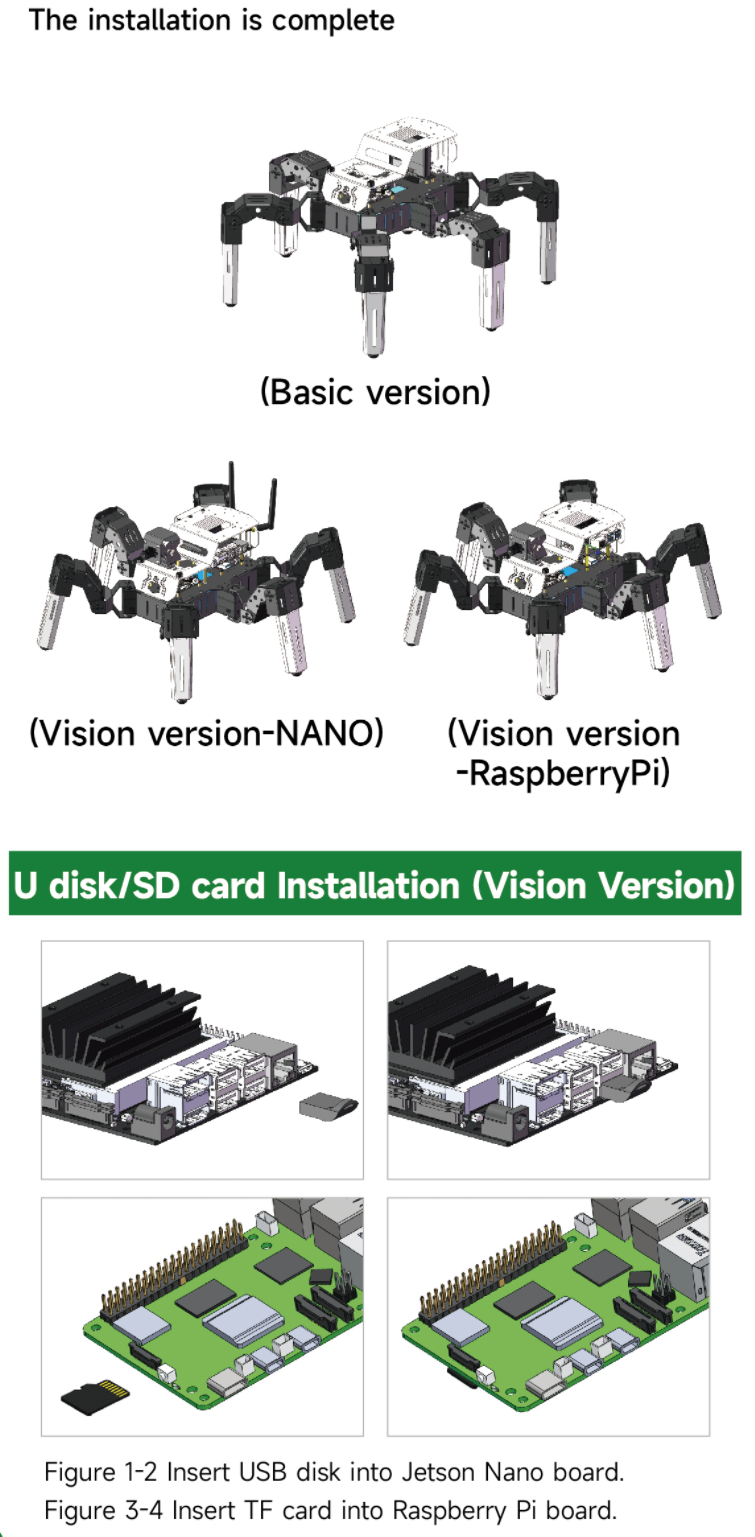

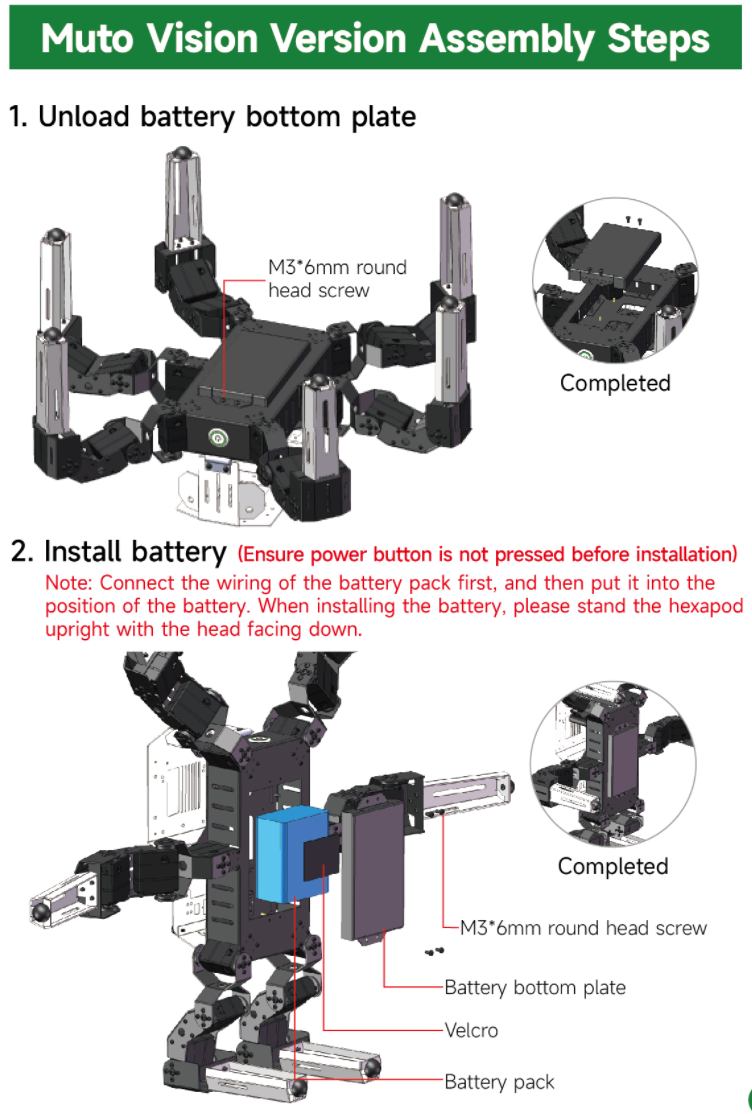

Robot assembly tutorial

Robot assembly tutorialVisual version S2 assembly tutorial

Visual version S2 assembly tutorial

09

10

Jetson Nano write sytem
Installation Video Part1-Part5
