01.DeepStream environment

DeepStream

DeepStream1. System information2. Install DeepStream3. Verify the installationRun the example

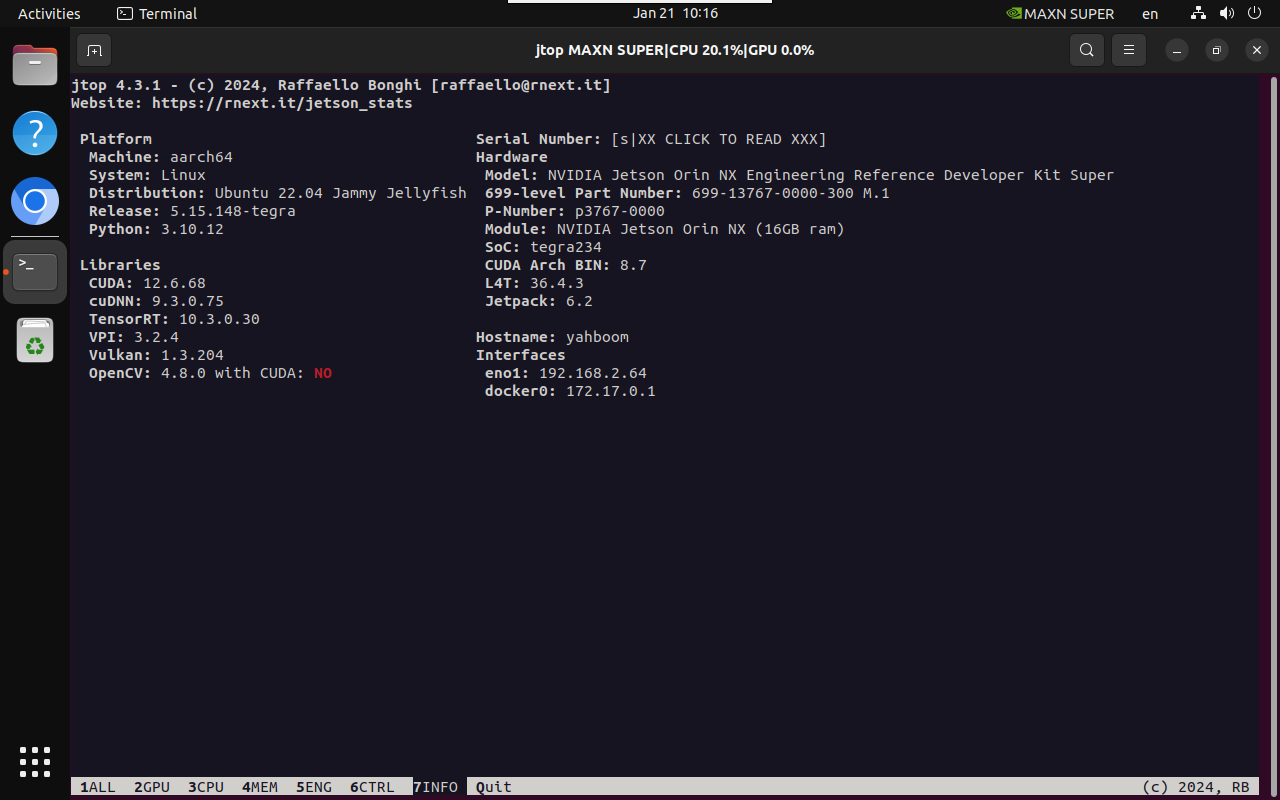

1. System information

image-20241227113240465

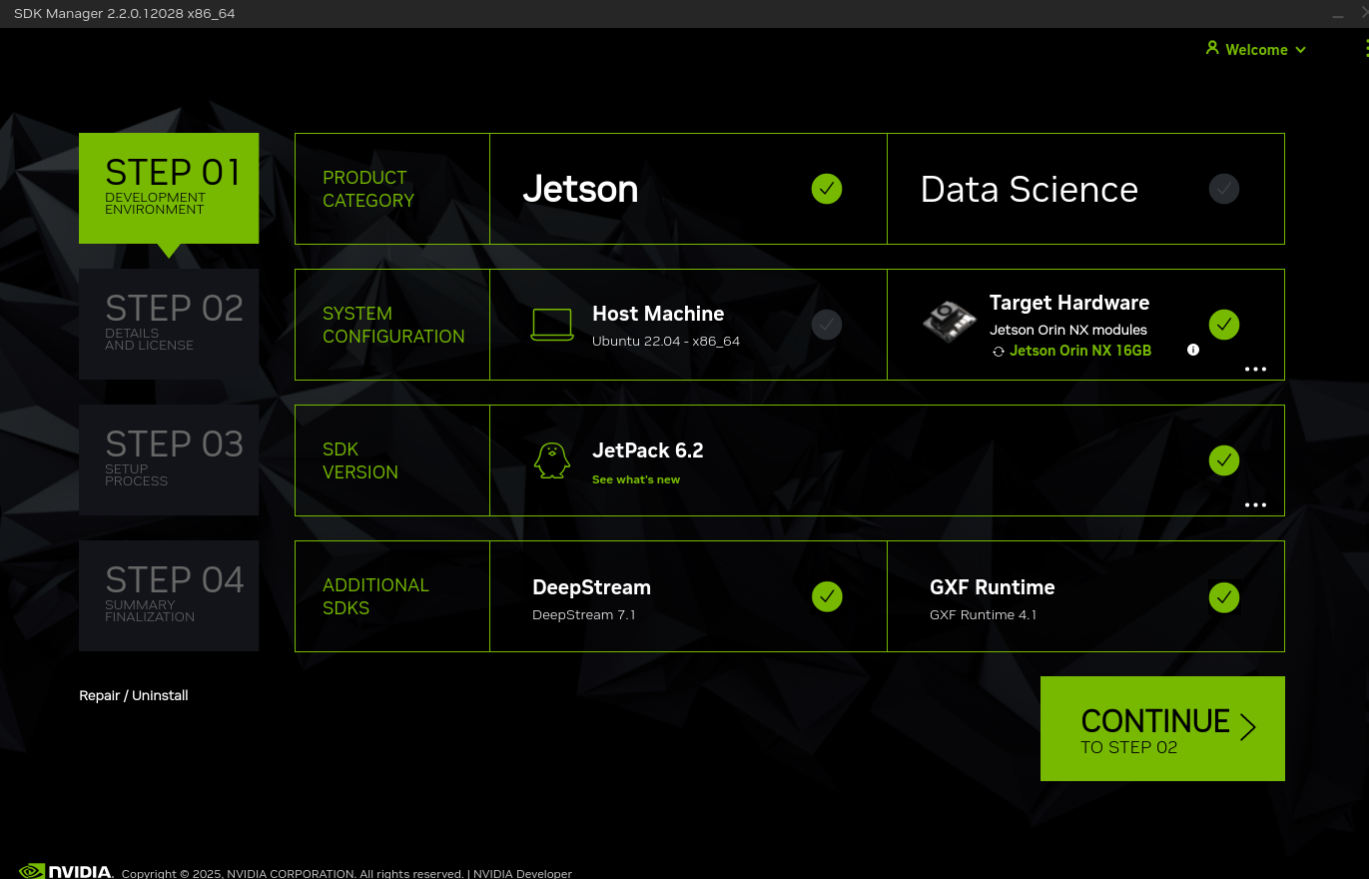

2. Install DeepStream

Refer to the tutorial in [Chapter 2 Motherboard Basics: 03. Install Jetson Component Environment]: Check the DeepStream 7.1 option

image-20250113190213077

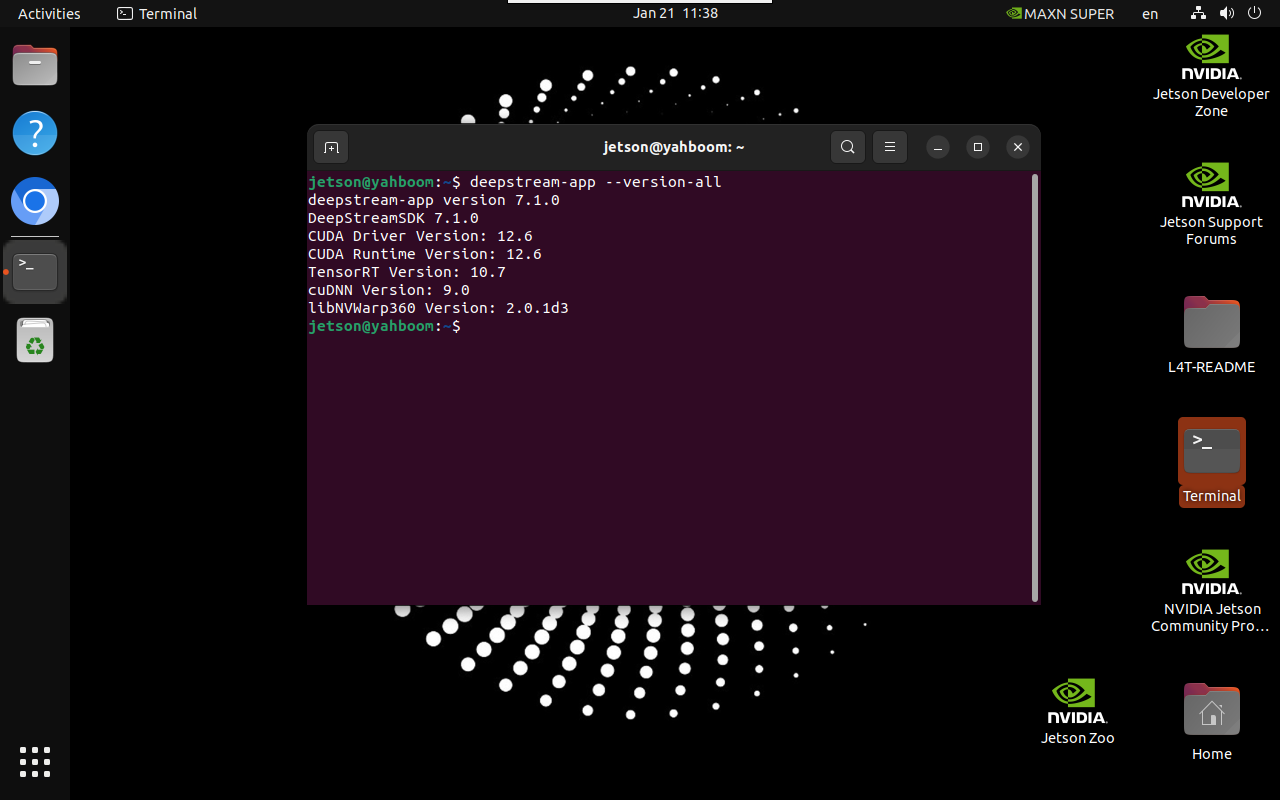

3. Verify the installation

sudo apt install libgstrtspserver-1.0-0
xxxxxxxxxx
deepstream-app --version-all

image-20241227113542806

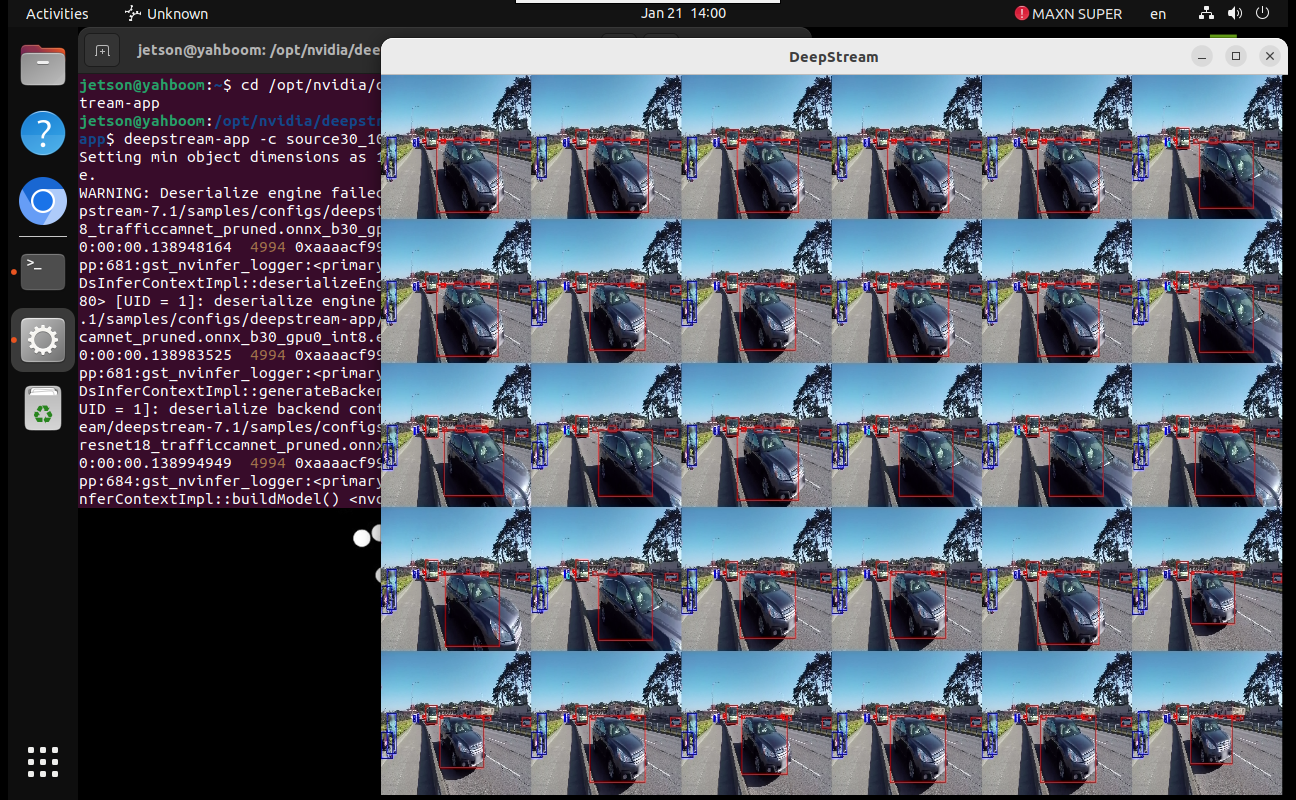

Run the example

xxxxxxxxxx
cd /opt/nvidia/deepstream/deepstream-7.1/samples/configs/deepstream-app
xxxxxxxxxx
deepstream-app -c source30_1080p_dec_infer-resnet_tiled_display_int8.txt

Note: It takes a long time to run this case. If it does not terminate automatically, wait for the program to run!

When the motherboard runs a program with a large load, the prompt "System throttled due to Over-current." will appear. This is a normal phenomenon!

If it restarts during operation, please use a power supply with a power greater than 45w.

image-20250102184609430
