Get Started Quickly

1. First Boot

Start the factory image: Perfect for beginners, you can experience all the case studies without setting up your own environment!

1.1. Prerequisites

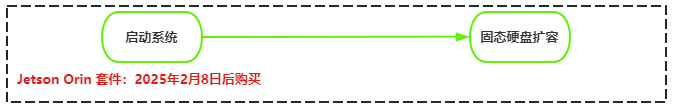

Version appearance differences:

Usage steps:

Notes:

1. SSD expansion: See tutorial [Chapter 2 Motherboard Basics: SSD Expansion]

1.2. Boot the System

Once the motherboard is equipped with SSD, network card, antenna, and DP data cable (connected to the monitor), you can use the matching DC power adapter to boot the motherboard system.

Jetson Orin series motherboards require a monitor connection to properly display the system desktop. For first-time users, it is recommended to connect an external monitor and configure VNC remote access.

Note: According to user feedback, some users have achieved VNC remote access using graphics card emulators and virtual desktops. This is not covered in the tutorial!

2. System Environment

2.1. Basic Information

System username: jetson

System password: yahboom

2.2. Jupyter Lab

Host access: http://localhost:8888/

LAN access: http://motherboard IP:8888/

Access password: yahboom

2.3. Label Studio

Host access: http://localhost:8080/

LAN access: http://motherboard IP:8080/

Access account: yahboom@163.com

Access password: yahboom@163.com

2.4. Access Docker

ROS1 environment is located inside Docker:

sh ~/ros_melodic.sh

2.5. Open WebUI

Host access: http://localhost:8080/

LAN access: http://motherboard IP:8080/

Access username: yahboom Access email: yahboom@163.com Access password: yahboom

3. Precautions

• Label Studio and Open WebUI use the same port. If running one container, ensure the other is shut down!
• Due to software version updates and different user environments, we cannot guarantee that everyone will successfully build the environment. The only thing we can provide is a complete system image. If you encounter environment issues and cannot resolve them yourself, please use our factory image to study the tutorials.
