Isaac ROS Image distortion processing

Isaac ROS image distortion processing：https://nvidia-isaac-ros.github.io/repositories_and_packages/isaac_ros_image_pipeline/index.html

Overview

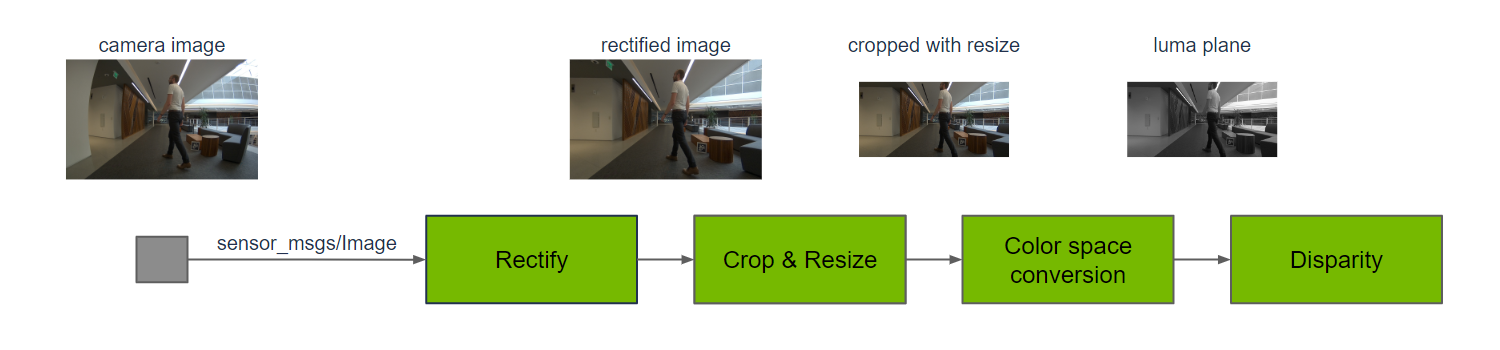

Isaac ROS image distortion processing uses the Isaac ROS image pipeline. Isaac ROS Image Pipeline is a metapackage of functionality for image processing. Camera output often needs pre-processing to meet the input requirements of multiple different perception functions. This can include cropping, resizing, mirroring, correcting for lens distortion, and color space conversion. For stereo cameras, additional processing is required to produce disparity between left + right images and a point cloud for depth perception.

Quick Experience

To simplify development, we primarily use the Isaac ROS Dev Docker image and demonstrate the effects there. This demonstration does not require any camera device installation; it simulates the camera data stream by playing a rosbag file.

Note: If you wish to install on your own device or connect a camera to develop other features, please refer to the Isaac ROS official website and connect a designated NVIDIA camera model for your own development.

Resize:

Open a terminal and enter the working directory.

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src

Enter the Isaac ROS Dev Docker container.

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following startup command.

xxxxxxxxxx
ros2 launch isaac_ros_examples isaac_ros_examples.launch.py ••launch_fragments:=resize

Open a second terminal and enter the container.

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command.

xxxxxxxxxx
ros2 bag play --loop ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart --remap /hawk_0_left_rgb_image:=/image_raw /hawk_0_left_rgb_camera_info:=/camera_info

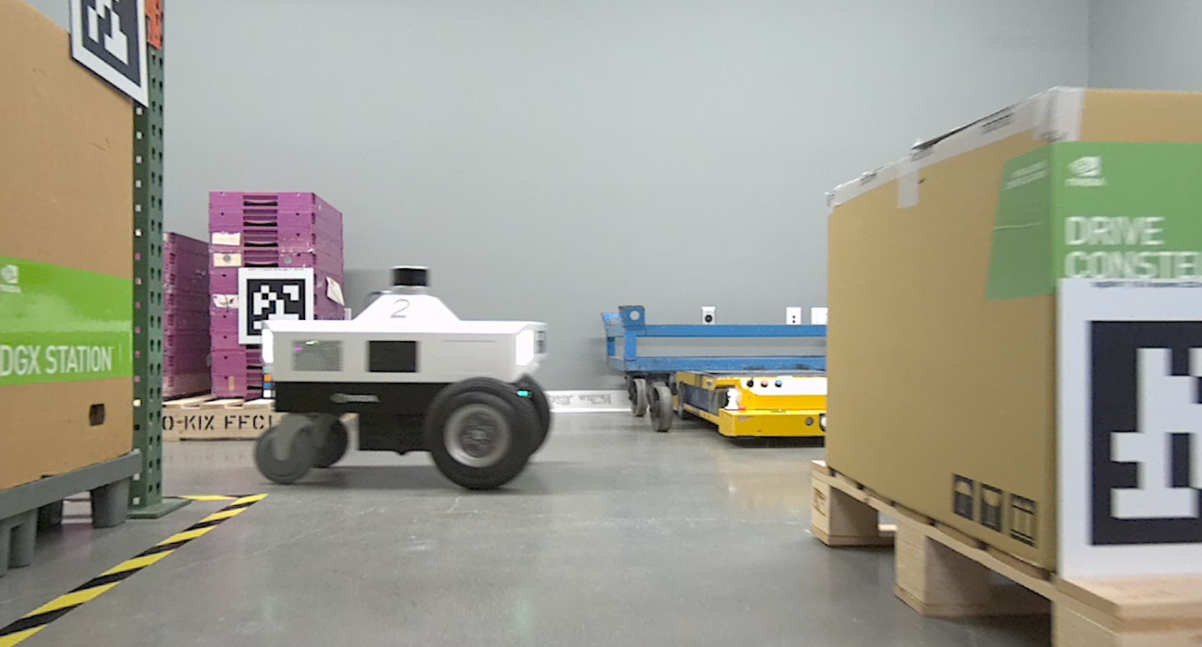

View the results

Open a third terminal and enter the container.

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command:

xxxxxxxxxx
ros2 run image_view image_view --ros-args --remap image:=resize/image

Color Conversion:

Open a terminal and enter the working directory.

Note: If you have already opened a container and run other commands, exit all Docker containers by typing exit in the first terminal before running the command.

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src

Enter the Isaac ROS Dev Docker container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following startup command

xxxxxxxxxx
ros2 launch isaac_ros_examples isaac_ros_examples.launch.py ••launch_fragments:=color_conversion interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart_interface_specs.json

Open a second terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx
ros2 bag play --loop ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart --remap /hawk_0_left_rgb_image:=/image_raw /hawk_0_left_rgb_camera_info:=/camera_info

View the run results

Open a third terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx
ros2 run image_view image_view --ros-args --remap image:=image_mono

Crop:

Open a terminal and enter the working directory

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src

Enter the Isaac ROS Dev Docker container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following startup command

xxxxxxxxxx
ros2 launch isaac_ros_examples isaac_ros_examples.launch.py ••launch_fragments:=crop interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart_interface_specs.json

Open a second terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx
ros2 bag play --loop ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart --remap /hawk_0_left_rgb_image:=/image_raw /hawk_0_left_rgb_camera_info:=/camera_info

View the run results

Open a third terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx

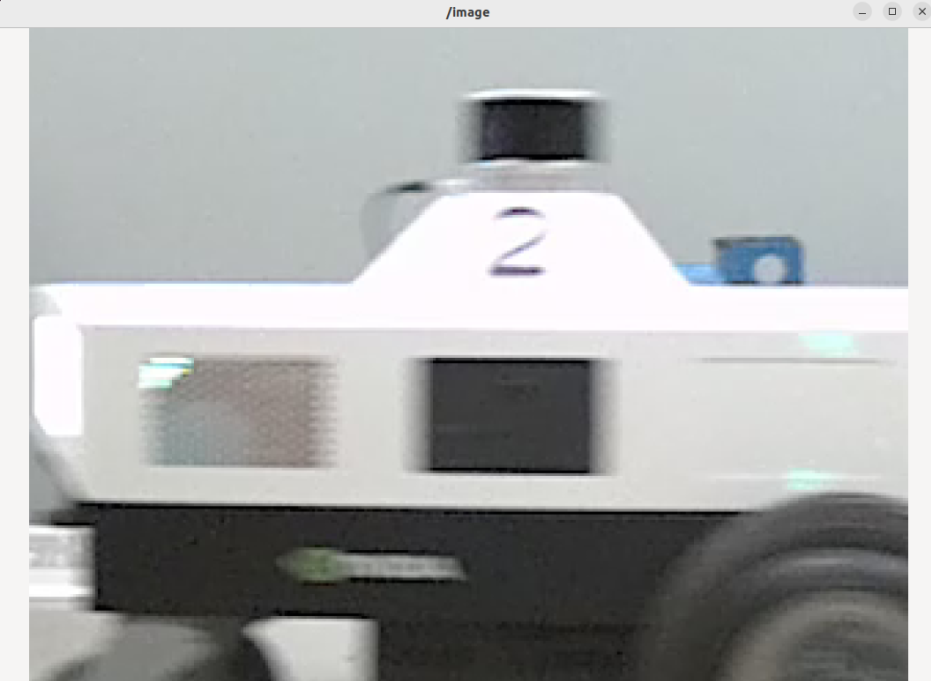

ros2 run image_view image_view --ros-args --remap image:=crop/image

Rectify:

Open a terminal and enter the working directory

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src

Enter Isaac ROS Dev Docker container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following startup command

xxxxxxxxxx
ros2 launch isaac_ros_examples isaac_ros_examples.launch.py ••launch_fragments:=rectify_mono interface_specs_file:=${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart_interface_specs.json

Open a second terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx
ros2 bag play --loop ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart --remap /hawk_0_left_rgb_image:=/image_raw /hawk_0_left_rgb_camera_info:=/camera_info

View the Run Results

Open a third terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx

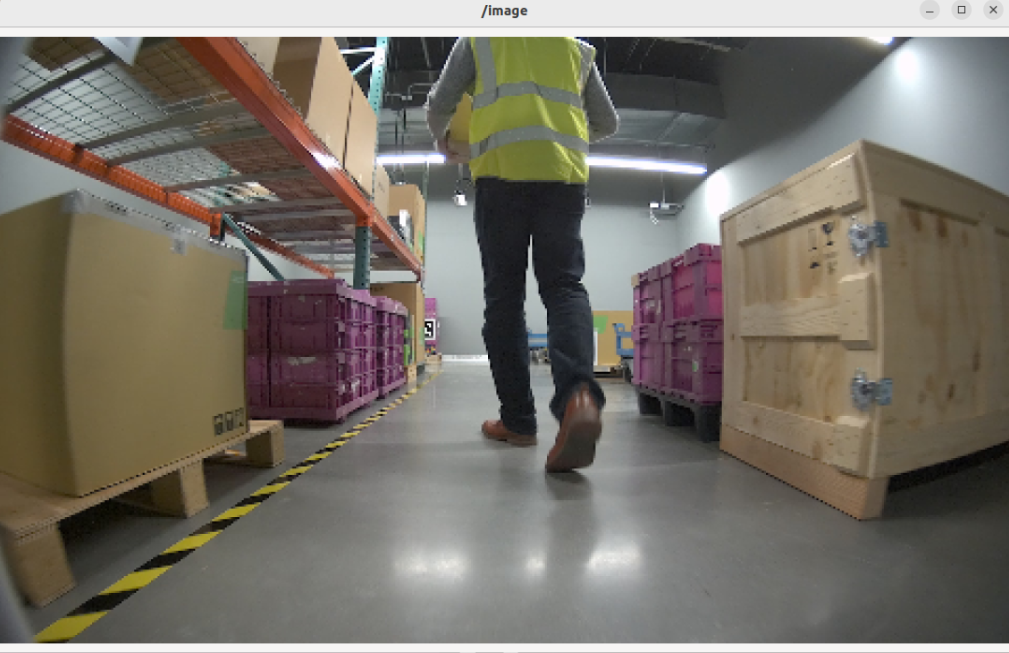

ros2 run image_view image_view --ros-args --remap image:=image_rect

Flip:

Open a terminal and enter the working directory

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src

Enter Isaac ROS Dev Docker container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following startup command

xxxxxxxxxx
ros2 launch isaac_ros_examples isaac_ros_examples.launch.py ••launch_fragments:=flip

Open a second terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx
ros2 bag play --loop ${ISAAC_ROS_WS}/isaac_ros_assets/isaac_ros_image_proc/quickstart --remap /hawk_0_left_rgb_image:=/image_raw /hawk_0_left_rgb_camera_info:=/camera_info

View the run results

Open a third terminal and enter the container

xxxxxxxxxx
cd ${ISAAC_ROS_WS}/src/isaac_ros_common && \
./scripts/run_dev.sh

Run the following command

xxxxxxxxxx
ros2 run image_view image_view --ros-args --remap image:=image_flipped
