Camera image display

1. Environment preparation

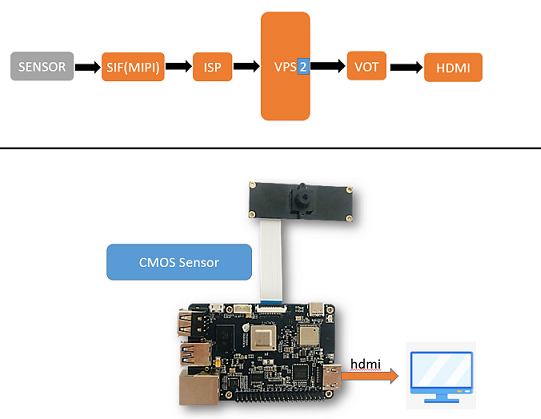

This example vio2display implements the MIPI camera image acquisition function and outputs it through the HDMI interface. Users can preview the image through the display. The example flow chart is as follows:

• When the development board is powered off, connect the MIPI camera to the development board (with the black side facing the HDMI port).
• Connect the development board and the monitor via an HDMI cable
• Power on the development board and log in to the system

2. How to run

The sample code is provided in source code form. You need to use the make command to compile and run it. The steps are as follows.

xxxxxxxxxx
sunrise@ubuntu:~$ cd /app/cdev_demo/vio2display
sunrise@ubuntu:/app/cdev_demo/vio2display$ sudo make
sunrise@ubuntu:/app/cdev_demo/vio2display$ sudo ./vio2display -w 1920 -h 1080

Parameter description:

• w: sensor output width
• h: sensor output height

3. Expected results

After the program runs correctly, the development board will output the real-time image captured by the MIPI camera through the display.

The running log is as follows.

​x
  sunrise@ubuntu:/tmp/nfs/sp_cdev/cdev_demo/vio2display$ ./vio2display -w 1920 -h 1080
  disp_w=1920, disp_h=1080
  2023/03/28 02:08:03.359 !INFO [x3_cam_init_param][0099]Enable mipi host0 mclk
  2023/03/28 02:08:03.359 !INFO [x3_cam_init_param][0099]Enable mipi host1 mclk
  Camera: gpio_num=114, active=low, i2c_bus=3, mipi_host=0
  Camera: gpio_num=114, active=low, i2c_bus=1, mipi_host=1
  Camera: gpio_num=114, active=low, i2c_bus=0, mipi_host=2
  Camera 0:
        enable: 1
        i2c_bus: 3
        mipi_host: 0
  Camera 1:
        enable: 1
        i2c_bus: 1
        mipi_host: 1
  Camera 2:
        enable: 1
        i2c_bus: 0
        mipi_host: 2
  cmd=i2ctransfer -y -f 3 w2@0x10 0x0 0x0 r1 2>&1, result=0x02

  Found sensor:imx219 on i2c bus 3, use mipi host 0
  Setting VPS channel-2: src_w:1920, src_h:1080; dst_w:1920, dst_h:1080;
  Setting VPS channel-1: src_w:1920, src_h:1080; dst_w:1920, dst_h:1080;
  sp_open_camera success!
  libiar: hb_disp_set_timing done!

  Press 'q' to Exit !
