1.SSH remote login

1.SSH remote login

1.SSH remote login1.1 Get the IP address of the Raspberry Pi1.2 Putty remote login

SSH remote login requires that the host computer and the Raspberry Pi are in the same LAN to work properly.

If the Raspberry Pi is connected to a network cable or WiFi signal, please make sure that the network signal connected to the computer is in the same LAN as the Raspberry Pi.

1.1 Get the IP address of the Raspberry Pi

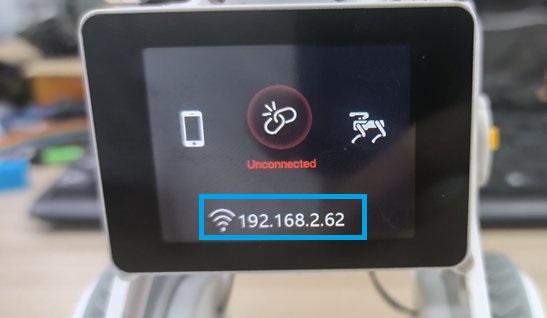

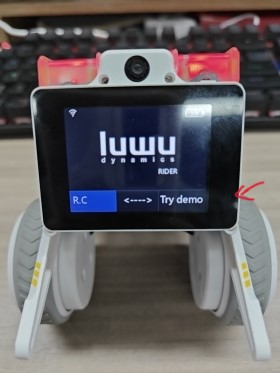

When the factory image is turned on for the first time, you need to configure the network connection in the boot program, then enter the remote control interface, press the button in the lower right corner of the Rider-pi screen, and you can query the corresponding IP address.

lQDPJwuriazjFUXNBaDNB4CwFqFDvBtY1aIHMFmvk-okAA_1920_1440

image-2024111200007

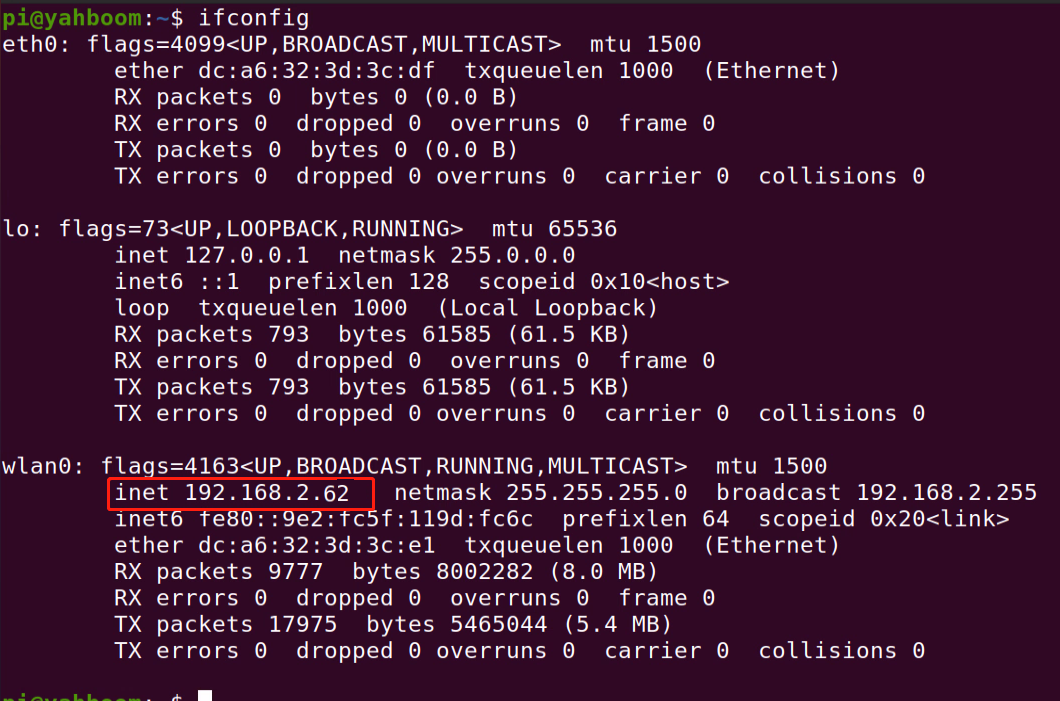

Or connect the Raspberry Pi to the monitor, open the command line terminal under the Raspberry Pi system, and enter ifconfig to view the IP address, where ech0 corresponds to the network card and wlan0 corresponds to the wireless WiFi.

image-20220810100500475

1.2 Putty remote login

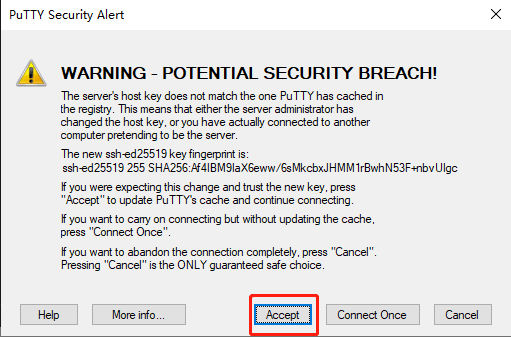

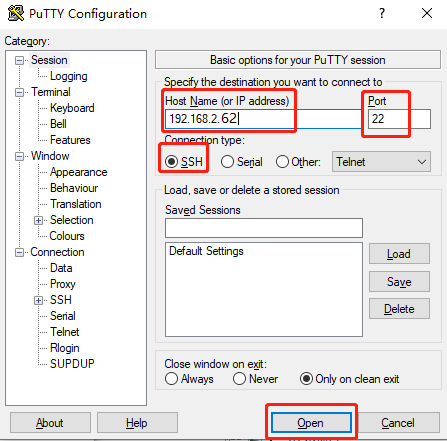

Open the putty software and use the SSH service to remotely log in to the Raspberry Pi operating system.

image-20220810101228117

image-20220810101315217

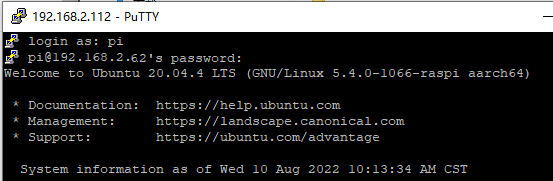

Enter the username (pi) and password (yahboom). If you are not using the factory system, please enter the username and password of the Raspberry Pi system according to the actual situation.

image-20220810101354688
