Welcome to myCobot 320 Arm repository

3.Structural Parameters

Structural Parameters

This chapter uses millimeters as distance units and degrees as angle units.

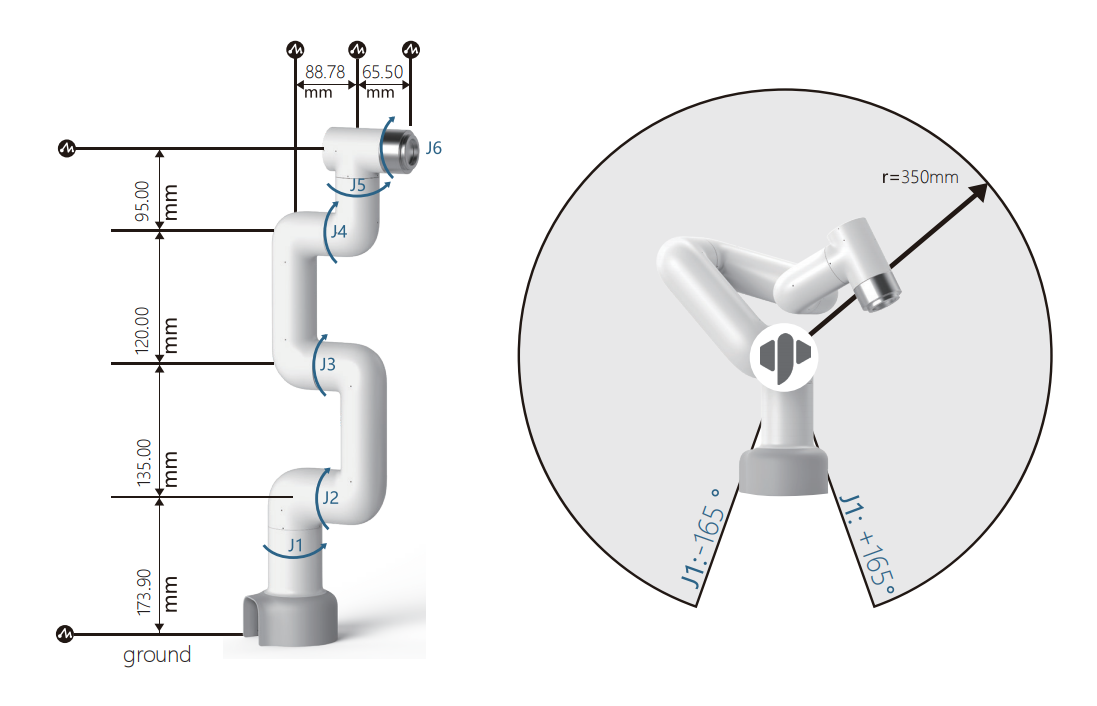

1 Product dimensions and working space

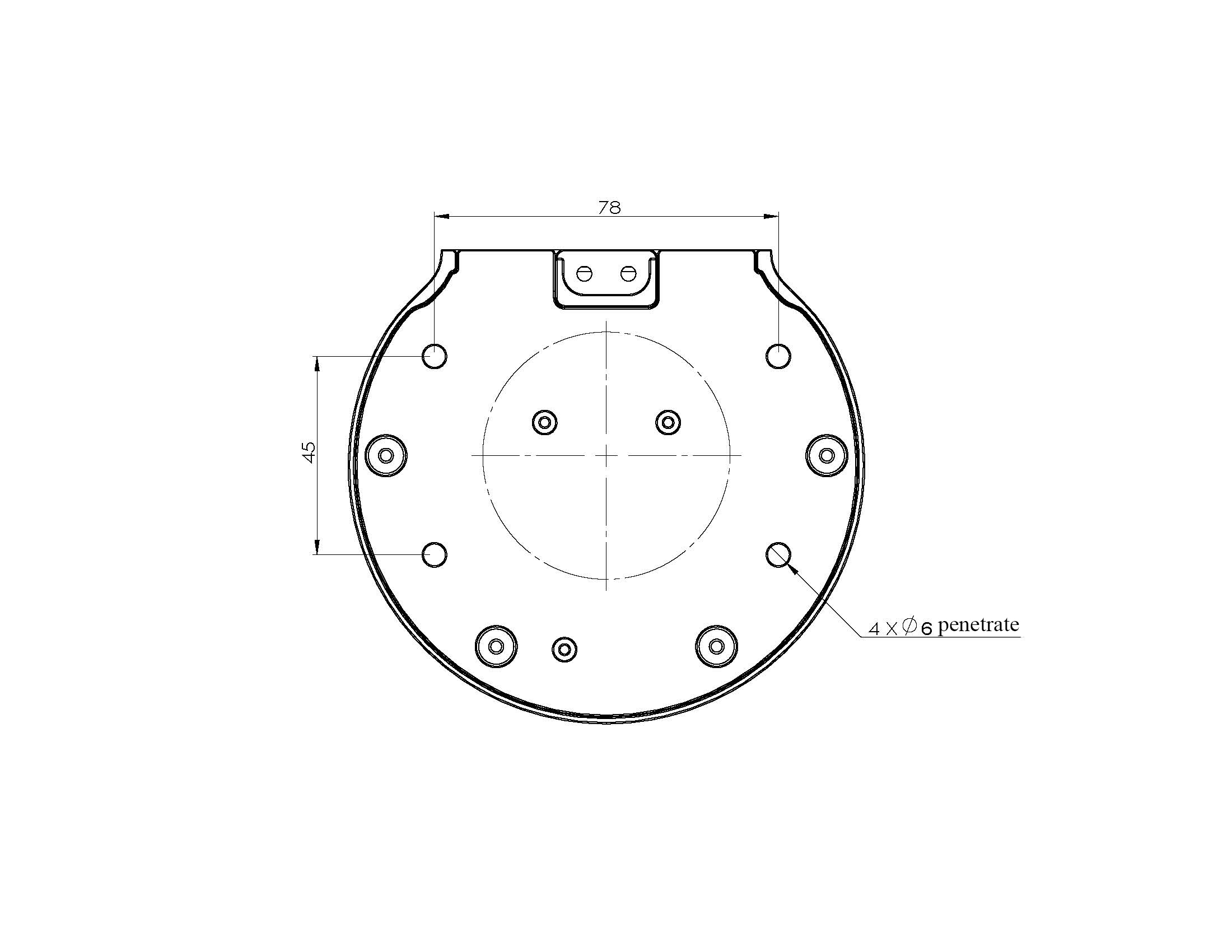

2 Base installation dimensions

  • The base is flange mounted and can be mounted with both Lego and M6 screws.

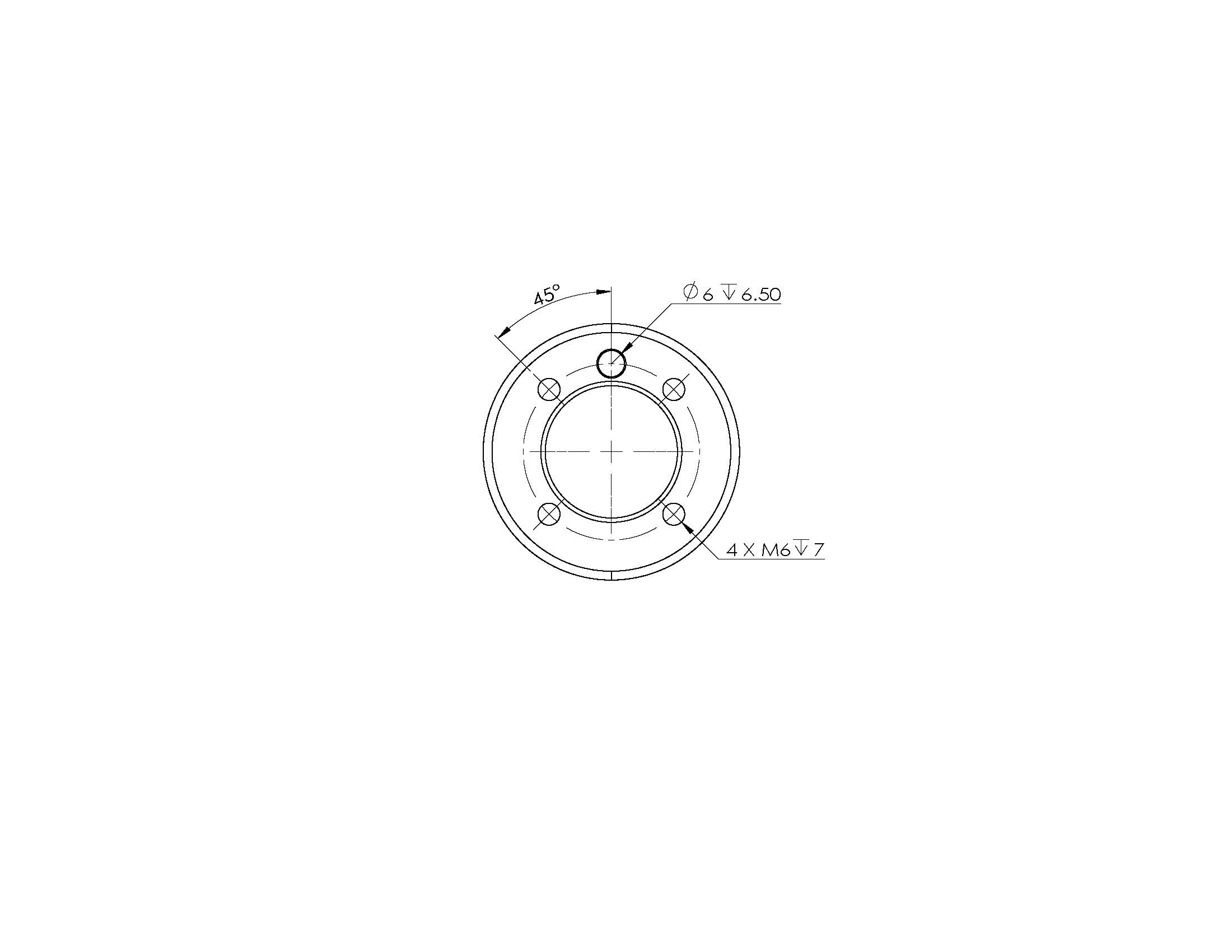

3 End of the arm

  • The end of the robotic arm is compatible with LEGO component holes and threaded holes.

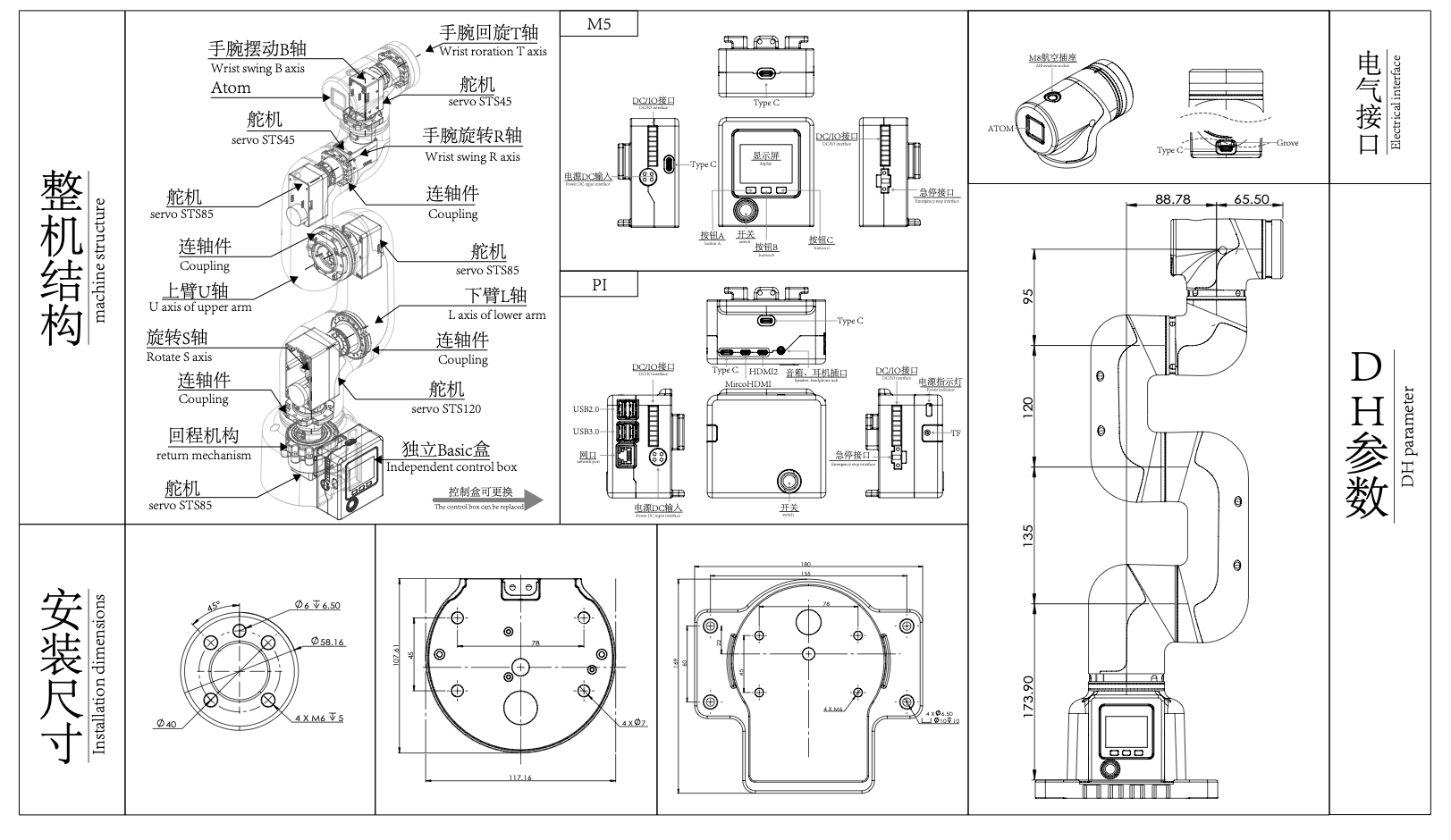

4 Product Display


5 3D Model Download

We can provide product 3D models to provide reference materials for customers.

Download link: https://download.elephantrobotics.com/Product_3d_files/myCobot_320_M5_2022v1.2_230708.STEP
