Open WebUI

Users using the AI ​​large model image have already set up their environment. No setup-related steps are required in this tutorial; simply jump to the running section.

Demo Environment

Development Board: Jetson Orin series motherboard

Open WebUI is an open-source project designed to provide a simple and easy-to-use user interface (UI) for managing and monitoring open-source software and services.

When using Open WebUI, there's a high probability of encountering unresponsive dialogues or timeouts. Try restarting Open WebUI or using the Ollam tool to run the model!

1. Environment Requirements

Host machine and Conda installation of Open WebUI: Requires Node.js >= 20.10, Python = 3.11:

This tutorial demonstrates installing Open WebUI using Docker.

2. Docker Setup

2.1 Official Docker Installation

If Docker is not installed, you can use a script to install it with one click.

`` Our provided motherboard image already has Docker installed; you don't need to install it yourself!

Domestic users may not be able to install Docker through the official methods. We recommend using Alibaba Cloud to install Docker or directly using our image.

• Update local package list

xxxxxxxxxx
sudo apt update

• Upgrade installed packages

xxxxxxxxxx
sudo apt upgrade

• Download and run script

Download the get-docker.sh file and save it in the current directory.

xxxxxxxxxx
sudo apt install curl

xxxxxxxxxx
curl -fsSL https://get.docker.com -o get-docker.sh

Run the get-docker.sh script file with sudo privileges.

xxxxxxxxxx
sudo sh get-docker.sh

2.2 Installing Docker on Alibaba Cloud

If you cannot install it yourself, please use the image we provide.

• Update local package list

xxxxxxxxxx
sudo apt update

• Install essential software

xxxxxxxxxx
sudo apt install apt-transport-https ca-certificates curl gnupg2 lsb-release software-properties-common

• Add GPG key for software repository

  • ORIN users

  xxxxxxxxxx
  curl -fsSL https://mirrors.aliyun.com/docker-ce/linux/ubuntu/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg


  • PI5, RDK X5 users

xxxxxxxxxx
curl -fsSL https://mirrors.aliyun.com/docker-ce/linux/debian/gpg | sudo gpg --dearmor -o /usr/share/keyrings/docker-archive-keyring.gpg

• Add Alibaba Cloud mirror software source

  • ORIN user

    xxxxxxxxxx
    echo "deb [arch=arm64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://mirrors.aliyun.com/docker-ce/linux/ubuntu bionic stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null


  • PI5, RDK X5 user

    xxxxxxxxxx
    echo "deb [arch=arm64 signed-by=/usr/share/keyrings/docker-archive-keyring.gpg] https://mirrors.aliyun.com/docker-ce/linux/debian bookworm stable" | sudo tee /etc/apt/sources.list.d/docker.list > /dev/null


• Install Docker

xxxxxxxxxx
sudo apt update
sudo apt Install docker-ce docker-ce-cli containerd.io docker-compose-plugin

2.3 Add Access Permissions

Add access permissions for the current system user to the Docker daemon: Docker commands can be used without using the sudo command.

xxxxxxxxxx
sudo usermod -aG docker $USER
newgrp docker

3. Install Open WebUI

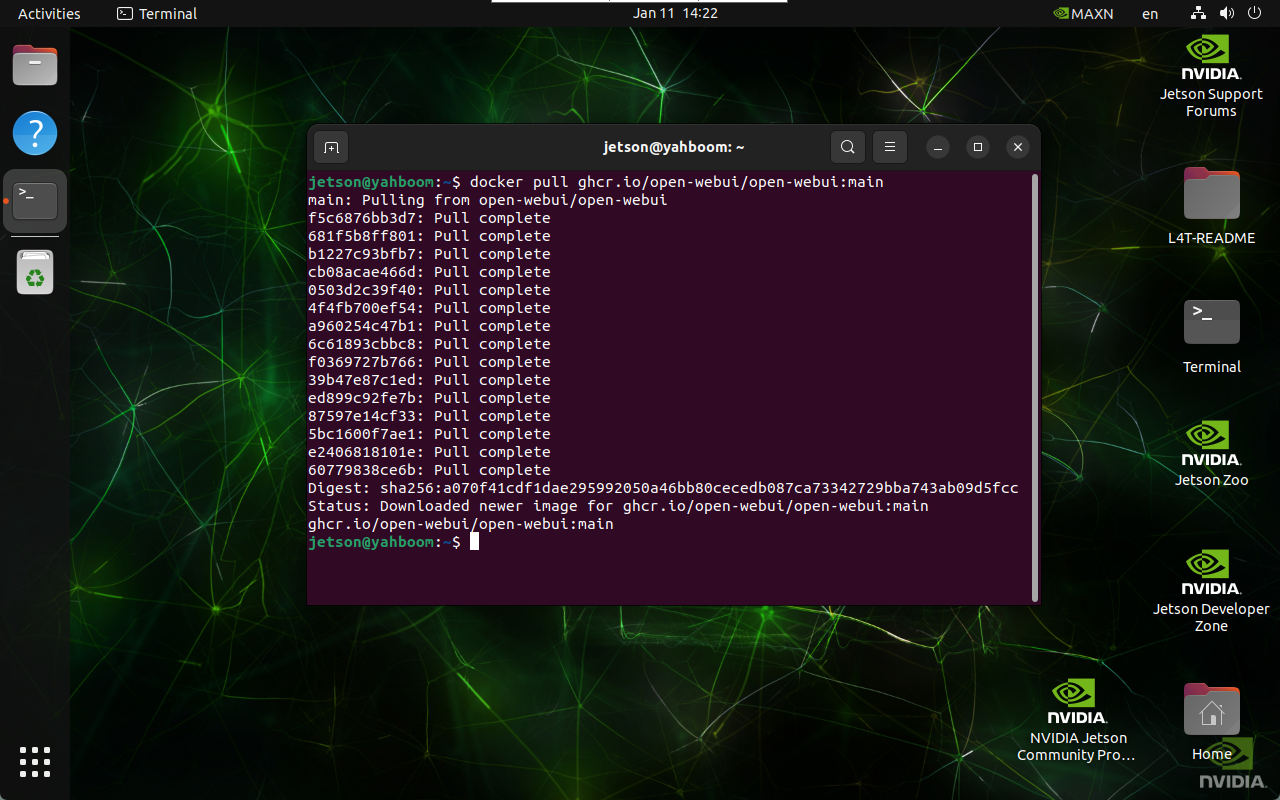

For systems with Docker already installed, you can directly enter the following command in the terminal: The image shows the result after pulling.

xxxxxxxxxx
docker pull ghcr.io/open-webui/open-webui:main

4. Run Open WebUI

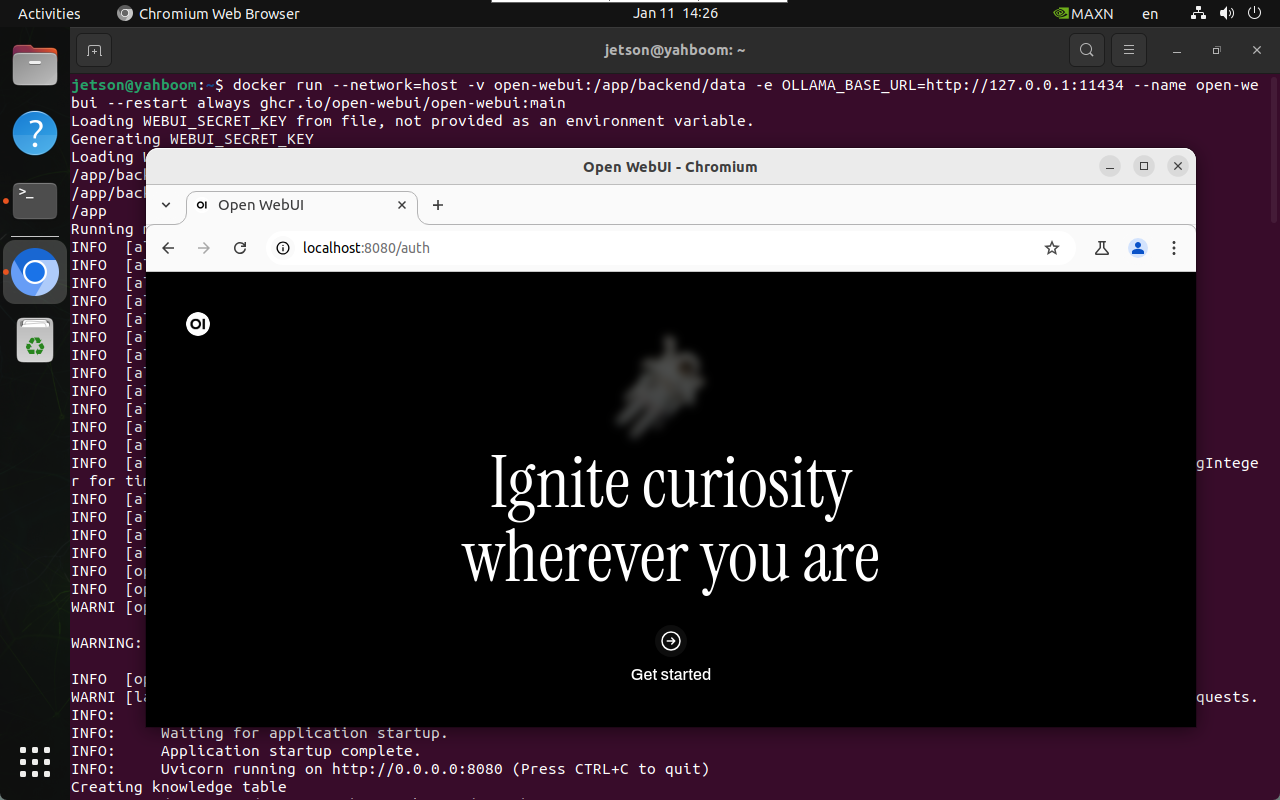

Enter the following command in the terminal to start the specified Docker container:

xxxxxxxxxx
docker run --network=host -v open-webui:/app/backend/data -e OLLAMA_BASE_URL=http://127.0.0.1:11434 --name open-webui --restart always ghcr.io/open-webui/open-webui:main

After successful startup, access it in your browser using the following URL:

xxxxxxxxxx
http://localhost:8080/

On the same local area network, you can access it using the motherboard IP:8080:

xxxxxxxxxx
Assuming the motherboard IP: 192.168.2.105, we can access it via 192.168.2.105:8080

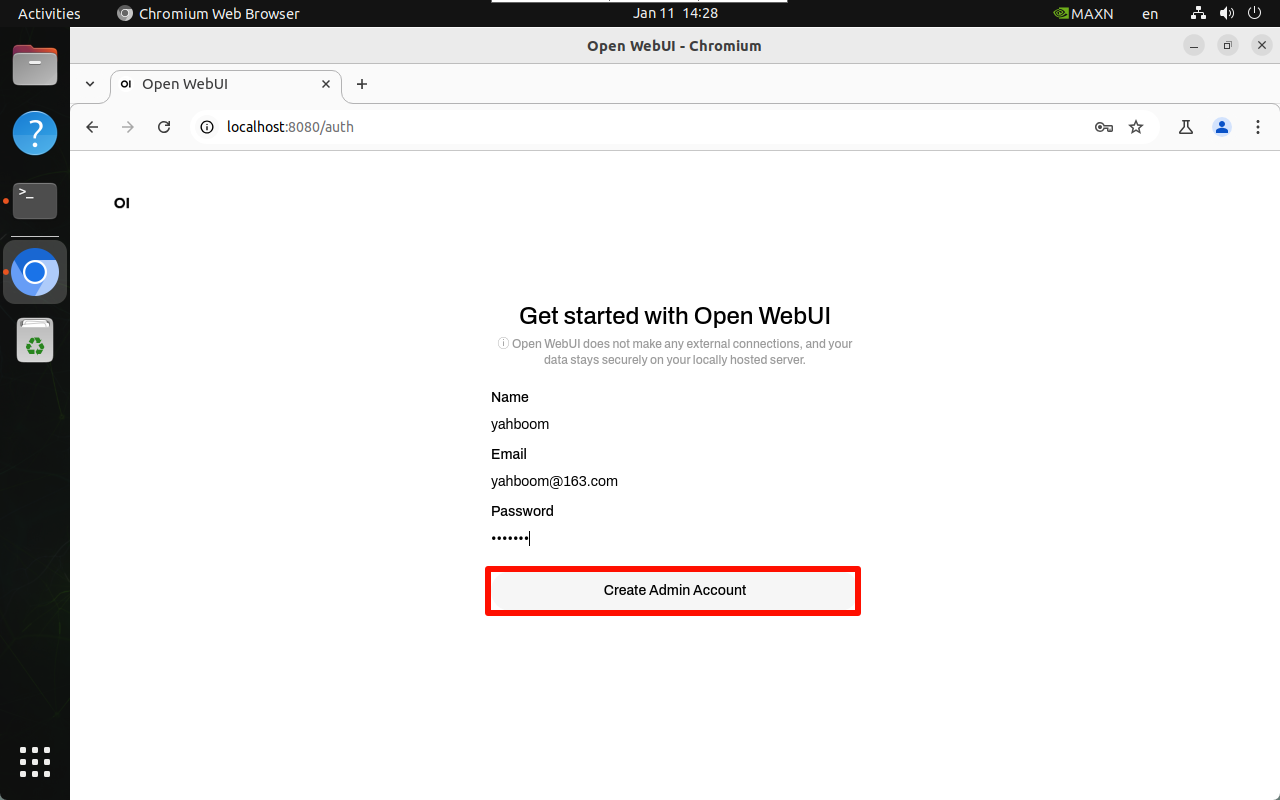

4.1 Administrator Account

First-time users need to register an account. This account is the administrator account. Fill in the required information as instructed!

xxxxxxxxxx
Since all content in our mirror has been set up and tested, users can directly log in using their registered account:
Username: yahboom
Email: yahboom@163.com
Password: yahboom

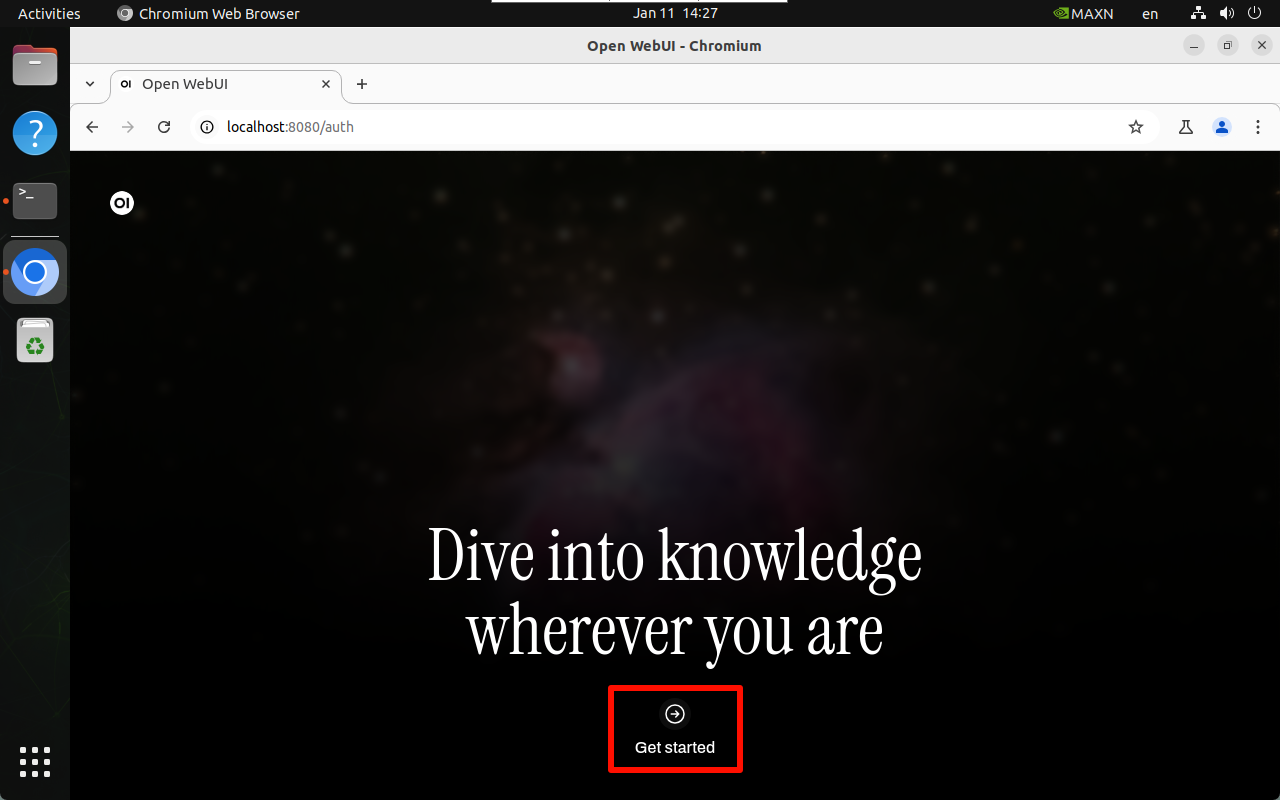

4.2 Registration and Login

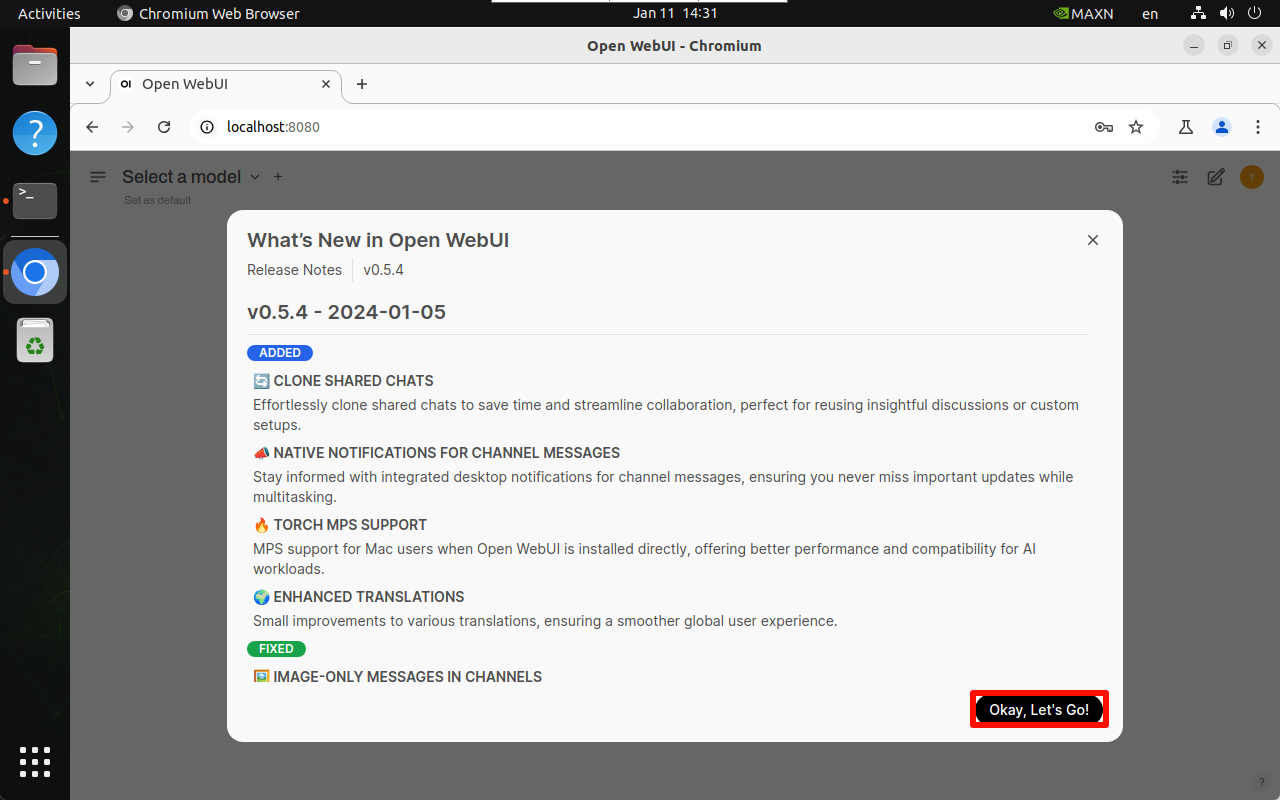

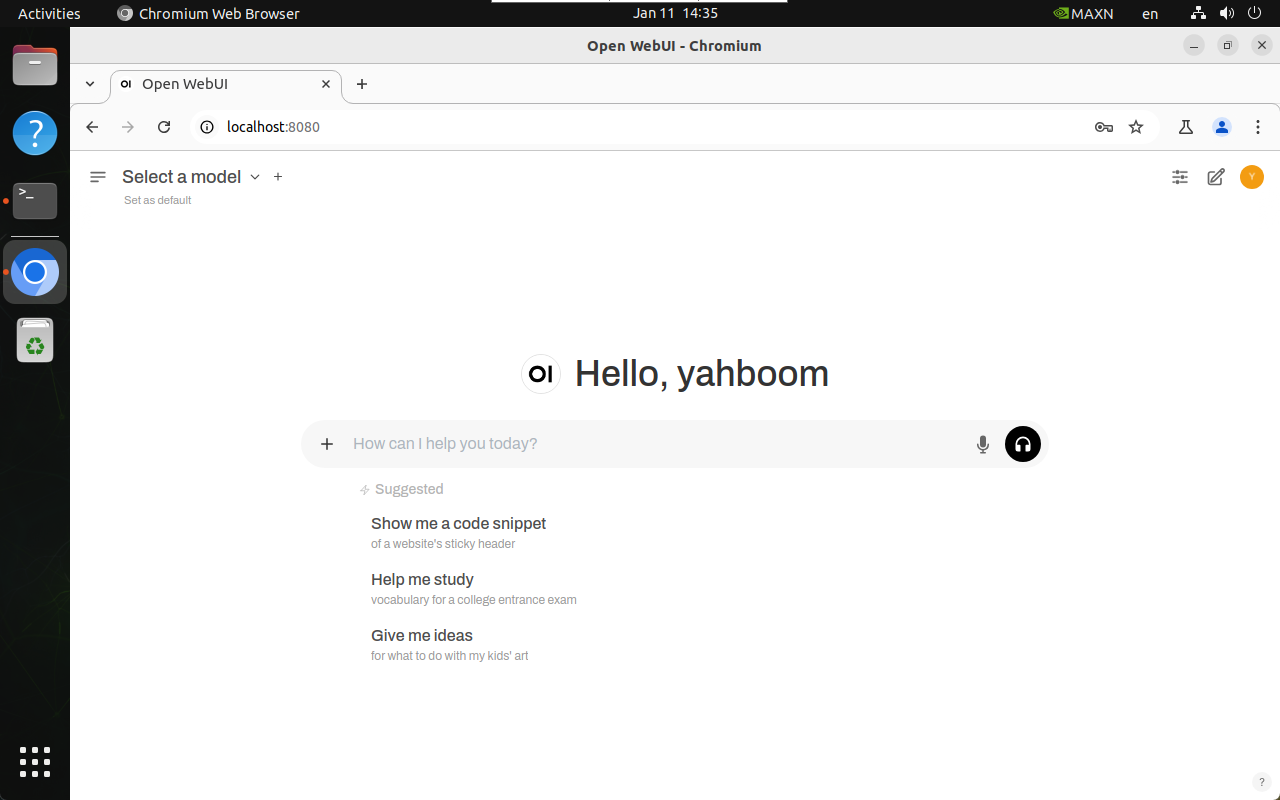

4.3 User Interface

5. Model Dialogue

Using the Open WebUI for dialogue is slower than using the Ollam tool directly, and may even result in timeouts and connection failures. This is related to the motherboard's memory and is unavoidable!

xxxxxxxxxx
Users interested can set up Ollam and Open WebUI on other Linux environments for dialogue.

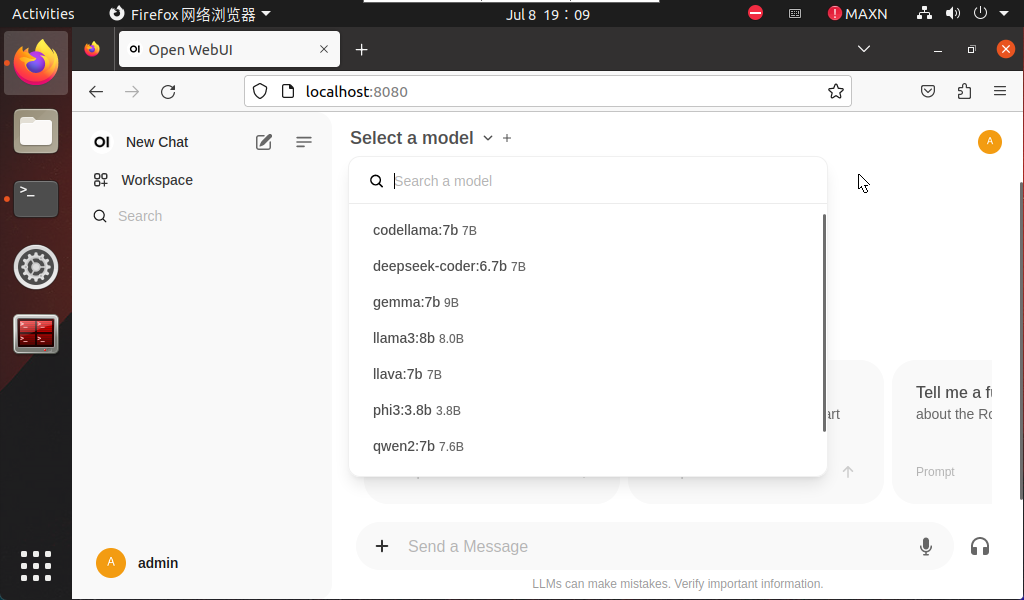

5.1 Switching Models

Clicking Select a model allows you to select a specific model for dialogue.

xxxxxxxxxx
Models retrieved using Ollam are automatically added to the Open WebUI model options. Refreshing the webpage will display the new model!

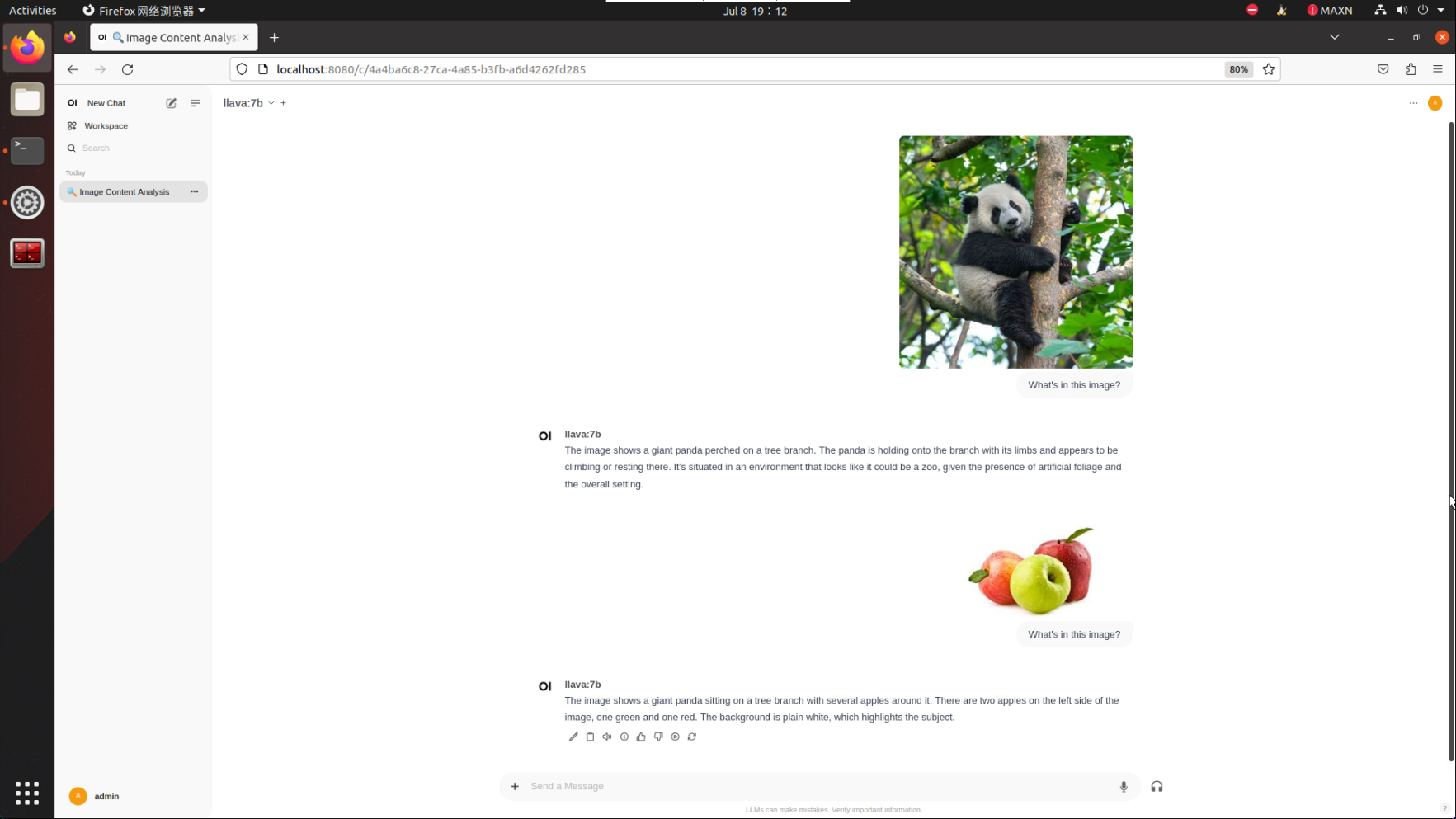

5.2 Demo: LLaVA

The LLaVA demo requires 8GB or more to run. Users can use other demos to test the Open WebUI conversational functionality!

xxxxxxxxxx
What's in this image?

6. Frequently Asked Questions

6.1 Disabling Open WebUI

Disable the automatic startup of Open WebUI.

• View running Docker containers

xxxxxxxxxx
docker ps

• Shut down running Docker containers

xxxxxxxxxx
docker stop [CONTAINER ID] # Example docker stop 5f42ee9cf784

• View stopped containers

xxxxxxxxxx
docker ps -a

• Clean up stopped containers

xxxxxxxxxx
docker rm [CONTAINER ID] # Example docker rm 5f42ee9cf784

Clean up all stopped containers:

xxxxxxxxxx
docker container prune

6.2 Common Errors

Unable to start Open WebUI

• docker: Error response from daemon: Conflict. The container name "/open-webui" is already in use by container "cfc05c84f8e38b290337e7178c76fd1c49076f94b11ed3d49d9448be72b7f20f". You have to remove (or rename) that container to reuse that name.

Solution: Close and restart Open WebUI!

Service Connection Timeout

• Open WebUI: Server Connection Error

Close and restart Open WebUI, then try asking the question again, or use the Ollam tool to run the model and ask the question!
