2.Dancing and singing

Dancing and singing

Dancing and singing1. Learning objectives2. Building blocks3. Motor wiring4. Programming4.1 Add expansion package4.2 Building blocks used4.3 Combining blocks5. Experimental phenomenon

1. Learning objectives

In this course, we mainly learn how to use MakeCode graphical programming to make the Biped robot "sing" and "dance" at the same time, that is, the motor and buzzer work at the same time.



2. Building blocks

For the building blocks steps, please refer to the installation drawings of [Assembly Course]--[Biped robot] in the materials or the building blocks installation book.



3. Motor wiring

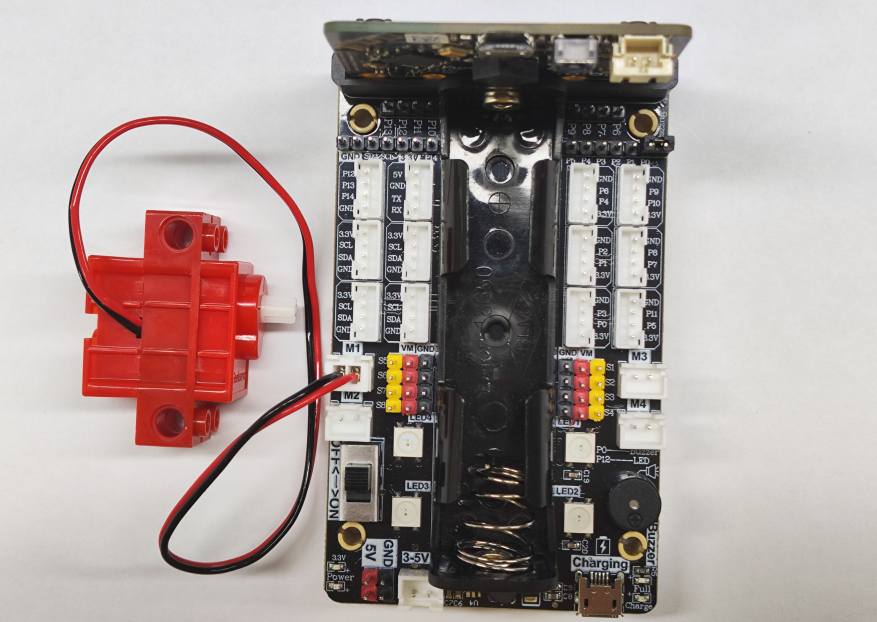

Insert the motor wiring on the left side of the car into the M1 interface of the Super:bit expansion board, with the black wire close to the battery side;

As shown below:

image-20250611160433482



4. Programming

Method 1 Online programming:

First, connect the micro:bit to the computer via a USB data cable. The computer will pop up a U disk. Click the URL in the U disk: https://makecode.microbit.org/ to enter the programming interface. Then, add the Yahboom software package https://github.com/YahboomTechnology/SuperBitLibV2, and you can start programming.

Method 2 Offline programming:

Open the offline programming software MakeCode and enter the programming interface. Click [New] and add the Yahboom software package https://github.com/YahboomTechnology/SuperBitLibV2 to start programming.

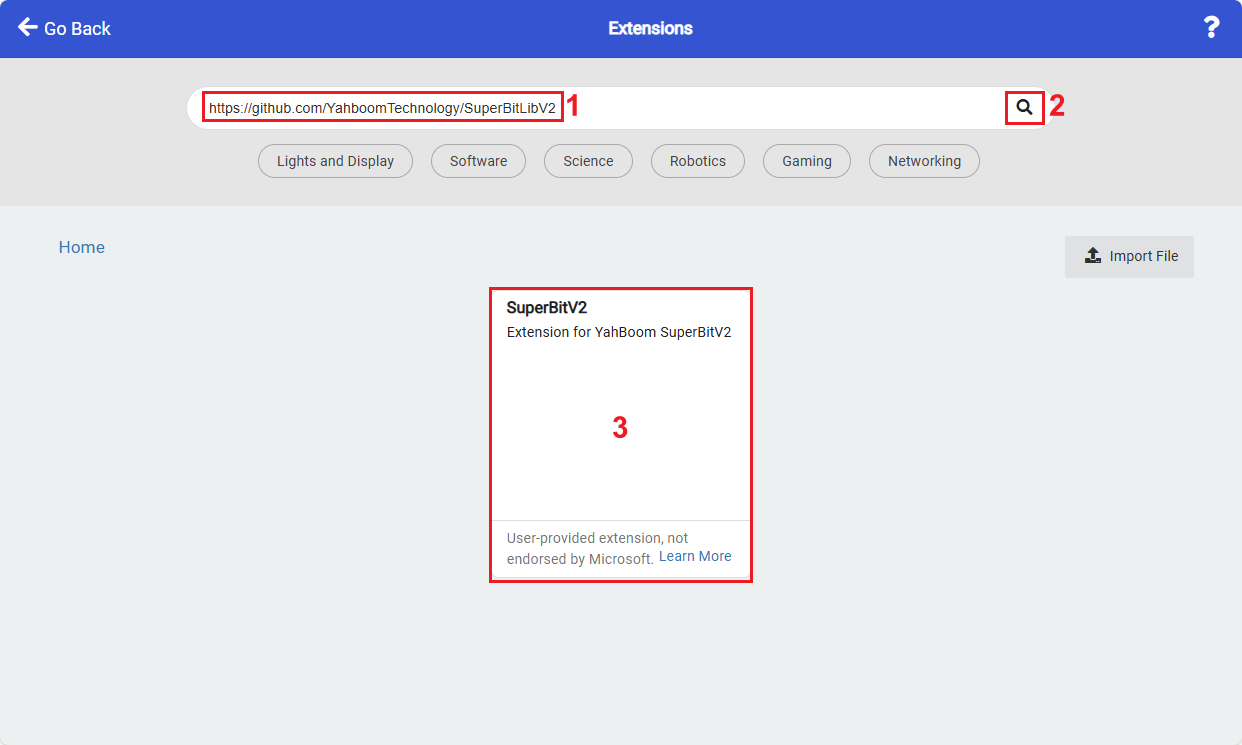

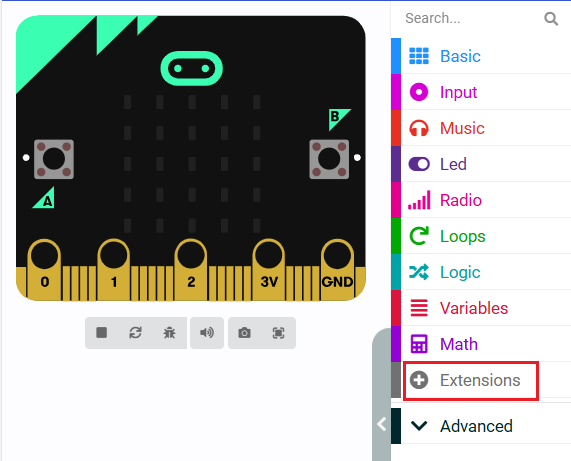

4.1 Add expansion package

image-20250606184603631

image-20250606184759888

4.2 Building blocks used

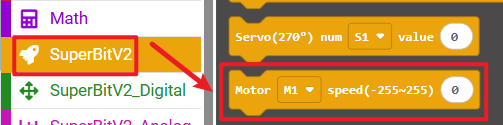

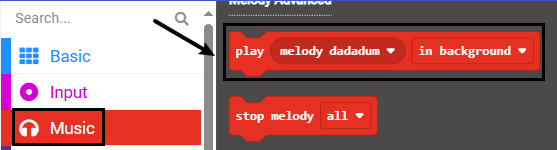

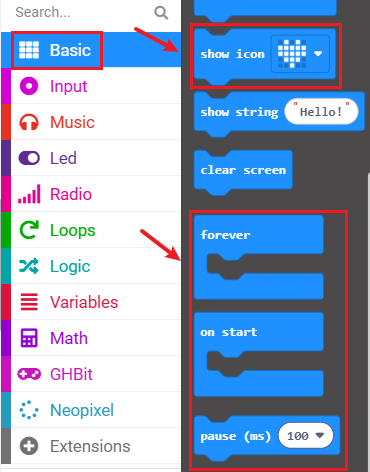

The location of the building blocks required for this programming is shown in the figure below.

1588044336115798

1588043987899579

1588044683438106

4.3 Combining blocks

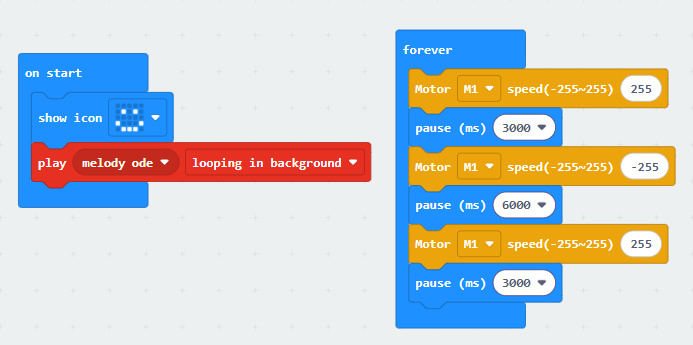

The summary program is shown in the figure below.


You can also directly open the microbit-Dancing-and-singing.hex file provided in this experiment and drag it into the browser that opens the URL, and the program diagram of this project source code will be automatically opened



5. Experimental phenomenon

After the program is successfully downloaded, the micro:bit dot matrix will display a smiley face, as shown in the figure below. Turn on the power switch, the Biped robot will play the music "Ode to Joy" and will also switch between different motion states of forward-->backward.


If you need to restart, please press the reset button on the back of the micro:bit .
