Sailing Prelude

1. Learning Objectives

In this course, we mainly learn how to use MakeCode graphical programming to make the propeller of the Airplane rotate while the buzzer plays music.

2. Building Blocks

For the building block steps, please refer to the installation drawings of [Assembly Course]--[Airplane] in the materials or the building block installation book.

3. Motor Wiring

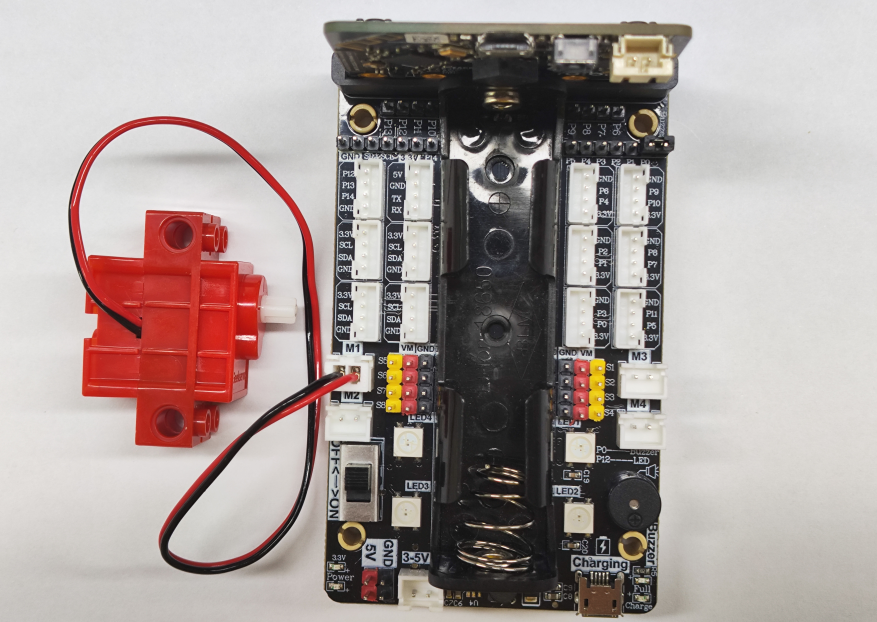

Insert the motor wiring on the left side of the car into the M1 interface of the Super:bit expansion board, with the black wire close to the battery side;

As shown below:

4. Programming

Method 1 Online Programming:

First, connect the micro:bit to the computer via a USB data cable. The computer will pop up a U disk. Click the URL in the U disk: https://makecode.microbit.org/ to enter the programming interface. Then, add the Yahboom software package https://github.com/YahboomTechnology/SuperBitLibV2, and you can start programming.

Method 2 Offline programming:

Open the offline programming software MakeCode and enter the programming interface. Click [New] and add the Yahboom software package https://github.com/YahboomTechnology/SuperBitLibV2 to start programming.

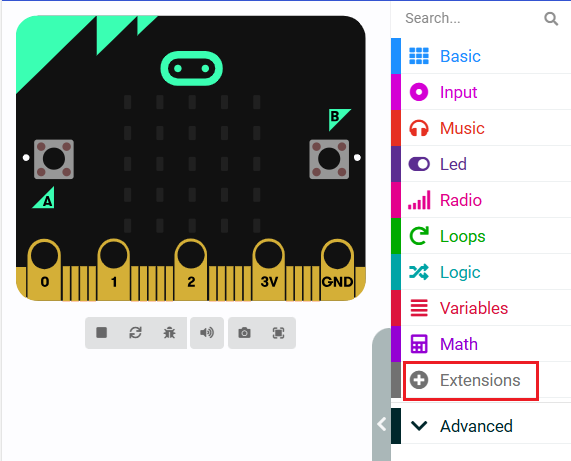

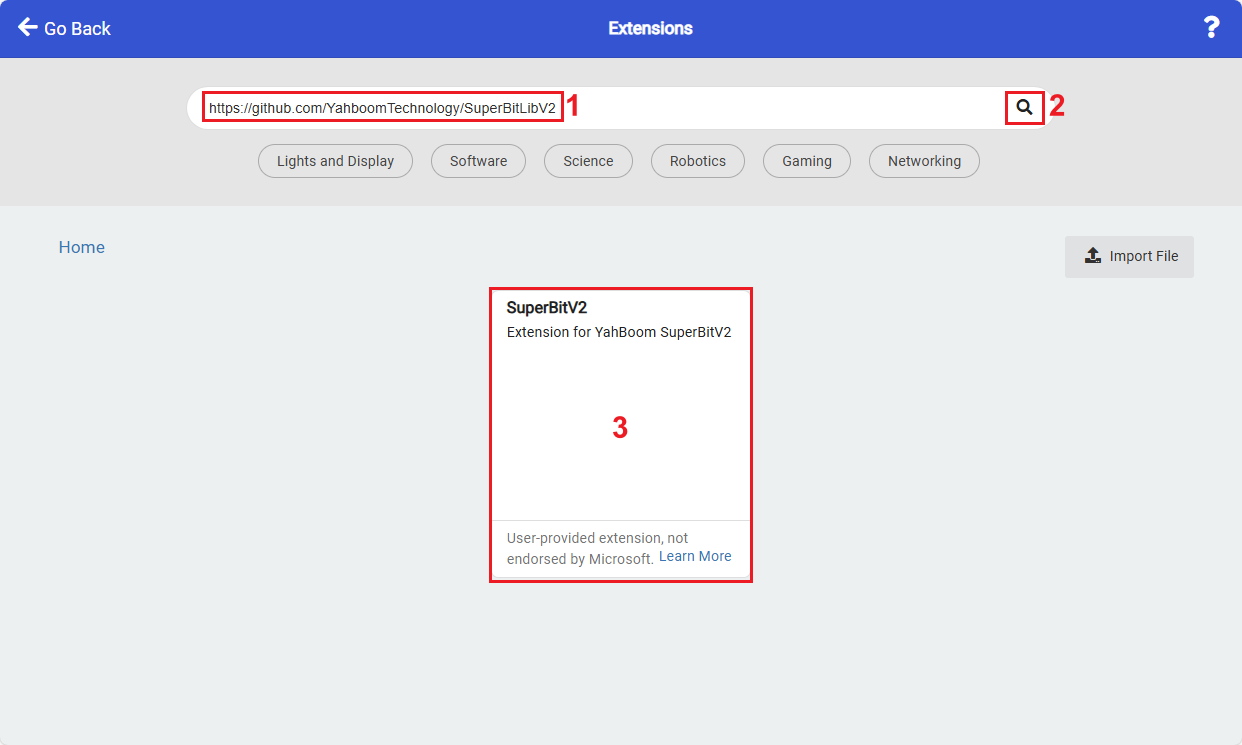

4.1 Add expansion package

4.2 Building blocks used

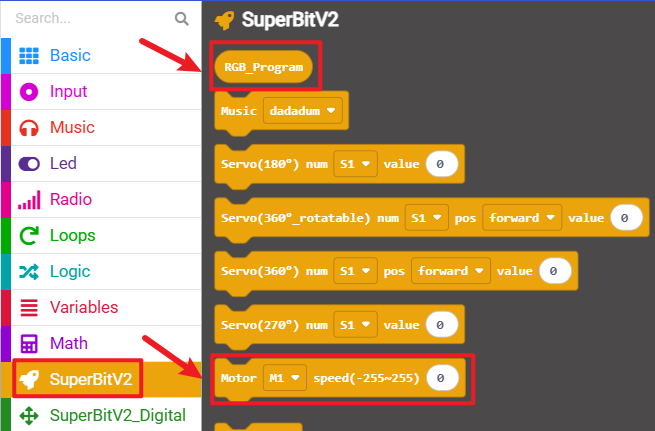

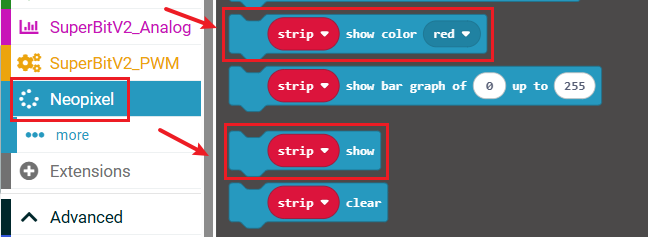

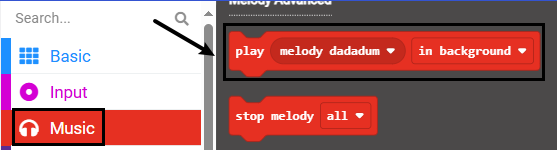

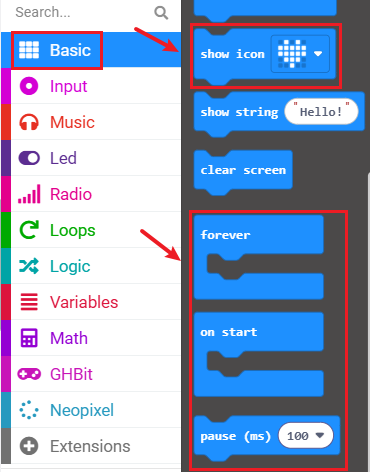

The location of the building blocks required for this programming is shown in the figure below.

4.3 Combining blocks

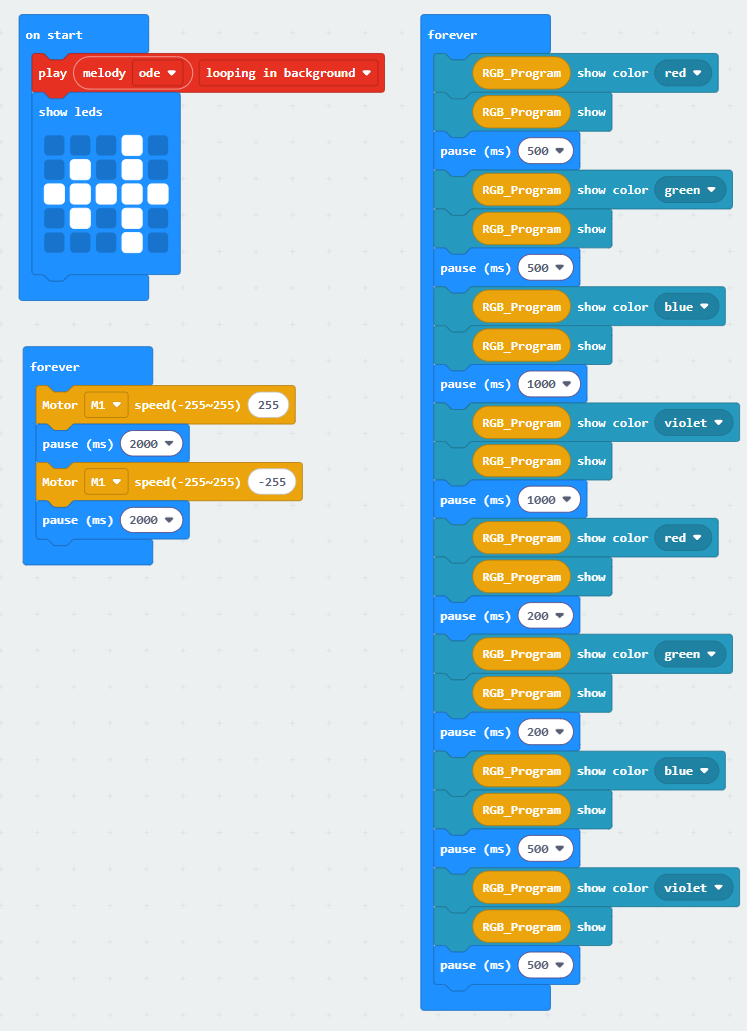

The summary program is shown in the figure below.

You can also directly open the microbit-Sailing-Prelude.hex file provided in this experiment and drag it into the browser that opens the URL, and the program diagram of this project source code will be automatically opened

5. Experimental phenomenon

After the program is successfully downloaded, turn on the power switch, and an airplane pattern will be displayed on the micro:bit dot matrix, as shown in the figure below. Then the propeller of the airplane starts to rotate, the buzzer starts to play the music "Ode", and RGB will also switch to different colors.
