1.8 Obstacle detection

Obstacle detection

Obstacle detection1. Learning objectives2. Sensor wiring3. Programming3.1 Adding extension packages3.2 Building blocks used3.3 Combining blocks4. Experimental Phenomenon

1. Learning objectives

In this course, we mainly learn how to implement obstacle detection through MakeCode graphical programming.



2. Sensor wiring

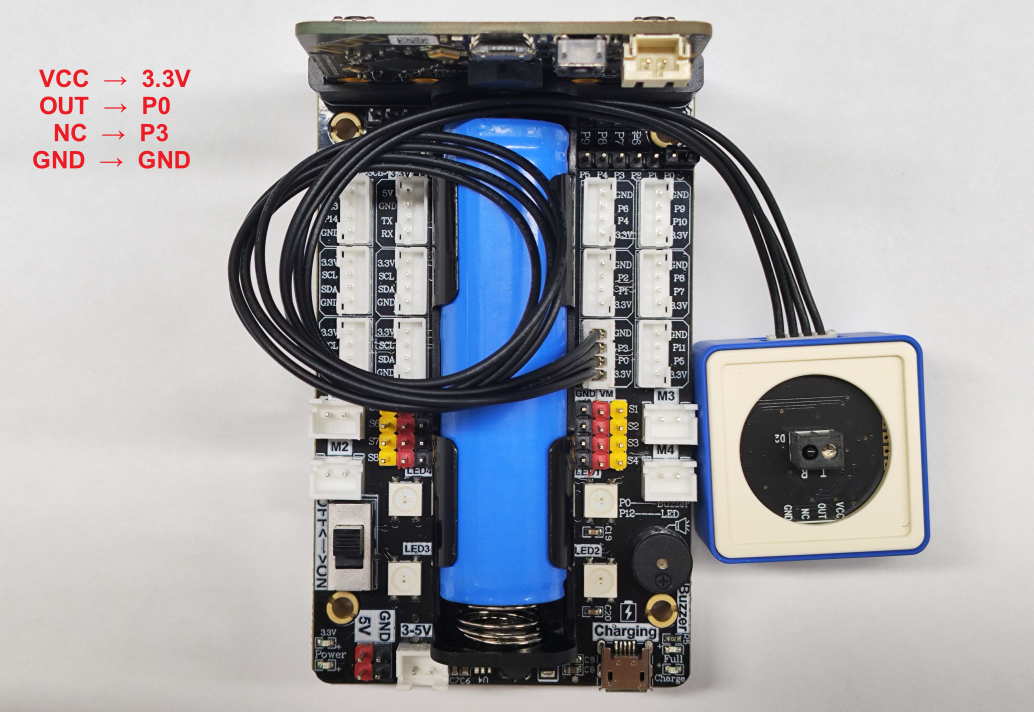

The infrared module is connected to the P0P3 interface.

image-20250624180517791



3. Programming

Method 1 Online programming:

First, connect micro:bit to the computer via a USB cable, a USB flash drive will pop up on the computer, click the URL in the USB flash drive: https://makecode.microbit.org/ to enter the programming interface. Then, add the Yahboom software package https://github.com/YahboomTechnology/SuperBitLibV2 to start programming.

Method 2 Offline programming:

Open the offline programming software MakeCode and enter the programming interface. Click [New] and add the Yahboom software package https://github.com/YahboomTechnology/SuperBitLibV2 to start programming.

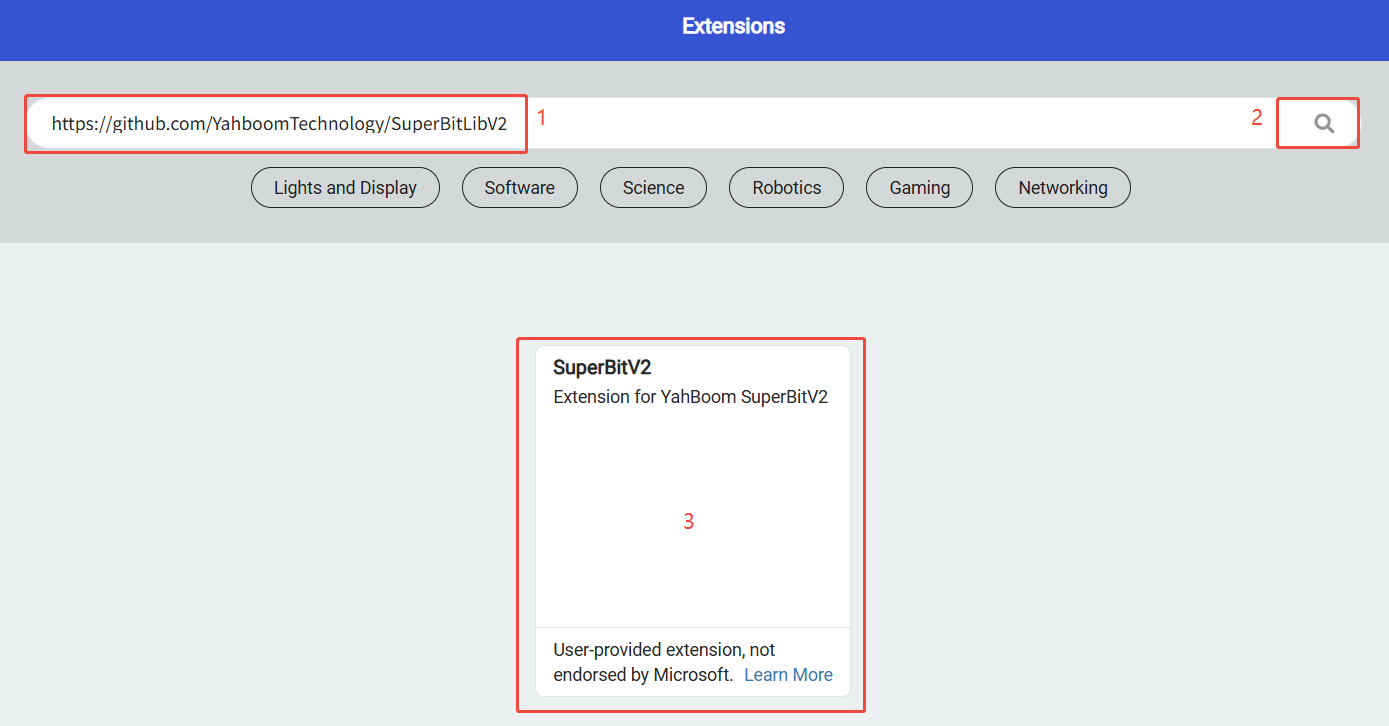

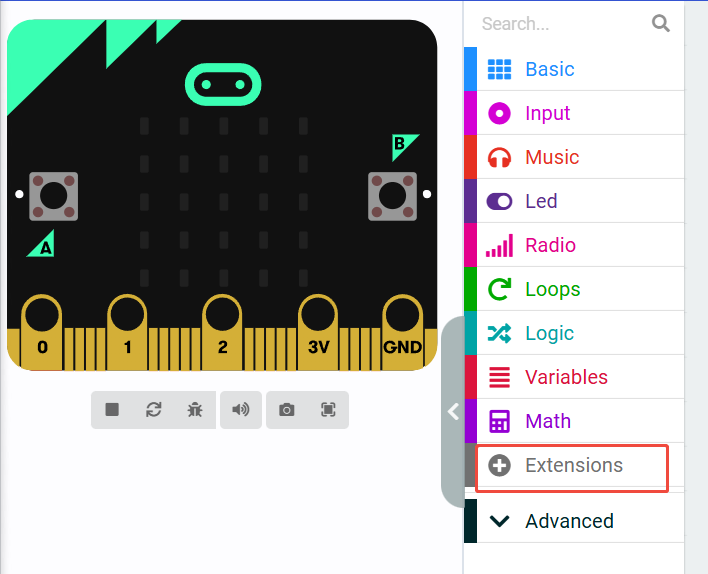

3.1 Adding extension packages

image-20250606184603631

image-20250606184759888

3.2 Building blocks used

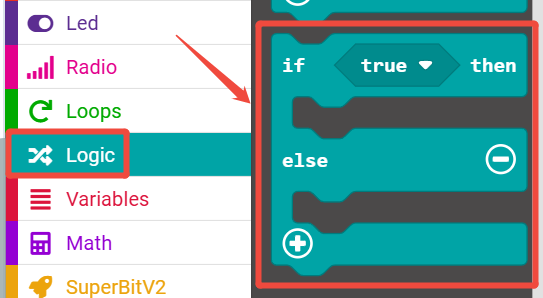

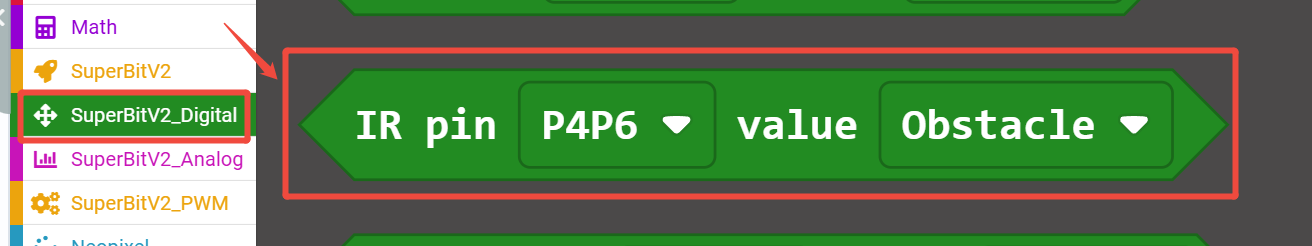

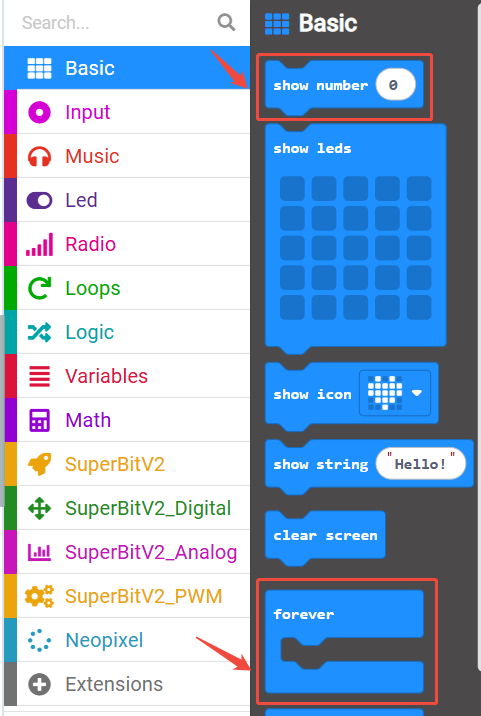

The locations of the building blocks required for this programming are shown in the figure below.

1588044336115798


image-20250623192356100

3.3 Combining blocks

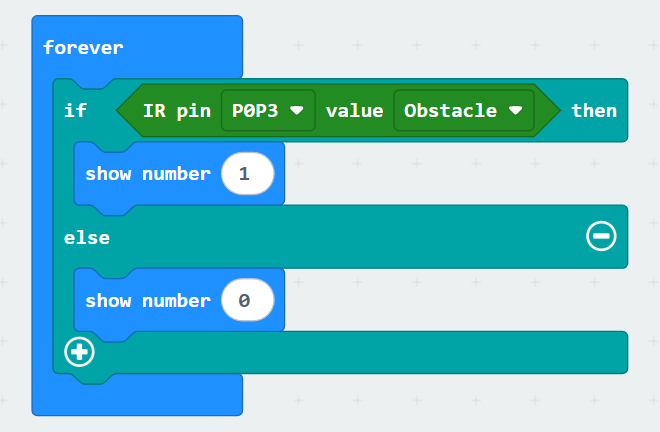

The summary procedure is shown in the figure below.


You can also directly open the Obstacle-detection.hex file provided in this experiment and drag it into the browser that opens the URL, and the program diagram of this project source code will be automatically opened.



4. Experimental Phenomenon

After the program runs successfully, the microbit dot matrix displays 1 when an obstacle is detected, otherwise it displays 0.
