6. Virtual machine installation

How to install and use VM

1. Install virtual machine software

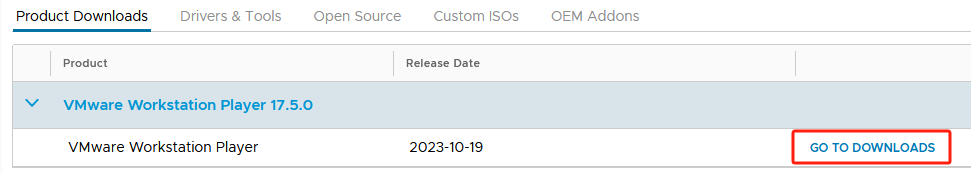

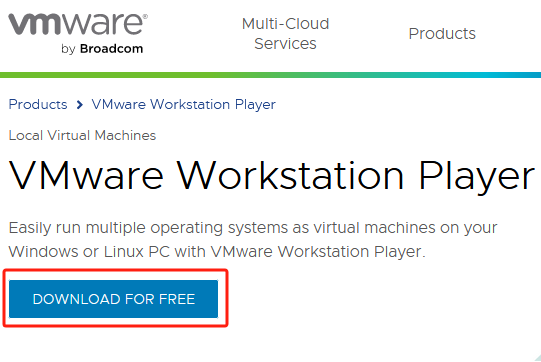

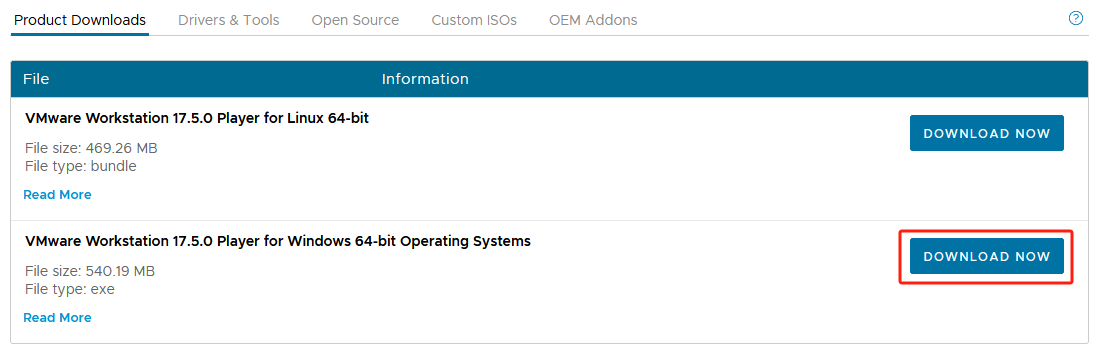

Open the browser, enter the following URL to enter the VMware Player virtual machine software download page, and click Download

https://www.vmware.com/products/workstation-player.html

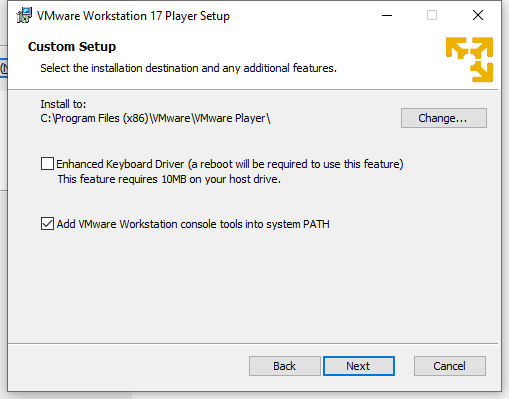

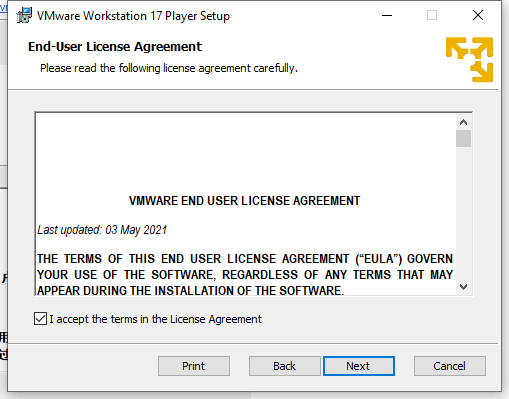

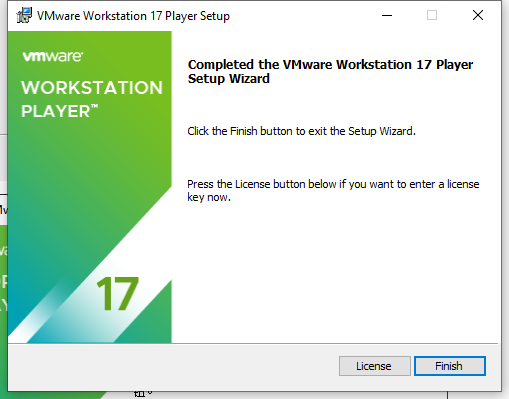

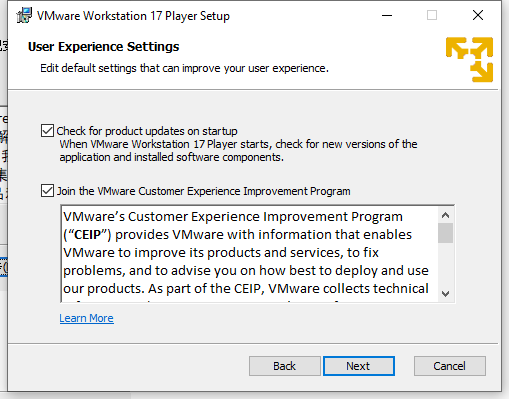

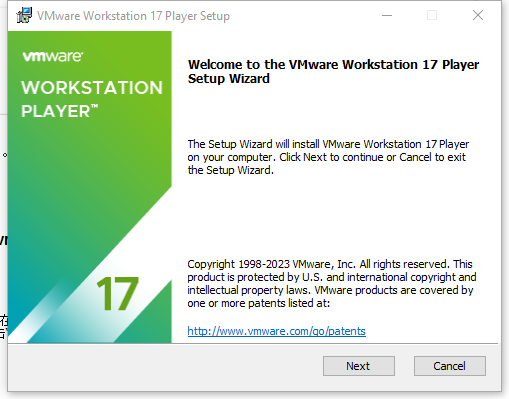

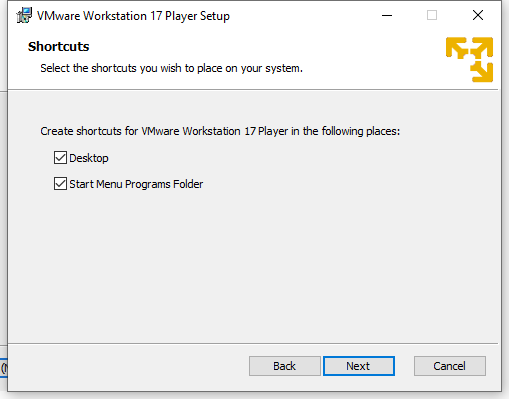

Double-click to run the VMware virtual machine compressed package file, and then install the virtual machine software according to the prompts.

image-20240106153534916

image-20240106153550503

image-20240106153622063

image-20240106153637103

image-20240106153651119

image-20240106153703358

image-20240106153901183

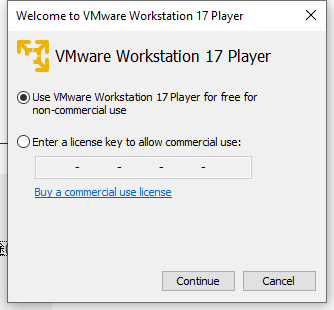

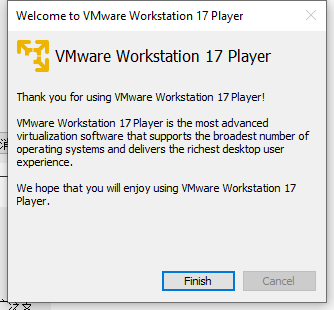

Double click to open

image-20240106153948757

image-20240106153926933

image-20240106154005732



2. Start the virtual machine system

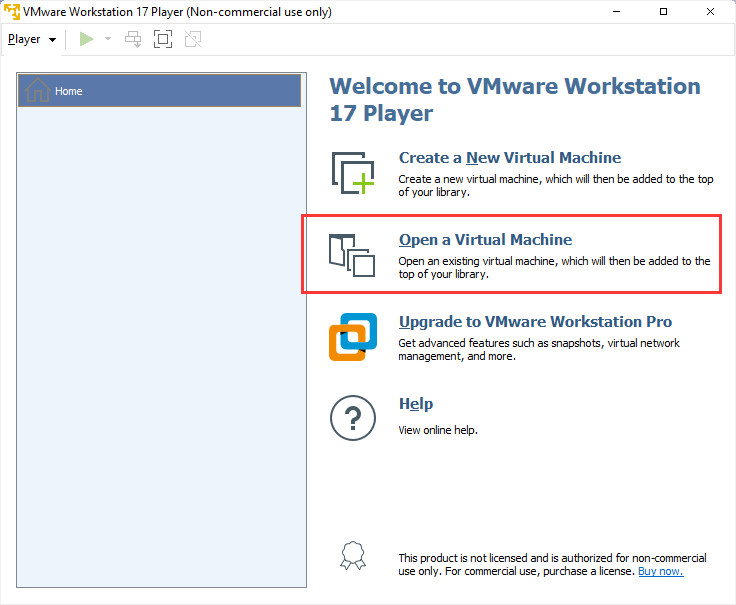

Use the virtual machine software to open the virtual machine system file in the information.

image-20240109113640569

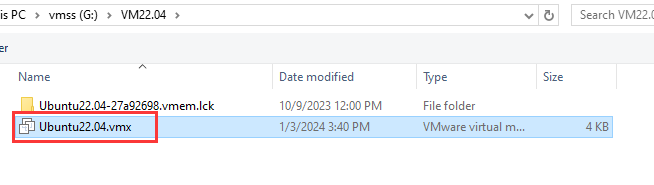

Find the path to the decompressed virtual machine file and select the Ubuntu22.04.vmx file.

image-20240109115438822

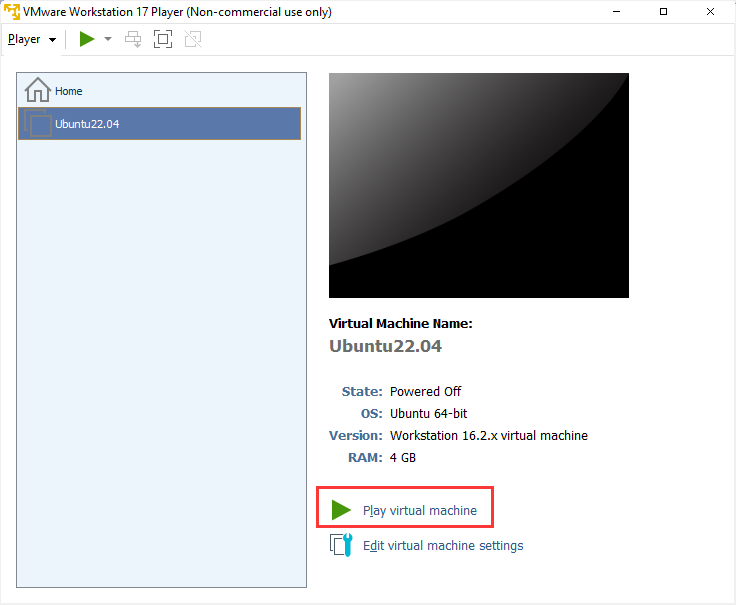

Select the virtual machine name and click Play Virtual Machine.

image-20240109115800497

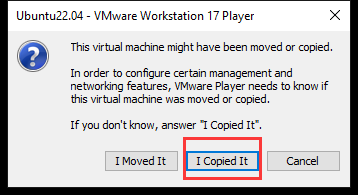

If this is the first time you open a virtual machine, the following window will appear. Click 'I Copied It'.

image-20240109120313628

Then wait for the virtual machine to start.



3. View the IP address of the virtual machine

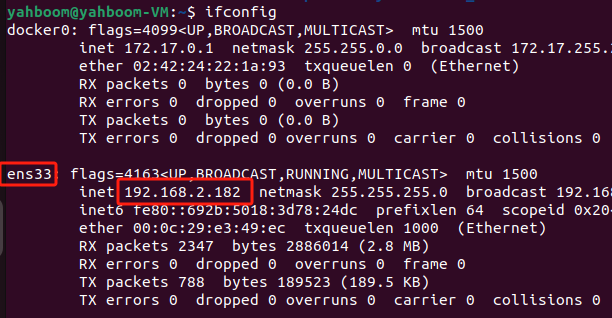

Open the system terminal and enter the command to query the IP address. Normally, inet under ens33 is the IP address of the current virtual machine.

ifconfig

image-20240109120600014
