1. Update and upgrade operating system

Update and upgrade operating system

Update and upgrade operating systemGraphical interfaceUse APTUpdate software listUpdate software to the latest versionSearch softwareView software informationinstall softwareUninstall softwareUse rpi-updateUpgrade firmwareRoll back to stable version

Keeping the Raspberry Pi up to date can improve the security of the system, but it is not recommended for developers to update randomly!

Graphical interface

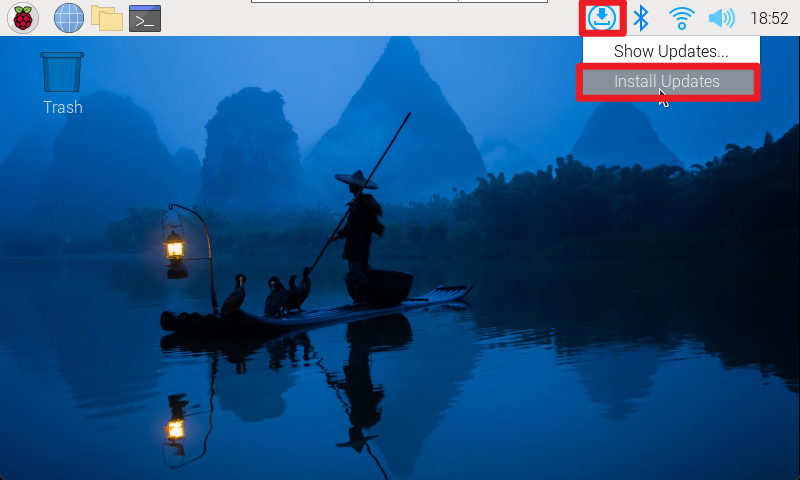

Generally, the Raspberry Pi system update prompt will be displayed in the upper right corner of the desktop. You can click the corresponding option to update!

image-20231218185252109

Use APT

Tools for managing software installation, upgrades and removals.

xxxxxxxxxx
The software source of Raspberry Pi is saved in the sources.list file, and the path is located at /etc/apt/sources.list. Do not modify this file unless necessary.

Update software list

xxxxxxxxxx
sudo apt update

Update software to the latest version

xxxxxxxxxx
sudo apt full-upgrade

Search software

Command: apt-cache search <package_name>

Function: Used to search for specific packages in the package repository.

Example: Search the package management system for packages related to "locomotive"

xxxxxxxxxx
apt-cache search locomotive

View software information

Command: apt-cache show <package_name>

Function: Used to display detailed information of a specific software package.

Example: Display details for a package named "sl"

xxxxxxxxxx
apt-cache show sl

install software

Command: sudo apt install <package_name>

Function: Used to install specific software packages with administrator privileges.

Example: Use administrator rights (sudo) to install software named "tree"

xxxxxxxxxx
sudo apt install tree

Command: sudo apt install <package_name> -y

Function: Automatically confirm the installation of specific software packages with administrator privileges.

Example: Installing a package named "tree" with automatic confirmation (-y) with administrator privileges

xxxxxxxxxx
sudo apt install tree -y

Uninstall software

Command: sudo apt remove <package_name>

Function: Used to remove specific software packages with administrator privileges.

Example: Uninstalling a package named "tree" with administrator privileges.

xxxxxxxxxx
sudo apt remove tree

Command: sudo apt purge <package_name>

Function: Used to completely clear specific software packages, including configuration files and useless dependencies, with administrator privileges.

Example: Completely clear the package named "tree" with administrator privileges, including configuration files and useless dependencies.

xxxxxxxxxx
sudo apt purge tree

Use rpi-update

Used to update startup files and firmware on the Raspberry Pi to provide support for new hardware, features, or fixes.

xxxxxxxxxx
If you need to use this method to upgrade the firmware, it is recommended to back up the current system first, because running this command may cause the system to fail to start normally.

Upgrade firmware

rpi-update needs to be run as root; you will need to reboot after the update is complete.

xxxxxxxxxx
sudo rpi-update
sudo reboot

Roll back to stable version

If the firmware upgrade still does not work properly, you can use the following command to reinstall the stable version of the firmware.

sudo apt-get update
sudo apt install --reinstall raspi-firmware
