5. Facial recognition

5.1、Introduction

MediaPipe is a data stream processing machine learning application development framework developed and open-source by Google. It is a graph based data processing pipeline used to build and utilize various forms of data sources, such as video, audio, sensor data, and any time series data. MediaPipe is cross platform and can run on embedded platforms (such as Raspberry Pi), mobile devices (iOS and Android), workstations, and servers, with support for mobile GPU acceleration. MediaPipe provides cross platform, customizable ML solutions for real-time and streaming media. The core framework of MediaPipe is implemented in C++and provides support for languages such as Java and Objective C. The main concepts of MediaPipe include packets, streams, calculators, graphs, and subgraphs.

Features of MediaPipe:

• End to end acceleration: Built in fast ML inference and processing can accelerate even on regular hardware.

• Build once, deploy anytime, anywhere: A unified solution suitable for Android, iOS, desktop/cloud, web, and IoT.

• Ready to use solution: a cutting-edge ML solution that showcases all the functionalities of the framework.

• Free and open-source: frameworks and solutions under Apache 2.0, fully extensible and customizable.

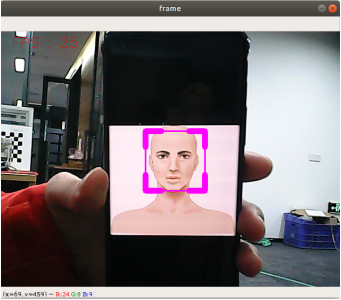

5.2 Face recognition

5.2.1、Start

Input following command in the terminal

ros2 run yahboomcar_mediapipe 05_FaceEyeDetection

5.2.2、Code

Code path：~/orbbec_ws/src/yahboomcar_mediapipe/yahboomcar_mediapipe/05_FaceEyeDetection.py

​x
#!/usr/bin/env python2
# encoding: utf-8
#import ros lib
import rclpy
from rclpy.node import Node
from geometry_msgs.msg import Point
import mediapipe as mp
from cv_bridge import CvBridge
from sensor_msgs.msg import CompressedImage,Image
#import define msg
from yahboomcar_msgs.msg import PointArray
#import commom lib
import cv2 as cv
import numpy as np
import time
print("import done")


class FaceEyeDetection(Node):
    def __init__(self,name):
        super().__init__(name)
        self.bridge = CvBridge()
        self.eyeDetect = cv.CascadeClassifier( "/home/yahboom/orbbec_ws/src/yahboomcar_mediapipe/yahboomcar_mediapipe/file/haarcascade_eye.xml")
        self.faceDetect = cv.CascadeClassifier(
"/home/yahboom/orbbec_ws/src/yahboomcar_mediapipe/yahboomcar_mediapipe/file/haarcascade_eye.xml")
        self.pub_rgb = self.create_publisher(Image,"/FaceEyeDetection/image", 500)

    def cancel(self):
        self.pub_rgb.unregister()

    def face(self, frame):
        gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
        faces = self.faceDetect.detectMultiScale(gray, 1.3)
        for face in faces: frame = self.faceDraw(frame, face)
        return frame

    def eye(self, frame):
        gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
        eyes = self.eyeDetect.detectMultiScale(gray, 1.3)
        for eye in eyes:
            cv.circle(frame, (int(eye[0] + eye[2] / 2), int(eye[1] + eye[3] / 2)), (int(eye[3] / 2)), (0, 0, 255), 2)
        return frame

    def faceDraw(self, frame, bbox, l=30, t=10):
        x, y, w, h = bbox
        x1, y1 = x + w, y + h
        cv.rectangle(frame, (x, y), (x + w, y + h), (255, 0, 255), 2)
        # Top left x,y
        cv.line(frame, (x, y), (x + l, y), (255, 0, 255), t)
        cv.line(frame, (x, y), (x, y + l), (255, 0, 255), t)
        # Top right x1,y
        cv.line(frame, (x1, y), (x1 - l, y), (255, 0, 255), t)
        cv.line(frame, (x1, y), (x1, y + l), (255, 0, 255), t)
        # Bottom left x1,y1
        cv.line(frame, (x, y1), (x + l, y1), (255, 0, 255), t)
        cv.line(frame, (x, y1), (x, y1 - l), (255, 0, 255), t)
        # Bottom right x1,y1
        cv.line(frame, (x1, y1), (x1 - l, y1), (255, 0, 255), t)
        cv.line(frame, (x1, y1), (x1, y1 - l), (255, 0, 255), t)
        return frame

    def pub_img(self, frame):
        self.pub_rgb.publish(self.bridge.cv2_to_imgmsg(frame, "bgr8"))


def main():
    rclpy.init()
    capture = cv.VideoCapture(0)
    capture.set(6, cv.VideoWriter_fourcc(*'XVID'))
    capture.set(cv.CAP_PROP_FRAME_WIDTH, 640)
    capture.set(cv.CAP_PROP_FRAME_HEIGHT, 480)
    print("capture get FPS : ", capture.get(cv.CAP_PROP_FPS))
    pTime, cTime, content_index = 0, 0, 0
    dat_file = "./file/shape_predictor_68_face_landmarks.dat"
    face_eye_detection = FaceEyeDetection('face_eye_detection')
    content = ["face", "eye", "face_eye"]
    while capture.isOpened():
        ret, frame = capture.read()
        # frame = cv.flip(frame, 1)
        action = cv.waitKey(1) & 0xFF
        if action == ord("f") or action == ord("F"):
            content_index += 1
            if content_index >= len(content): content_index = 0
        if content[content_index] == "face": frame = face_eye_detection.face(frame)
        elif content[content_index] == "eye": frame = face_eye_detection.eye(frame)
        else: frame = face_eye_detection.eye(face_eye_detection.face(frame))
        if action == ord('q') or action == ord("Q"): break
        cTime = time.time()
        fps = 1 / (cTime - pTime)
        pTime = cTime
        text = "FPS : " + str(int(fps))
        cv.putText(frame, text, (20, 30), cv.FONT_HERSHEY_SIMPLEX, 0.9, (0, 0, 255), 1)
        cv.imshow('frame', frame)
        face_eye_detection.pub_img(frame)
    capture.release()
    cv.destroyAllWindows()
