9.ROS service client

Service service is also a common communication method between ros nodes. Different from the topic, the service has a server and a client. The client requests the server to provide services. After the server completes the service, it needs to return the service results. Also called a response. In this lesson, we will explain how to write a client node program.

9.1 Create a client

The general creation steps are as follows:

• Initialize ROS nodes
• Create handle
• Create a Client instance
• Initialize and publish service request data
• Wait for the response result after Server processing

9.2 Create function package

In order to distinguish it from the learn_topic function package, we re-create a function package learn_service and enter it in the terminal.

cd ~/ros_ws/src
catkin_create_pkg learn_service std_msgs rospy roscpp geometry_msgs turtlesim

Then compile,

xxxxxxxxxx
cd ~/ros_ws
catkin_make

9.3 C++ version

9.3.1 Writing source code

In the src folder of the function package learn_service, create a C++ file (the file suffix is .cpp), name it a_new_turtle.cpp, and paste the following content into a_new_turtle.cpp,

xxxxxxxxxx
/**
* This routine will request the /spawn service in the little turtle node, and a new little turtle will appear at the specified location.
*/
#include <ros/ros.h>
#include <turtlesim/Spawn.h>
int main(int argc, char** argv)
{
    ros::init(argc, argv, "a_nes_turtle");// Initialize ROS node
    ros::NodeHandle node;
    ros::service::waitForService("/spawn"); // Wait/spawn service
    ros::ServiceClient new_turtle = node.serviceClient<turtlesim::Spawn>("/spawn");//Create a service client and connect to the service named /spawn
    // Initialize turtlesim::Spawn's request data
    turtlesim::Spawn new_turtle_srv;
    new_turtle_srv.request.x = 6.0;
    new_turtle_srv.request.y = 8.0;
    new_turtle_srv.request.name = "turtle2";
    // Request the service to pass in the xy position parameters and name parameters
    ROS_INFO("Call service to create a new turtle name is %s,at the x:%.1f,y:%.1f", new_turtle_srv.request.name.c_str(),
    new_turtle_srv.request.x,new_turtle_srv.request.y);
    new_turtle.call(new_turtle_srv); //Request service
    ROS_INFO("Spwan turtle successfully [name:%s]",
    new_turtle_srv.response.name.c_str());// Display service call results
    return 0;
};

9.3.2 Modify CMakeList.txt file

Configure in CMakelist.txt, under the build area, add the following content,

xxxxxxxxxx
add_executable(a_new_turtle src/a_new_turtle.cpp)
target_link_libraries(a_new_turtle ${catkin_LIBRARIES})

add_executable shows that the generated executable program file is a_new_turtle, and the compiled source code is a_new_turtle.cpp in the src directory.

target_link_libraries specifies the libraries that need to be linked when compiling and generating an executable file.

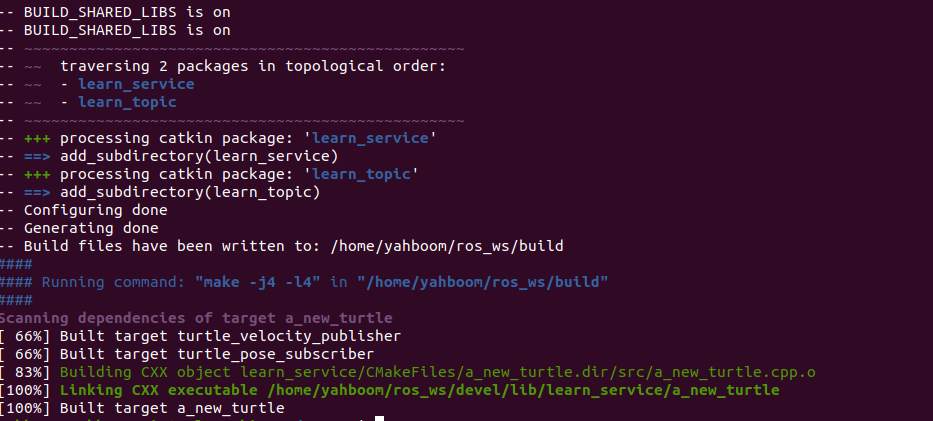

9.3.3 Compile

Terminal input,

xxxxxxxxxx
cd ~/ros_ws
catkin_make

After the compilation is passed, you need to re-source the current environment variables to find or update the program. Enter in the terminal.

xxxxxxxxxx
cd ~/ros_ws
source devel/setup.bash

9.3.4 Running the program

Open roscore，

xxxxxxxxxx
roscore

Run the little turtle node program,

xxxxxxxxxx
rosrun turtlesim turtlesim_node

Run the client node program to generate a small turtle at the specified location.

xxxxxxxxxx
rosrun learn_service a_new_turtle

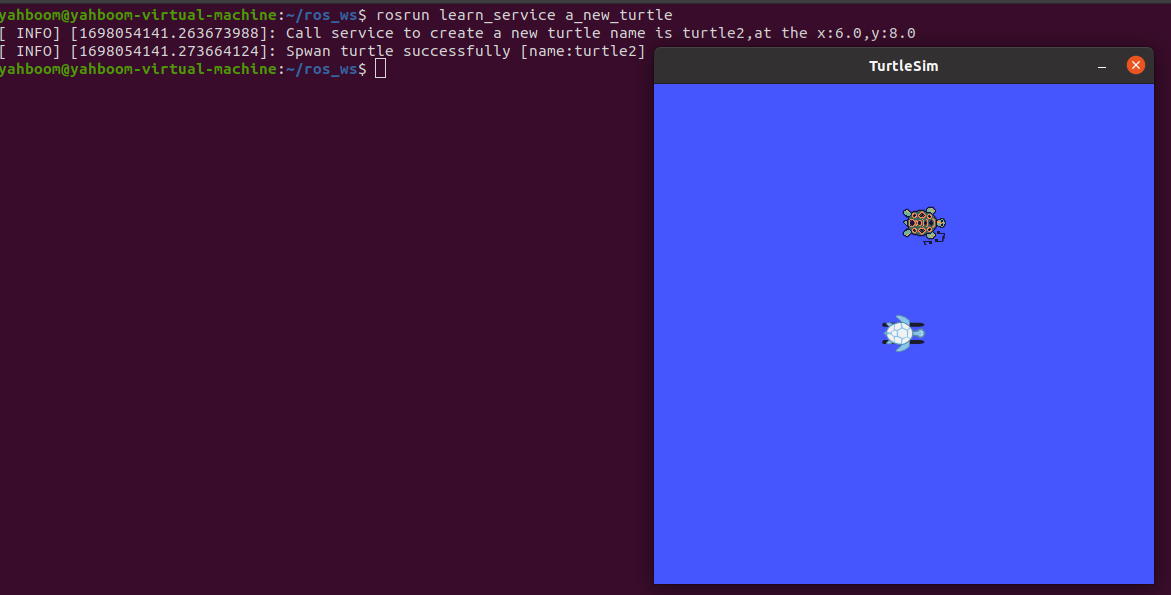

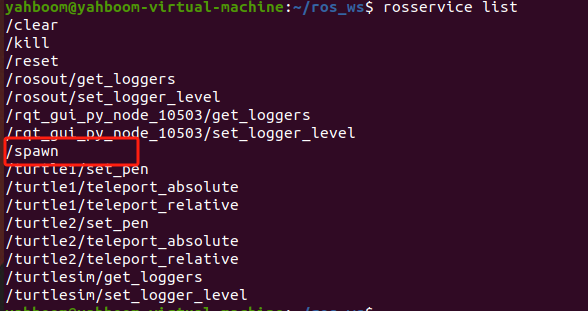

After starting the little turtle node, and then running the a_new_turtle program, you will find that another little turtle will appear on the screen. This is because the little turtle node provides service/spawn, which corresponds to ros::ServiceClient new_turtle in the code. = node.serviceClient<turtlesim::Spawn>("/spawn");//Creating this service will generate another little turtle turtle2. To view the services provided by the little turtle, you can view it through the rosservice list command, as shown in the figure below.

You can view the parameters required by this service through rosservice info /spawn, as shown in the figure below.

It can be seen that 4 parameters are required: x, y, theta, name. These four parameters are initialized in a_new_turtle.cpp.

xxxxxxxxxx
srv.request.x = 6.0;
srv.request.y = 8.0;
srv.request.name = "turtle2";
Note: theta is not assigned a value and defaults to 0

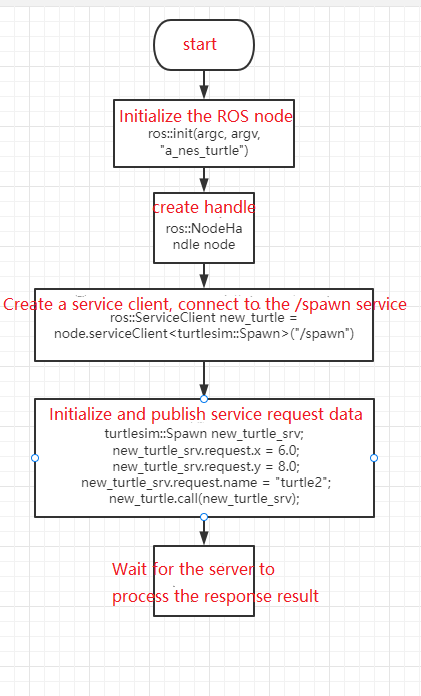

9.3.5 Program flow chart

9.4 Python version

9.4.1 Writing source code

Create a new scripts folder under the function package learn_service, then create a new python file (file suffix .py) in this scripts folder, name it a_new_turtle.py, copy and paste the following program code into the a_new_turtle.py file,

xxxxxxxxxx
#!/usr/bin/env python
# -*- coding: utf-8 -*-
import sys
import rospy
from turtlesim.srv import Spawn
def turtle_spawn():
    rospy.init_node('new_turtle')# ROS node initialization
    rospy.wait_for_service('/spawn')# Wait/spawn service
    try:
        new_turtle = rospy.ServiceProxy('/spawn', Spawn)
        response = new_turtle(2.0, 2.0, 0.0, "turtle2")# Enter request data
        return response.name
    except rospy.ServiceException as e:
        print ("failed to call service : %s")
if __name__ == "__main__":
    #Call the service and display the call results
    print ("a new turtle named %s." %(turtle_spawn()))

The python program does not need to be compiled, but it needs to add executable permissions and enter it in the terminal.

xxxxxxxxxx
cd ~/ros_ws/src/learn_service/scripts
sudo chmod a+x a_new_turtle.py

9.4.2 Run

Open roscore，

xxxxxxxxxx
rocore

Run the little turtle node,

xxxxxxxxxx
rosrun turtlesim turtlesim_node

Run the publisher node program and continue to send speed to the little turtle.

xxxxxxxxxx
rosrun learn_service a_new_turtle.py

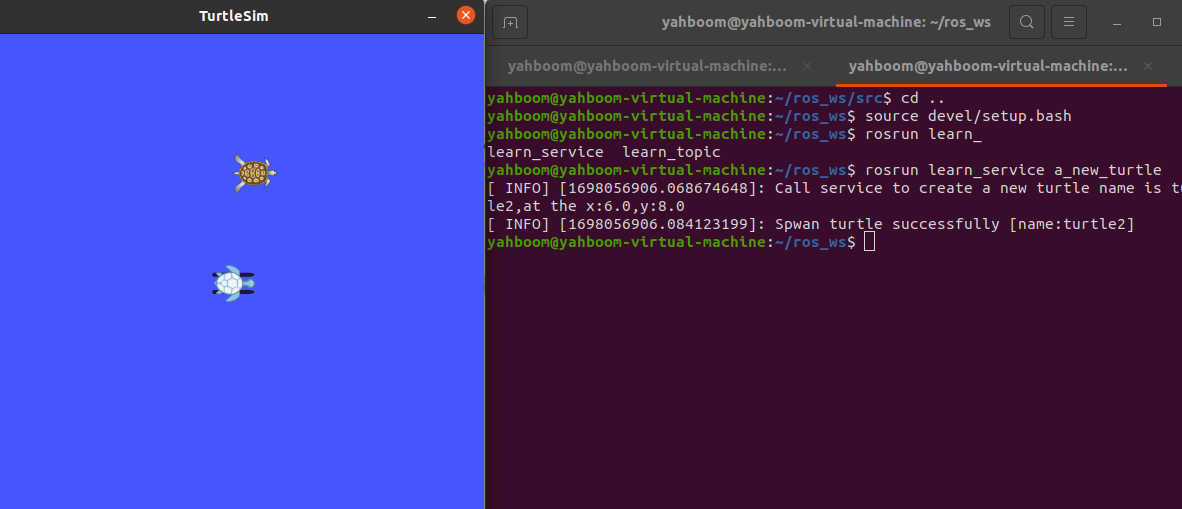

Similarly, after running, a little turtle will appear, and the terminal will print the returned content.

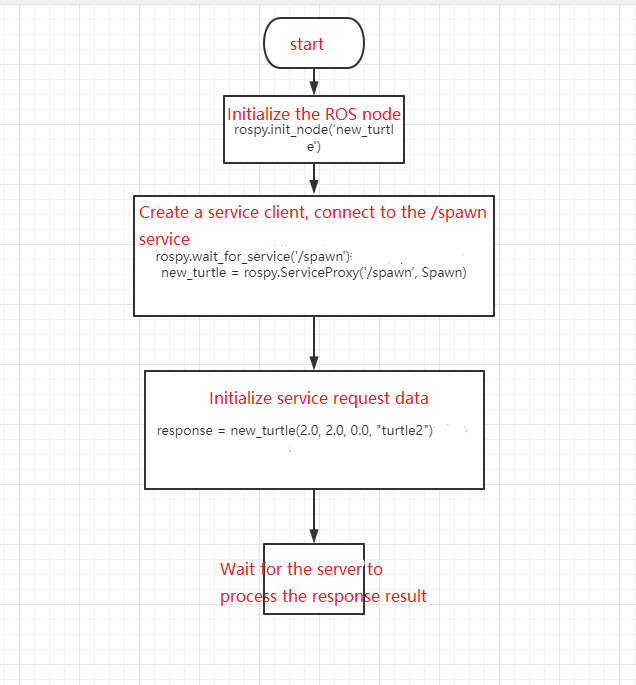

9.4.3 Program flow chart
