5. Voice control color tracking

Raspberry Pi PI5 master controller needs to check this step, Orin master controller does not need it

Before running this program, it is necessary to bind the port number of the voice board and the port number of the ROS extension board on the host computer; When entering the docker, you need to mount the voice board to recognize the voice board in the docker.

5.1. Function description

Voice control robot open and close tracking red/blue/green/yellow color function. The R2 button on the handle can cancel/enable this function at any time.

5.2. Steps

5.2.1. Function package path

Enter the docker, The location of the function source code is located

~/yahboomcar_ros2_ws/yahboomcar_ws/src/yahboomcar_voice_ctrl/yahboomcar_voic
e_ctrl/Voice_Ctrl_colorTracker.py
~/yahboomcar_ros2_ws/yahboomcar_ws/src/yahboomcar_voice_ctrl/yahboomcar_voic
e_ctrl/Voice_Ctrl_colorHSV.py

5.2.2. Start

Enter the docker, according to the actual vehicle type and radar type, terminal input

xxxxxxxxxx
#The orin main control starts the depth camera first, but the pi5 main control does not need to start
ros2 launch astra_camera astro_pro_plus.launch.xml

​x
#Start the handle control node
ros2 run yahboomcar_ctrl yahboom_joy_R2
ros2 run joy joy_node
#Start the voice control color tracking node
ros2 run yahboomcar_voice_ctrl Voice_Ctrl_colorHSV
ros2 run yahboomcar_voice_ctrl Voice_Ctrl_colorTracker
#Start the car chassis
ros2 run yahboomcar_bringup Ackman_driver_R2
#Launch depth camera The pi5 master needs to be started, and the orin master does not need to be started.
ros2 launch astra_camera astra.launch.xml

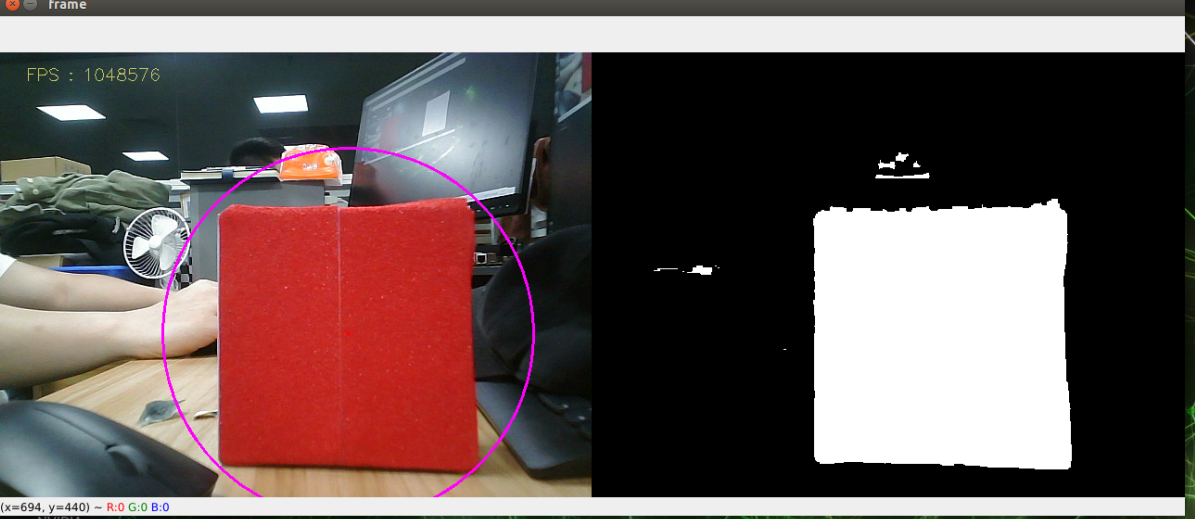

(Take tracking red for example)

1. After the above program is run, we say "Hi Yahboom" to wake up the voice module, until it replies "Hi, i'm here", indicating that the module has been woken up.

2. We can say "red following" and it will reply "OK, I found the red ".

3. Next, we press the R2 key on handle, then ROSMASTER starts following red object.

4. If you want to cancel this color tracking function, say "stop following", it replies "OK, it has been stoped". ROSMASTER will cancel this function.

5. When the robot is moving, you can pause the robot by pressing the R2 key on handle again.

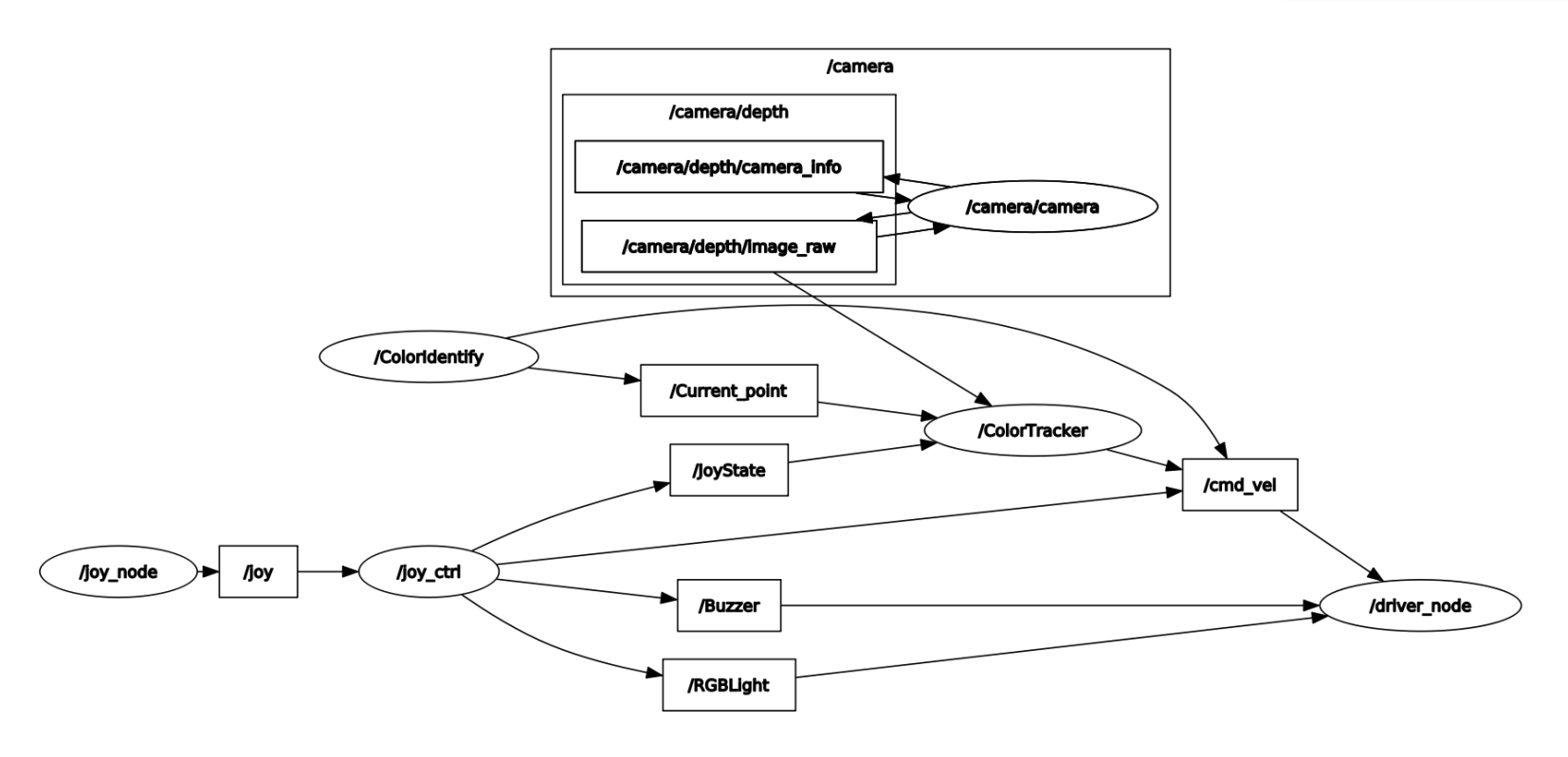

5.2.3. Topic graph

Docker terminal input

xxxxxxxxxx
ros2 run rqt_graph rqt_graph

Dynamic parameter adjusters are also available

xxxxxxxxxx
ros2 run rqt_reconfigure rqt_reconfigure

Modified parameter:

• colorHSV is mainly responsible for image processing and can adjust the value of HSV

• colorTracker is mainly responsible for calculating speed, adjustable speed and distance related parameters

Notes: The camera is very sensitive to light, and if it is in a different lighting environment, it will cause inaccurate color recognition. So we need to re-calibrate the colors for red, green, yellow, and blue according to the current lighting environment.

5.3. Code analysis

5.3.1. colorHSV

This part mainly analyzes voice instructions, as well as image processing, and finally publishes the center coordinates

xxxxxxxxxx
#Define a publisher，Publish the center coordinates of the detected object
self.pub_position = self.create_publisher(Position,"/Current_point", 10）
#Import the voice driver library
from Speech_Lib import Speech
#Create a voice control object
self.spe = Speech()
#The following is to obtain instructions to judge the recognition results，load the corresponding HSV value
command_result = self.spe.speech_read()
self.spe.void_write(command_result)
if command_result == 73 :
self.model = "color_follow_line"
print("tracker red")
self.hsv_range =  [(0, 175, 149), (180, 253, 255)]
#process image，calculate the center coordinates of the detected object，enter execute function，publishing center coordinate
rgb_img, binary, self.circle = self.color.object_follow(rgb_img, self.hsv_range)
if self.circle[2] != 0: threading.Thread(
                target=self.execute, args=(self.circle[0], self.circle[1], self.circle[2])).start()
if self.point_pose[0] != 0 and self.point_pose[1] != 0: threading.Thread(
                target=self.execute, args=(self.point_pose[0], self.point_pose[1], self.point_pose[2])).start()

5.3.2. colorTracker

This part receives the topic data and depth data of the center coordinates, then calculate the speed and publish it to the rosmaster

xxxxxxxxxx
#Define a subscriber，subscribe to depth information
self.sub_depth = self.create_subscription(Image,"/camera/depth/image_raw", self.depth_img_Callback, 1)
#Define a subscriber，subscribe to center coordinate information
self.sub_position = self.create_subscription(Position,"/Current_point",self.positionCallback,1）
#callback function
def positionCallback(self, msg)#Gets the center coordinate value
def depth_img_Callback(self, msg) #Get depth information
#Pass in the X-value of the center coordinate and the depth information，then calculated speed publish to the rosmaster
def execute(self, point_x, dist)

5.4. Voice module communication protocol
