3. Three-dimensional object recognition

3D object recognition

Introduction

MediaPipe is an open source data stream processing machine learning application development framework developed by Google. It is a graph-based data processing pipeline for building and using multiple forms of data sources, such as video, audio, sensor data, and any time series data. MediaPipe is cross-platform and can run on embedded platforms (Raspberry Pi, etc.), mobile devices (iOS and Android), workstations and servers, and supports mobile GPU acceleration. MediaPipe provides cross-platform, customizable ML solutions for real-time and streaming media.

The core framework of MediaPipe is implemented in C++ and provides support for languages such as Java and Objective C. The main concepts of MediaPipe include Packet, Stream, Calculator, Graph and Subgraph.

Features of MediaPipe:

  • End-to-end acceleration: Built-in fast ML inference and processing accelerates even on commodity hardware.

  • Build once, deploy anywhere: Unified solution for Android, iOS, desktop/cloud, web and IoT.

  • Ready-to-use solutions: cutting-edge ML solutions that showcase the full capabilities of the framework.

  • Free and open source: frameworks and solutions under Apache2.0, fully extensible and customizable.

3D object recognition

Source code location:/home/pi/yahboomcar_ws/src/yahboomcar_mediapipe/scripts

xxxxxxxxxx
Three-dimensional object recognition: The objects that can be recognized are: ['Shoe', 'Chair', 'Cup', 'Camera'], a total of 4 categories; click [F key] to switch to recognized objects.
xxxxxxxxxx
If you want to exit the program, you can press q in the preview window or press Ctrl+C in the terminal to terminate the program!

1. USB camera

xxxxxxxxxx
cd /home/pi/yahboomcar_ws/src/yahboomcar_mediapipe/scripts
python3 03_Objectron_USB.py

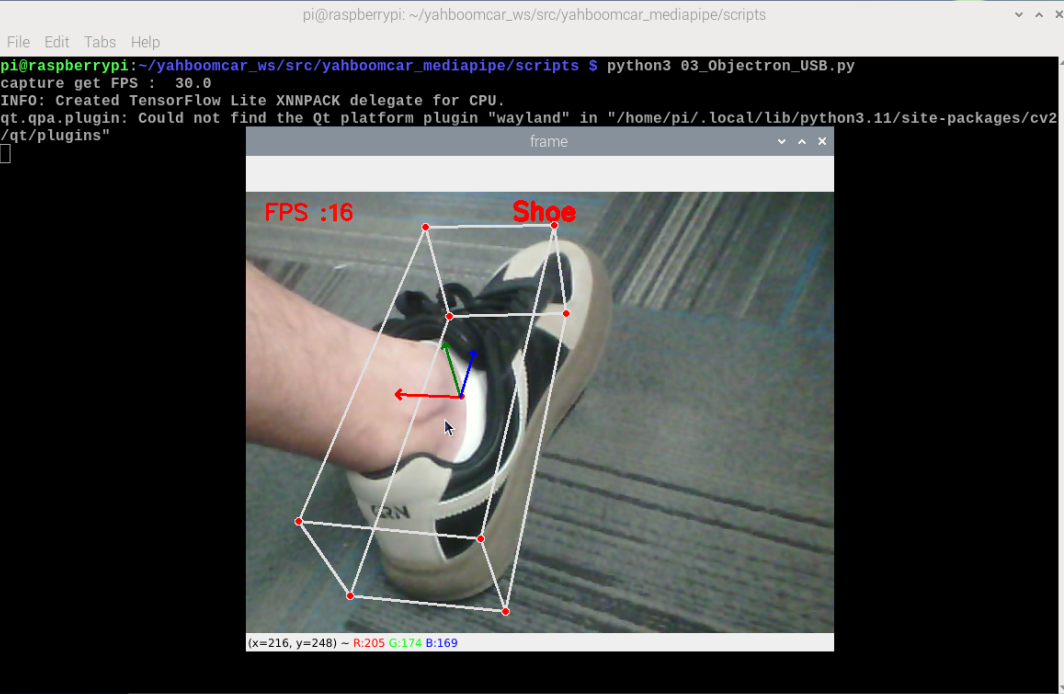

image-20240103201523771

2. CSI camera

xxxxxxxxxx
cd /home/pi/yahboomcar_ws/src/yahboomcar_mediapipe/scripts
python3 03_Objectron_CSI.py

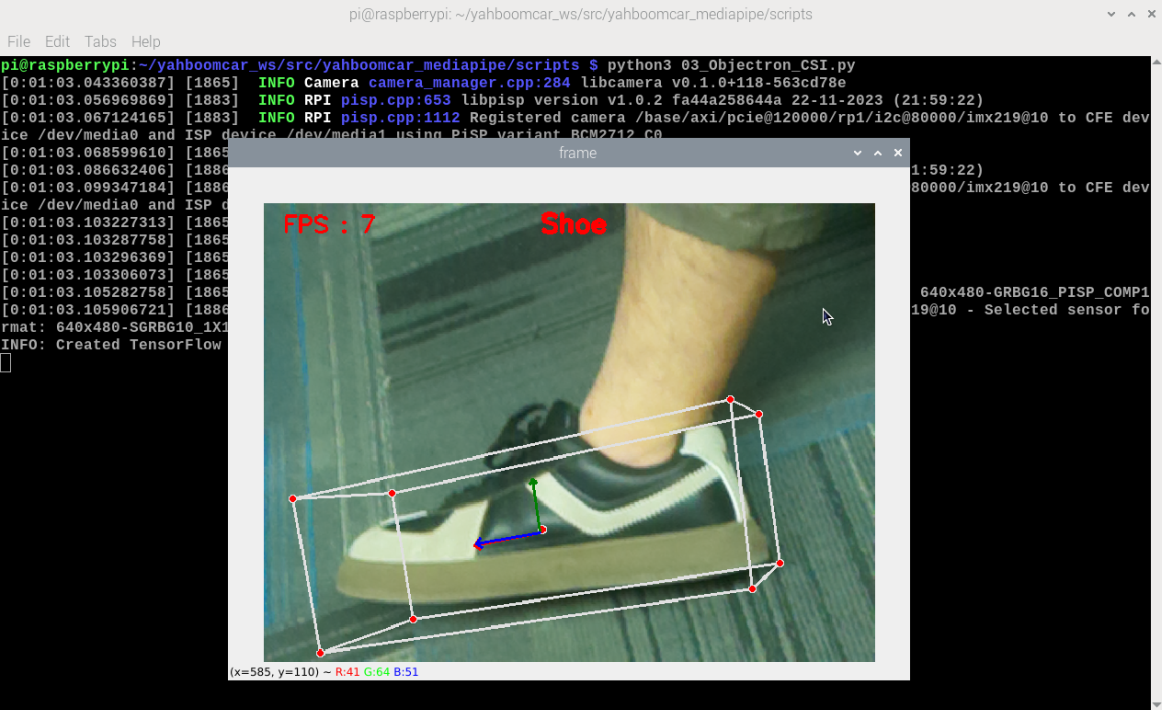

image-20240103203640389

Face detection
Paintbrush

COMPANY

  • About us
  • Team Style
  • Blog

LEARNING & EXPLORATION

  • Tutorials
  • Edge AI hardware
  • Educational robots
  • Embedded intelligent hardware

WHERE TO BUY

  • Yahboom Online Store
  • Amazon
  • Alibaba
  • AliExpress
  • Mercado

TECHNOLOGY SUPPORT

  • Email: support@yahboom.com

BE A DISTRIBUTOR

  • Email: sales@yahboom.com
QR Code

Copyright © 2017-2026 Yahboom. All Rights Reserved.

EN/中文
