OpenClaw Three Dialogue Configuration Tests

1. Course Overview

This course will introduce three common dialogue methods for OpenClaw and provide their respective configuration and testing methods:

• WhatsApp dialogue
• Local TUI dialogue
• AI voice interaction dialogue

After completing this course, you will be able to choose the most suitable dialogue method for your scenario and complete basic verification.

2. Three Dialogue Methods Introduction

2.1 WhatsApp Method

Suitable scenarios:

• Mobile remote control
• Let multiple people experience OpenClaw together

Features:

• No need to stay by the device all the time
• Suitable for demonstrating "remote natural language control"

2.2 TUI Method

Suitable scenarios:

• Local debugging
• Quick testing
• Troubleshooting model and skill invocation issues

Features:

• Most direct
• Easiest to see commands and return results

2.3 Voice Interaction Method

Suitable scenarios:

• Complete AI interaction experience
• Voice wake-up and voice control
• Desktop assistant-style experience

Features:

• Strongest sense of interaction

3. WhatsApp Configuration and Testing

If you have the optional AI voice module + speaker, the TUI and WhatsApp conversations need to broadcast OpenClaw's replies. You can run the following program in the terminal. This is not needed for AI voice module conversations.

• Modify the TTS enable parameter

/home/pi/voice_to_openclaw/.env

xxxxxxxxxx
ENABLE_TTS=true
TTS_ENGINE=xunfei_ws
TTS_API_URL=wss://tts-api.xfyun.cn/v2/tts
TTS_VOICE=x4_xiaoyan
TTS_SAMPLE_RATE=16000
TTS_VOLUME=50
TTS_TIMEOUT=60
XUNFEI_TTS_SPEED=50
XUNFEI_TTS_PITCH=50
XUNFEI_TTS_TEXT_ENCODING=UTF8
XUNFEI_TTS_SIGN_HOST=ws-api.xfyun.cn
WAKE_ACK_TEXT=I am here.
TTS_MAX_CHARS=200
TTS_TRUNCATE_MODE=smart
TTS_LOCK_PATH=/tmp/voice_to_openclaw_tts.lock

xxxxxxxxxx
ENABLE_TTS=true  # This parameter controls whether to broadcast replies. After saving, run the program below in the terminal.

• Terminal input

xxxxxxxxxx
cd ~/voice_to_openclaw
source .venv/bin/activate
python -m src.openclaw_session_tts

3.1 Install WhatsApp Plugin

• Input in terminal:

xxxxxxxxxx
openclaw channels login --channel whatsapp

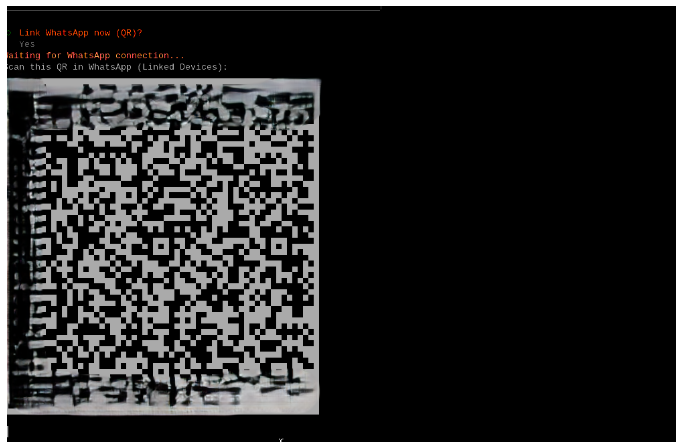

• After execution, a QR code usually appears. (Operate according to the [2.OpenClaw and WhatsApp Plugin Application] chapter in [12.OpenClaw Deployment and Basic Use])

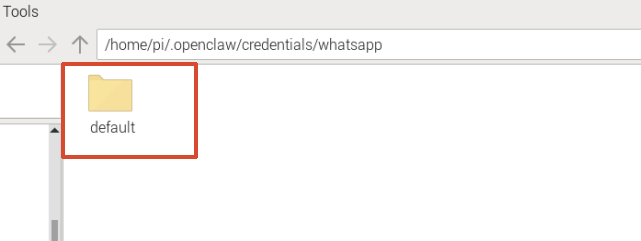

Note: If no QR code is generated after running, you can delete the following files and then re-run the command.

• Scan the QR code on the mobile phone to connect. "Linked after restart" appears, proving the connection is successful

• Open the newly created conversation to see the conversation ID

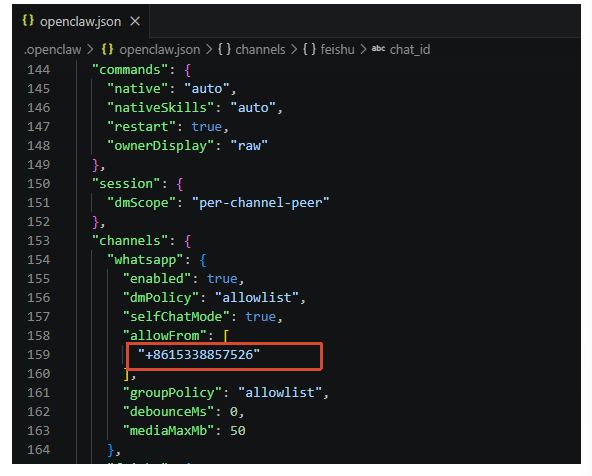

• Fill this into "allowFrom" in the openclaw.json file:

xxxxxxxxxx
nano /home/pi/.openclaw/openclaw.json

• Restart OpenClaw gateway

xxxxxxxxxx
openclaw gateway restart

3.2 Testing Method

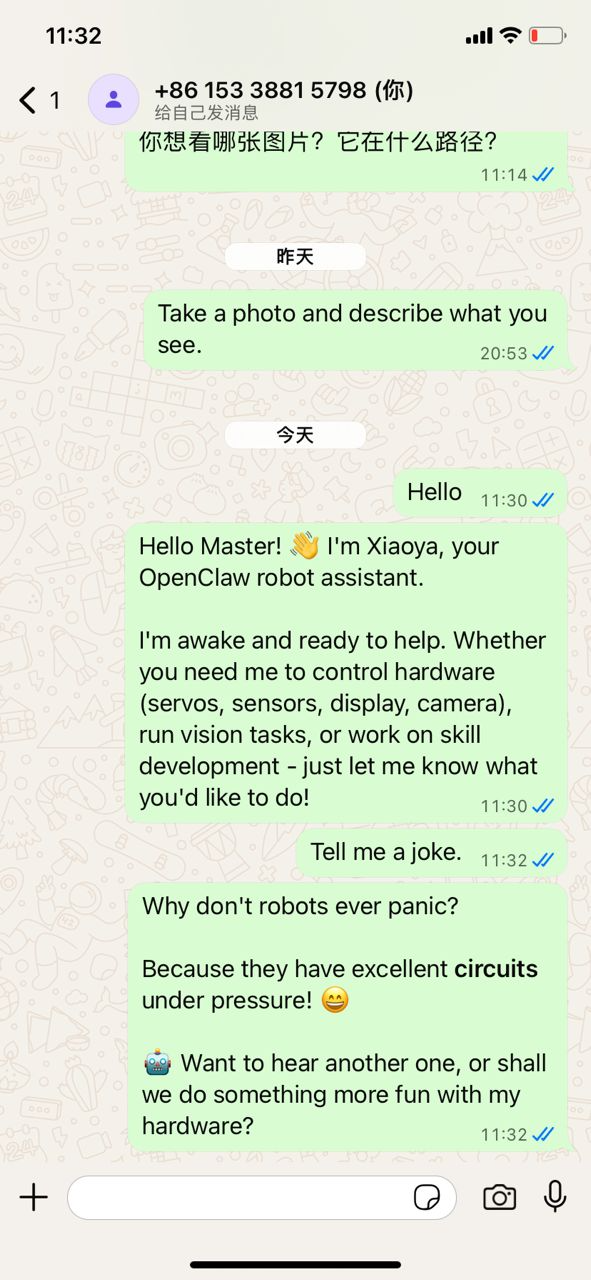

After creation, you can directly send test messages in WhatsApp, for example:

• Describe what you see

3.3 Common Problems

• If unable to create bot after scanning: check network first
• If created successfully but no reply: check if OpenClaw gateway restart is complete

4. TUI Dialogue Configuration and Testing

4.1 Startup Method

Input in terminal:

xxxxxxxxxx
openclaw tui

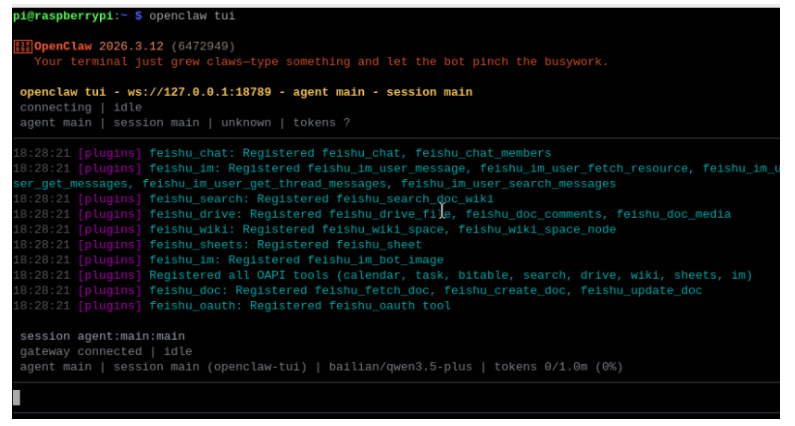

If startup is successful, you will enter the local terminal dialogue interface.

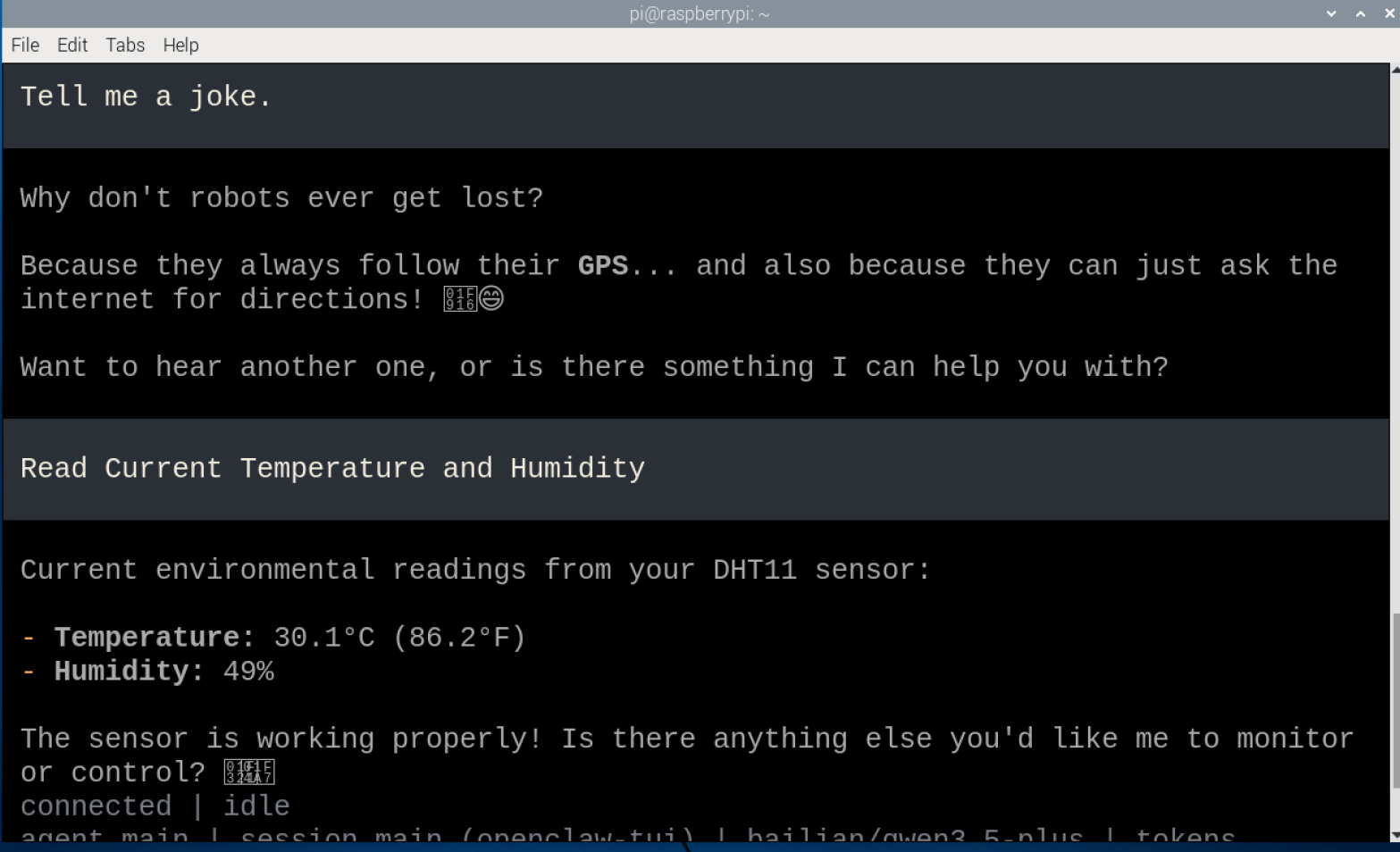

4.2 Testing Method

It is recommended to first input the simplest dialogue content:

• Tell me a joke
• Introduce yourself

If basic dialogue is normal, then test a hardware-related command, for example:

• Make RGB lights red
• Display "Hi" on OLED
• Read current temperature and humidity

5. AI Voice Interaction Configuration and Testing

5.1 Pre-Startup Preparation

• Requires optional AI voice interaction module + speaker

5.2 Startup Method

xxxxxxxxxx
cd /home/pi/voice_to_openclaw
source .venv/bin/activate
python -m src.main

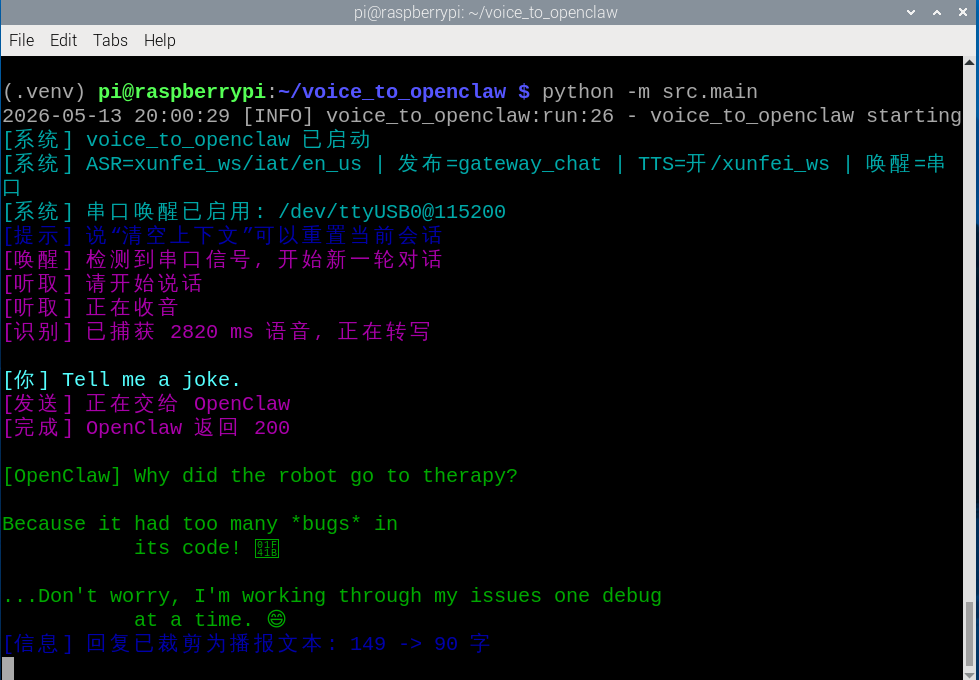

5.3 Testing Method

If using serial wake mode, first trigger the wake "Hi,yahboom".

Then you can try saying:

• Tell me a joke
• Turn on RGB lights
• Display "Welcome to OpenClaw" on OLED

5.4 Judgment Criteria

If the voice method can complete recognition and receive OpenClaw reply, the following are probably normal:

• Microphone collection is normal
• ASR is normal
• OpenClaw publishing chain is normal
• [Optional] TTS is normal

5.5 Common Problems

• No response after wake: check serial wake configuration first
• Can wake but cannot recognize: check ASR and API-KEY
• Can recognize but not execute: check OpenClaw gateway configuration
• Has return but no broadcast: check TTS switch and speaker

6. Comparison of Three Methods

7. Recommended Testing Order

It is recommended to complete the three dialogue method tests in the following order:

1. First test openclaw tui
2. Then test WhatsApp bot
3. Finally test AI voice interaction
