Dataset Annotation

To identify specific objects or improve the accuracy of object recognition, users need to train the model themselves, and the collection and annotation of data sets are an indispensable part.

1. Dataset Collection

Description: For recognition in specific situations, users can use a camera to record videos of objects from various angles, and then capture pictures from the video as training sets

1.1. Extract images

Provide a simple example: extract a frame of image from the video every 15 frames as a data set

​x
import cv2
import os
​
# Path to the input video file
video_file = '/home/pi/ultralytics/ultralytics/data/yahboom_data/orange_video/orange.mkv'
​
# Path to the output folder to save the frames
output_folder = '/home/pi/ultralytics/ultralytics/data/yahboom_data/orange_pic'
​
# Check if the output folder exists, if not, create it
if not os.path.exists(output_folder):
    os.makedirs(output_folder)
​
# Open the video file using OpenCV
cap = cv2.VideoCapture(video_file)
​
# Get the total number of frames in the video
total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
​
# Get the frames per second (fps) of the video
fps = cap.get(cv2.CAP_PROP_FPS)
​
# Frame counter to keep track of the current frame number
frame_number = 0
​
# Define the interval for extracting frames (every 15th frame)
frame_interval = 15
​
# Initialize a new counter for saved frames (starting from 1)
saved_frame_number = 1
​
while True:
    ret, frame = cap.read()

    # If the frame is not successfully read, exit the loop
    if not ret:
        break
​
    # Save every 15th frame
    if frame_number % frame_interval == 0:
        # Format the frame number starting from 1 (e.g., 1.png, 2.png)
        image_name = f'{saved_frame_number}.png'
        image_path = os.path.join(output_folder, image_name)
​
        # Save the current frame as a PNG image
        cv2.imwrite(image_path, frame)
        print(f'Saving frame {frame_number}/{total_frames} as {image_name}')
​
        # Increment the saved frame counter
        saved_frame_number += 1
​
    # Increment the frame counter for the video
    frame_number += 1
​
# Release the video capture object
cap.release()
​
# Print message when processing is complete
print("Video processing complete! Every 15th frame saved as an image!")

1.2. Dataset path

Sample video: /home/pi/ultralytics/ultralytics/data/yahboom_data/orange_video

Sample image: /home/pi/ultralytics/ultralytics/data/yahboom_data/orange_pic

2. Label Studio usage

Label Studio is an open source data annotation platform for data annotation and annotation task management, supporting various types of data input and annotation formats.

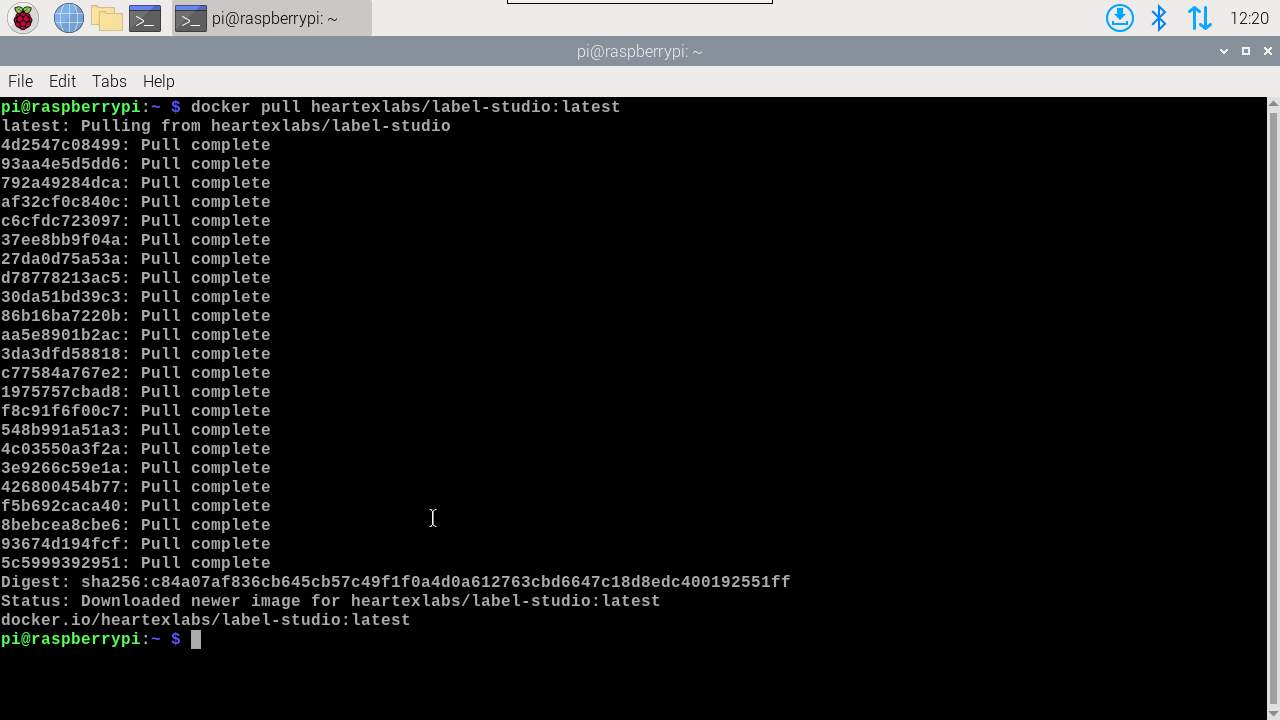

2.1、Install Label Studio

xxxxxxxxxx
docker pull heartexlabs/label-studio:latest

2.2、Start Label Studio

2.2.1、Shared folder permissions

Share the prepared dataset to the folder corresponding to Label Studio:

xxxxxxxxxx
sudo chmod 777 /home/pi/ultralytics/ultralytics/data/

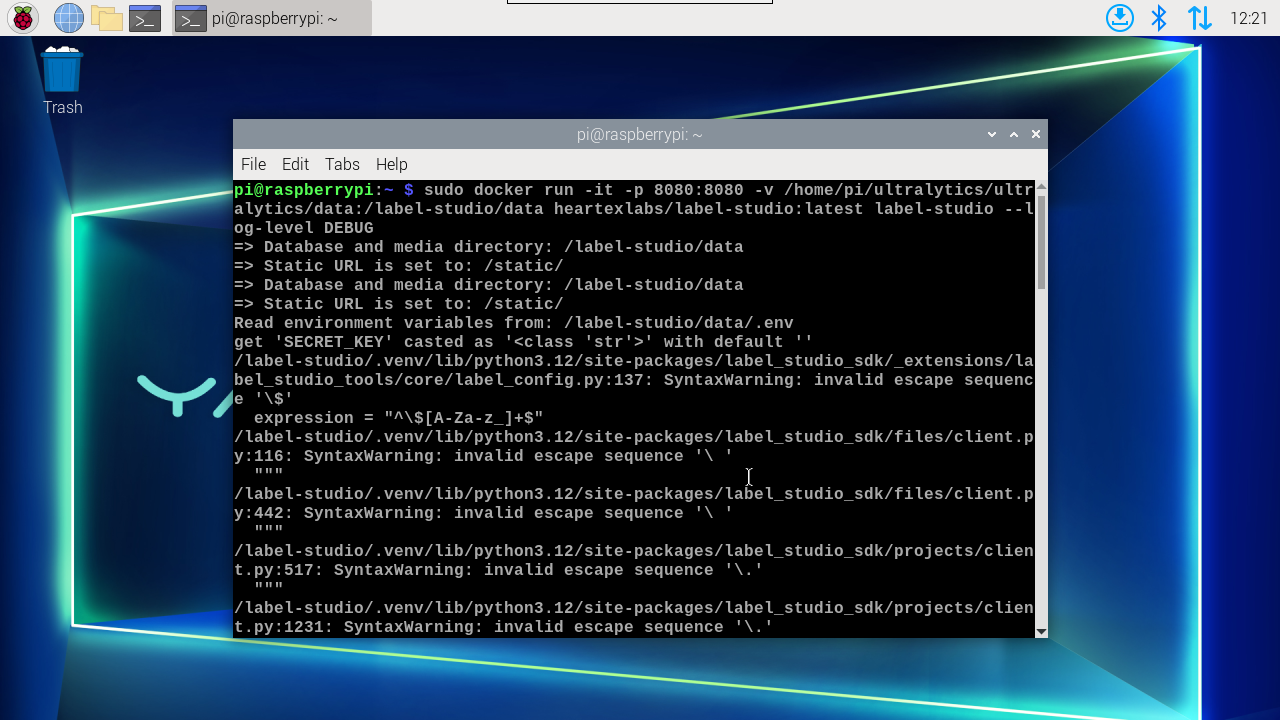

2.2.2、Start Label Studio

xxxxxxxxxx
sudo docker run -it -p 8080:8080 -v /home/pi/ultralytics/ultralytics/data:/label-studio/data heartexlabs/label-studio:latest label-studio --log-level DEBUG

2.2.3, Access Label Studio

Host

Access method of pi Orin series development board, you need to enter your username and password for the first time

xxxxxxxxxx
http://localhost:8080/

Same LAN

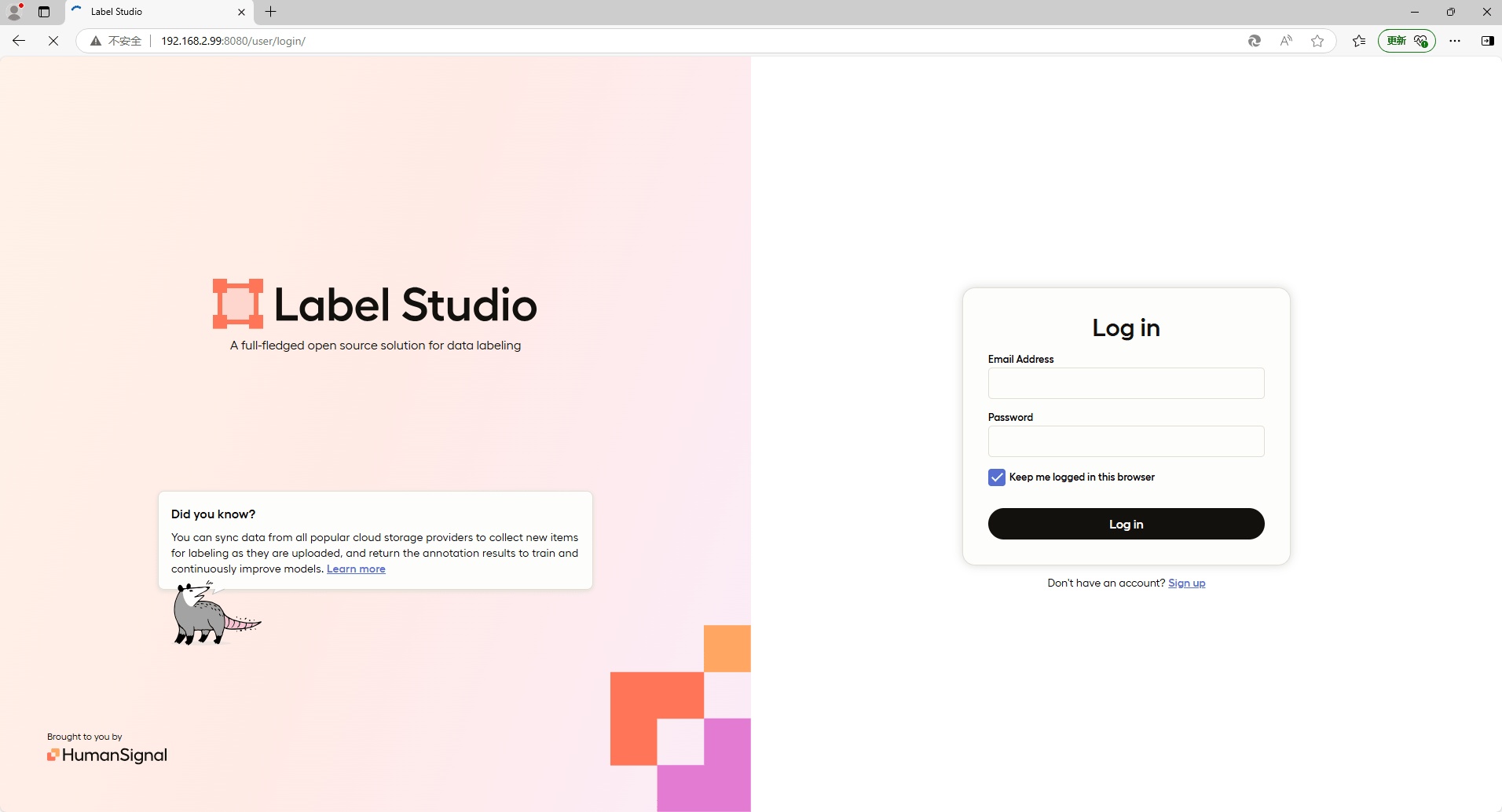

Devices in the same LAN can be accessed according to the motherboard IP:8080

xxxxxxxxxx
http://motherboardIP:8080/ # For example: http://192.168.2.99:8080/

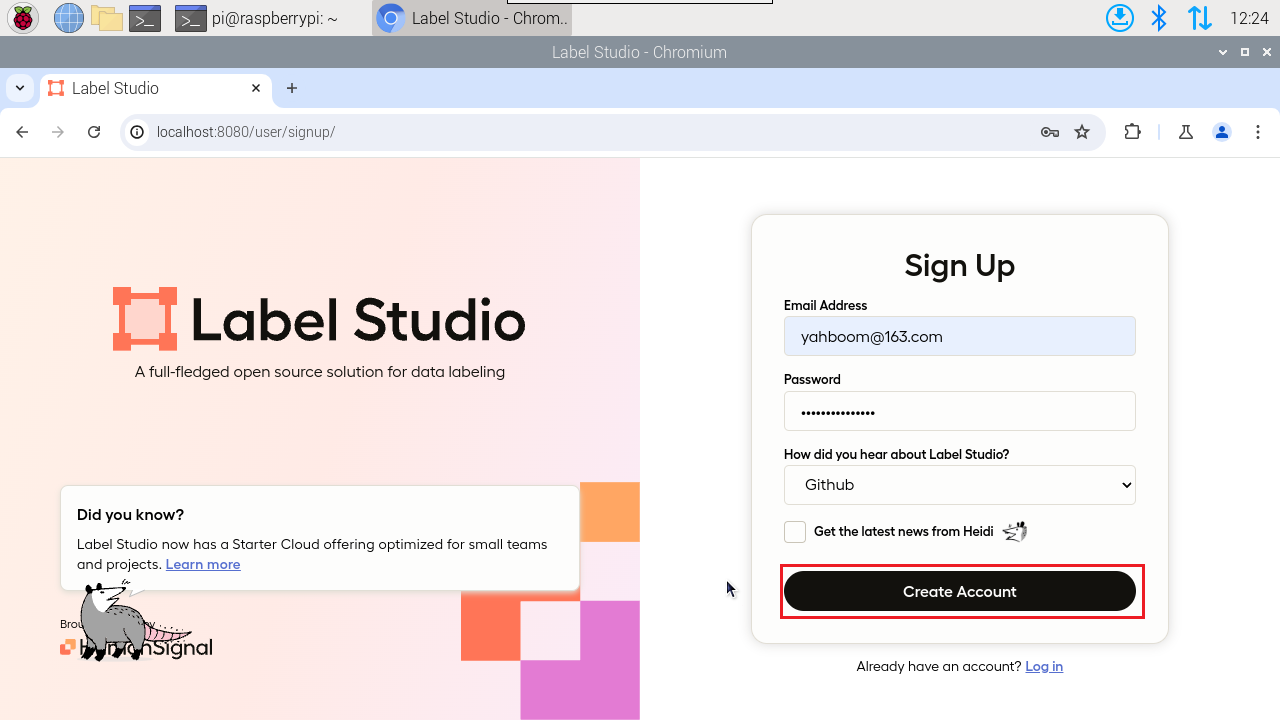

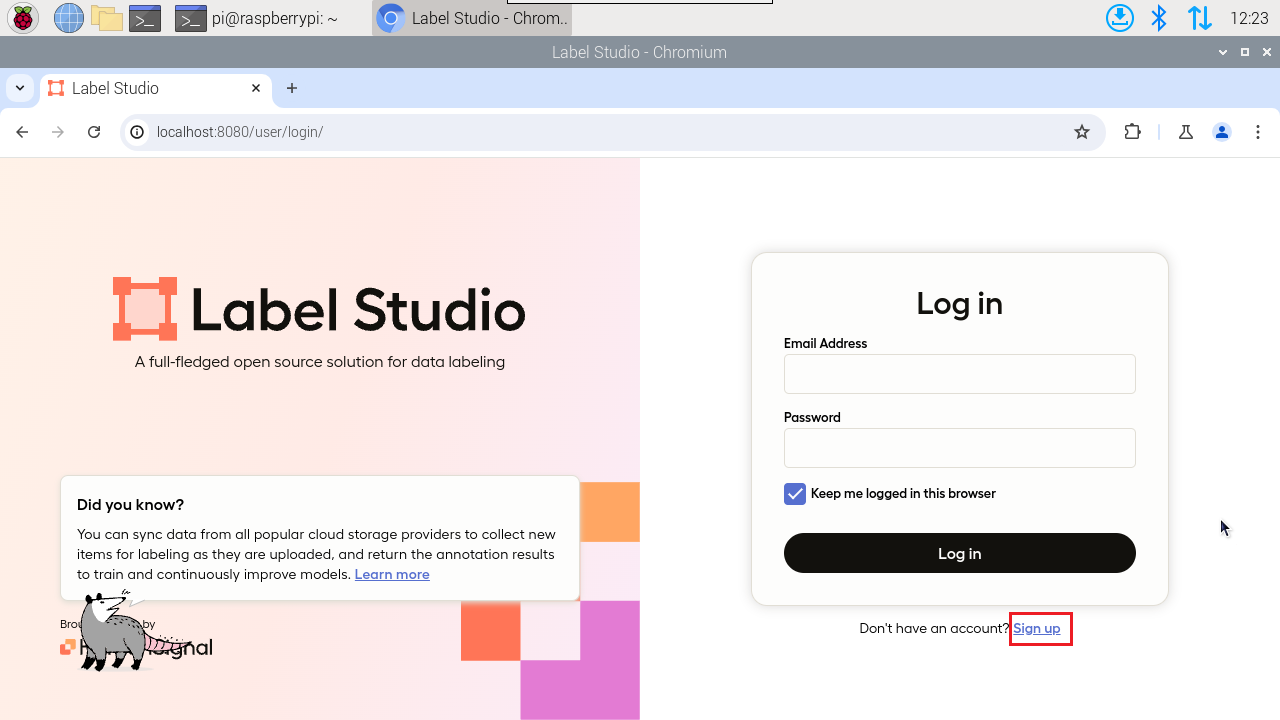

First time use

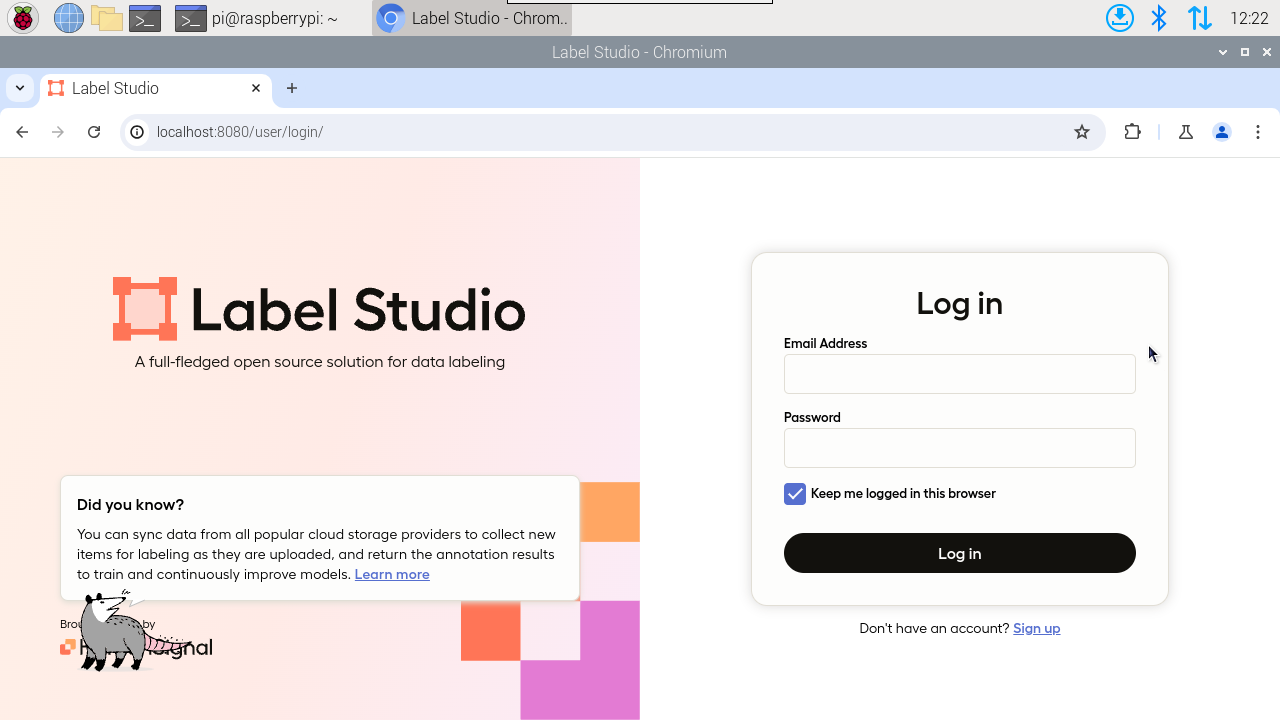

For the first time use, you need to register and log in to your account. The factory-set account information (the account information is false):

xxxxxxxxxx
Account: yahboom@163.com
Password: yahboom@163.com

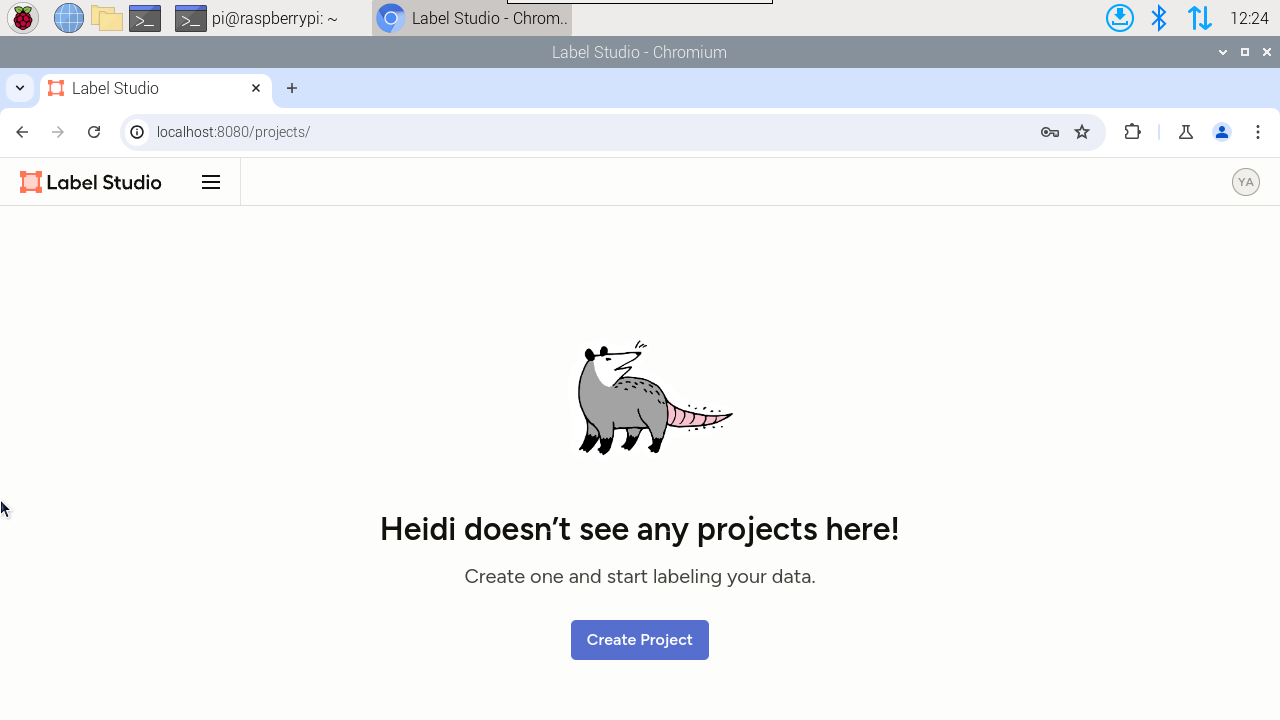

After registration, the website will automatically log in:

3. Dataset annotation

The demonstration dataset is on the main board, so access Label Studio on the main board.

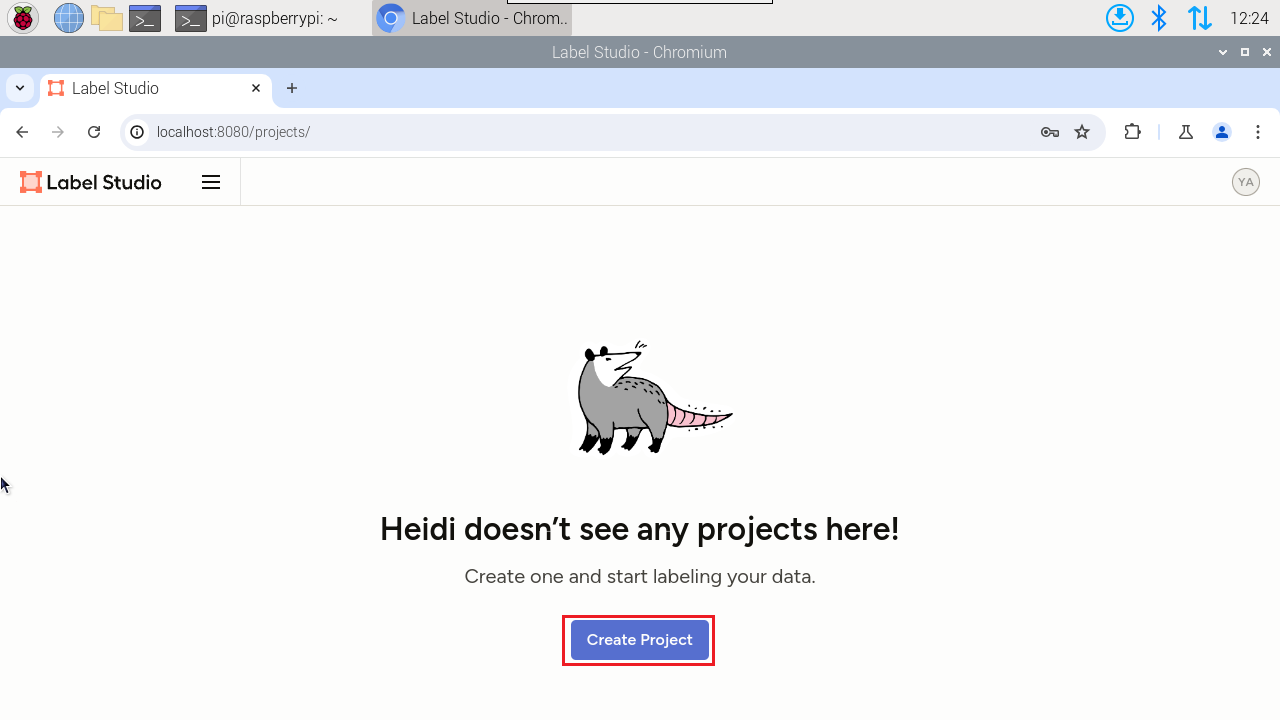

3.1. Create a project

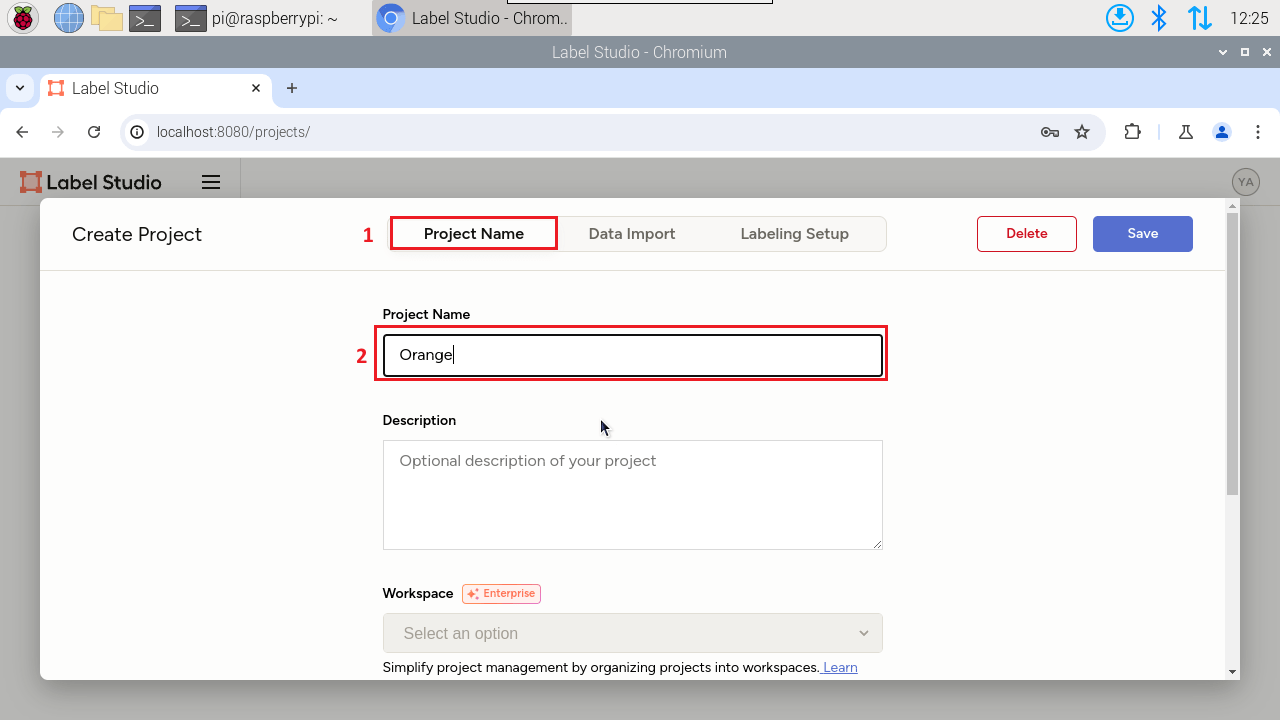

3.2. Project name

You can name the project as you like, according to your own training set:

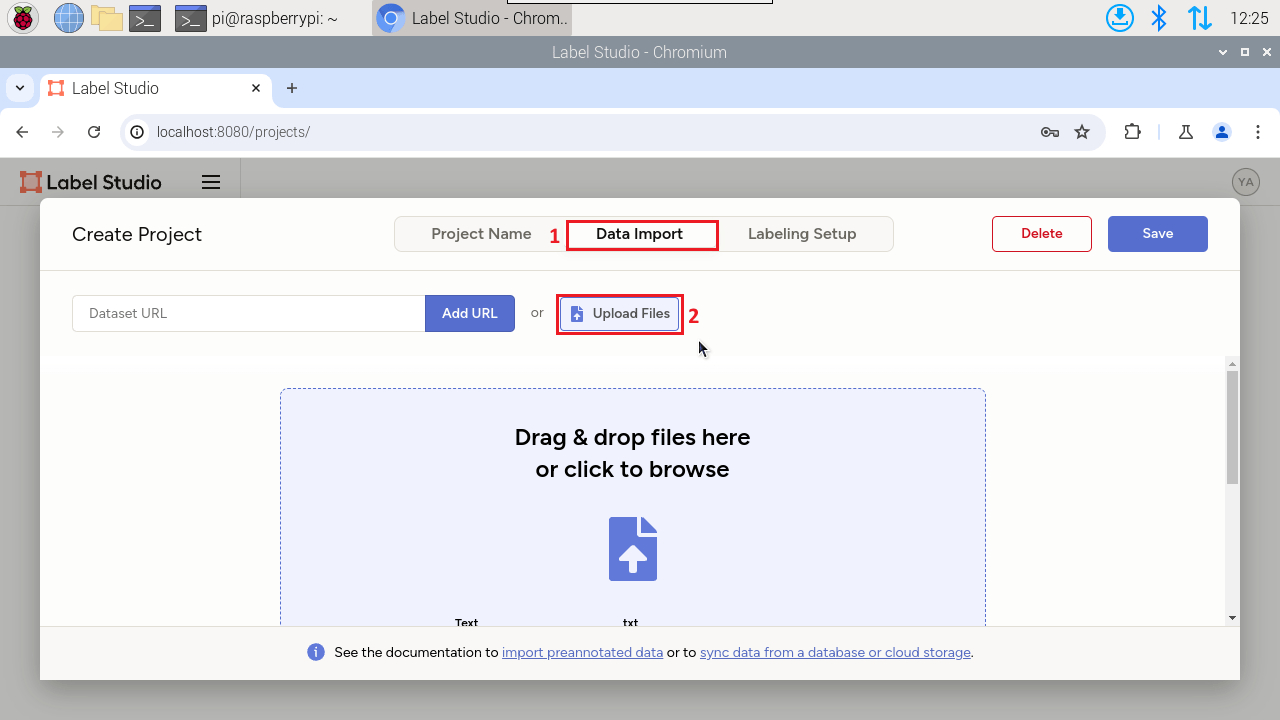

3.3. Import training set

Manually import the prepared data set: Do not import too many pictures at a time. It is recommended to select 50-100 pictures each time and then import them multiple times

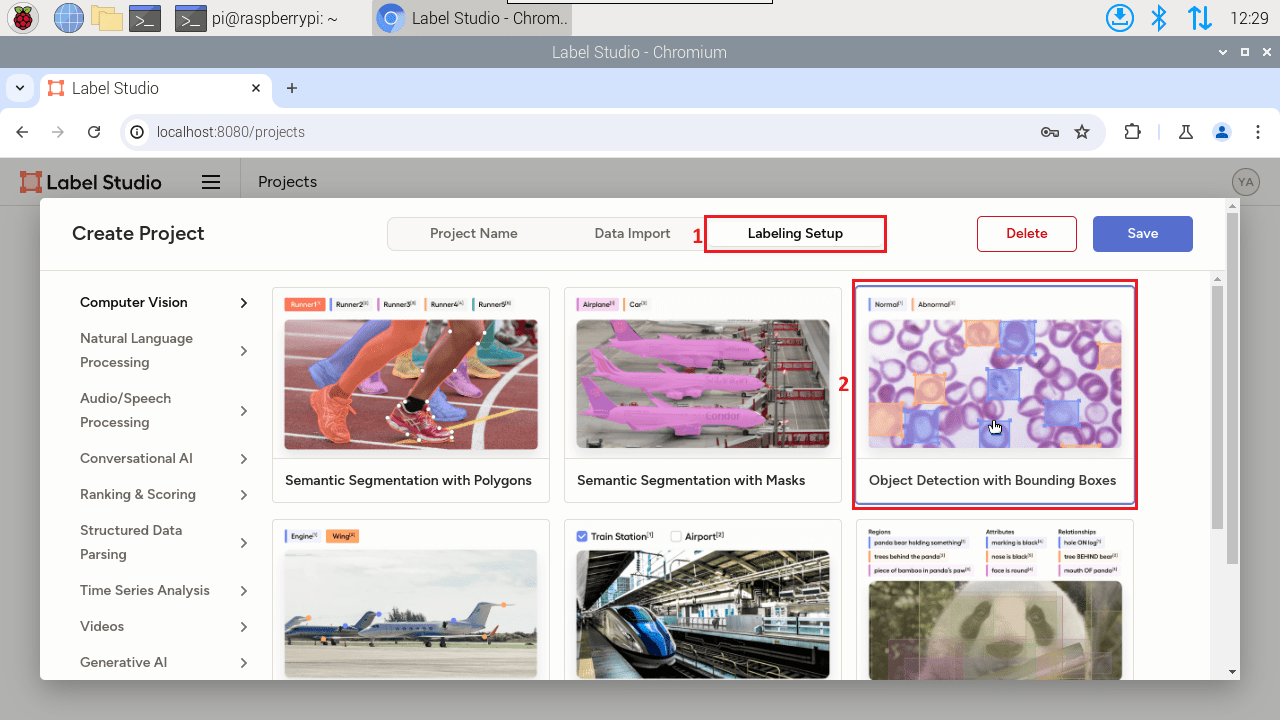

3.4, Label setting

We are demonstrating the recognition of oranges, so select "Object Detection"

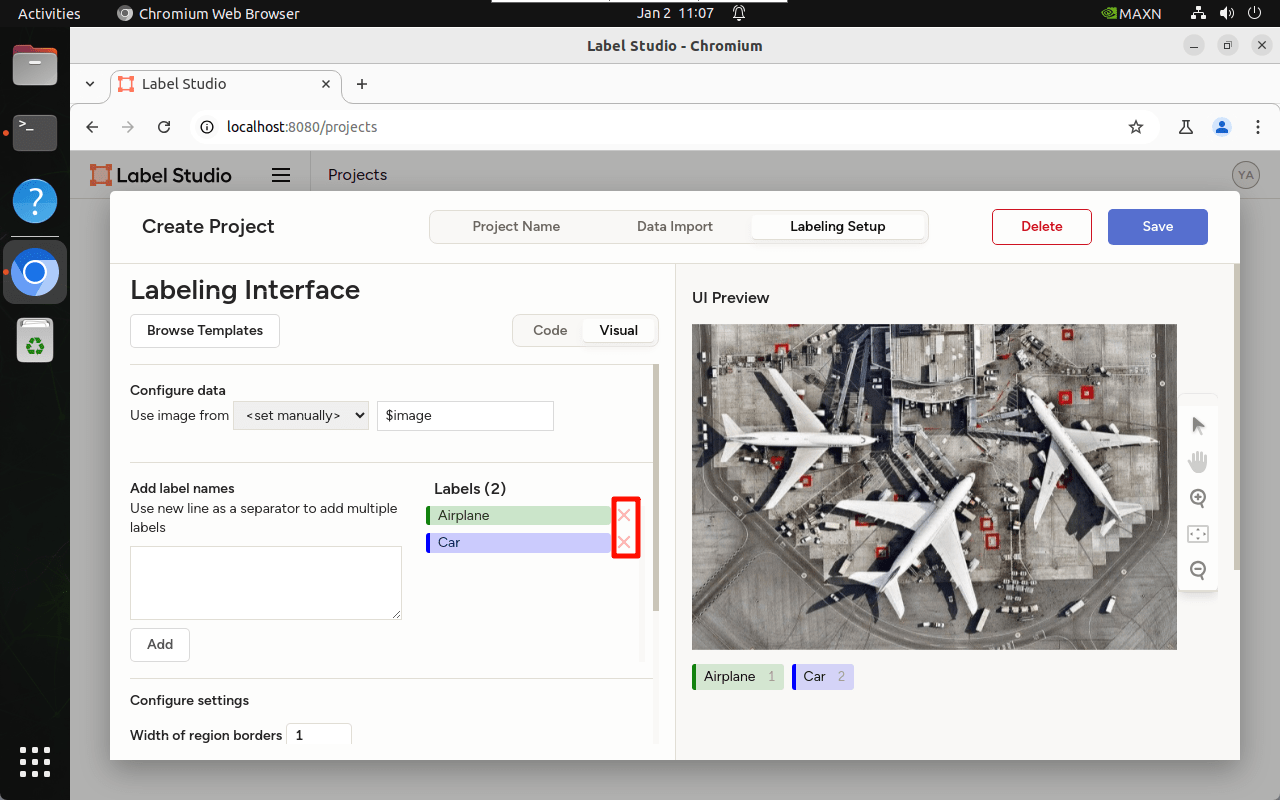

Delete built-in labels:

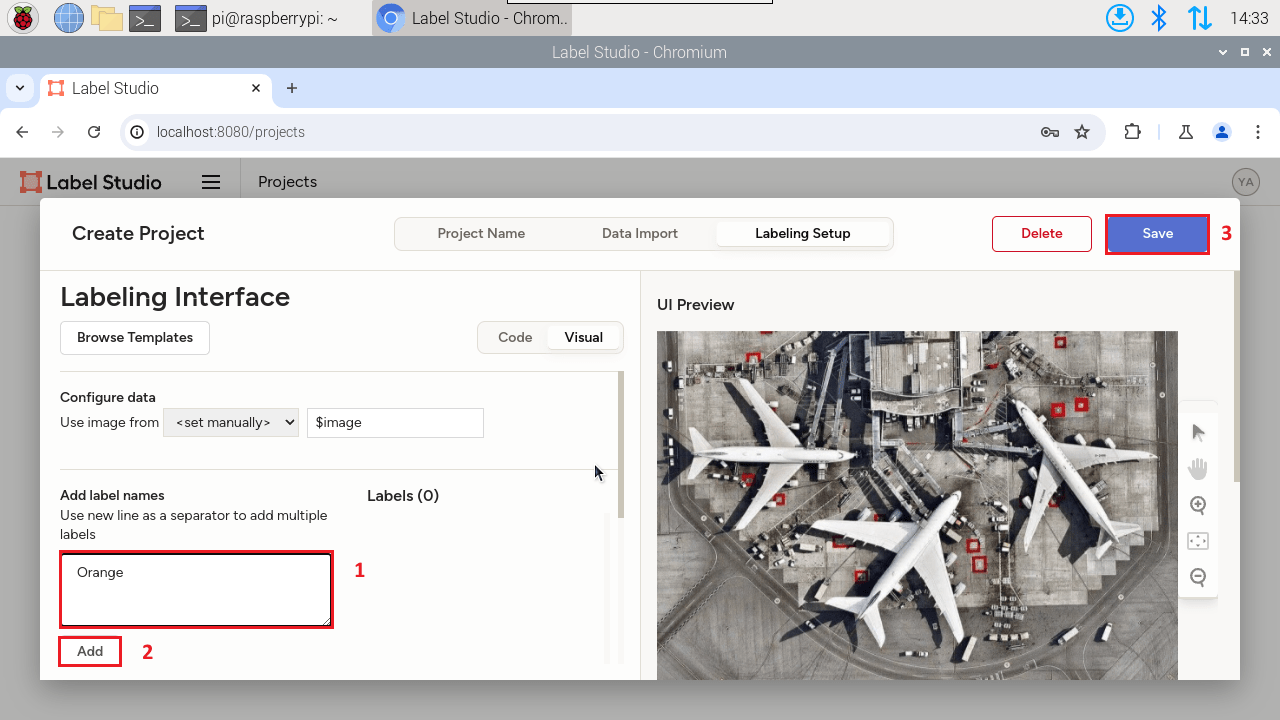

Add new labels:

3.5. Dataset Annotation

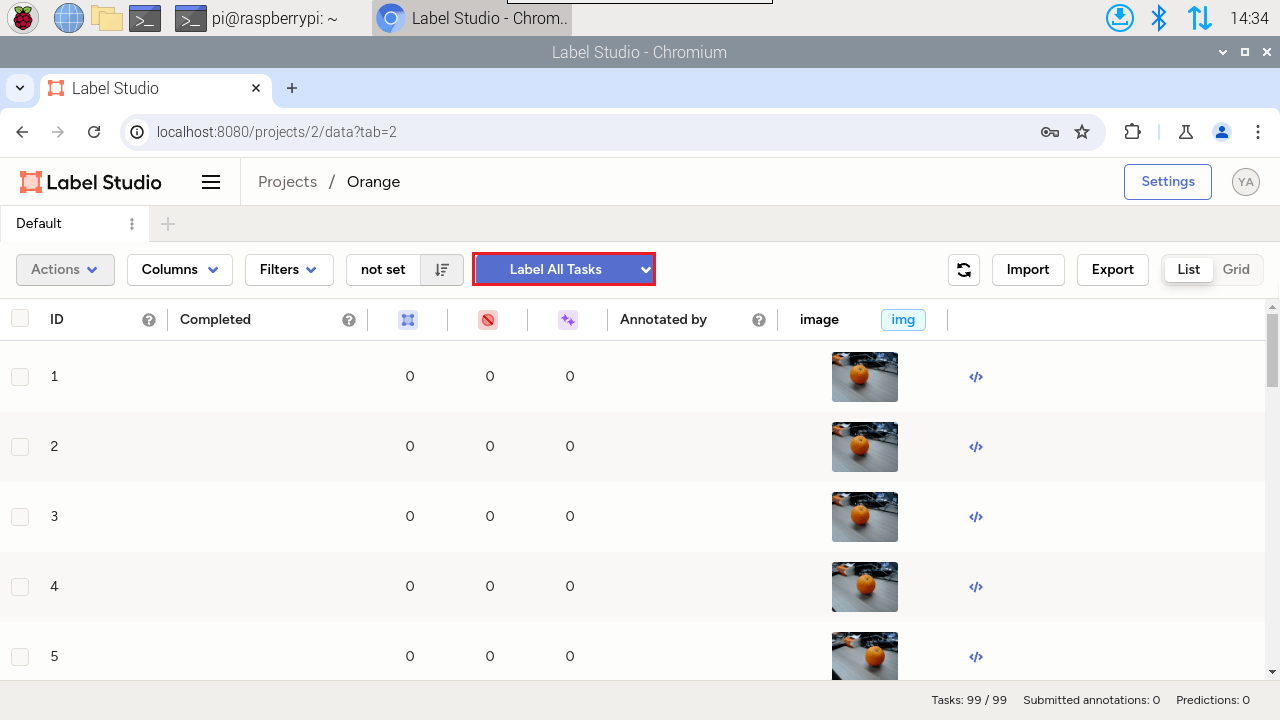

Click to annotate all tasks:

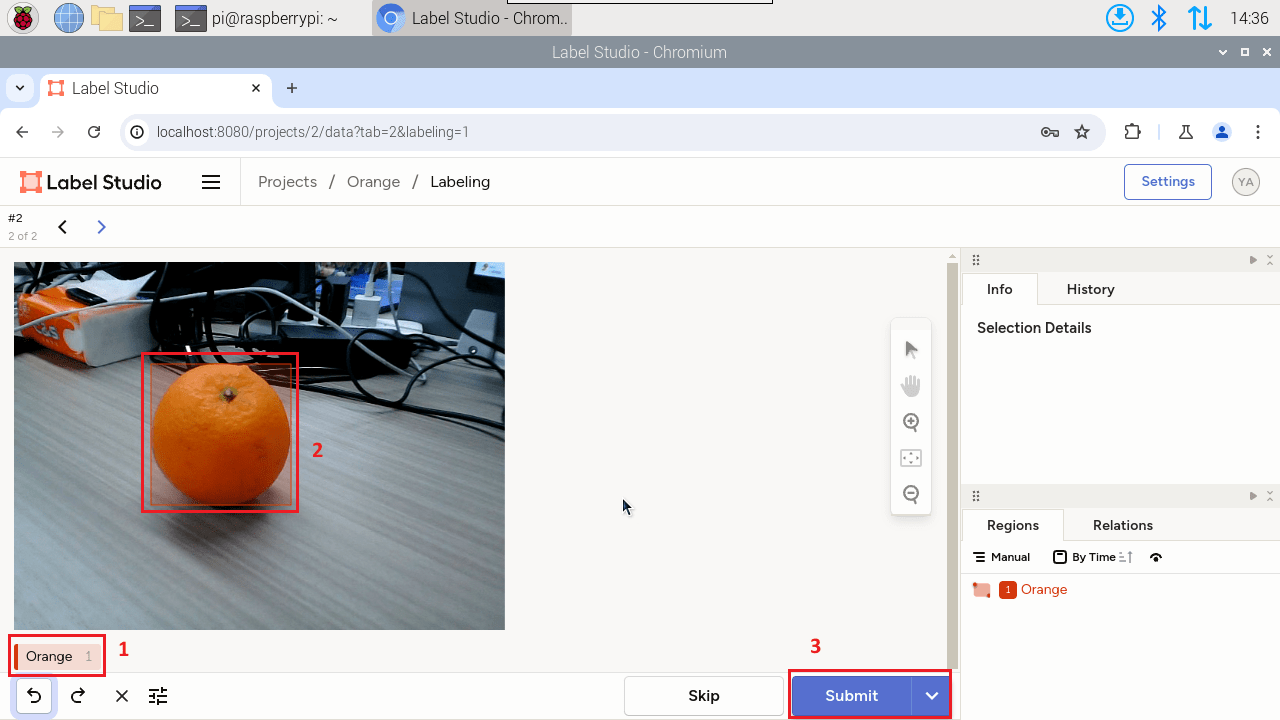

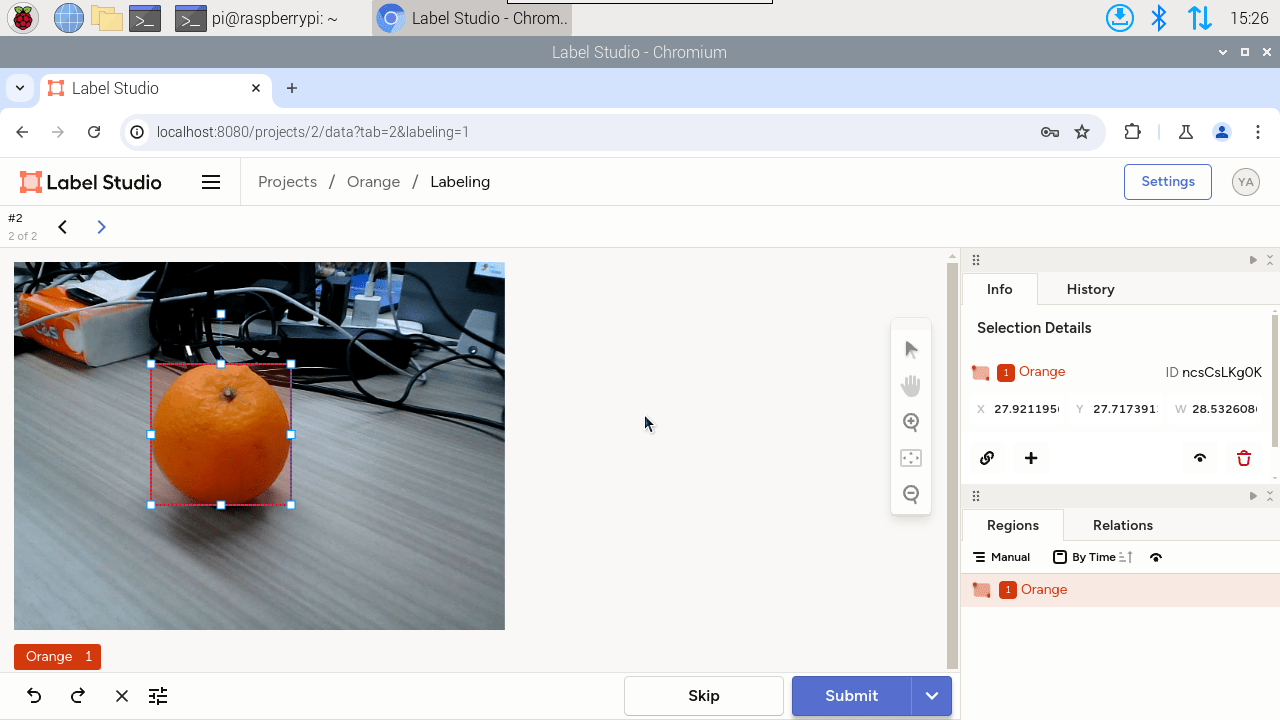

Annotation steps: First click the label "Orange" and then use the mouse to select the corresponding orange in the picture. After completion, click Submit to enter the next annotation

If the selected object is not the completed orange, you can click the selected box to readjust the position of each edge:

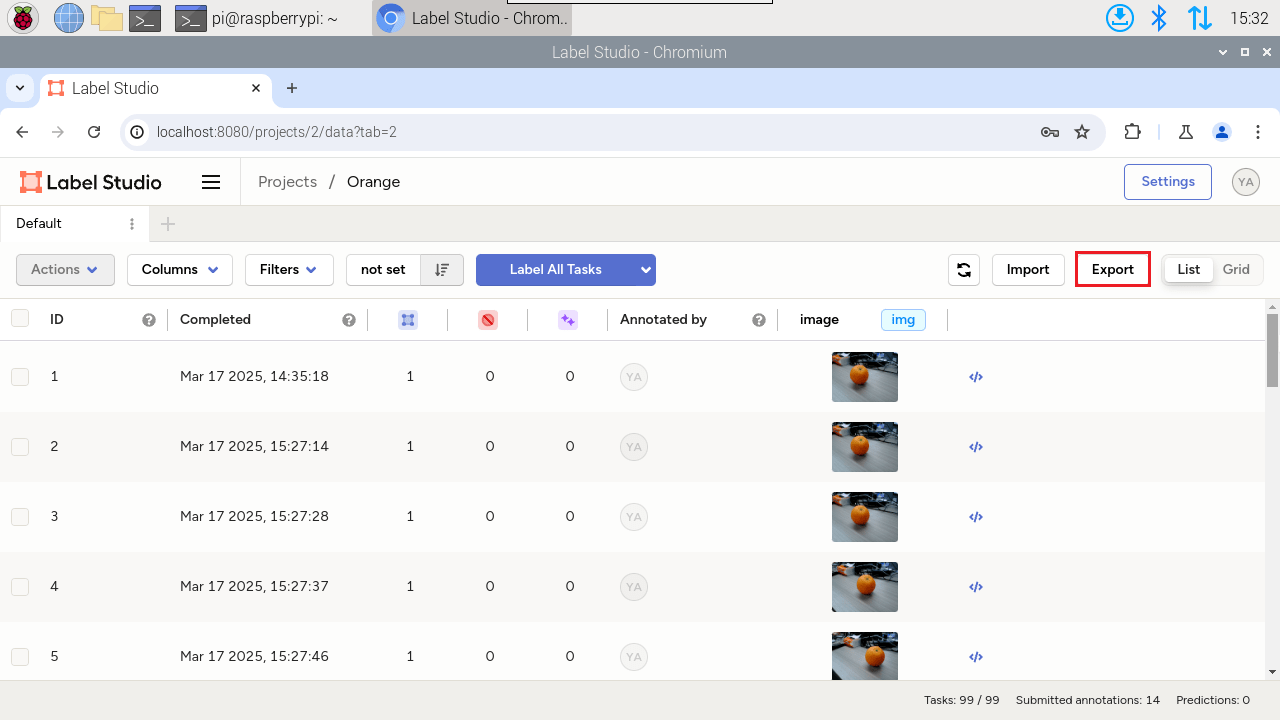

3.6. Export dataset

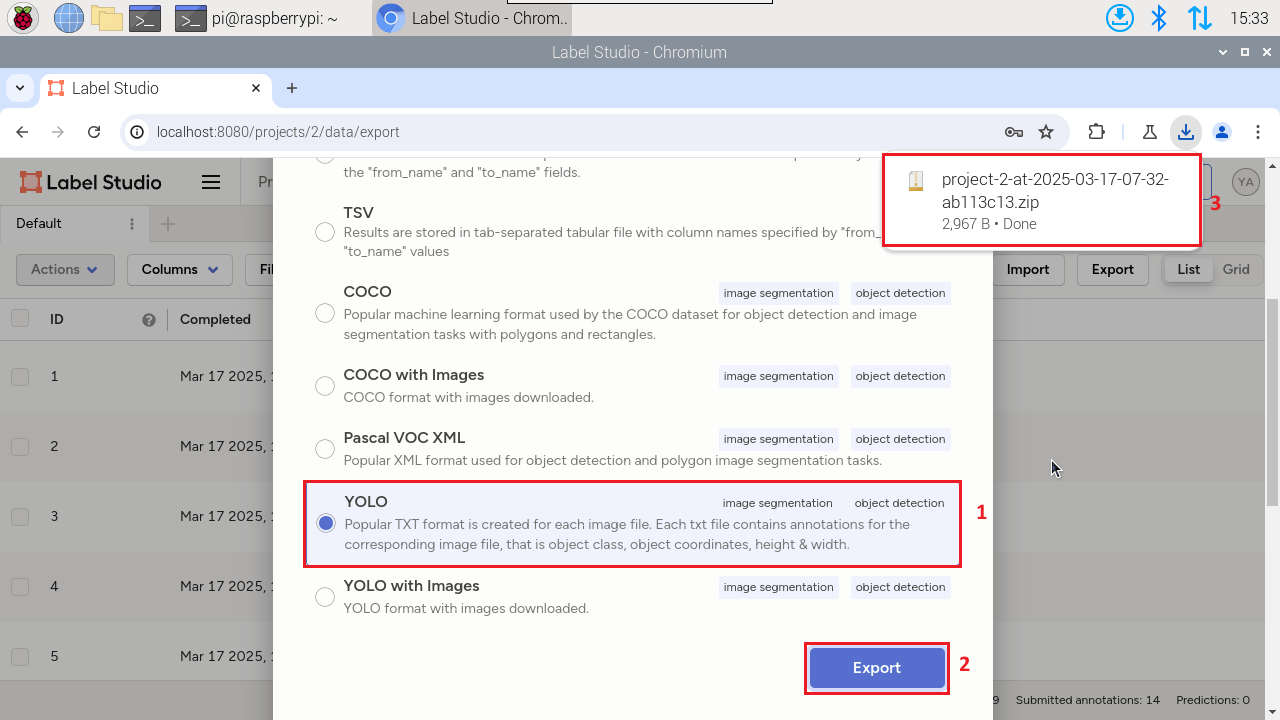

Select YOLO format for export, and the browser will automatically download a compressed package

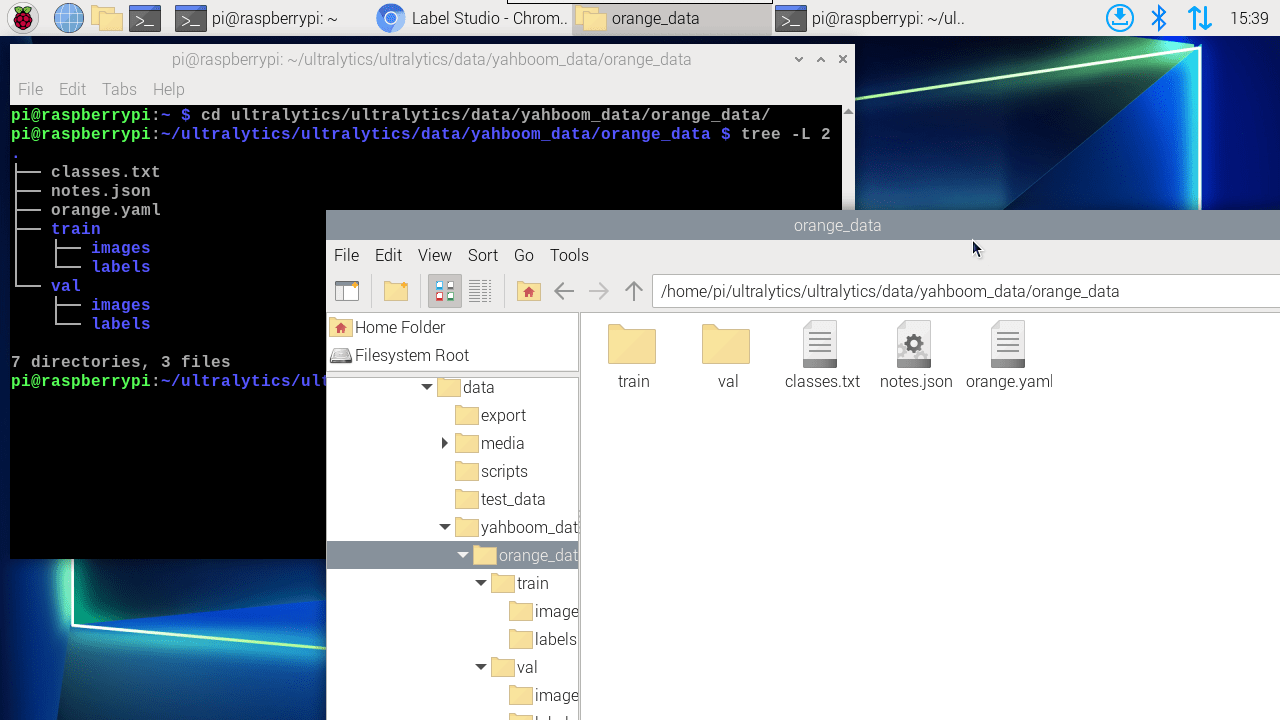

3.7. Dataset directory framework

The directory framework corresponding to the compressed package exported using Label Studio:

xxxxxxxxxx
.
├── images
├── labels
├── classes.txt
└── notes.json

We need to divide the images and labels exported by Label Studio into train (training set) and val (validation set), with a ratio of about 8:2: the images and labels in train and val need to correspond to each other by name.

xxxxxxxxxx
.
├── classes.txt
├── notes.json
├── train
│ ├── images
│ └── labels
└── val
├── images
└── labels

3.8. Dataset configuration file

Contains the paths to the training and validation sets, as well as the number and names of categories.

xxxxxxxxxx
path: /home/pi/ultralytics/ultralytics/data/yahboom_data/orange_data
train: train/images
val: val/images
​
nc: 1
​
# Classes
names:
0: Orange

References

https://github.com/HumanSignal/label-studio
