Installing the Jetpack Environment

Some users may need to use the NVIDIA built-in system component environment. After installing a clean system and successfully entering the system desktop, you can follow the tutorial below to install the component environment! If you are using a factory image, the Jetpack environment is already installed and does not need to be installed again.

xxxxxxxxxx
The entire process requires a network connection. Some components may require a VPN. If you cannot complete the component installation, please use the factory image.

1. Installing the Jetpack Environment

Change the environment source

xxxxxxxxxx
sudo apt update

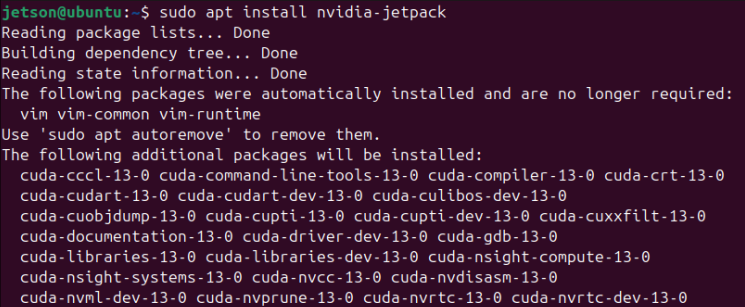

Install the Jetpack environment. Type 'y' and press Enter to confirm.

xxxxxxxxxx
sudo apt install nvidia-jetpack

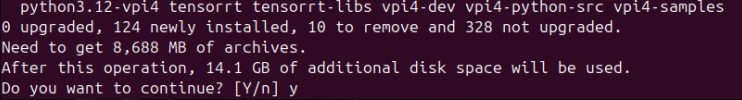

The download requires approximately 14.1GB of space, and the installation time is relatively long. Please be patient.

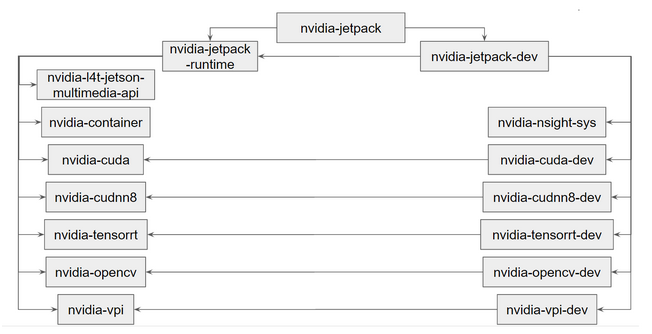

NVIDIA-JETPACK is a metapackage that will install the following components:

2. Adding Environment Variables

Open the system terminal and run the following commands to add them to the environment variables:

xxxxxxxxxx
echo "export PATH=/usr/local/cuda/bin:$PATH" >> ~/.bashrc
echo "export LD_LIBRARY_PATH=/usr/local/cuda/lib64:$LD_LIBRARY_PATH" >> ~/.bashrc
source ~/.bashrc

3. Environment Verification

Jtop Tool

Install Jtop using the following commands:

xxxxxxxxxx
sudo apt update && sudo apt upgrade
sudo apt install python3-pip -y
sudo pip3 install -U jetson-stats

Note: A system restart is required after installation!

Optimal Performance Mode

Enable MAX Power Mode:

xxxxxxxxxx
sudo nvpmodel -m 0

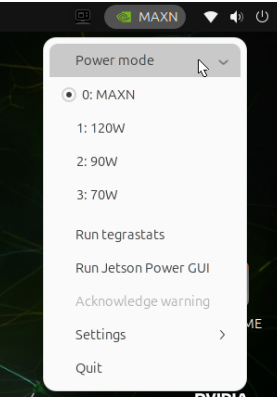

Alternatively, locate the NVIDIA icon in the top-right corner of the desktop and change the power mode to MAXN.

Enable Jetson Clocks: Both the CPU and GPU cores will run at their maximum frequencies.

xxxxxxxxxx
sudo jetson_clocks

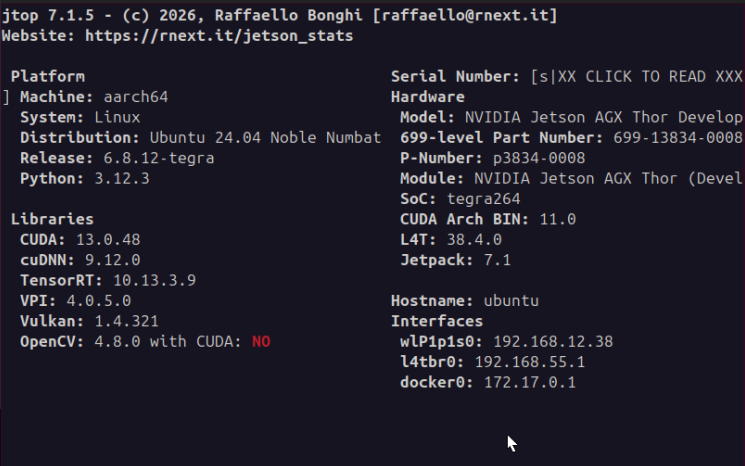

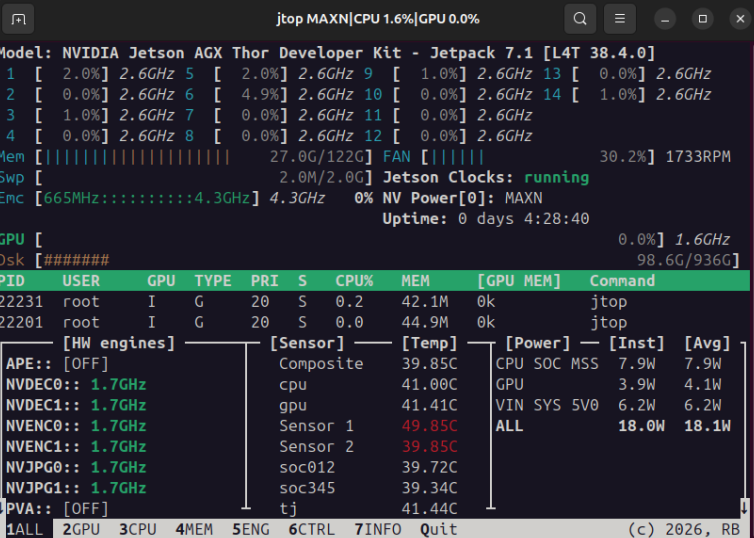

Use the Jtop tool to view system information:

xxxxxxxxxx
jtop
