Add rectangles

1. Implementation principle

Use the cv2.rectangle() function to draw a rectangle on the image.

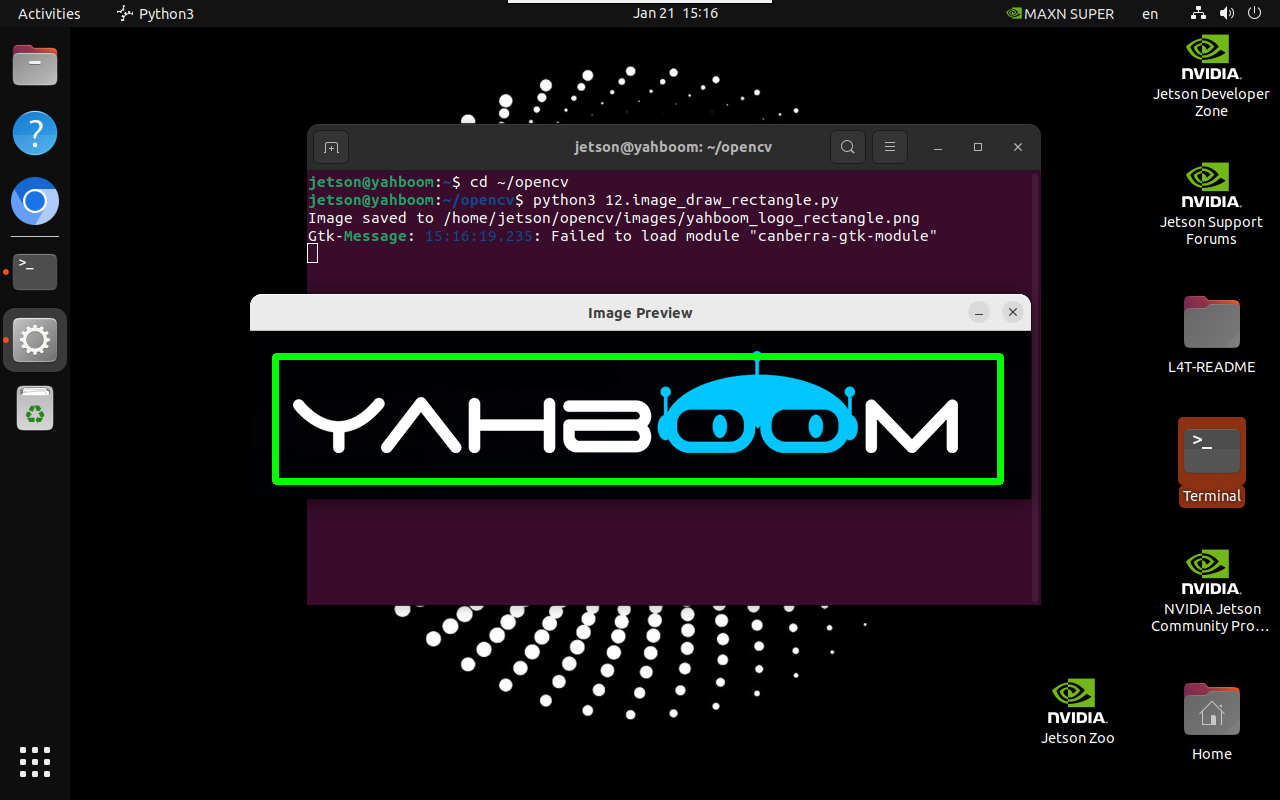

2. Implementation effect

cd ~/opencv

xxxxxxxxxx
python3 12.image_draw_rectangle.py

3. Implementation code

​x
import cv2
​
def draw_rectangle(input_path, output_path, top_left, bottom_right, color, thickness):
    image = cv2.imread(input_path)
    if image is None:
        print("Error: Unable to open image file.")
        return
    cv2.rectangle(image, top_left, bottom_right, color, thickness)
    if cv2.imwrite(output_path, image):
        print(f"Image saved to {output_path}")
        cv2.imshow('Image Preview', cv2.imread(output_path))
        cv2.waitKey(0)
        cv2.destroyAllWindows()
    else:
        print("Error: Unable to save image file.")
​
draw_rectangle('/home/jetson/opencv/images/yahboom_logo.png', \
               '/home/jetson/opencv/images/yahboom_logo_rectangle.png', \
               (25, 25), (750, 150), (0, 255, 0), 5)
