Dataset Annotation

For recognizing specific objects or improving object recognition accuracy, users need to train their own models, and dataset collection and annotation are indispensable parts.

1、Dataset Collection

Description: For recognition in specific scenarios, users can use a camera to record videos of objects from various angles, then extract images from the videos as training sets

1.1、Extract Images

Provide a simple example: Extract one frame image from the video every 15 frames as a dataset

​x
import cv2
import os
​
# Path to the input video file
video_file = '/home/jetson/ultralytics/ultralytics/data/yahboom_data/orange_video/orange.mkv'
​
# Path to the output folder to save the frames
output_folder = '/home/jetson/ultralytics/ultralytics/data/yahboom_data/orange_pic'
​
# Check if the output folder exists, if not, create it
if not os.path.exists(output_folder):
    os.makedirs(output_folder)
​
# Open the video file using OpenCV
cap = cv2.VideoCapture(video_file)
​
# Get the total number of frames in the video
total_frames = int(cap.get(cv2.CAP_PROP_FRAME_COUNT))
​
# Get the frames per second (fps) of the video
fps = cap.get(cv2.CAP_PROP_FPS)
​
# Frame counter to keep track of the current frame number
frame_number = 0
​
# Define the interval for extracting frames (every 15th frame)
frame_interval = 15
​
# Initialize a new counter for saved frames (starting from 1)
saved_frame_number = 1
​
while True:
    ret, frame = cap.read()

    # If the frame is not successfully read, exit the loop
    if not ret:
        break
​
    # Save every 15th frame
    if frame_number % frame_interval == 0:
        # Format the frame number starting from 1 (e.g., 1.png, 2.png)
        image_name = f'{saved_frame_number}.png'
        image_path = os.path.join(output_folder, image_name)
​
        # Save the current frame as a PNG image
        cv2.imwrite(image_path, frame)
        print(f'Saving frame {frame_number}/{total_frames} as {image_name}')
​
        # Increment the saved frame counter
        saved_frame_number += 1
​
    # Increment the frame counter for the video
    frame_number += 1
​
# Release the video capture object
cap.release()
​
# Print message when processing is complete
print("Video processing complete! Every 15th frame saved as an image!")

1.2、Dataset Paths

Example video: /home/jetson/ultralytics/ultralytics/data/yahboom_data/orange_video

Example images: /home/jetson/ultralytics/ultralytics/data/yahboom_data/orange_pic

2、Label Studio Usage

Label Studio is an open-source data annotation platform for data annotation and annotation task management, supporting various types of data input and annotation formats.

2.1、Label Studio Installation

xxxxxxxxxx

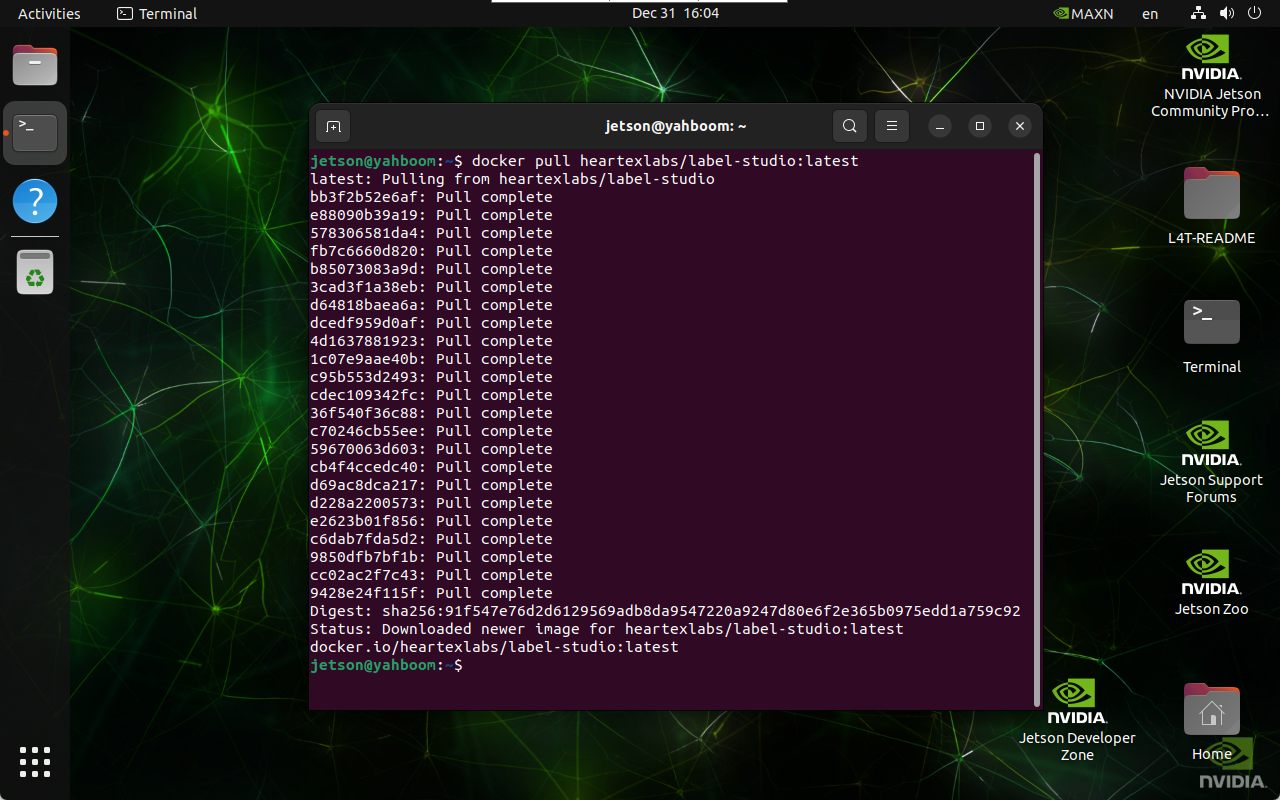

docker pull heartexlabs/label-studio:latest

2.2、Label Studio Startup

2.2.1、Shared Folder Permissions

Share the prepared dataset to the corresponding folder of Label Studio:

xxxxxxxxxx
sudo chmod 777 /home/jetson/ultralytics/ultralytics/data/

2.2.2、Start Label Studio

xxxxxxxxxx

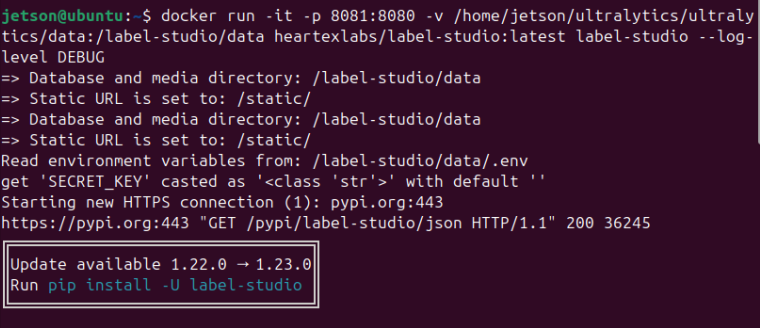

sudo docker run -it -p 8080:8080 -v /home/jetson/ultralytics/ultralytics/data:/label-studio/data heartexlabs/label-studio:latest label-studio --log-level DEBUG

Note:

If port 8080 is occupied, please modify the port mapping function, change the first 8080 in the -p parameter to 8081 or other suitable ports.

After modifying the port, access the new port address in the browser to access Label Studio, such as http://localhost:8081/

2.2.3、Access Label Studio

Host Machine

Jetson series development board access method, first entry requires entering username and password yourself

xxxxxxxxxx
http://localhost:8081/

Local Area Network

Devices under the same local area network can access according to the board IP:8081

xxxxxxxxxx
http://Board IP:8081/
# Example: http://192.168.2.114:8081/

First Use

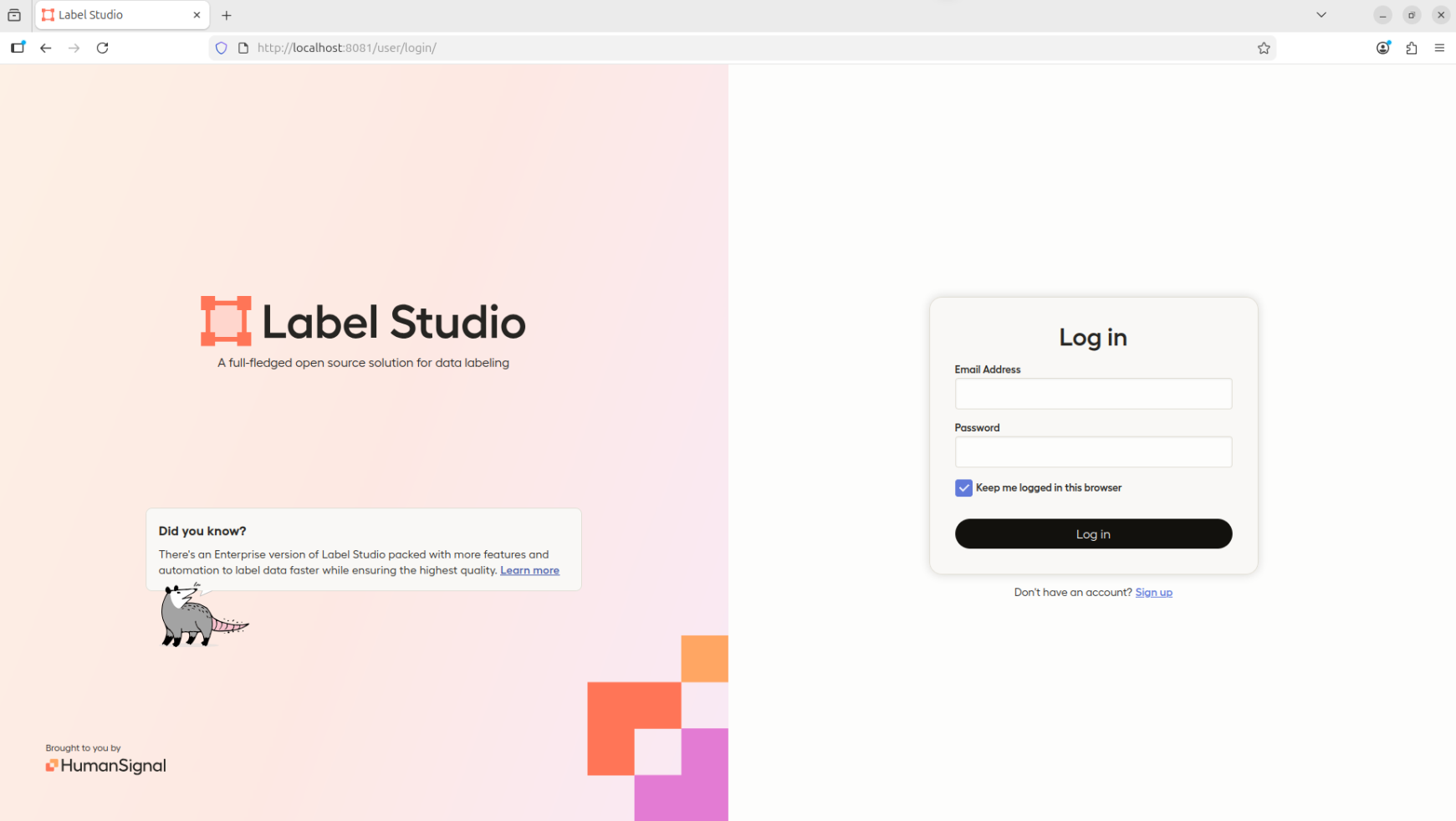

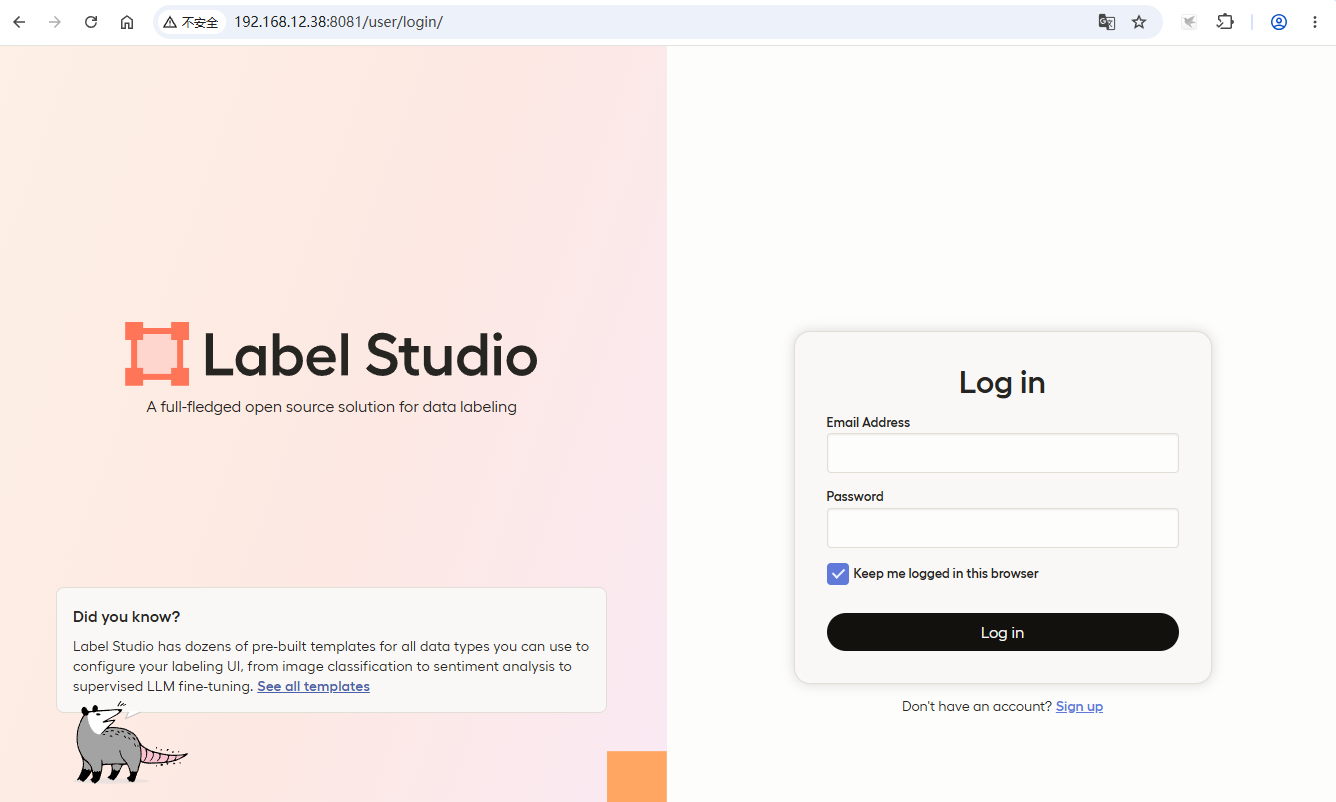

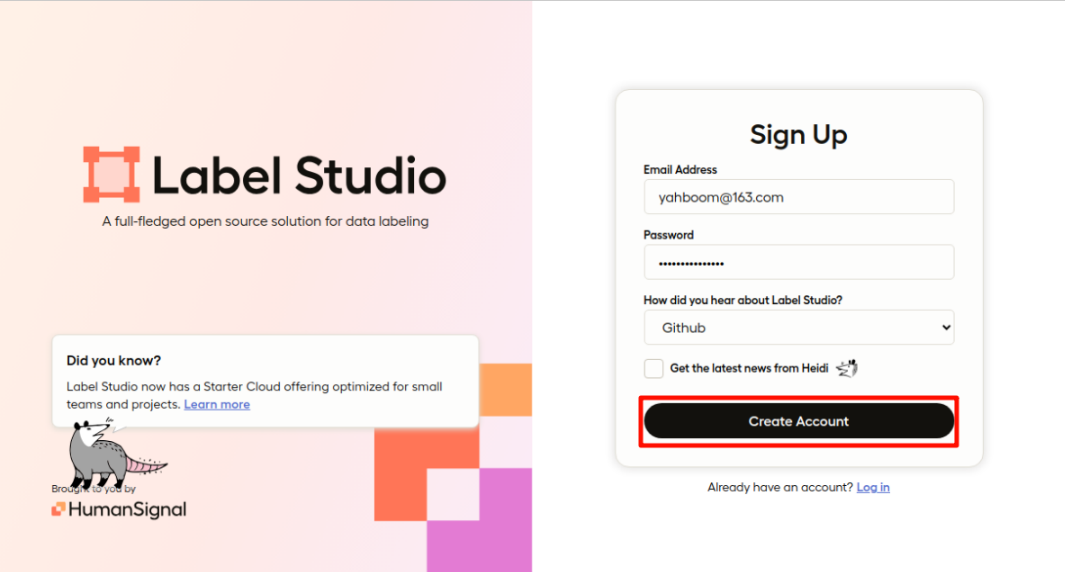

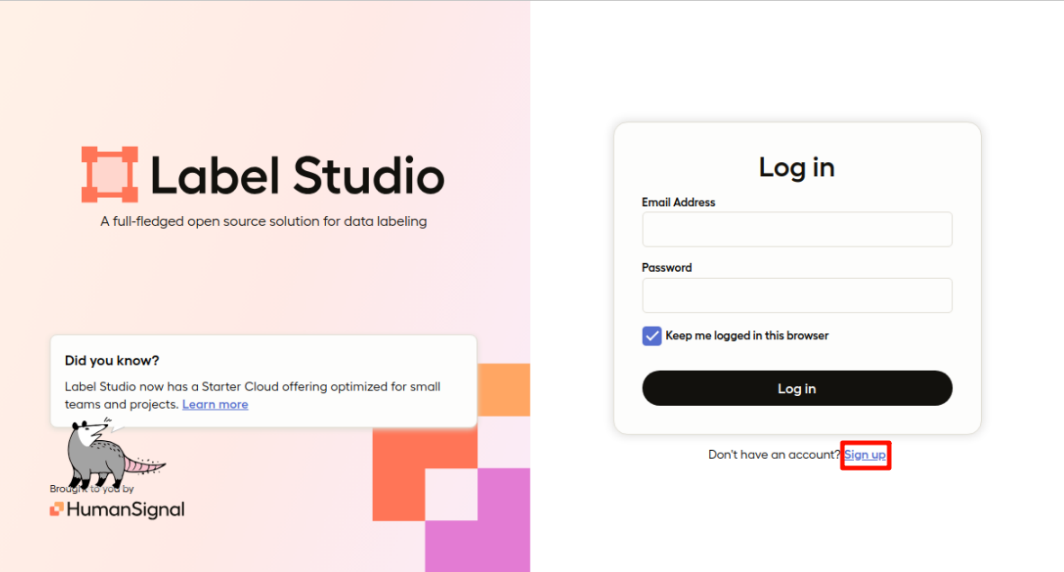

First-time use requires registering and logging into an account yourself, factory-set account information (account information is fake):

xxxxxxxxxx
Account: yahboom@163.com
Password: yahboom@163.com

After registration is complete, the website will automatically log in:

3、Dataset Annotation

The demonstration dataset is on the board, so access Label Studio on the board.

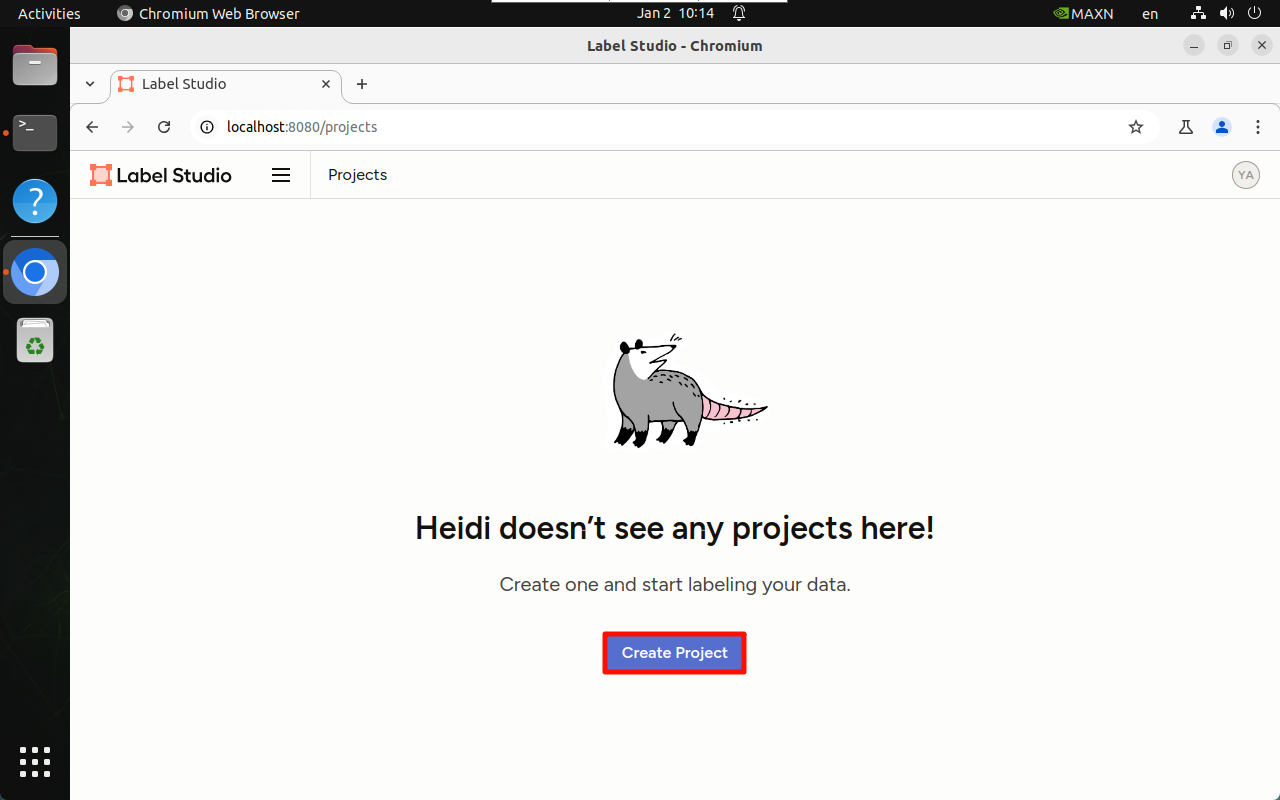

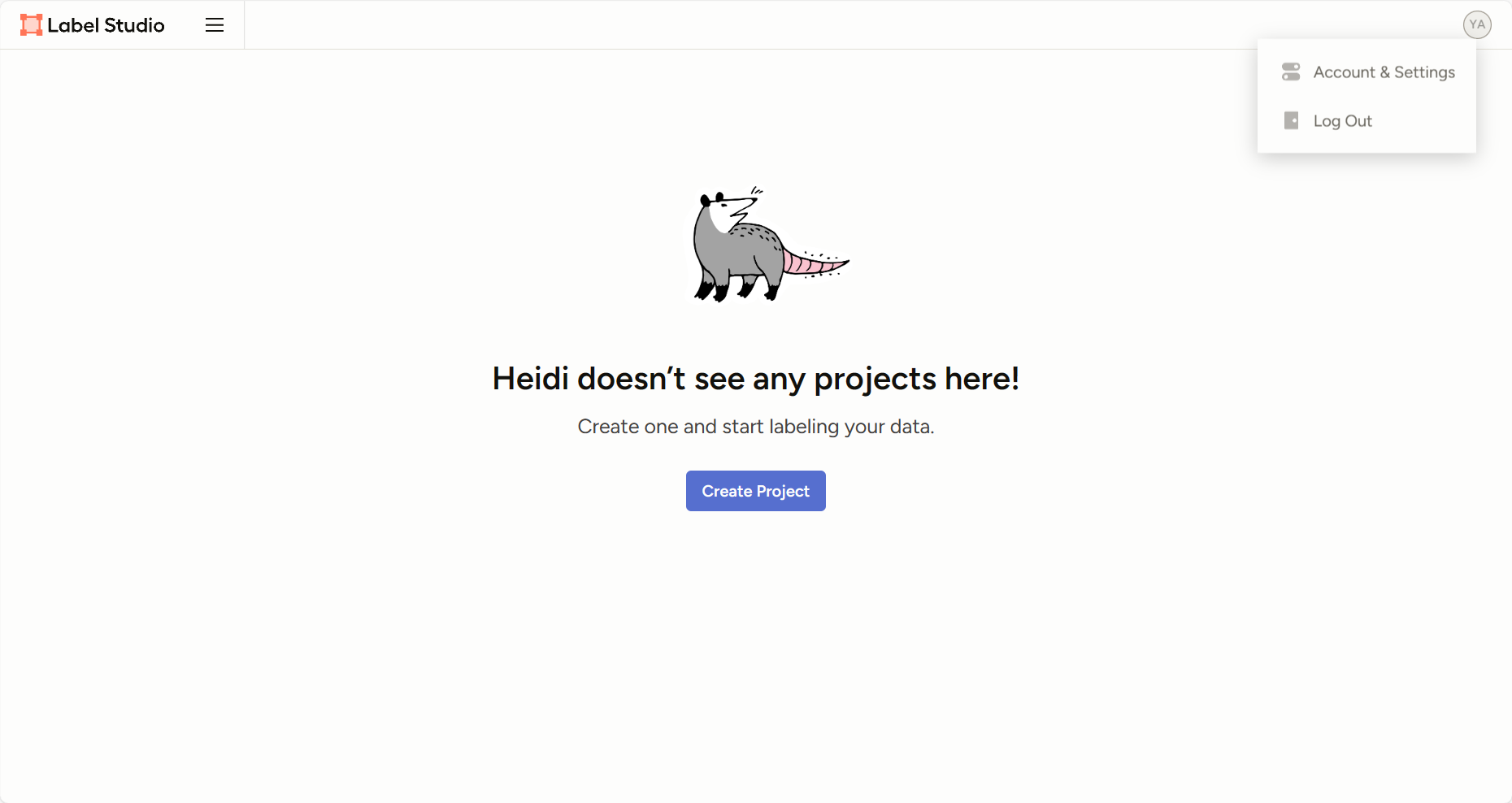

3.1、Create Project

3.2、Project Name

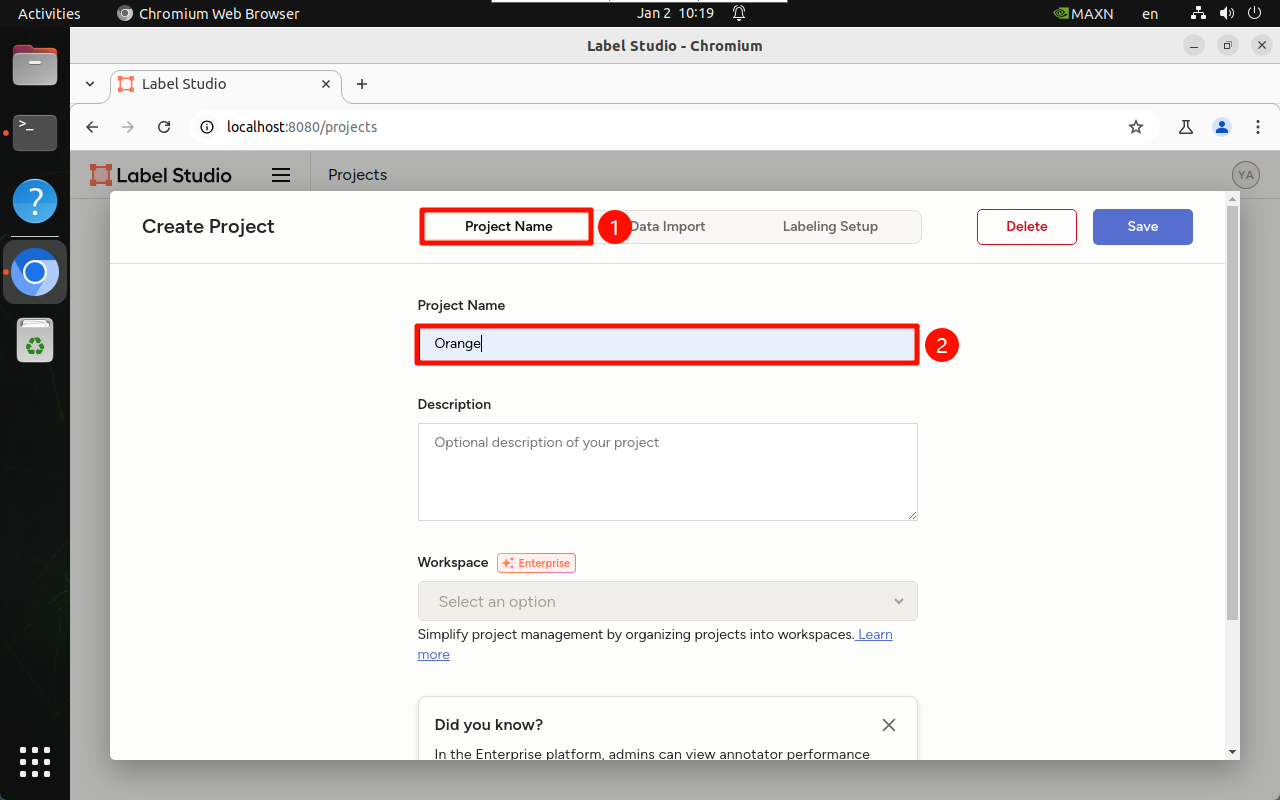

Project name can be named arbitrarily, name it according to your training set:

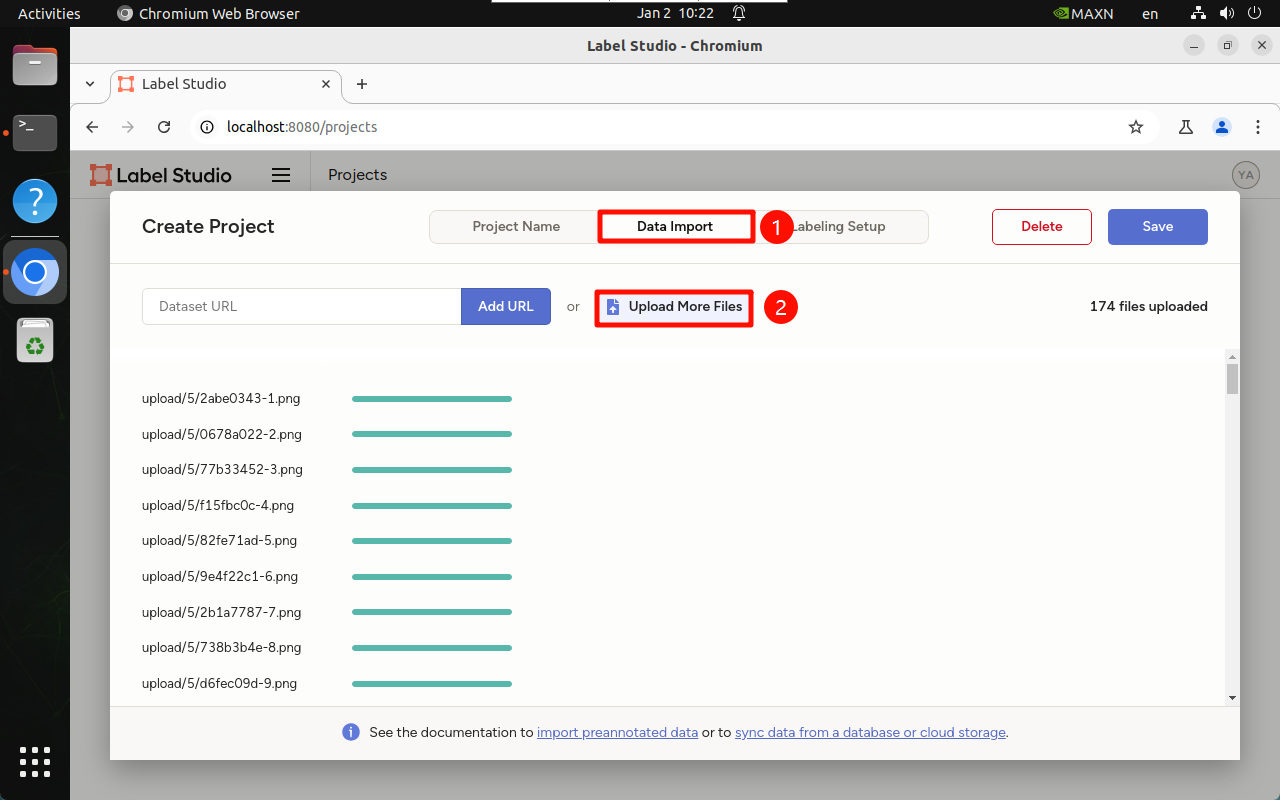

3.3、Import Training Set

Manually import the prepared dataset: Cannot import too many images at once, it is recommended to select 50-100 images each time, then import multiple times

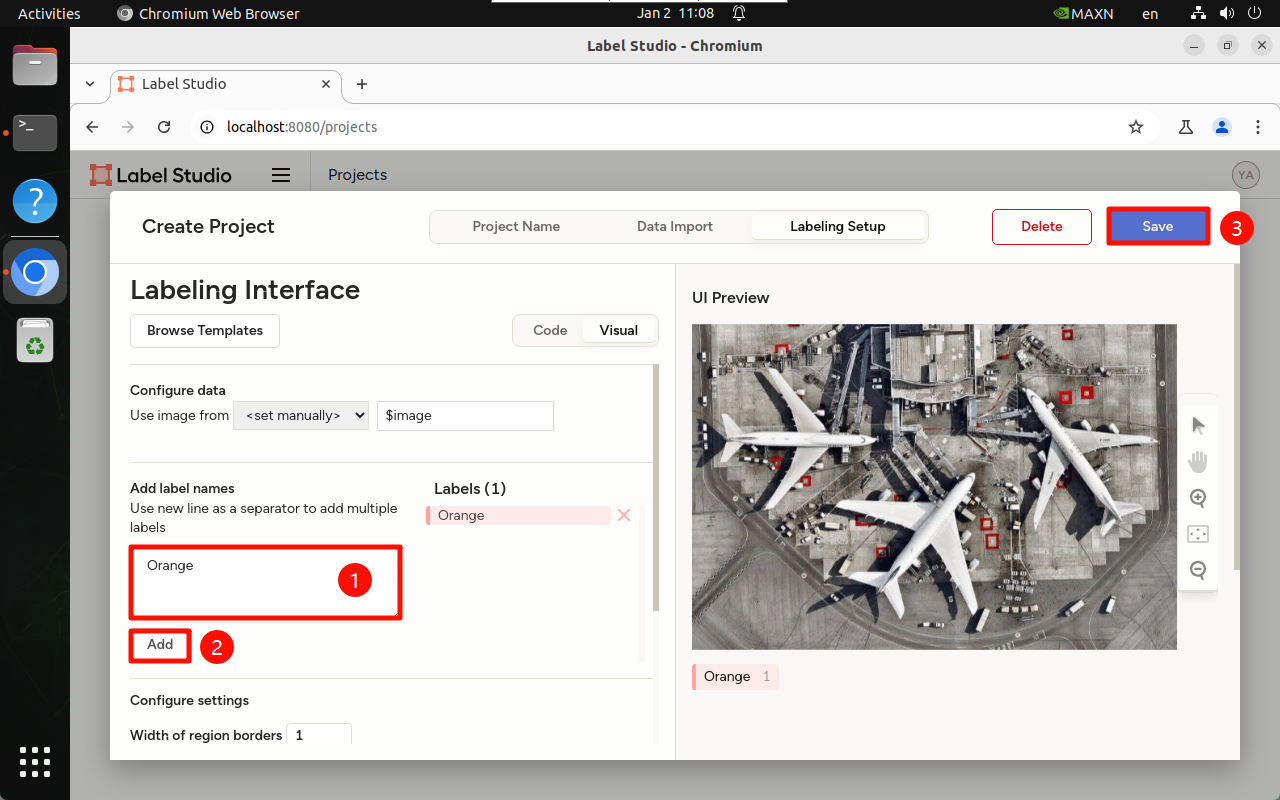

3.4、Label Settings

We are demonstrating orange recognition, so select "Object Detection".

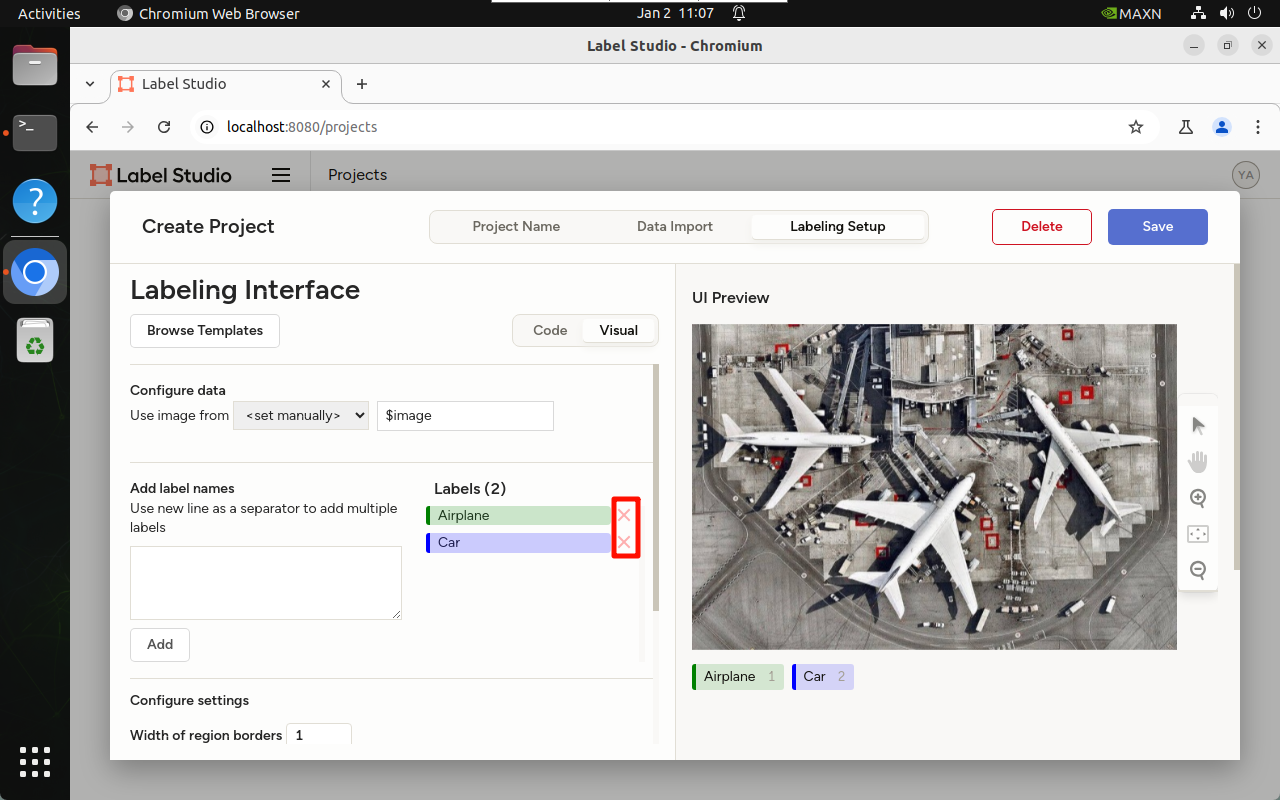

Delete built-in labels:

Add new label:

3.5、Dataset Annotation

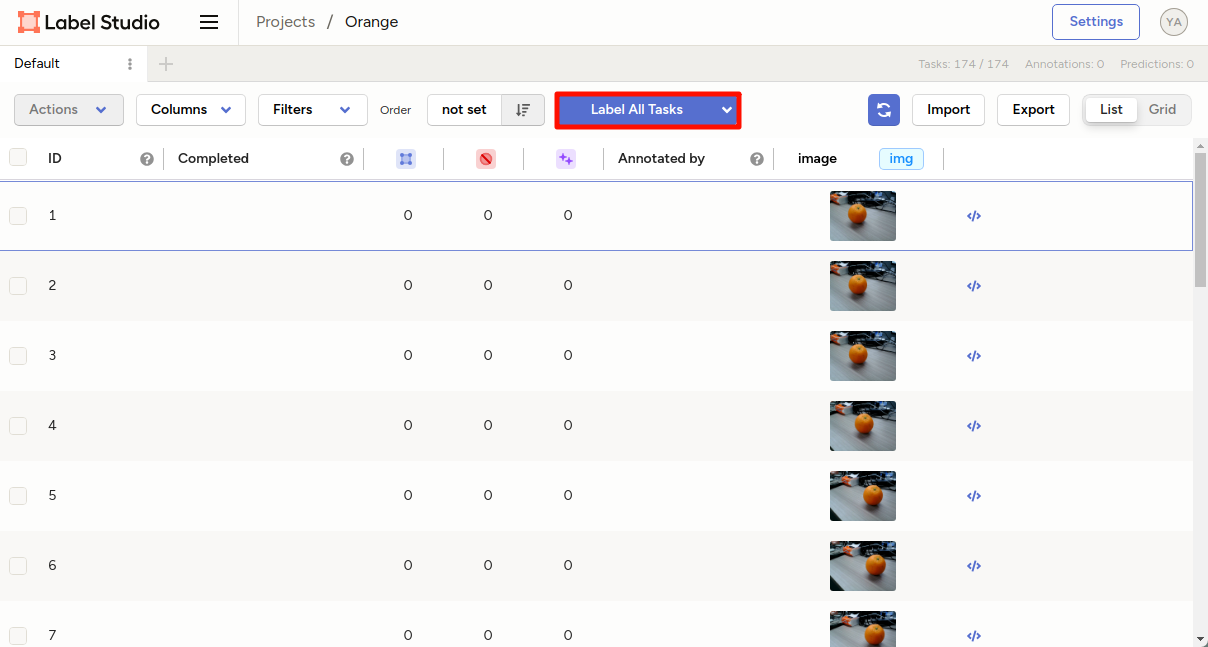

Click Annotate All Tasks:

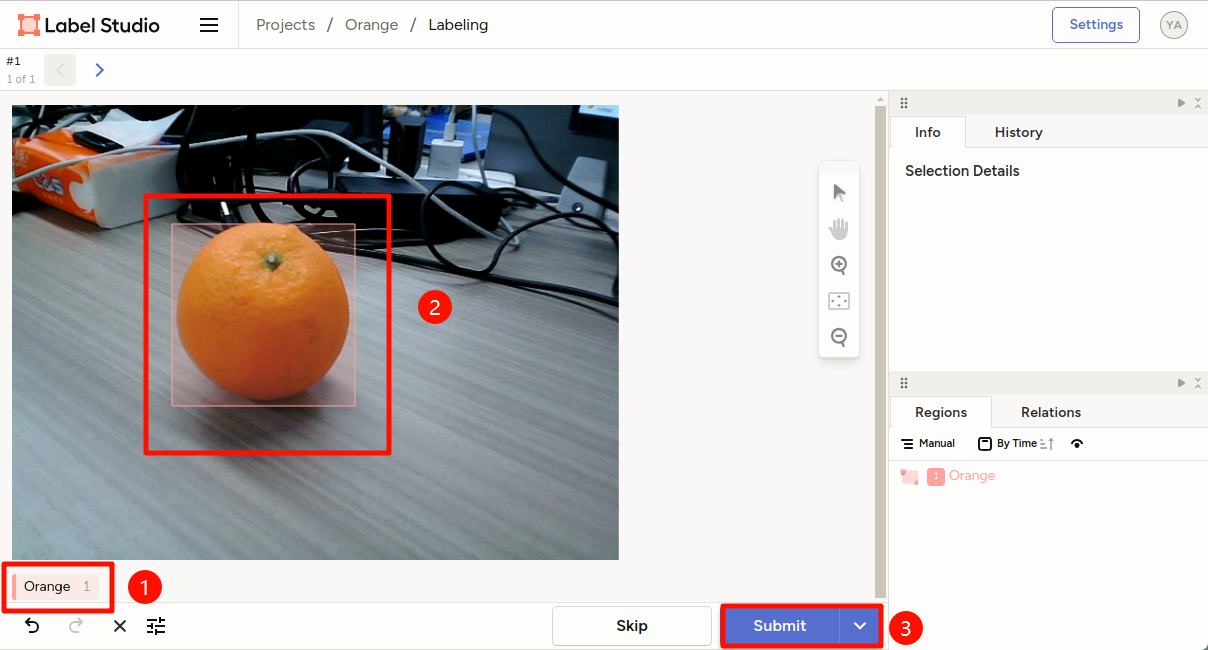

Annotation steps: First click the label "Orange" then use the mouse to select the corresponding orange in the image, and click submit after completion to enter the next annotation

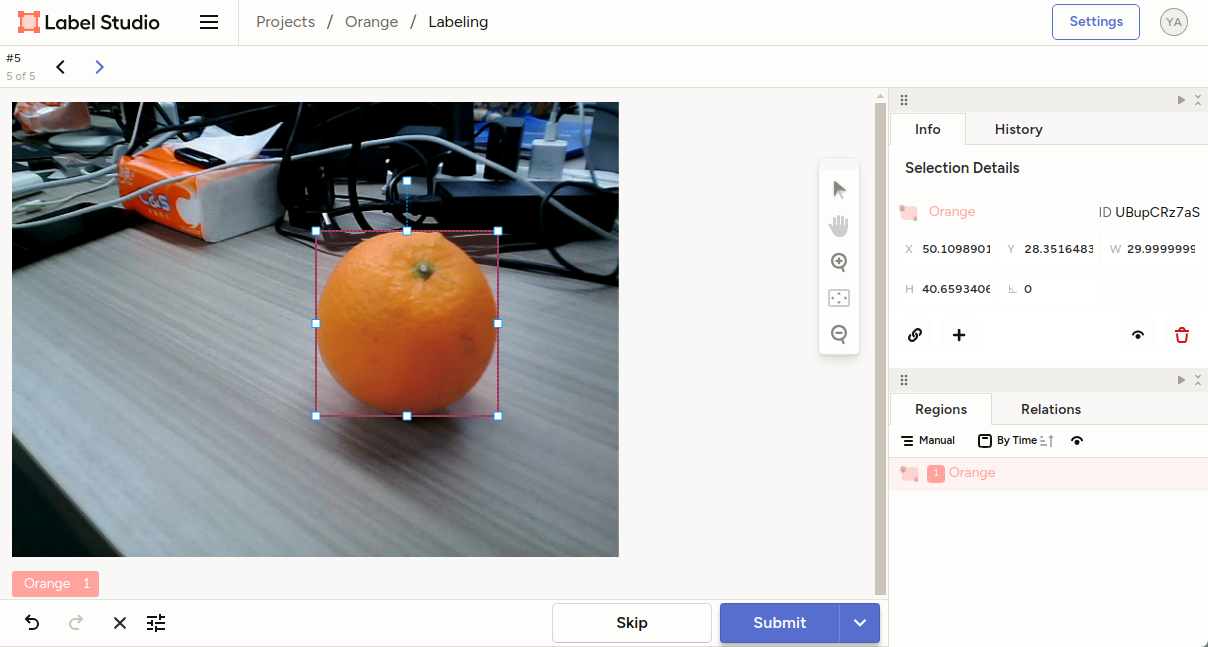

If the selected object is not a complete orange, you can click the selected box to readjust the position of each edge:

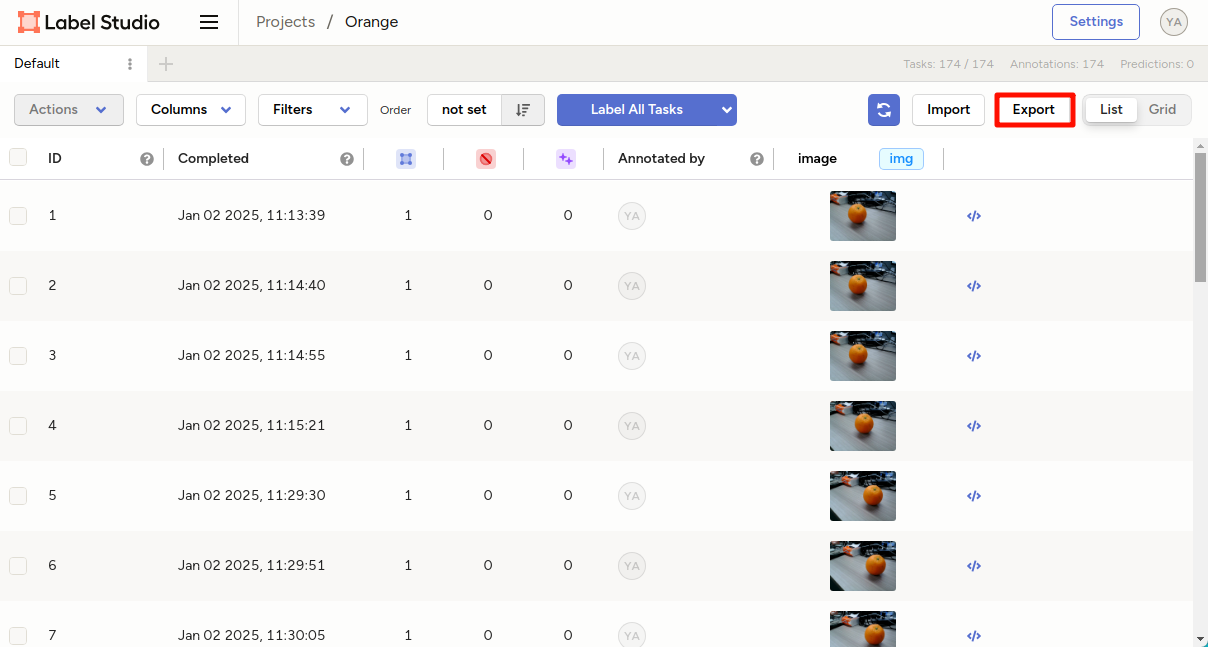

3.6、Export Dataset

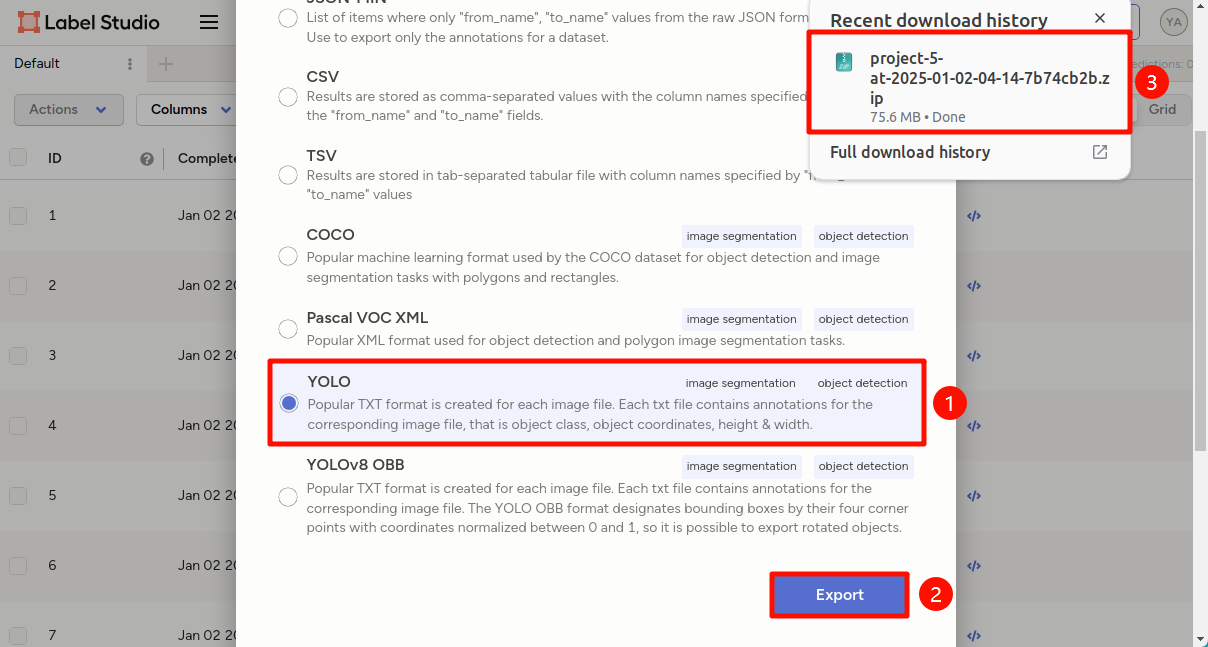

Select YOLO format for export, the browser will automatically download a compressed package

3.7、Dataset Directory Structure

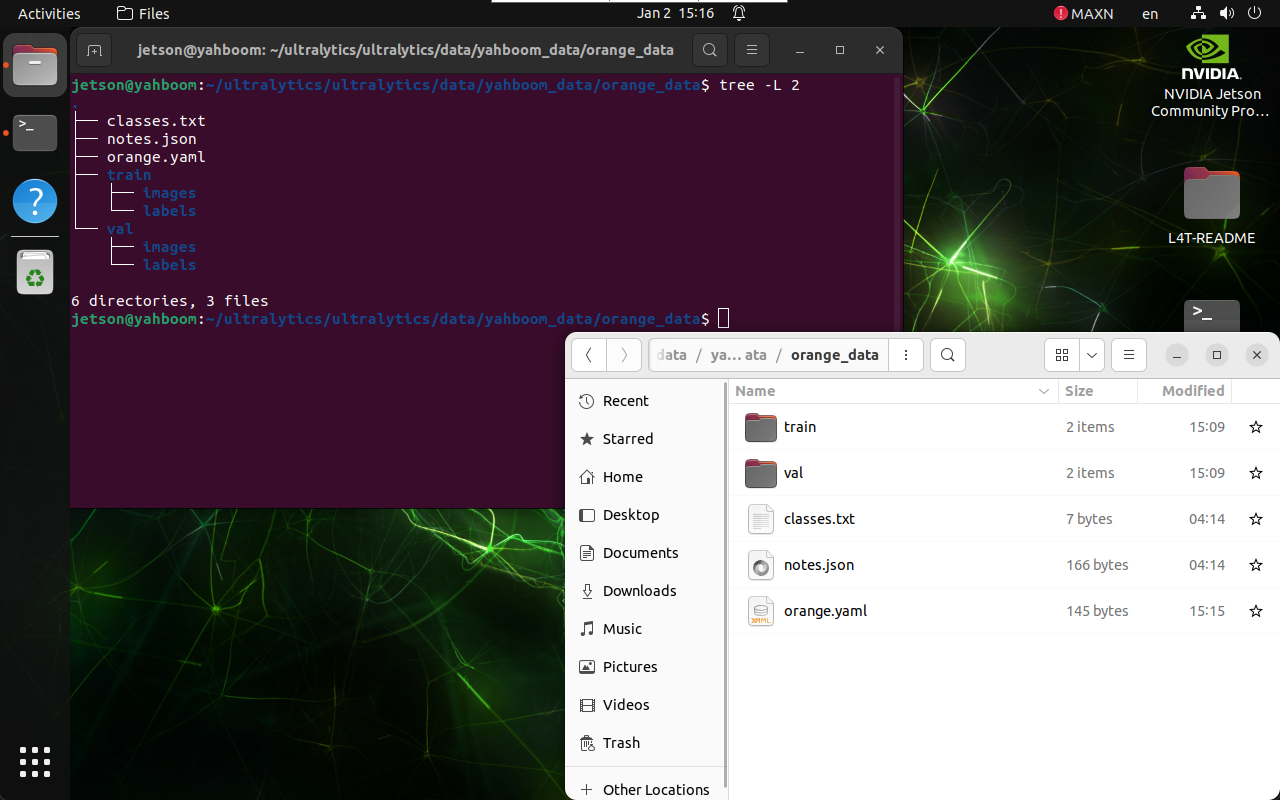

Directory structure corresponding to the compressed package exported by Label Studio:

xxxxxxxxxx
.
├── images
├── labels
├── classes.txt
└── notes.json

We need to separate the images and labels exported by Label Studio into train (training set) and val (validation set), with a ratio of approximately 8:2: The images and labels in both train and val need to correspond in name.

xxxxxxxxxx
.
├── classes.txt
├── notes.json
├── train
│   ├── images
│   └── labels
└── val
    ├── images
    └── labels

3.8、Dataset Configuration File

Contains paths to training and validation sets, as well as the number and names of classes.

xxxxxxxxxx
path: /home/jetson/ultralytics/ultralytics/data/yahboom_data/orange_data
train: train/images
val: val/images
​
nc: 1
​
# Classes
names:
  0: Orange

References

https://github.com/HumanSignal/label-studio
