9. Jupyter Lab plugin installation

9. Jupyter Lab plugin installation

9. Jupyter Lab plugin installation1. Install Node.js2. Enable plugins3. Install extension packages

Installing plugins can enhance the functionality of Jupyter Lab and provide more tools and features.

1. Install Node.js

  • Check the architecture of the Raspberry Pi
uname -a

image-20231214150213376

Select the Node.js version for the ARMv8 architecture for installation

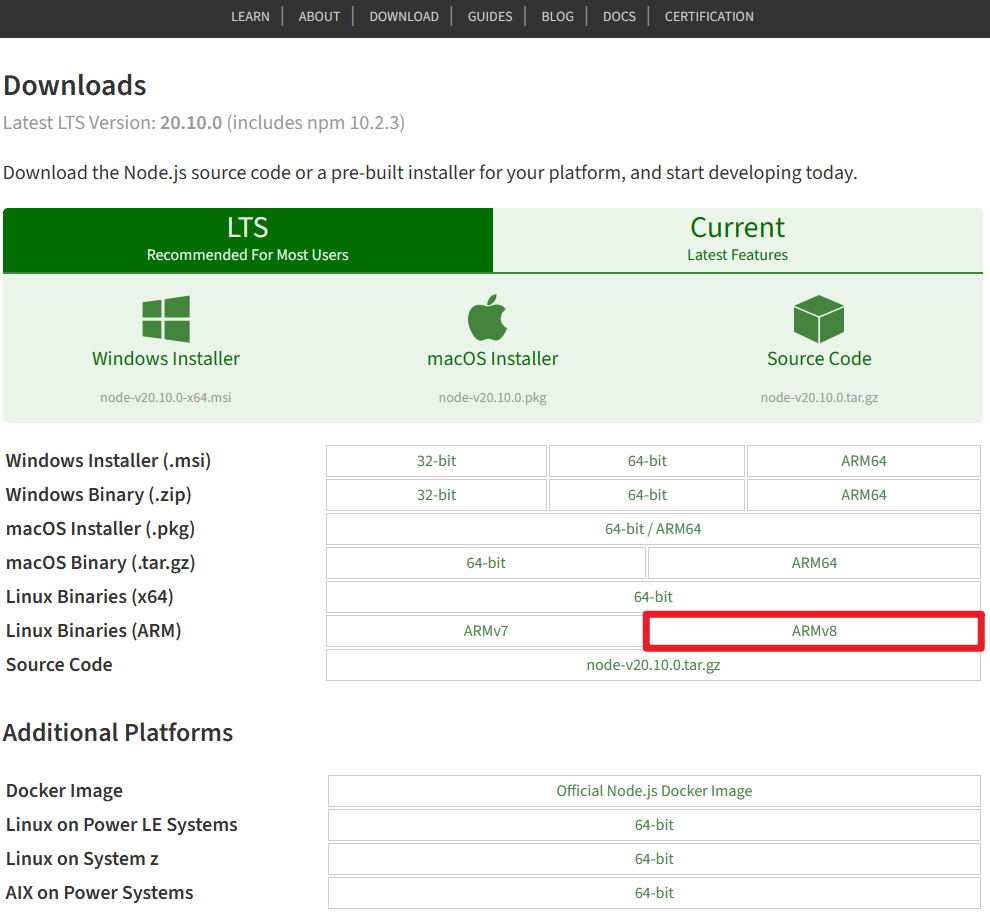

  • Download Node.js
xxxxxxxxxx
https://nodejs.org/en/download/

image-20231215092344776

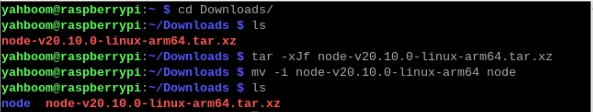

  • Unzip

Download the latest version of the binary file from the official website, unzip it, and name the folder node folder:

xxxxxxxxxx
cd Downloads/
tar -xJf node-v20.10.0-linux-arm64.tar.xz
mv -i node-v20.10.0-linux-arm64 node

image-20231215093909262

  • Move the binary file and add a soft link
xxxxxxxxxx
sudo mv ./node /usr/local
sudo ln -s /usr/local/node/bin/node /usr/bin/node
sudo ln -s /usr/local/node/bin/npm /usr/bin/npm

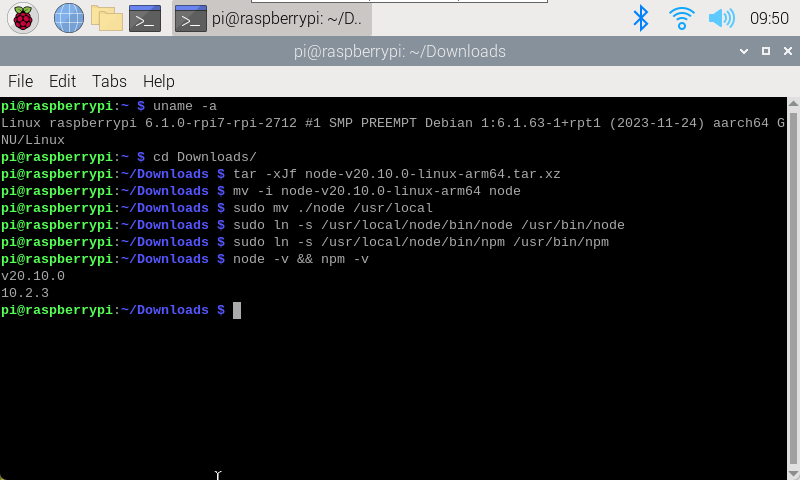

  • Check if node and npm are installed successfully
xxxxxxxxxx
node -v && npm -v

image-20231219095023957

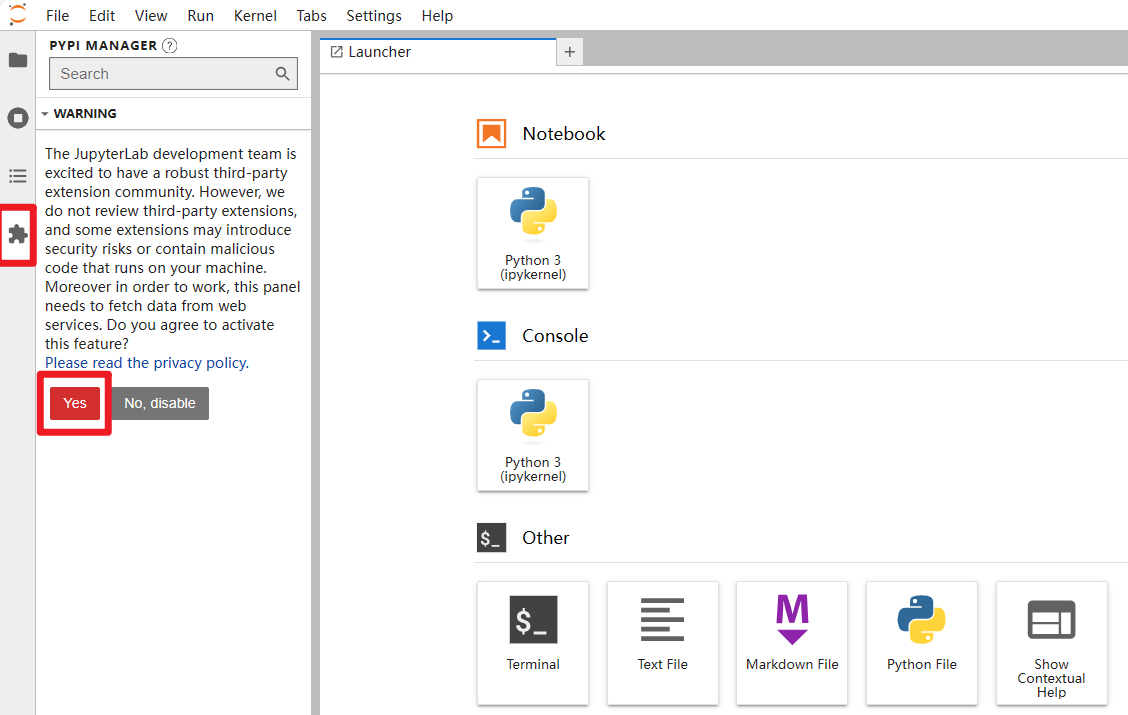

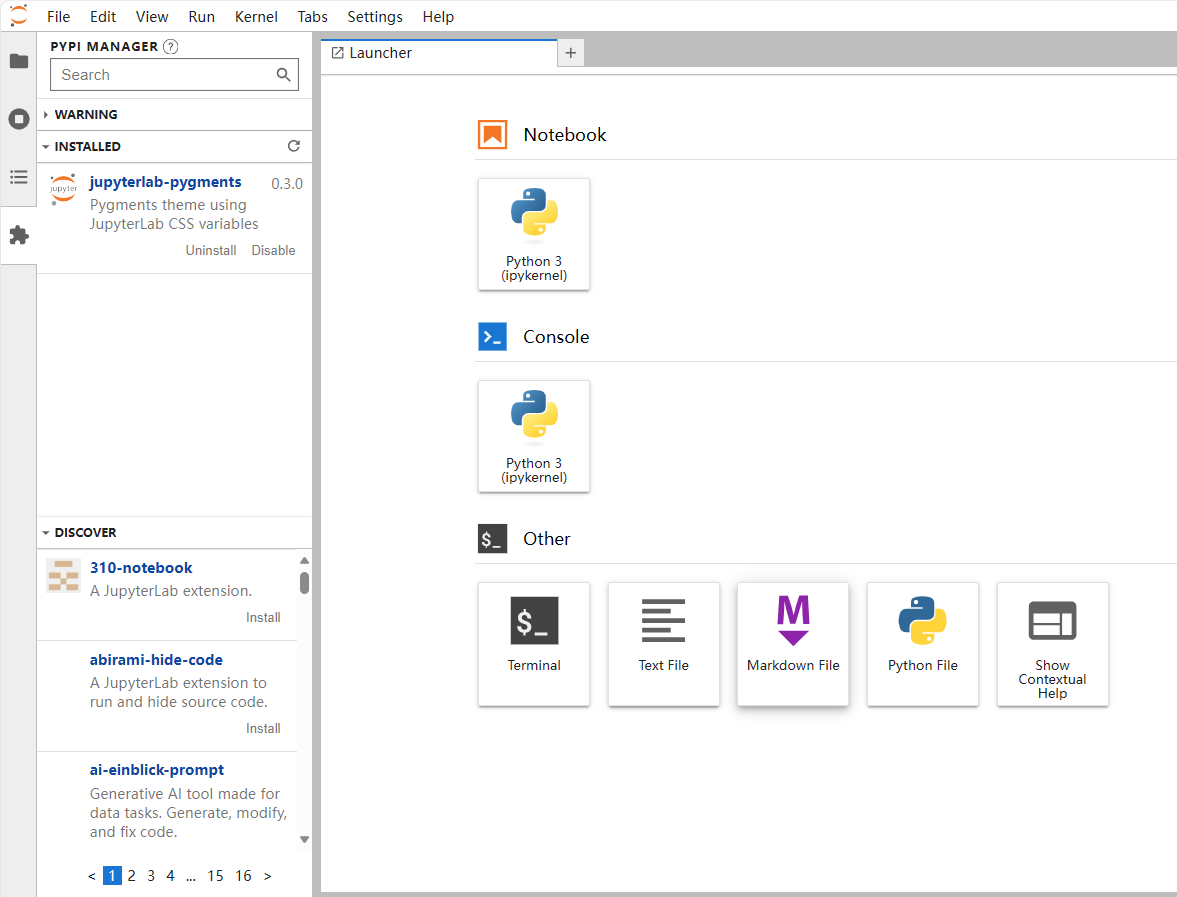

2. Enable plugins

Turn on third-party extension support in Jupyter Lab.

image-20231215095438442

image-20231215105211816

3. Install extension packages

xxxxxxxxxx

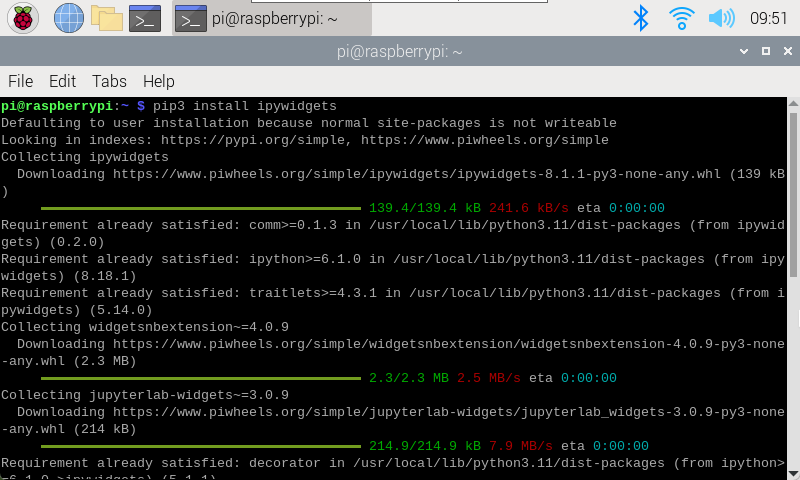

pip3 install ipywidgets

Provides the ability to create interactive widgets in Jupyter Lab.

image-20231219095105869

xxxxxxxxxx

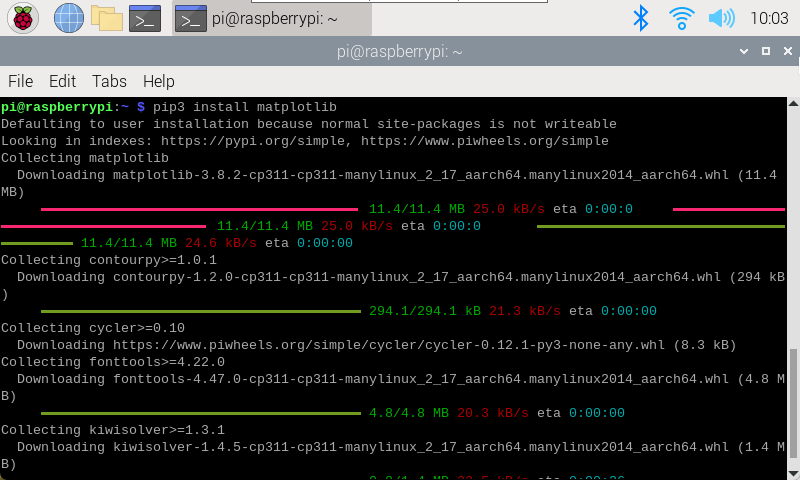

pip3 install matplotlib

Functions for creating various types of graphs and visualizations in Python, including line graphs, scatter plots, histograms, and more.

image-20231219100317493
