slam_toolbox Localization and Navigation

1. Course Content

1. Run the sample program to perform navigation using slam_toolbox in localization mode and quickly recover the robot's precise position after a kidnapping event.

2. Principle Introduction

2.1 Introduction

• The default localization algorithm in Navigation 2 is AMCL (Adaptive Monte Carlo Localization). This involves replacing the default AMCL localization method with the pure localization mode of slam_toolbox, while other navigation functions remain unchanged.

2.2 Difference Between the Two Localization Methods

• AMCL: Suitable for scenarios with a known map, such as when a robot performs repetitive tasks or navigation in an indoor environment with a pre-built map. AMCL can be used to determine its own position.
• slam_toolbox: Compared to AMCL's particle filter localization, which must estimate position through probability distribution while moving, slam_toolbox's pure localization can use a pose graph for rapid scan-to-map matching to solve for a precise global position.

3. Start the Agent

Note: If it is already running, you do not need to start it again.

Enter the command in the vehicle's terminal:

start_agent

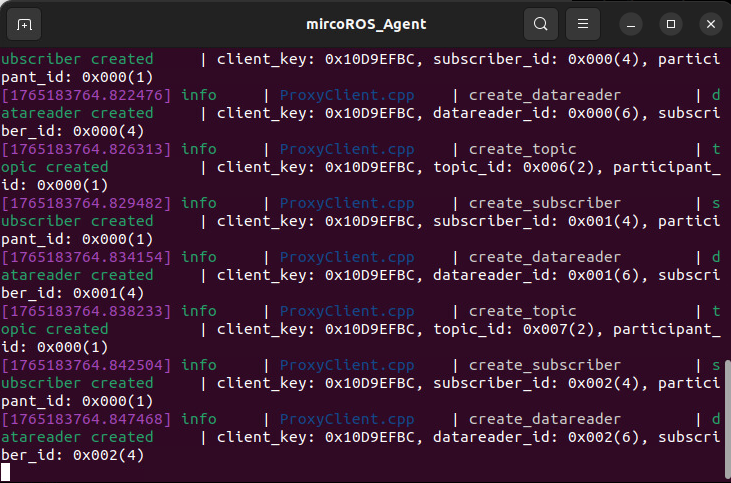

The terminal will print the following information, indicating a successful connection:

4. Run the Example

4.1 Preparations

• A grid map and a pose graph map in posegraph format are required. To build a pose graph map, refer to the 09-Lifelong Mapping chapter.

4.2 Start the Navigation Node

For Raspberry Pi 5 users, if the ROS container is not started, you need to start it first,

xxxxxxxxxx
bringup_m3

Open a terminal inside the container,

xxxxxxxxxx
exec_m3

(ORIN board)

xxxxxxxxxx
ros2 launch m3_bringup nav2.launch.py map:=map.yaml pose_map:=map localization_mode:=slam_toolbox

(RDK & PI5 boards) Run in separate steps, with visualization launched on the accompanying virtual machine Rosmaster-M3-Ubuntu22.04,

xxxxxxxxxx
# On the virtual machine
rviz2 -d /home/yahboom/yahboomM3_ws/user_ws/src/m3_bringup/rviz/nav2.rviz
# On the host machine
ros2 launch m3_bringup nav2.launch.py map:=map.yaml pose_map:=map localization_mode:=slam_toolbox gui:=False

[!TIP]

Launch Parameter Descriptions

• localization_mode

  • The global localization method. Here, slam_toolbox's localization method is selected, which can achieve higher-precision global localization using a pose graph.

• pose_map

  • The name of the pose graph map built by slam_toolbox. If slam_toolbox is chosen as the localization method, this must be provided. The default is map.

• map

  • The name of the grid map, default is map.yaml.

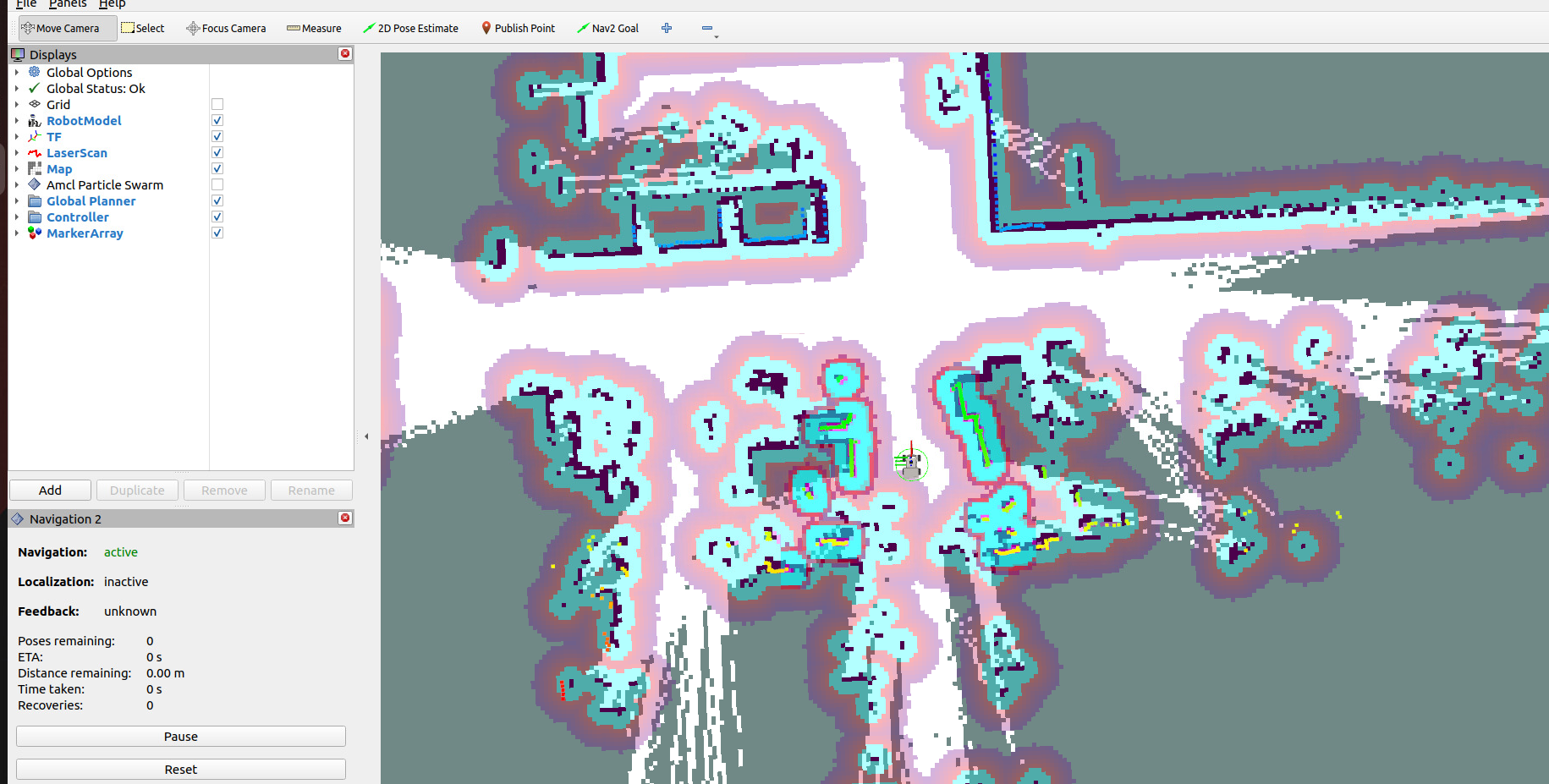

• Near the map's origin, localization can be completed without providing an initial pose.

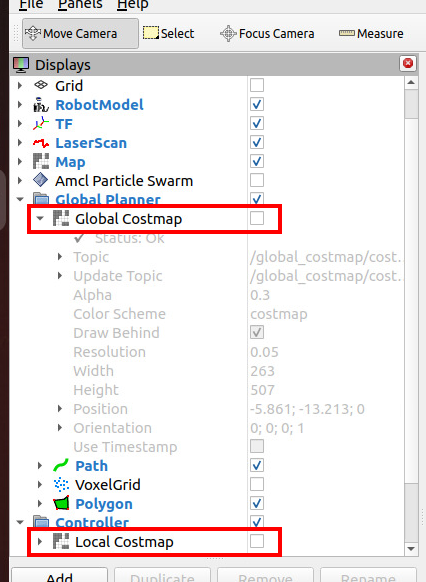

• In the left toolbar, you can uncheck the global and local costmaps to get a clearer view of the laser point cloud and the environment's contours.

• Navigation is still performed by specifying a target pose with Nav2 Goal.

5. Rapid Relocalization

5.1 Odometry Cumulative Error

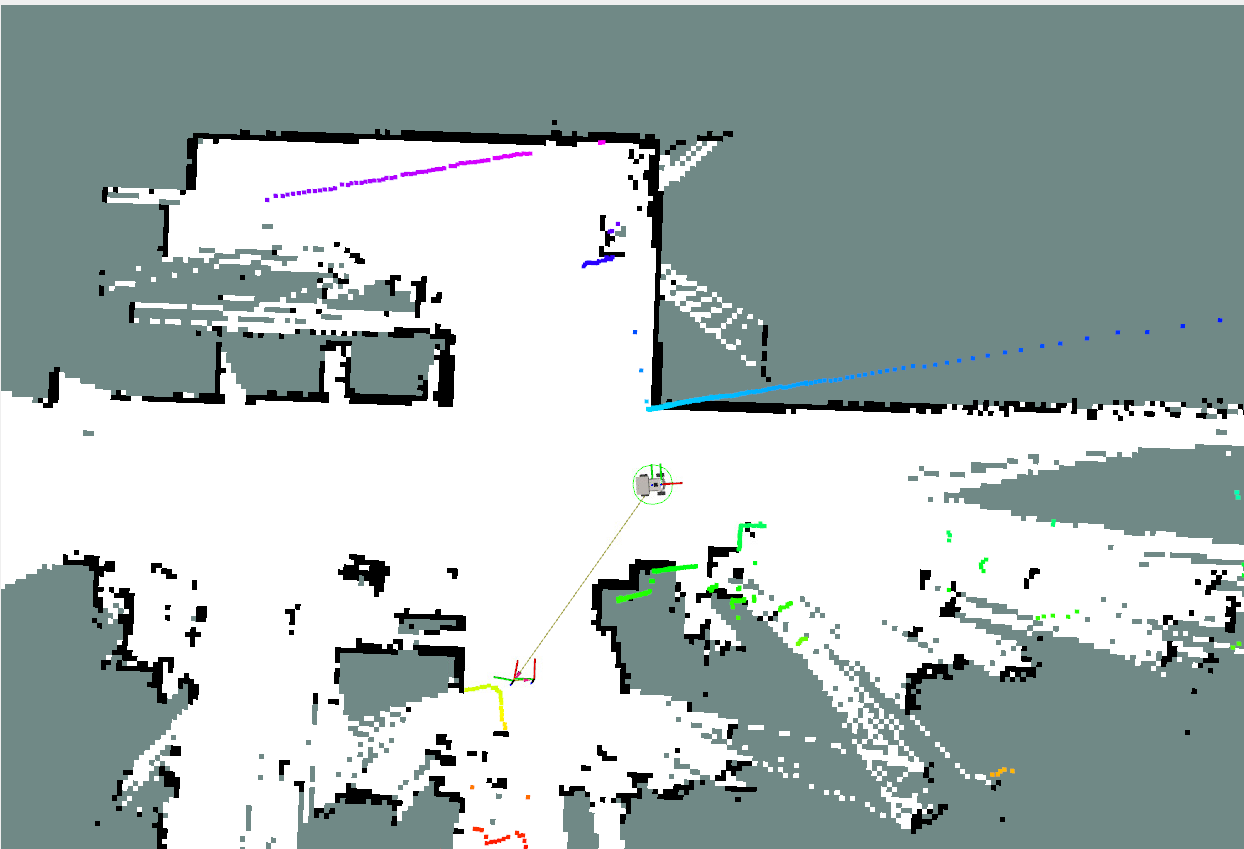

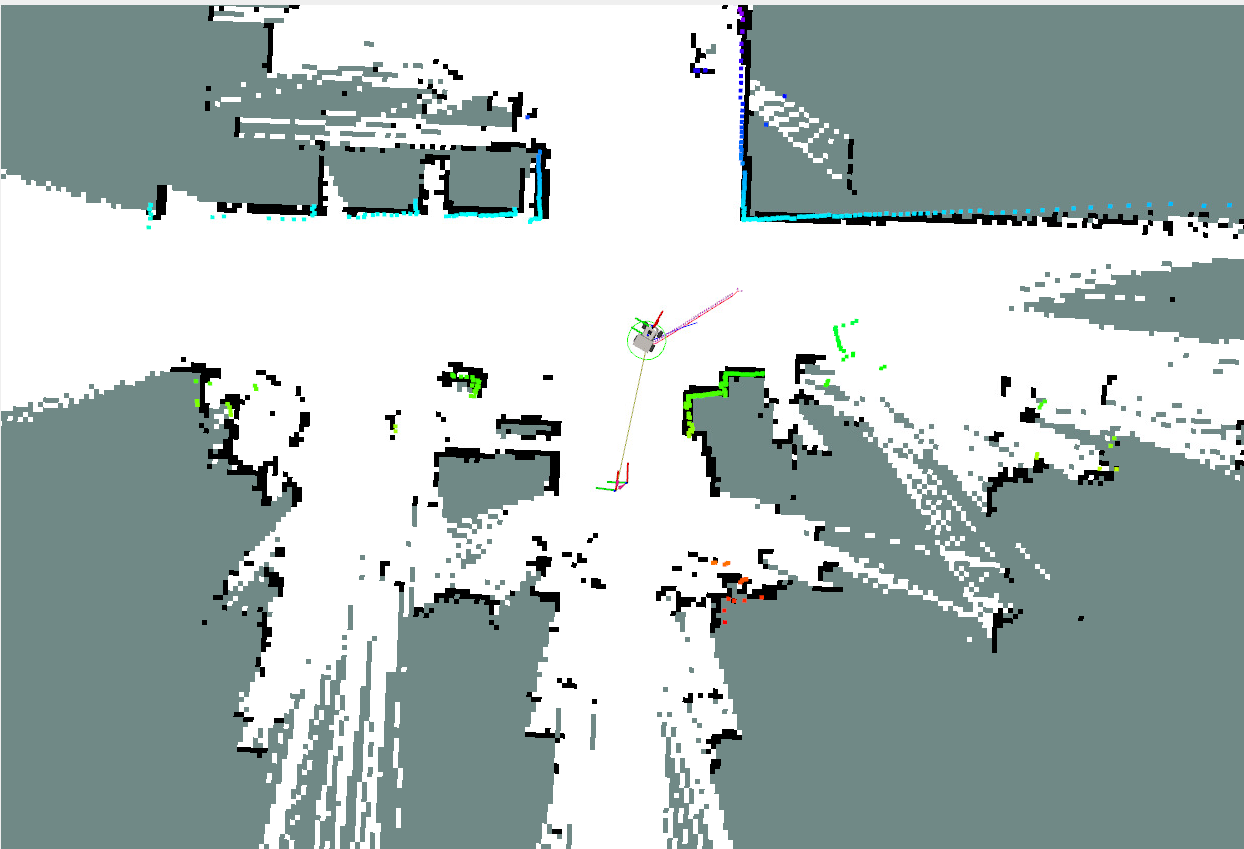

• Odometry can accumulate errors or experience errors in local positioning due to wheel slippage. At this point, the laser point cloud and the environment's contours will no longer match, as shown in the figure below:

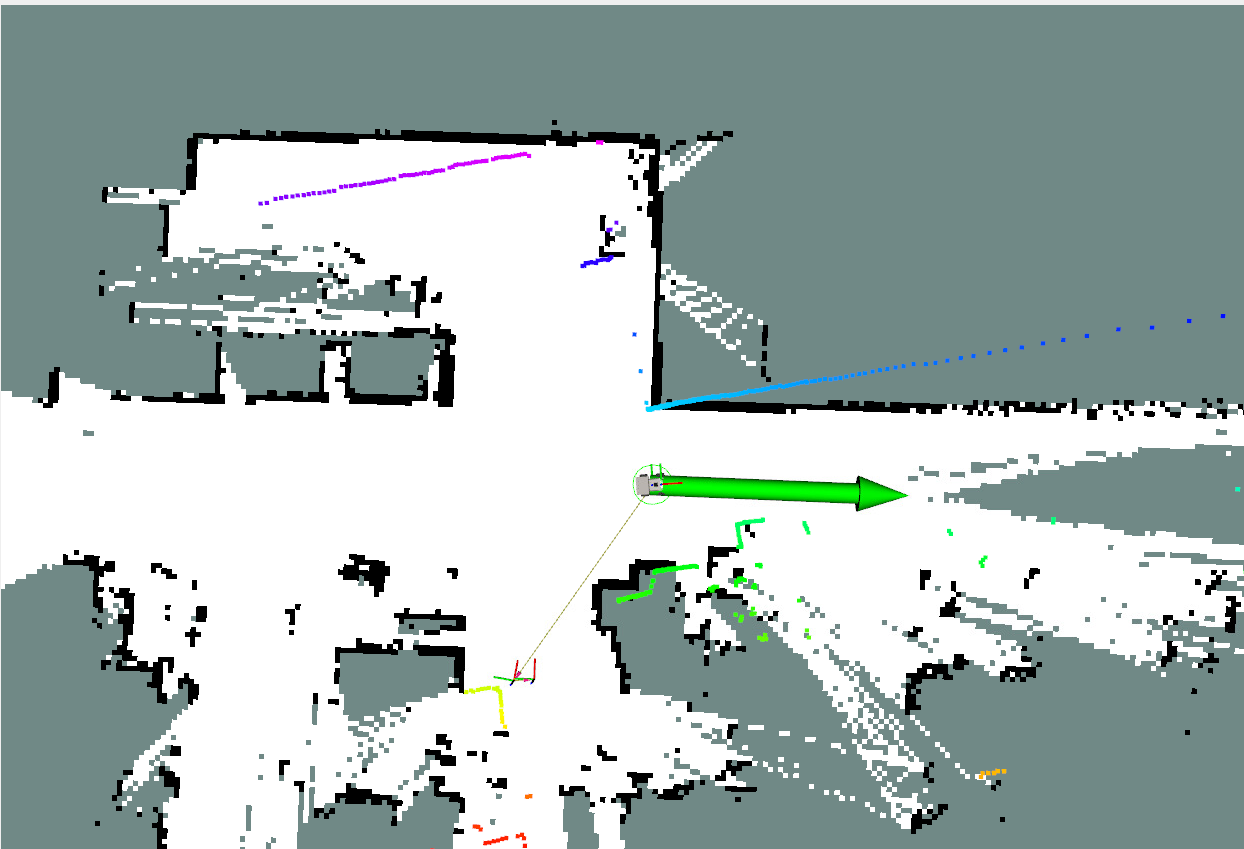

• With a pose graph, you only need to provide an approximate pose using the 2D Pose Estimate tool to achieve precise localization.

5.2 Robot Kidnapping

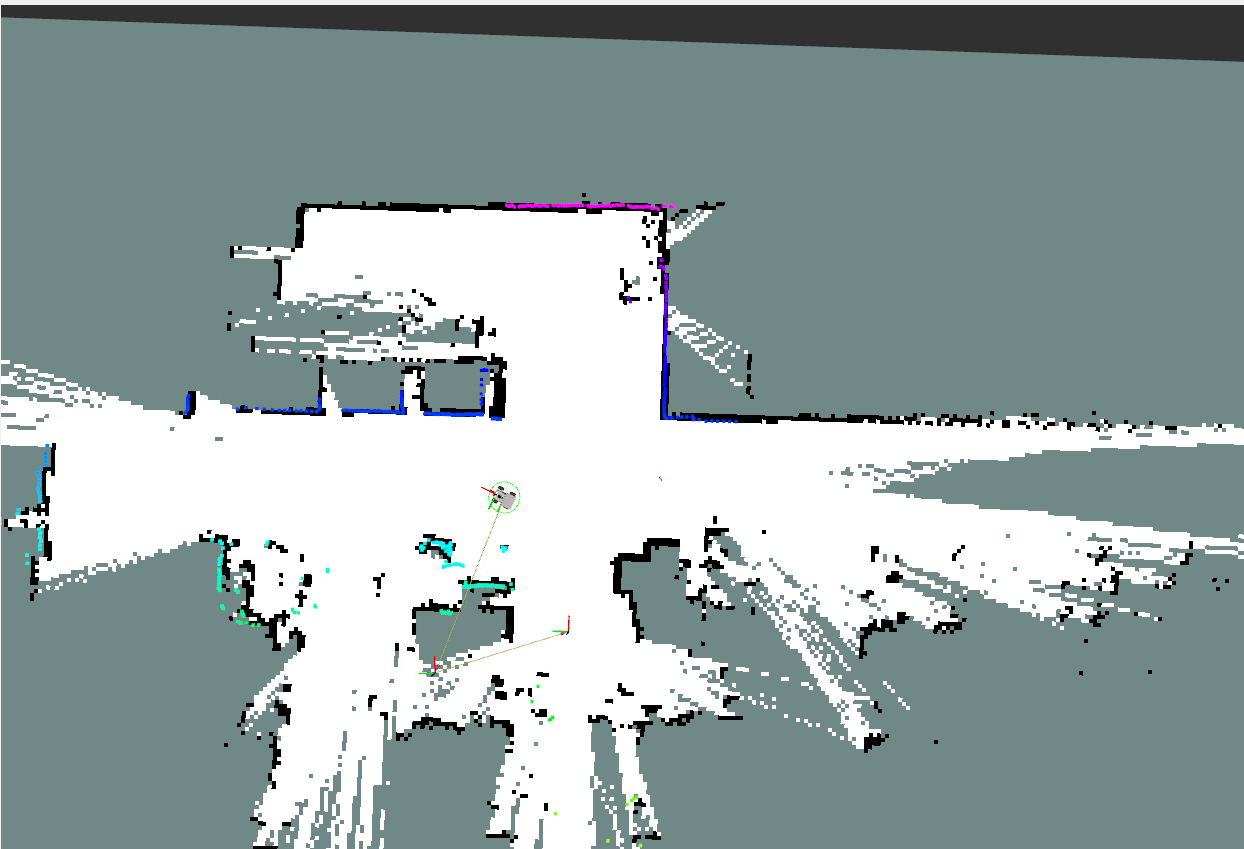

• When the robot is manually moved by an external force and loses its global position, this localization problem is known as the robot kidnapping problem. Here, we recover the global position by providing an approximate pose using the pose graph.

• Similarly, you only need to provide an approximate pose using the 2D Pose Estimate tool to achieve precise localization.

6. Source Code Analysis

6.1 View TF Tree

In the terminal, enter:

xxxxxxxxxx
ros2 run rqt_tf_tree rqt_tf_tree

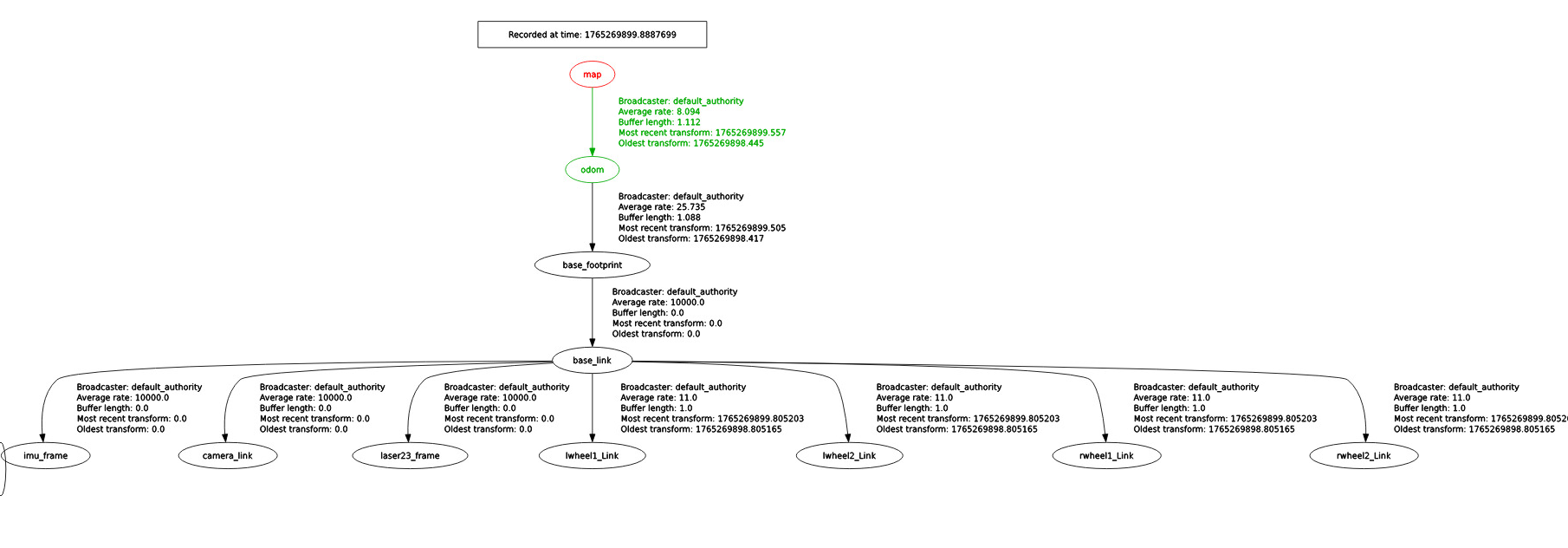

• Here, the TF transformation from the map coordinate frame to the odom coordinate frame is provided by slam_toolbox.

6.2 Launch File

• Launch file path:

xxxxxxxxxx
~/yahboomM3_ws/user_ws/src/m3_bringup/launch/navigation/nav2.launch.py

• The key code snippet below starts the Navigation2 stack node and the slam_toolbox pure localization node.

xxxxxxxxxx
    # slamtoolbox positioning navigation
    slamtoolbox_localization_nav = GroupAction(
        condition=IfCondition(PythonExpression(["'", localization_mode, "' == 'slam_toolbox' and '", slam, "' == 'False' "])),
        actions=[
            PushRosNamespace(namespace=namespace),
            # Start navigation2 navigation file (no global positioning)
            IncludeLaunchDescription(
                PythonLaunchDescriptionSource(nav2_launch_mod),
                launch_arguments={
                                "map": map_dir,
                                "params_file": params_file,
                                "use_sim_time":use_sim_time,
                                }.items()),
            # Start slamtoolbox positioning node
            IncludeLaunchDescription(
                PythonLaunchDescriptionSource(slamtoolbox_localization_launch_file),
                launch_arguments={
                    "map": pose_map,
                    "use_sim_time":use_sim_time,
                }.items(),
            ),
            # Log Printing
            LogInfo(msg=[Fore.GREEN+'====================Robot-M3 Navigation Start with SlamToolbox localization====================',Fore.RESET])
        ]
    )

• Parameter file path. If you need to configure the slam_toolbox parameters for pure localization mode, the path is as follows:

xxxxxxxxxx
~/yahboomM3_ws/user_ws/src/m3_bringup/config/mapper_params_localization.yaml

​x
slam_toolbox:
  ros__parameters:
    solver_plugin: solver_plugins::CeresSolver
    ceres_linear_solver: SPARSE_NORMAL_CHOLESKY
    ceres_preconditioner: SCHUR_JACOBI
    ceres_trust_strategy: LEVENBERG_MARQUARDT
    ceres_dogleg_type: TRADITIONAL_DOGLEG
    ceres_loss_function: None
​
    # ROS Parameters
    odom_frame: odom
    map_frame: map
    base_frame: base_footprint
    scan_topic: /scan
    mode: localization #localization
​
    # if you'd like to start localizing on bringup in a map and pose
    map_file_name: ""
    #map_start_pose: [5.0, 1.0, 0.0]
    map_start_at_dock: true

    debug_logging: false
    throttle_scans: 1
    transform_publish_period: 0.02 #if 0 never publishes odometry
    map_update_interval: 5.0
    resolution: 0.05
    min_laser_range: 0.05 #for rastering images
    max_laser_range: 12.0 #for rastering images
    minimum_time_interval: 0.5
    transform_timeout: 0.2
    tf_buffer_duration: 30.
    stack_size_to_use: 40000000 #// program needs a larger stack size to serialize large maps
​
    # General Parameters
    use_scan_matching: true
    use_scan_barycenter: true
    minimum_travel_distance: 0.5
    minimum_travel_heading: 0.5
    scan_buffer_size: 3
    scan_buffer_maximum_scan_distance: 10.0
    link_match_minimum_response_fine: 0.1
    link_scan_maximum_distance: 1.5
    do_loop_closing: true
    loop_match_minimum_chain_size: 3
    loop_match_maximum_variance_coarse: 3.0
    loop_match_minimum_response_coarse: 0.35
    loop_match_minimum_response_fine: 0.45
​
    # Correlation Parameters - Correlation Parameters
    correlation_search_space_dimension: 0.5
    correlation_search_space_resolution: 0.01
    correlation_search_space_smear_deviation: 0.1
​
    # Correlation Parameters - Loop Closure Parameters
    loop_search_space_dimension: 8.0
    loop_search_space_resolution: 0.05
    loop_search_space_smear_deviation: 0.03
    loop_search_maximum_distance: 3.0
​
    # Scan Matcher Parameters
    distance_variance_penalty: 0.5
    angle_variance_penalty: 1.0
​
    fine_search_angle_offset: 0.00349
    coarse_search_angle_offset: 0.349
    coarse_angle_resolution: 0.0349
    minimum_angle_penalty: 0.9
    minimum_distance_penalty: 0.5
    use_response_expansion: true
    min_pass_through: 2
    occupancy_threshold: 0.1
​
