Multi-vehicle Chassis Control

1. Content Description

• Run example programs to implement simultaneous control of multiple vehicle units using the keyboard. This tutorial uses 2 vehicle units as an example.

2. Preparation Work

2.1 Basic Requirements

Taking two vehicles as an example, these two vehicles need to simultaneously meet the following three requirements:

• Both vehicle units need to be on the same local area network
• The ROS_DOMAIN_ID of the main control ROS environment for both vehicle units needs to be the same
• The namespace of both vehicle units must be set to different values

2.2 Setting Vehicle Unit DOMAIN_ID

• The factory default is 30. If you need to modify it to a specified value, refer to this part of the tutorial. Normally, you don't need to modify it as long as you ensure that the multi-vehicle DOMAIN_ID is the same.

2.2.1 Setting Vehicle Unit Main Control DOMAIN_ID

For Raspberry Pi 5 users, if the ROS container is not started, you need to start the container first,

bringup_m3

Open a terminal inside the container,

xxxxxxxxxx
exec_m3

• Enter the following command in the terminal to edit the environment file:

xxxxxxxxxx
nano .bashrc

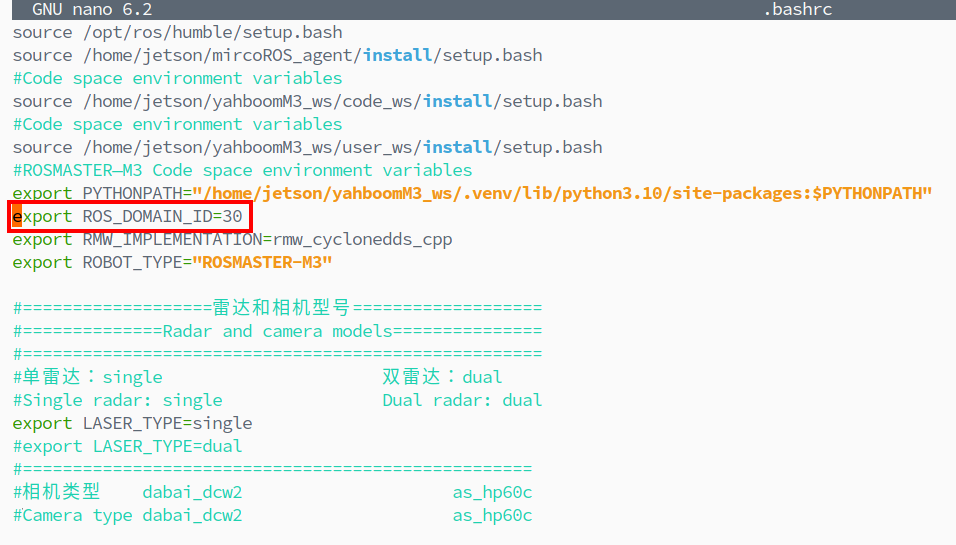

Find ROS_DOMAIN_ID, modify it to the same value, then save and exit

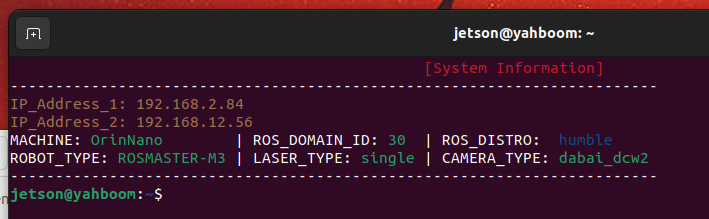

• Refresh the environment variables in the terminal to see the updated DOMAIN_ID

2.2.2 Setting Vehicle Unit STM32 Main Control Board DOMAIN_ID

• Edit the configuration program file (any editing method can be used, nano is used here as an example)
• Enter in the host machine terminal,

xxxxxxxxxx
nano ~/config_robot.py

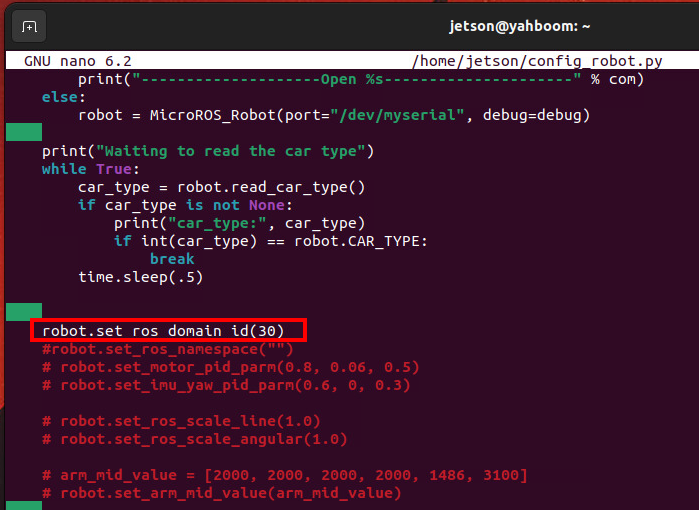

Modify the value in robot.set_ros_domain_id(30), then press ctrl+x to save

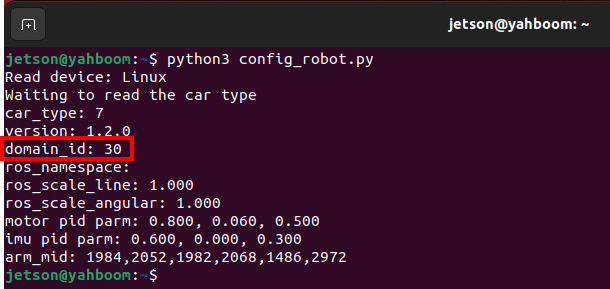

• If the MicroROS agent is started, please close the agent first, then run the configuration program to write the DOMAIN_ID to the chassis control board

xxxxxxxxxx
python3 config_robot.py

2.3 Modify Vehicle Unit Namespace

• The namespace of both small vehicles must be set to different values to prevent underlying data interference.

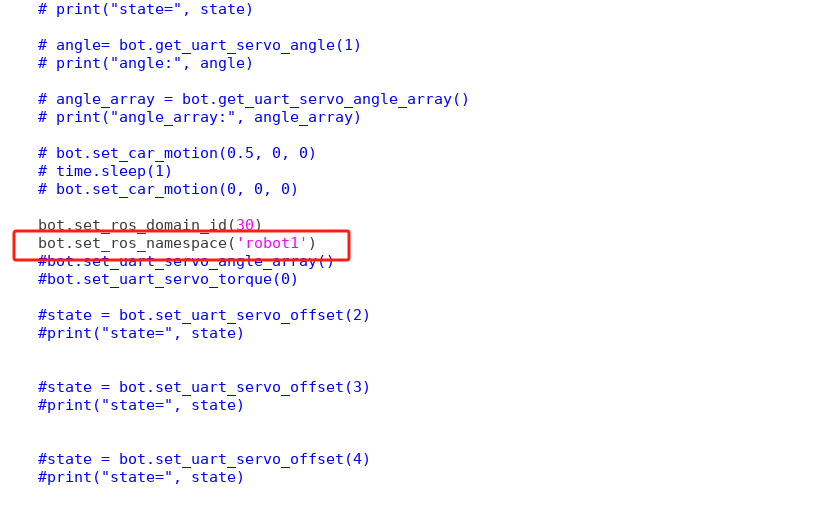

• Set the namespace of the first vehicle unit to robot1, and other vehicle units follow this pattern

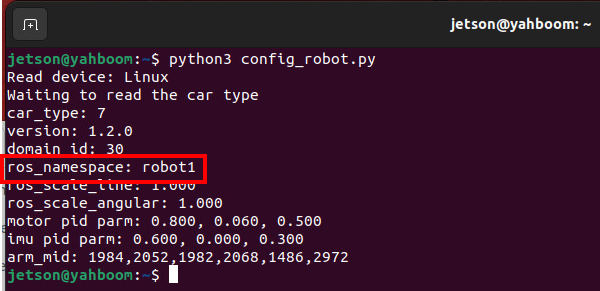

• If the MicroROS agent is started, please close the agent first, then run the configuration program to write the namespace to the chassis control board

xxxxxxxxxx
python3 config_robot.py

3. Starting Example Programs

• Start the chassis communication for all vehicle units, enter the command in the vehicle unit terminal:

xxxxxxxxxx
start_agent

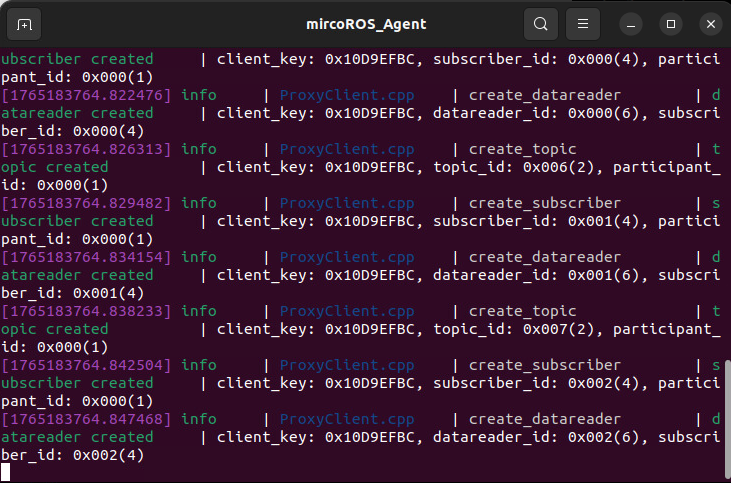

The terminal prints the following information, indicating successful connection

After completing the namespace setting and reconnecting the chassis agent, enter the following command in the corresponding terminal to check whether the namespace and ROS_DOMAIN_ID are set correctly

xxxxxxxxxx
ros2 node list

As shown in the figure below, the appearance of /robot1/YB_Node and /robot2/YB_Node indicates successful setting,

• Enter command in terminal

xxxxxxxxxx
keyboard_control

After the program starts, click on the terminal that started keyboard control, and press the corresponding keys according to the following key table to control the movement of two vehicles,

3.1 Node Communication

Enter the following command in the virtual machine terminal to view the node communication diagram,

xxxxxxxxxx
ros2 run rqt_graph rqt_graph

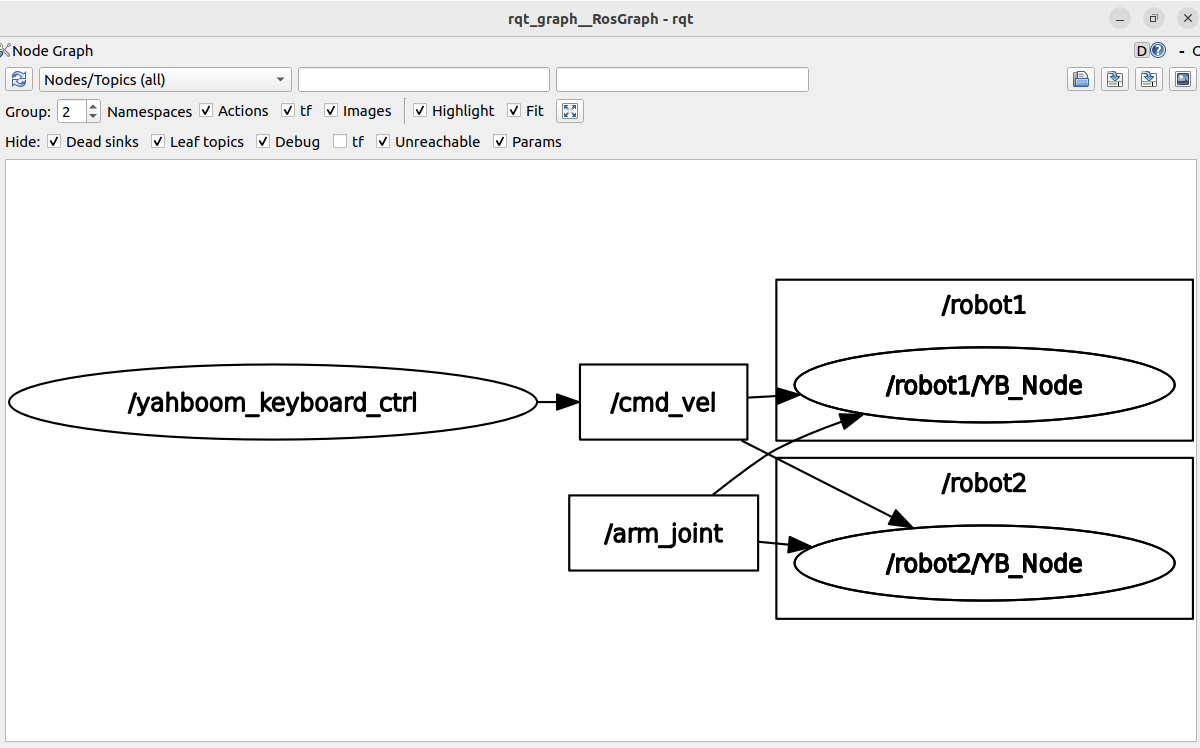

As shown in the figure below, select [Nodes/Topics(all)] in the upper left corner, then click the refresh button on the left

3.2 Principle Analysis

The keyboard control node /teleop_twist_keyboard publishes the speed topic /cmd_vel. The underlying nodes of both vehicles /robot1/YB_Node and /robot2/YB_Node subscribe to this /cmd_vel topic. After receiving the topic message data, they process it and pass it to the driver board, thereby controlling the vehicle movement.
