Face Special Effects

1. Course Content

• Run example programs using the dlib library to implement face detection and face special effects functionality.

2. Program Startup

For Raspberry Pi 5 users, if the ROS container is not started, you need to start the container first,

xxxxxxxxxx
bringup_m3

Open a terminal inside the container,

xxxxxxxxxx
exec_m3

• Run face special effects node in terminal

xxxxxxxxxx
ros2 launch m3_bringup mediapipe_demo.launch.py demo:=FaceLandmarks

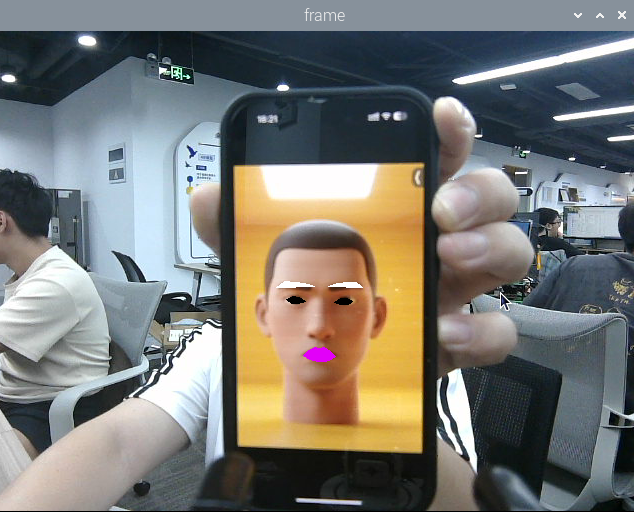

After the program runs, as shown in the figure below, it will first detect faces, then apply special effects to the eyebrows, eyes, and mouth areas,

3. Core Code Analysis

Program code path:

xxxxxxxxxx
~/yahboomM3_ws/code_ws/src/m3_common_demo/m3_common_demo/mediapipe/06_FaceLandmarks.py

Import the required library files,

xxxxxxxxxx
import time
#import dlib library
import dlib
import cv2 as cv
import numpy as np
import rclpy
from rclpy.node import Node
from cv_bridge import CvBridge
from sensor_msgs.msg import Image
from arm_msgs.msg import ArmJoints
import cv2

dlib library introduction:

DLIB is a modern C++ toolkit containing machine learning algorithms and tools for creating complex software in C++ to solve real-world problems. It is widely used in industry and academia in fields such as robotics, embedded devices, mobile phones, and large high-performance computing environments. The dlib library uses 68-point landmarks to mark important parts of the face, for example, points 18-22 mark the right eyebrow, and 51-68 mark the mouth. The dlib library's get_frontal_face_detector module is used to detect faces, and the shape_predictor_68_face_landmarks.dat feature data is used to predict face feature values.

The 68-point facial landmarks of dlib are arranged in the following order:

• 0-16: Jaw contour
• 17-21: Right eyebrow
• 22-26: Left eyebrow
• 27-35: Nose bridge and tip
• 36-41: Right eye
• 42-47: Left eye
• 48-67: Lip contour

Initialize data and define publishers and subscribers,

xxxxxxxxxx
    def __init__(self, name):
        super().__init__(name)
        #Parameter declaration and acquisition
        self.declare_parameter('rgb_topic','/ascamera_hp60c/camera_publisher/rgb0/image')
        rgb_topic=self.get_parameter("rgb_topic").get_parameter_value().string_value
        self.dat_file =os.path.join(os.path.expanduser('~'), 'MODELS','mediapipe','shape_predictor_68_face_landmarks.dat')
        self.hog_face_detector = dlib.get_frontal_face_detector()
​
        self.dlib_facelandmark = dlib.shape_predictor(self.dat_file)
​
        self.rgb_bridge = CvBridge()
​
        self.sub_rgb = self.create_subscription(
            Image, rgb_topic, self.get_RGBImageCallBack, 5)

Color image topic callback function,

xxxxxxxxxx
def get_RGBImageCallBack(self,msg):
    rgb_image = self.rgb_bridge.imgmsg_to_cv2(msg, "bgr8")
    #Pass the obtained image to the defined get_face function and return the detected image
    frame = self.get_face(rgb_image, draw=False)
    #Call the prettify_face function to apply special effects to the image
    frame = self.prettify_face(frame, eye=True, lips=True, eyebrow=True, draw=True)
    key = cv2.waitKey(1)
    cv.imshow('frame', frame)

get_face function, detect faces,

xxxxxxxxxx
def get_face(self, frame, draw=True):
    #Convert image space, convert bgr to grayscale for subsequent image processing
    gray = cv.cvtColor(frame, cv.COLOR_BGR2GRAY)
    #Pass grayscale image to detect faces
    self.faces = self.hog_face_detector(gray)
    for face in self.faces:
        self.face_landmarks = self.dlib_facelandmark(gray, face)
        if draw:
            for n in range(68):
                x = self.face_landmarks.part(n).x
                y = self.face_landmarks.part(n).y
                cv.circle(frame, (x, y), 2, (0, 255, 255), 2)
                cv.putText(frame, str(n), (x, y), cv.FONT_HERSHEY_SIMPLEX, 0.6, (0, 255, 255), 2)
    return frame

prettify_face function, add special effects to the face,

xxxxxxxxxx
def prettify_face(self, frame, eye=True, lips=True, eyebrow=True, draw=True):
    #Eyes
    if eye:
        leftEye = self.get_lmList(frame, 36, 42)
        rightEye = self.get_lmList(frame, 42, 48)
        if draw:
            if len(leftEye) != 0: frame = cv.fillConvexPoly(frame, np.mat(leftEye), (0, 0, 0))
            if len(rightEye) != 0: frame = cv.fillConvexPoly(frame, np.mat(rightEye), (0, 0, 0))
    #Lips
    if lips:
        lipIndexlistA = [51, 52, 53, 54, 64, 63, 62]
        lipIndexlistB = [48, 49, 50, 51, 62, 61, 60]
        lipsUpA = self.get_lipList(frame, lipIndexlistA, draw=True)
        lipsUpB = self.get_lipList(frame, lipIndexlistB, draw=True)
        lipIndexlistA = [57, 58, 59, 48, 67, 66]
        lipIndexlistB = [54, 55, 56, 57, 66, 65, 64]
        lipsDownA = self.get_lipList(frame, lipIndexlistA, draw=True)
        lipsDownB = self.get_lipList(frame, lipIndexlistB, draw=True)
        if draw:
            if len(lipsUpA) != 0: frame = cv.fillConvexPoly(frame, np.mat(lipsUpA), (249, 0, 226))
            if len(lipsUpB) != 0: frame = cv.fillConvexPoly(frame, np.mat(lipsUpB), (249, 0, 226))
            if len(lipsDownA) != 0: frame = cv.fillConvexPoly(frame, np.mat(lipsDownA), (249, 0, 226))
            if len(lipsDownB) != 0: frame = cv.fillConvexPoly(frame, np.mat(lipsDownB), (249, 0, 226))
    #Eyebrows
    if eyebrow:
        lefteyebrow = self.get_lmList(frame, 17, 22)
        righteyebrow = self.get_lmList(frame, 22, 27)
        if draw:
            if len(lefteyebrow) != 0: frame = cv.fillConvexPoly(frame, np.mat(lefteyebrow), (255, 255, 255))
            if len(righteyebrow) != 0: frame = cv.fillConvexPoly(frame, np.mat(righteyebrow), (255, 255, 255))
    return frame

get_lmList function to get face coordinates,

xxxxxxxxxx
def get_lmList(self, frame, p1, p2, draw=True):
    #Define an empty list
    lmList = []
    #Check if face is detected
    if len(self.faces) != 0:
        #Iterate through the face list to get the xy coordinates of points within each interval
        for n in range(p1, p2):
            x = self.face_landmarks.part(n).x
            y = self.face_landmarks.part(n).y
            #Add the point coordinates on the face to the list
            lmList.append([x, y])
            if draw:
                next_point = n + 1
                if n == p2 - 1: next_point = p1
                x2 = self.face_landmarks.part(next_point).x
                y2 = self.face_landmarks.part(next_point).y
                cv.line(frame, (x, y), (x2, y2), (0, 255, 0), 1)
    return lmList
