Autonomous Driving Debugging Special Topic

1. Course Content

• Master the role and debugging methods of autonomous driving YOLO inference recognition, lane centering keeping, and traffic sign recognition response parameters to optimize autonomous driving effects.

2. YOLOv11 Inference Parameter Debugging (Not applicable to RDK)

[!CAUTION]

RDK mainboard users cannot debug inference parameters because the inference model is a quantized model. Use factory preset parameters!!

• YOLOv11 parameter file location:

~/yahboomM3_ws/user_ws/src/m3_bringup/config/auto_drive/yolo_param.yaml

• Parameter content is as follows, where

  • The sign_detection field contains inference parameters for the traffic sign recognition model
  • The line_detection field contains inference parameters for the lane line detection model

​x
#Road sign detection inference parameters
sign_detection:
  model_path: '/home/jetson/MODELS/auto_drive/sign_model.engine'
  conf: 0.92
  #Sets the minimum confidence threshold for detection. Objects detected with a confidence level below this threshold will be ignored. Adjusting this value can help reduce false positives.
  iou: 0.7
  #An overlap threshold is used for non-maximum suppression (NMS). Lower values reduce detections by eliminating overlapping bounding boxes.
  rect: True
  #If enabled, the shorter side of the image is minimally padded until it is divisible by the step size to improve inference speed.
  half: True
  #If enabled, half-precision inference is used, which can speed up model inference on supported GPUs with minimal impact on accuracy.
  device: "cuda:0"                                                                                           #Reasoning device
  batch : 50
  #Batch size: Larger batch sizes can provide higher throughput, thereby reducing the total time required for inference.
  max_det : 2
  #Maximum number of objects detected
  augment : False
  #Enabling Test-Time Enhancement (TTA) for prediction may improve the robustness of detection, but it will reduce inference speed.
  verbose : False
  #Whether to output detailed inference information to the terminal.
  classes : [0, 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 13]
​
line_detection:
#Lane detection inference parameters
  model_path: '/home/jetson/MODELS/auto_drive/lane_V6_int8.engine'
  conf: 0.4
  iou: 0.7
  rect: True
  half: False
  device: "cuda:0"
  batch : 50
  max_det : 5
  augment : False
  verbose : False

2.1 Traffic Sign Recognition Debugging

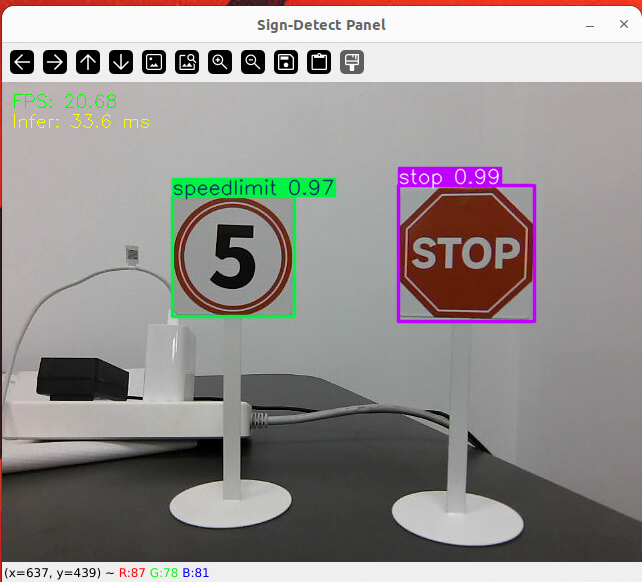

• Start traffic sign recognition program

xxxxxxxxxx
ros2 launch m3_bringup auto_drive.launch.py unkeeplane:=True

[!TIP]

• Different types of targets are distinguished by different detection boxes. The detection box will display the target type name and confidence level. The target type name here is determined by the data annotation and training stages.

2.2 Parameter Adjustment Guide

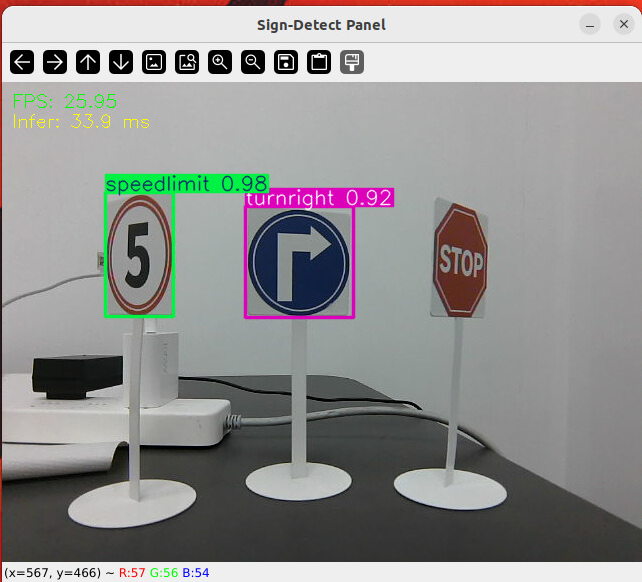

• If target recognition is not sensitive, for example, the STOP sign is not easily recognized from a side view, refer to the following methods:

  • You can reduce the conf minimum confidence threshold in the sign_detection field
  • Set augment : True in the sign_detection field to enable enhancement (TTA) for prediction (not recommended).
  • Retrain the model, increase training samples under various angles, lighting, and backgrounds. The more diverse the training samples, the better the model recognition accuracy.

• How to ignore targets during object detection?

If you don't want to detect certain categories of targets, you can adjust the classes list in the sign_detection field. The numbers in the classes list are the targets that need to be detected. If you don't need to detect a certain target, simply remove the corresponding serial number.

xxxxxxxxxx
classes : [0, 1, 2, 3, 4, 5, 6, 8, 9, 10, 11, 13]

• Target categories and corresponding serial numbers are shown in the following table

xxxxxxxxxx
###########################################################
#         Traffic sign inspection
###########################################################
# 0: greenlight                 绿灯
# 1: honking                    鸣笛
# 2: parkA                      停车场A
# 3: parkB                      停车场B
# 4: redlight                   红灯
# 5: school                     学校
# 6: sidewalk                   人行道
# 7: sidewalk_ground            地面人行道
# 8: speedlimit                 限速
# 9: stop                       停止
# 10: straight                  直行
# 11: turnright                 右转
# 12: turnright_ground          地面右转
# 13: yellowlight               黄灯
###########################################################
#              Lane detection
# 0: lane
###########################################################

2.3 Lane Line Detection Debugging

• Start autonomous driving program

xxxxxxxxxx
ros2 launch m3_bringup auto_drive.launch.py unsign:=True

• Start dynamic parameter configuration panel

xxxxxxxxxx
ros2 run rqt_reconfigure rqt_reconfigure

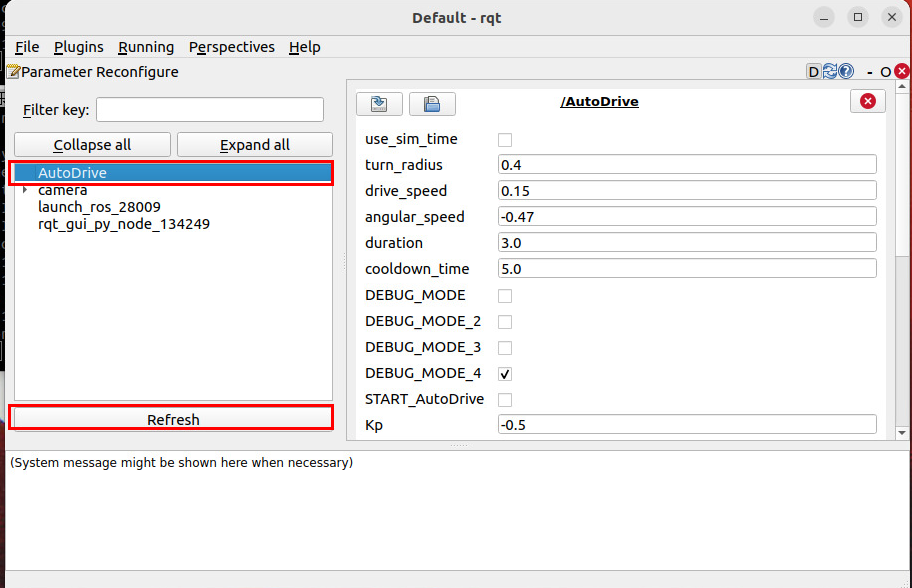

• Click AutoDrive to enter the parameter control panel. If there is no AutoDrive on the left side when you first open it, click Refresh below

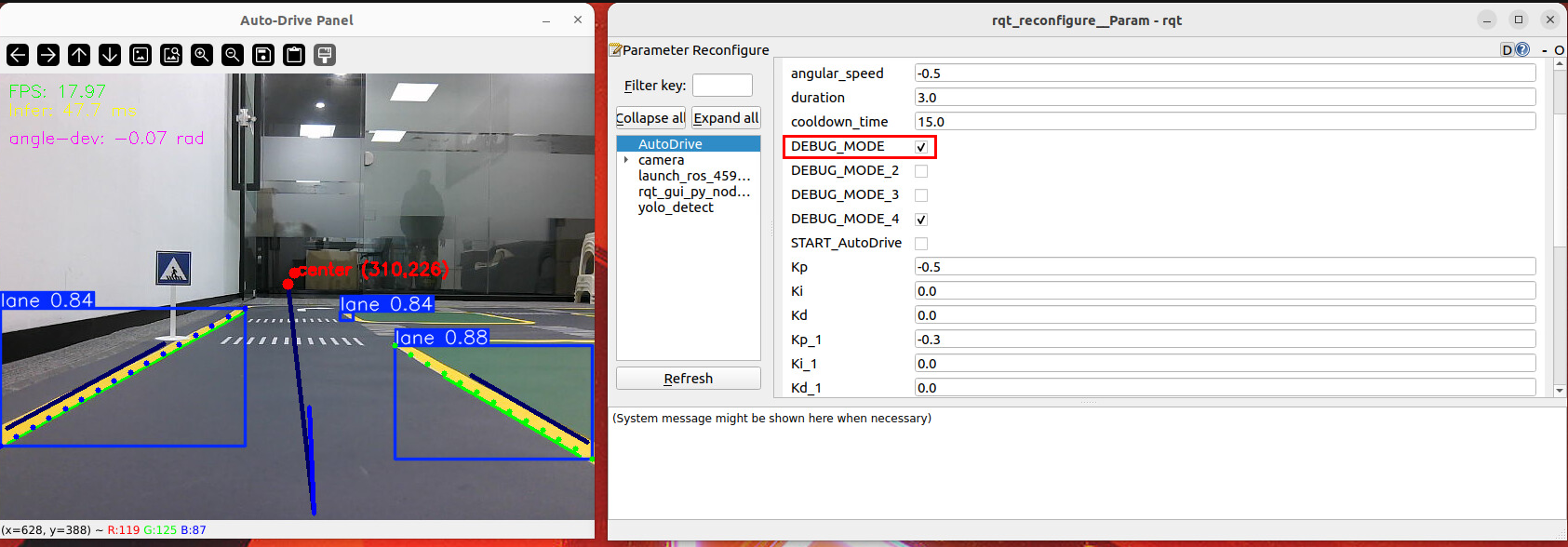

• Click to check DEBUG_MODE to display the YOLO detection boxes for lane lines

2.4 Parameter Adjustment Guide

[!TIP]

• If lane line recognition is not sensitive, refer to traffic sign recognition debugging and reduce the conf minimum confidence threshold in the line_detection field
• If it is too sensitive and incorrectly shows detection boxes for unrelated lines, increase this detection threshold

• How to close the display of reference lane lines and vehicle body centerline?

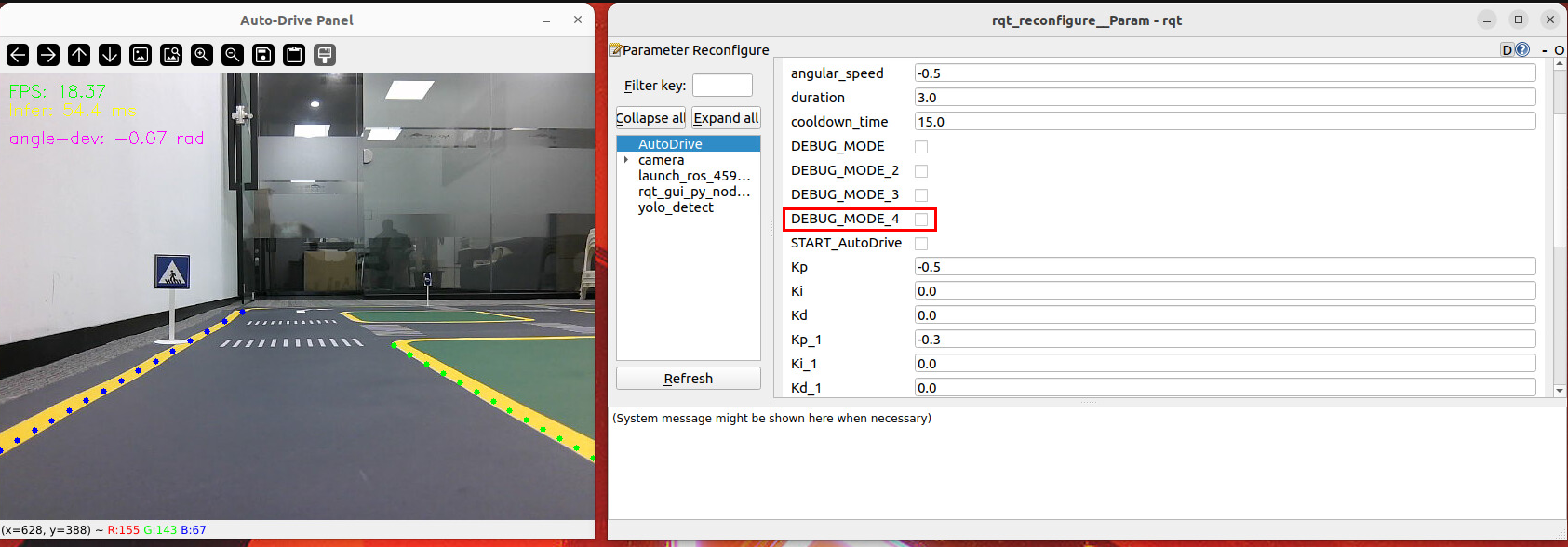

• Temporary closure: In the visualization parameter panel, uncheck DEBUG_MODE_4 to close the display

• Long-term closure: Open the configuration parameter file of the auto_drive node:

xxxxxxxxxx
~/yahboomM3_ws/user_ws/src/m3_bringup/config/auto_drive/auto_drive_node.yaml

• Adjust the DEBUG_MODE_4 parameter to False and save the file

[!NOTE]

The m3_bringup package uses symbolic link compilation. Parameter modifications will take effect immediately after saving.

xxxxxxxxxx
AutoDrive:
  ros__parameters:
    turn_radius: 0.4            # Turning radius
    drive_speed: 0.15           # Driving speed
    angular_speed: -0.5         # Angular speed
    duration: 3.0               # Turning time
    cooldown_time: 15.0          # Road sign recognition event response time interval (seconds)
    DEBUG_MODE: False           #Display the yolo recognition box
    DEBUG_MODE_2: False         #Video debugging mode
    DEBUG_MODE_4: False          #Display the reference lines for the left and right lanes
    START_AutoDrive: False
    unkeeplane: False           #Close lane keep driving
    #Linear_PID parameters
    Kp: -0.5
    Ki: 0.0
    Kd: 0.0
    #Lane_PID parameters
    Kp_1: -0.3
    Ki_1: 0.0
    Kd_1: 0.0
    min_error_angular: 0.03      #Maintain the minimum Angle adjustment threshold of the straight line
    max_integral: 1000.0         #Integral limit
    image_size: [640, 480]
    conbine_nav: False
    roadnet_file: ""
    initial_error: 2.55         #Zero-offset error
    turn_angle: -96.0           # Turning angle
    turn_distance: 0.85         # Turning distance
    park_distance_1: 0.35       # Parking distance
    park_distance_2: 0.4        # Parking distance

3. Lane Left-Right Keeping—Zero Offset Error Calibration

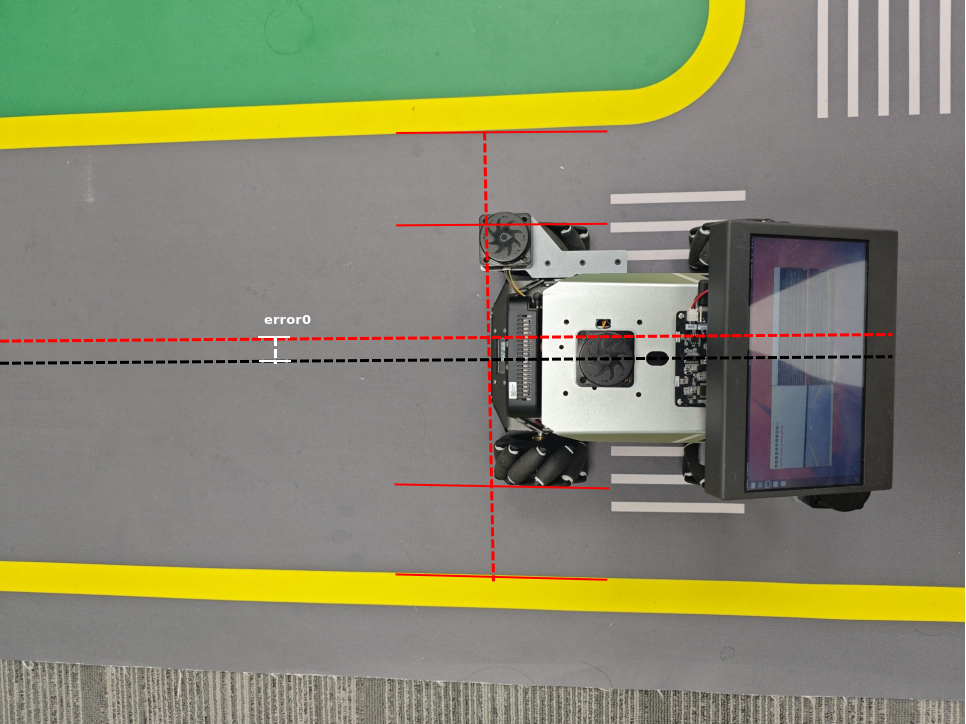

• In the [07.Vehicle Centerline Calibration] course of this chapter, we learned to calibrate the left and right lane reference lines in the camera perspective
• However, when the camera position changes mechanically, or due to small jumps in the YOLO recognition lane line bounding box itself, even if the vehicle body is placed in the left-right center position of the lane, the left-right error may not be zero at this time. This is the zero offset error error0. When performing PID operation, this zero offset error needs to be subtracted to obtain the true error value

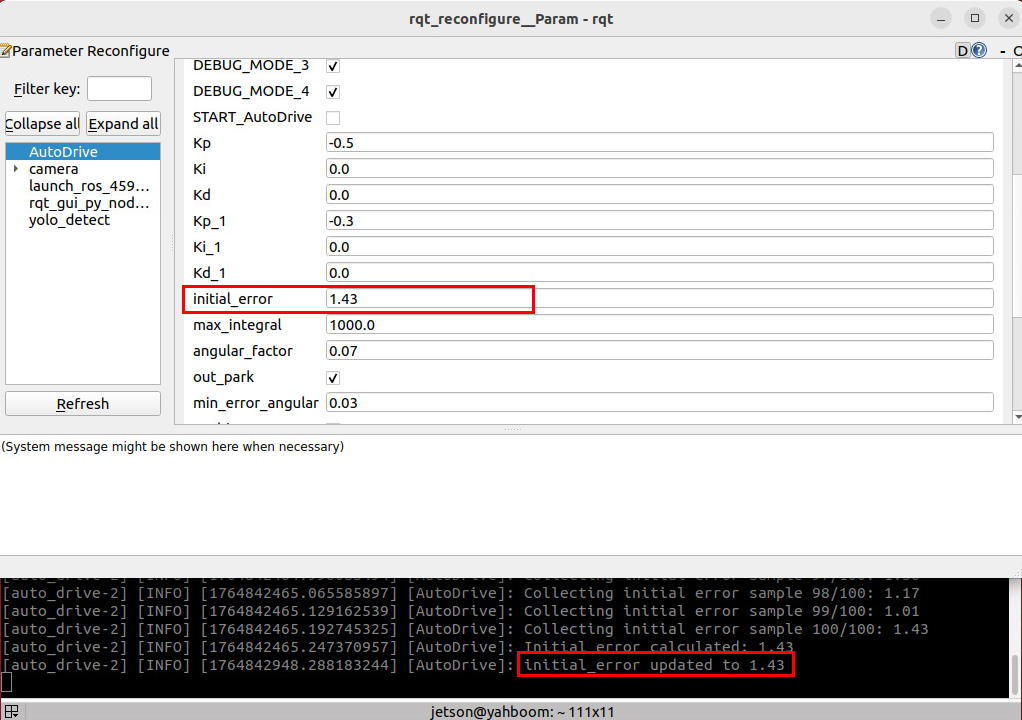

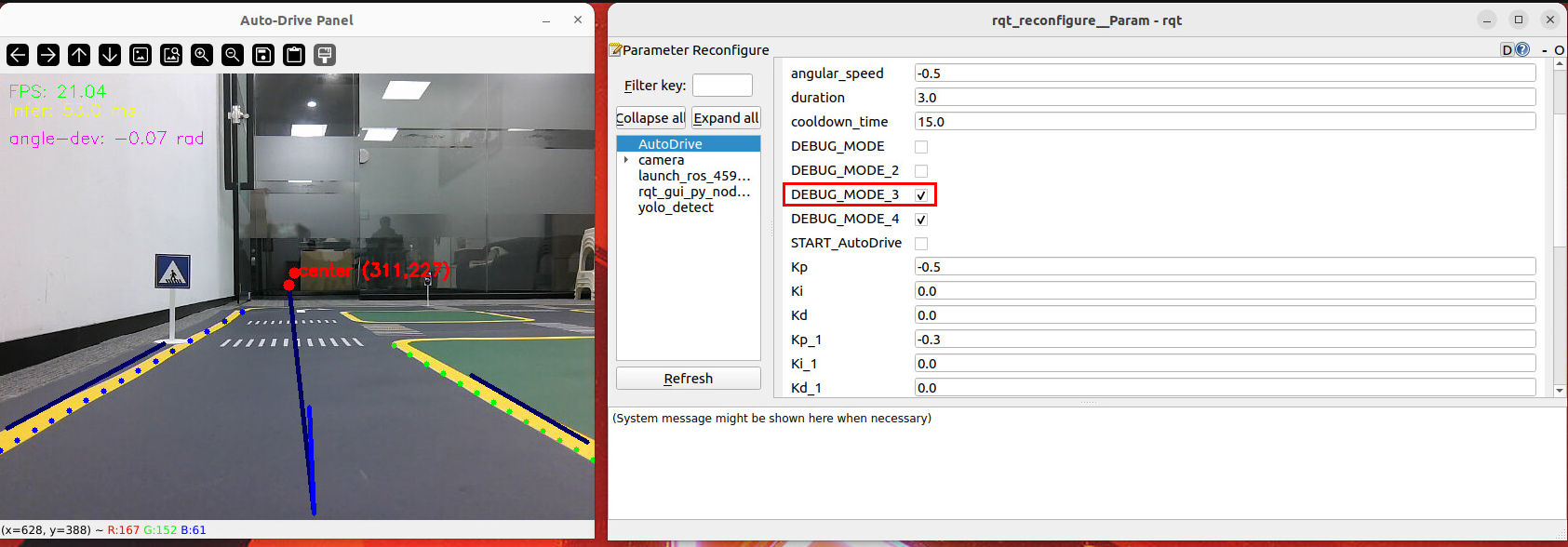

• First place the vehicle body in the center of the lane, click to check DEBUG_MODE_3, then it will automatically sample the current left-right deviation error 100 times and calculate the average value as the zero offset error

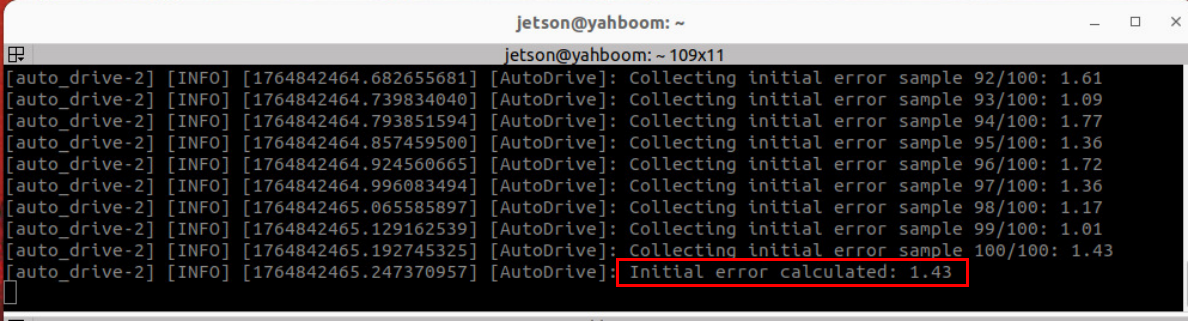

• The terminal will print out the zero offset error value

• How to add zero offset error value to optimize lane left-right centering effect
• Temporary adjustment: Fill in the zero offset error value in init_error in the rqt_reconfigure panel, then press Enter, and the terminal will prompt that the parameter has been updated

• Long-term effect:

Open the configuration parameter file of the auto_drive node, modify initial_error, and then save.

xxxxxxxxxx
AutoDrive:
  ros__parameters:
  ......................
    initial_error: 1.43         #Zero-offset error
    ...............

4. Lane Keeping Left-Right Keeping—PID Debugging

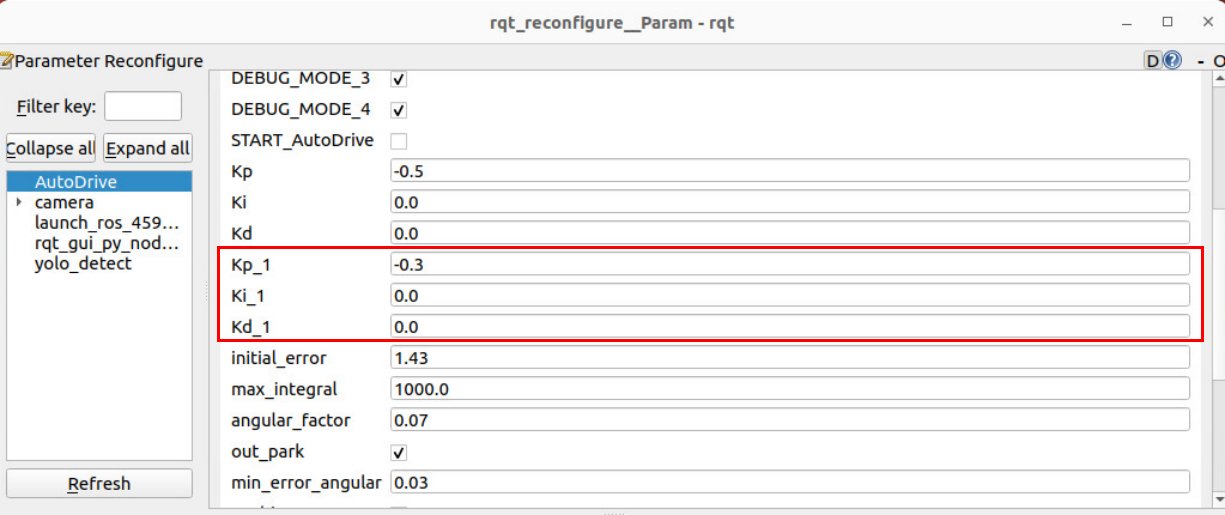

• The vehicle body's left-right keeping in the lane is controlled by PID on the left-right deviation. The control parameters are KP_1, Ki_1, Kd_1. We can temporarily adjust and observe the actual effect in rat_reonfigure

[!WARNING]

Note: Lane left-right keeping is not always performed. It is only when the deviation angle between the vehicle body centerline and the lane centerline is less than the min_error_angular threshold that left-right adjustment will be performed.

4.1 Parameter Adjustment Guide:

[!TIP]

• If the left-right translation centering effect is not obvious or sluggish, increase the absolute value of Kp_1, with a negative sign
• If left-right translation is frequent and normal Kp_1 shows overshoot oscillation, you can reduce Kp_1 or introduce Kd_1 differential term to increase damping.
• Ki is used to control steady-state error. Here, in the small-scale scenario of the sandbox map, fast response is needed, so the integral term is not introduced.

• After parameter debugging is completed, if you need long-term effective parameters, open the configuration parameter file of the auto_drive node, modify the corresponding parameters, and then save.

xxxxxxxxxx
AutoDrive:
  ros__parameters:
    #Lane_PID parameters
    Kp_1: -0.3
    Ki_1: 0.0
    Kd_1: 0.0
    max_integral: 1000.0         #Integral limit
​

5. Lane Straight Keeping—PID Debugging

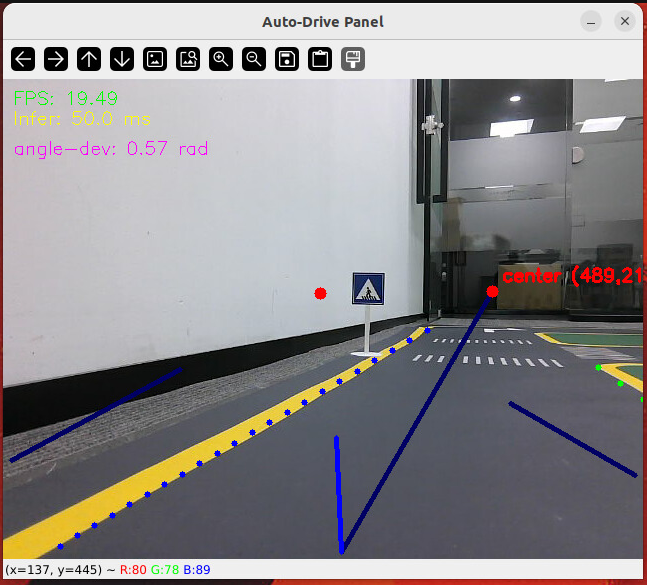

• When the angle (deviation angle) between the vehicle body centerline and the actual left-right lane intersection point and the vehicle body centerline starting point exceeds the min_error_angular threshold, vehicle head direction adjustment will be triggered, thereby keeping the vehicle body driving straight.

[!WARNING]

• Can be understood as:
• Deviation angle < min_error_angular threshold: Perform lane left-right centering keeping
• Deviation angle > min_error_angular threshold: Perform lane straight keeping
• Therefore, min_error_angular should not be set too large, otherwise it may cause premature entry into left-right translation state, and the vehicle may drift diagonally in the lane.

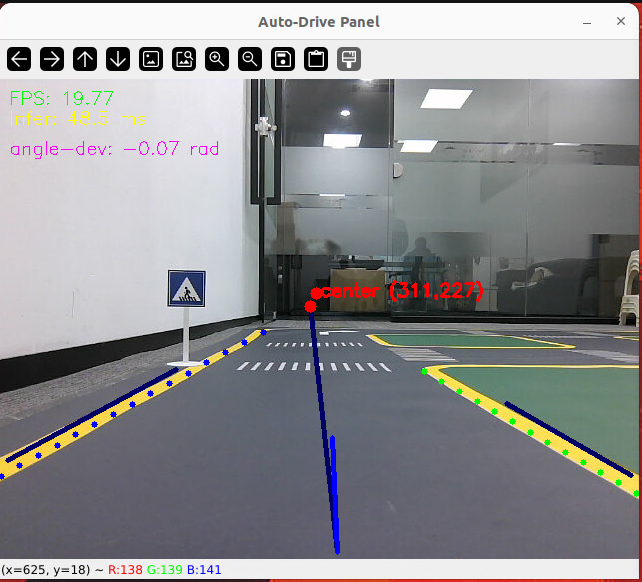

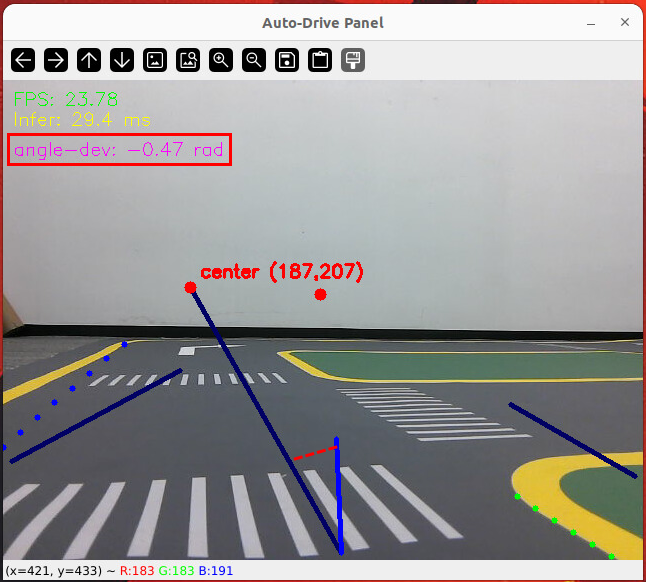

• The angle-dev in the upper left corner of the image below shows the real-time deviation angle

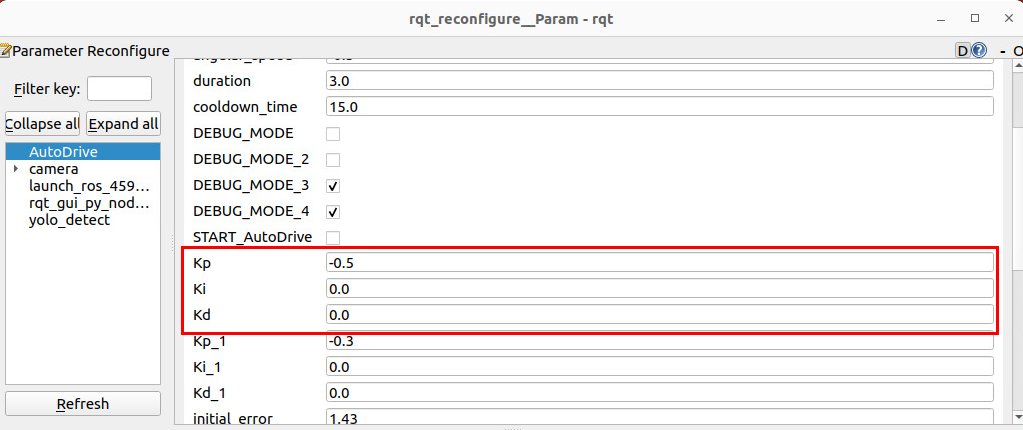

• The vehicle body's left-right keeping in the lane is controlled by PID on the left-right deviation. The control parameters are KP, Ki, Kd. We can temporarily adjust and observe the actual effect in rat_reonfigure

5.1 Parameter Adjustment Guide:

[!TIP]

• If the vehicle head adjustment angle is not obvious or sluggish, increase the absolute value of Kp, with a negative sign
• If the vehicle head adjustment angle swings frequently and normal Kp shows overshoot oscillation, you can reduce Kp or introduce Kd differential term to increase damping.
• Ki is used to control steady-state error. Here, in the small-scale scenario of the sandbox map, fast response is needed, so the integral term is not introduced.

• After parameter debugging is completed, if you need long-term effective parameters, open the configuration parameter file of the auto_drive node, modify the corresponding parameters, and then save.

xxxxxxxxxx
AutoDrive:
  ros__parameters:
    #Linear_PID parameters
    Kp: -0.5
    Ki: 0.0
    Kd: 0.0
    min_error_angular: 0.03      #Maintain the minimum Angle adjustment threshold of the straight line
    max_integral: 1000.0         #Integral limit
​

6. Curve Turning Effect Debugging

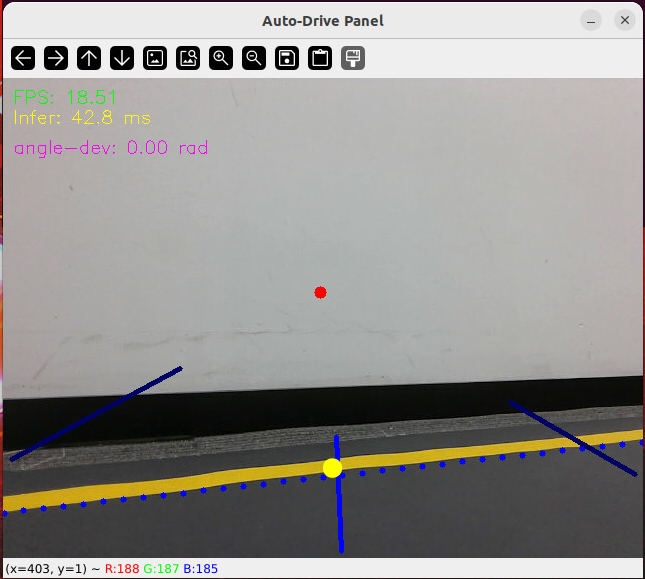

• The length of the vehicle body centerline determines the timing of the vehicle entering the curve for turning. When the vehicle body centerline intersects with the left lane line, turning begins.

• When there is no intersection between the vehicle body centerline and the left lane line, the turn is completed and returns to straight keeping mode, correcting direction through the deviation angle.

6.1 Parameter Adjustment Guide:

[!TIP]

• If the turning timing is too early, turning before entering the curve indicates that the centerline is too long or the camera perspective is too high. You can appropriately shorten the centerline length or adjust the camera perspective slightly downward.
• Similarly, if the turning timing is too late, turning before entering the curve indicates that the centerline is too short or the camera perspective is too low. You can appropriately extend the centerline length or adjust the camera perspective slightly upward.
• If you adjusted the camera angle, the camera perspective will change, and you need to recalibrate the zero offset error value for lane left-right keeping.

• As mentioned in 07-Centerline Calibration, all parameters related to centerline calibration are saved in the midline_points.yaml parameter file of the m3_bringup package. The file path is:

xxxxxxxxxx
~/yahboomM3_ws/user_ws/src/m3_bringup/config/auto_drive/midline_points.yaml

• Among them, midline_length is the vehicle body centerline length. It takes effect after modification and saving.

xxxxxxxxxx
midline_points:
---------------
  midline_length: 115

7. Right Turn Sign Debugging

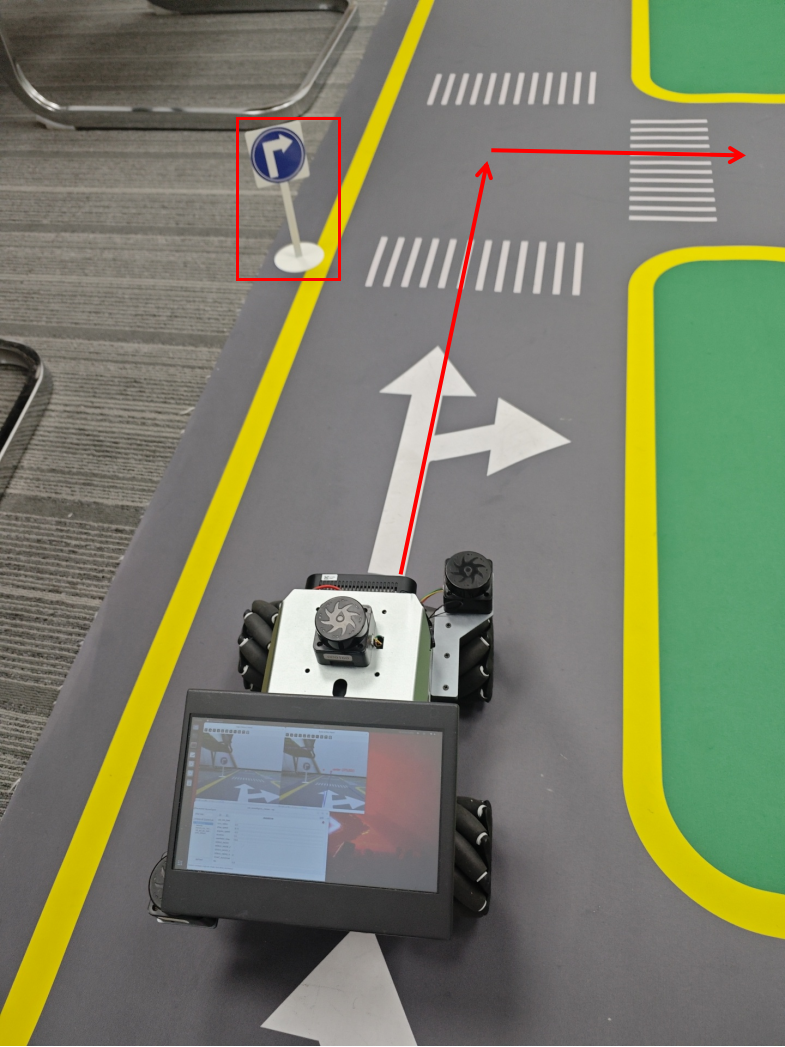

• After seeing the right turn sign, the vehicle will drive a certain distance to reach the intersection and then turn right by the specified angle

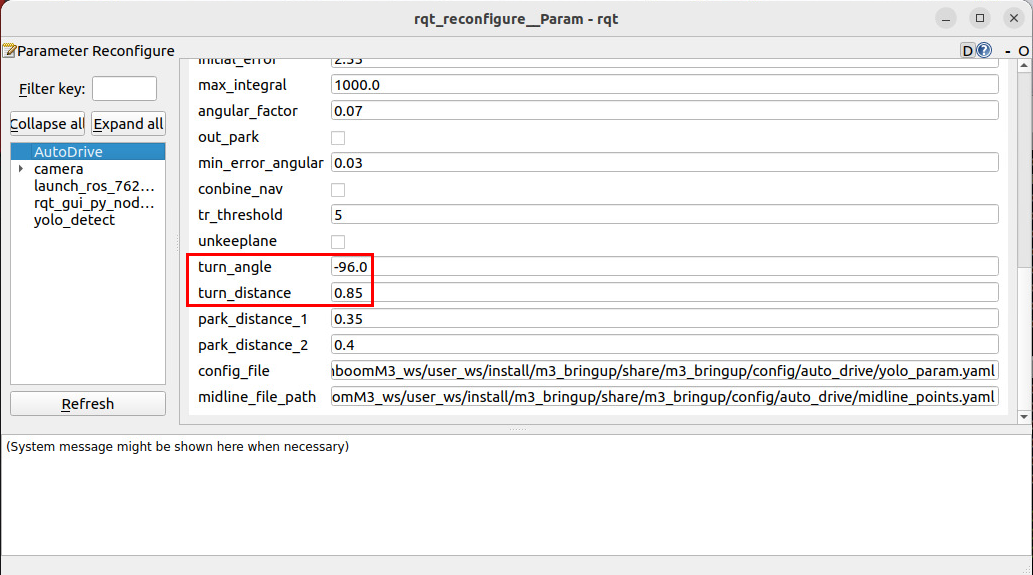

• Open the rqt_reconfigure parameter configuration panel, where:

  • turn_distance is the distance to continue driving after seeing the right turn sign, adjusted according to the actual effect
  • turn_angle is the angle to turn at the intersection, adjusted according to the actual effect

• After parameter debugging is completed, you can fill the parameters into the configuration parameter file of the auto_drive node, modify the corresponding parameters, and then save.

xxxxxxxxxx
AutoDrive:
  ros__parameters:
  ----------------
    turn_angle: -96.0           # Turning angle
    turn_distance: 0.85         # Turning distance
----------------

8. Parking Sign Debugging

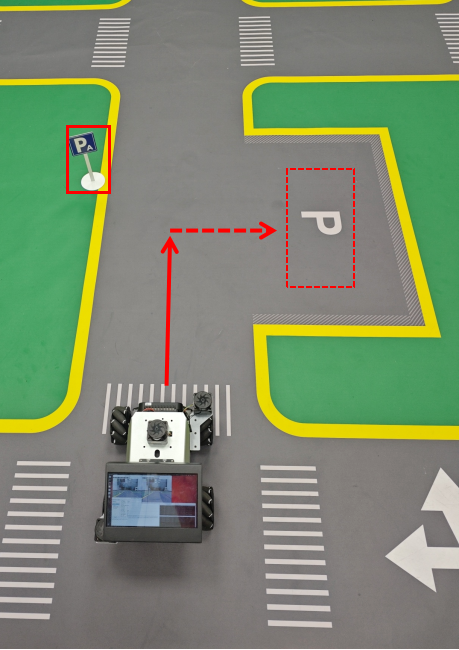

• Autonomous parking means that after seeing the parking sign, the vehicle drives forward a certain distance and then translates into the garage

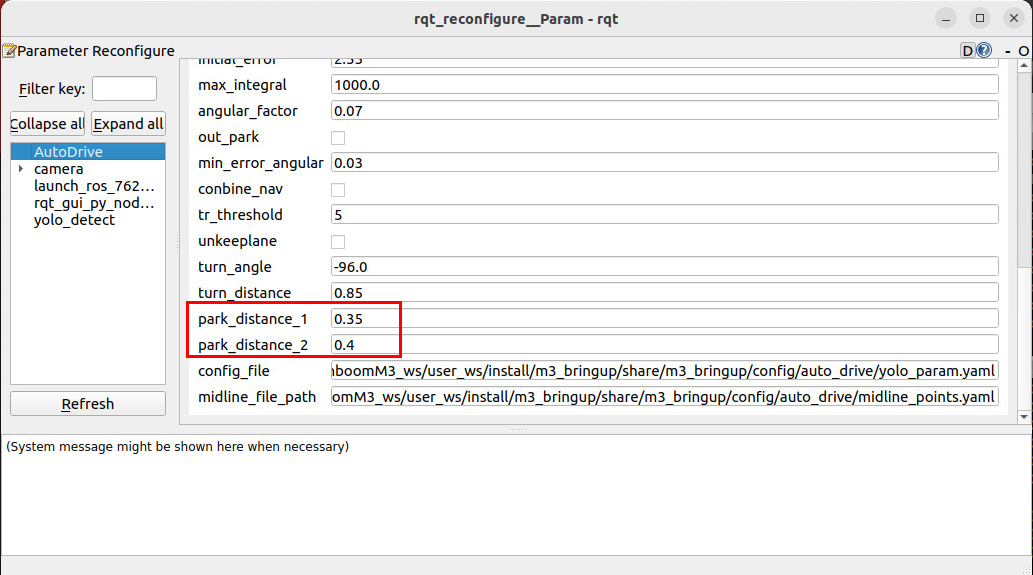

Open the rqt_reconfigure parameter configuration panel, where:

• park_distance_1 is the distance to continue driving after seeing the parking sign, adjusted according to the actual effect
• park_distance_2 is the distance to translate right into the garage after continuing driving and stopping, adjusted according to the actual effect

• After parameter debugging is completed, you can fill the parameters into the configuration parameter file of the auto_drive node, modify the corresponding parameters, and then save.

xxxxxxxxxx
AutoDrive:
  ros__parameters:
  ----------------
    park_distance_1: 0.35       # Parking distance
    park_distance_2: 0.4        # Parking distance
----------------
