OpenClaw Chassis Control

1. Course Content

Course Overview

• OpenClaw Chassis Control serves as a foundational function for robot motion control. Through the MCP interface, it provides three chassis control tools: MoveWithSpeed ​​(velocity control), Move (distance-based movement), and Rotate (in-place rotation).
• It supports omnidirectional chassis control, allowing for simultaneous control of linear velocities in the X and Y directions, as well as angular velocity around the Z-axis, thereby enabling forward/backward movement, lateral translation, and in-place rotation.
• Precise distance and angle control are achieved through Odometry (Odom) feedback, ensuring high motion accuracy.

Learning Objectives

1. Understand the functions and applications of the three chassis control interfaces provided by OpenClaw.
2. Master the interactive methods—specifically via WebChat—for controlling chassis movement, omnidirectional motion, and turning.

2. Preparation

• Launch the MicroROS Chassis Agent (if already running, do not launch again).

sh start_agent.sh

• Launch the Odometry, TF, Manipulator Assist, Camera, and other relevant nodes.

xxxxxxxxxx
ros2 launch m3pro_bringup car_base.launch.py

• Launch the MCP Service.

xxxxxxxxxx
ros2 launch m3pro_bringup mcp_service.launch.py

• If you require voice feedback/replies, you must additionally launch the openclaw_bridge; otherwise, this step may be skipped.

xxxxxxxxxx
ros2 run multi_brains_pre openclaw_bridge

3. Chassis Control Interfaces

[!NOTE]

• For detailed information regarding the functions, parameters, and usage of these interfaces, please refer to the tutorials: [01-Integrating OpenClaw with the Robot MCP Interface] and [02-Robot CLI Command Tools].

4. Demonstration

4.1 Initiating OpenClaw Interaction

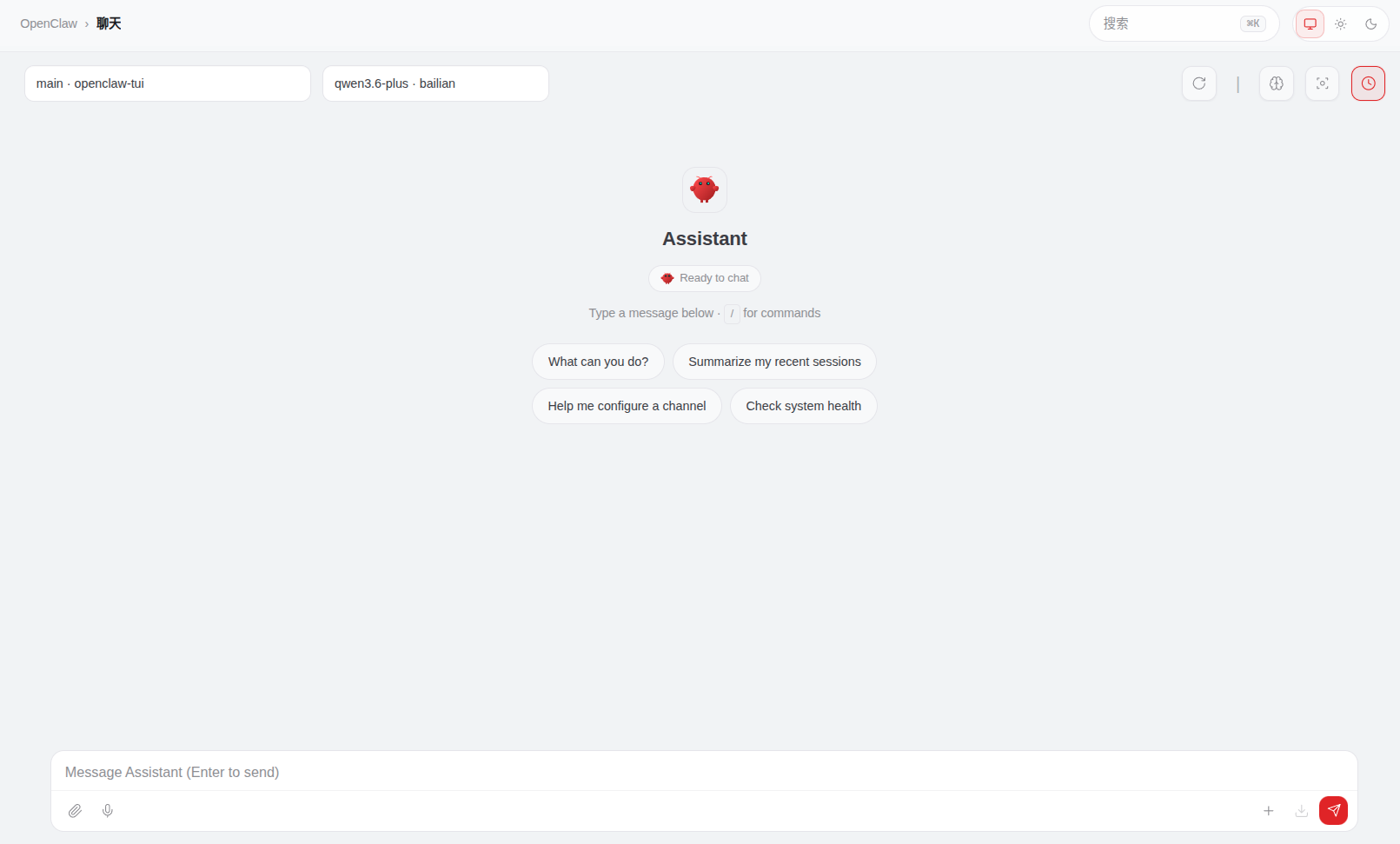

• Interact with OpenClaw using any available interaction method. Initiating a conversation—this section demonstrates the process using Web Chat.

[!TIP]

• You can formulate the conversational prompts according to your specific requirements; the following serves as a demonstration example.

4.2 Chassis Movement Control

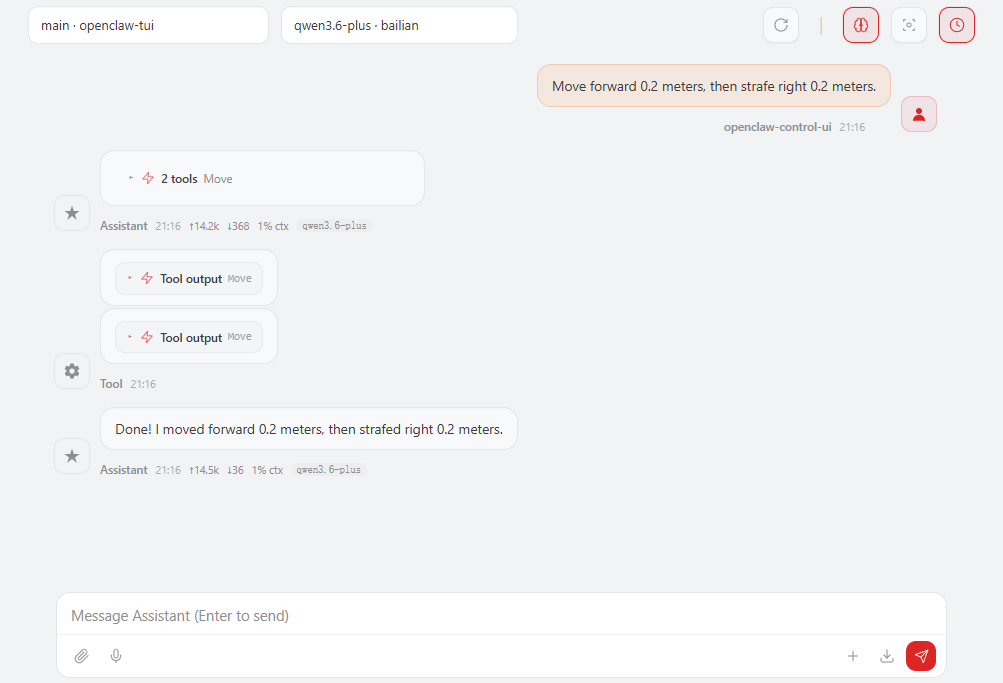

• Move forward 0.2 meters, then strafe right 0.2 meters.

4.3 Chassis Omnidirectional Movement Control

• The MoveWithSpeed tool provides lower-level velocity control, enabling complex movements through the vector composition of velocities. For example:

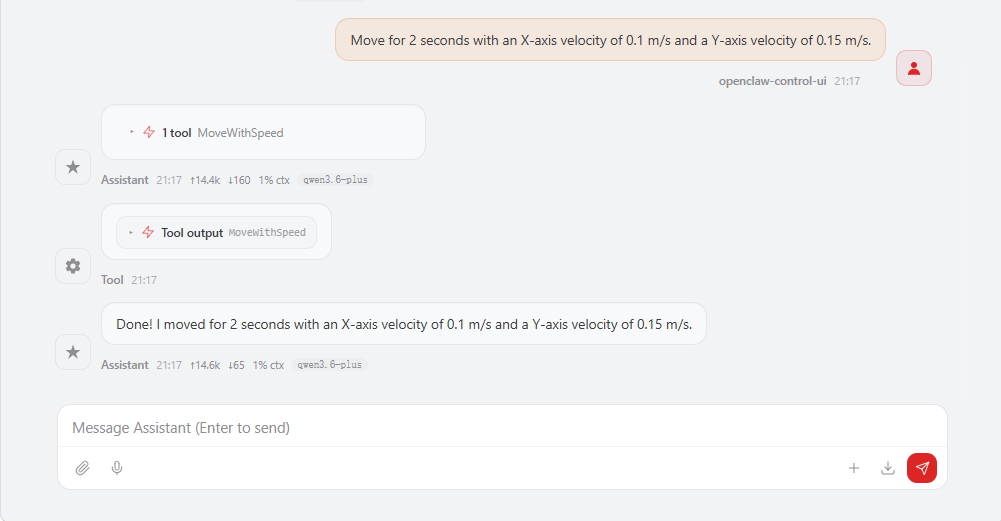

• Move for 2 seconds with an X-axis velocity of 0.1 m/s and a Y-axis velocity of 0.15 m/s.

4.4 Chassis In-Place Rotation

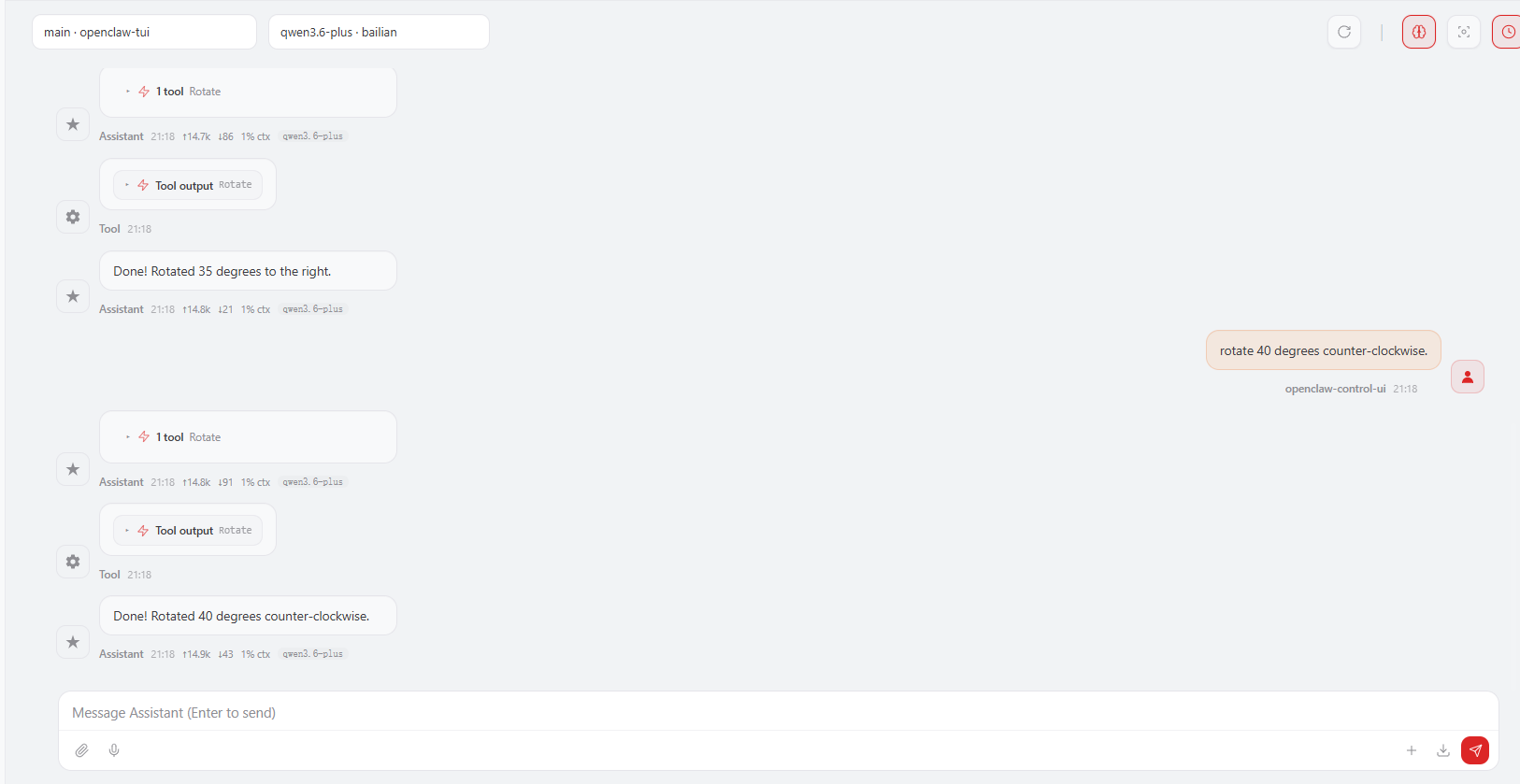

• Rotate 35 degrees to the right, then rotate 40 degrees counter-clockwise.

5. Source Code Analysis

• Source Code Path:

xxxxxxxxxx
$HOME/M3Pro_ws/src/multi_brains_pre/multi_brains_pre/action_controller.py

The following section provides an explanation of the source code for three core chassis control functions within the ActionController class. These three functions constitute the underlying ROS2 implementations invoked by the MCP tools (MoveWithSpeed, Move, and Rotate).

5.1 set_cmdvel() — Setting Chassis Movement Velocity (Underlying Implementation for MoveWithSpeed)

xxxxxxxxxx
def set_cmdvel(self, linear_x:float, linear_y:float, angular_z:float, duration:float)->bool:
    """
    Set robot movement speed and duration
    """
    twist = Twist()
    twist.linear.x = linear_x
    twist.linear.y = linear_y
    twist.angular.z = angular_z
    self.cmd_pub.publish(twist)
    time.sleep(duration)
    self.cmd_pub.publish(Twist())
    return True

Code Explanation:

1. Message Construction: Create a Twist() velocity message, setting the values for linear.x (forward/backward linear velocity), linear.y (left/right linear velocity), and angular.z (angular velocity).
2. Publishing and Stopping: Publish the message to the cmd_vel topic via cmd_pub; after maintaining this state for a specified duration using time.sleep(), publish an empty Twist() message to bring the robot to a halt.
3. Omnidirectional Control: By simultaneously setting the linear velocities (x and y) and the angular velocity (z), movement in any arbitrary direction is achieved through the vector composition of these velocities.

5.2 move_by_odom() — Precise Distance Movement Based on Odometry (Low-Level Implementation of Move)

​x
def move_by_odom(self, distance: float, direction: str = 'forward') -> bool:
    '''Move a specified distance based on odometer'''
    linear_speed = self.odom_linear_speed
    timeout = self.odom_timeout
    start_pose = self._get_current_odom_pose()
    if start_pose is None:
        self.get_logger().error("Failed to get current odometry position")
        return False
​
    twist = Twist()
    if direction == 'forward':
        twist.linear.x = abs(linear_speed) if distance >= 0 else -abs(linear_speed)
    elif direction == 'backward':
        twist.linear.x = -abs(linear_speed) if distance >= 0 else abs(linear_speed)
    elif direction == 'left':
        twist.linear.y = abs(linear_speed) if distance >= 0 else -abs(linear_speed)
    elif direction == 'right':
        twist.linear.y = -abs(linear_speed) if distance >= 0 else abs(linear_speed)
    else:
        self.get_logger().error(f"Unknown direction: {direction}")
        return False
​
    start_time = time.time()
    while rclpy.ok():
        current_time = time.time()
        if current_time - start_time > timeout:
            self.get_logger().warn("Movement timeout")
            self.cmd_pub.publish(Twist())
            return False
​
        current_pose = self._get_current_odom_pose()
        if current_pose is None:
            time.sleep(0.1)
            continue
​
        moved_distance = calculate_distance(start_pose, current_pose)
​
        if moved_distance >= abs(distance) - self.odom_position_tolerance:
            self.cmd_pub.publish(Twist())
            self.get_logger().info(f"Movement complete! Total distance: {moved_distance:.3f}m")
            break
​
        self.cmd_pub.publish(twist)
        time.sleep(0.1)
​
    self.cmd_pub.publish(Twist())
    return True

Code Explanation:

1. Direction Mapping: Maps the four directions—forward, backward, left, and right—to either twist.linear.x (forward/backward) or twist.linear.y (left/right).
2. Odometry Loop Control: Retrieves the current pose using _get_current_odom_pose() and calculates the distance traveled—calculate_distance(start_pose, current_pose)—during each loop iteration.
3. Precision Control: The operation terminates once the target distance is reached within the specified odom_position_tolerance (default: 0.005m).
4. Timeout Protection: If the target is not reached within the odom_timeout duration (default: 30s), the operation terminates and returns a failure status.

5.3 rotate_by_odom() — Precise Angle Rotation Based on Odometry (Underlying Implementation for Rotate)

xxxxxxxxxx
def rotate_by_odom(self, angle: float, angular_speed: float = None, timeout: float = None) -> bool:
    '''Based on the odometer rotating at a specified angle (angle unit: degrees)'''
    if angular_speed is None:
        angular_speed = self.odom_angular_speed
    if timeout is None:
        timeout = self.odom_timeout
​
    angle_rad = math.radians(angle)
​
    start_pose = self._get_current_odom_pose()
    if start_pose is None:
        self.get_logger().error("Failed to get current odometry position")
        return False
    start_yaw = get_yaw_from_quaternion(start_pose.orientation)
    target_yaw = start_yaw + angle_rad
    target_yaw = normalize_angle(target_yaw)
​
    twist = Twist()
    twist.angular.z = abs(angular_speed) if angle >= 0 else -abs(angular_speed)
​
    start_time = time.time()
    while rclpy.ok():
        current_time = time.time()
        if current_time - start_time > timeout:
            self.get_logger().warn("Rotation timeout")
            self.cmd_pub.publish(Twist())
            return False
​
        current_pose = self._get_current_odom_pose()
        if current_pose is None:
            time.sleep(0.1)
            continue
​
        current_yaw = get_yaw_from_quaternion(current_pose.orientation)
        angle_diff = calculate_angle_diff(target_yaw, current_yaw)
​
        if abs(angle_diff) <= self.odom_angle_tolerance:
            self.cmd_pub.publish(Twist())
            return True
​
        self.cmd_pub.publish(twist)
        time.sleep(0.1)
​
    self.cmd_pub.publish(Twist())
    return False

Code Explanation:

1. Angle Conversion: math.radians(angle) converts degrees to radians; get_yaw_from_quaternion() extracts the yaw angle from a quaternion.
2. Target Calculation: target_yaw = start_yaw + angle_rad calculates the target angle; a positive value indicates a clockwise rotation, while a negative value indicates a counter-clockwise rotation.
3. Closed-Loop Control: In each loop iteration, calculate_angle_diff() computes the difference between the current angle and the target angle; the process terminates once the difference falls within the odom_angle_tolerance (default: 0.05 rad ≈ 2.86°).
4. Direction Determination: abs(angular_speed) if angle >= 0 else -abs(angular_speed) determines the direction of rotation based on the sign of the angle variable.

5.4 Explanation of the Underlying Implementation Architecture

[!NOTE]

• The three functions listed above are defined within the ActionController class and publish velocity commands via cmd_pub (on the cmd_vel topic).
• The MCP Tool Layer (mcp_action.py) wraps these underlying functions as MCP tools—making them accessible to OpenClaw and the CLI—by registering the @mcp.tool() decorator.

6. Common Issues and Solutions

• For details, please refer to the "Summary of Common Issues and Solutions" section within this tutorial chapter.

[!TIP]

• For more detailed operational procedures regarding chassis control, please refer to the "Navigation & Transport" and "Waste Sorting" case studies found in OpenClaw Embodied AI in Action.
