8.Raspberry Pi system expansion

Raspberry Pi system expansion

This document briefly describes how to expand the system. Because the factory image only has 15G, and the SD card system is 32G. If you want to use the remaining space, you can read this tutorial.

  1. First, enter the Raspberry Pi system. There are many ways to do this, which are not described in this document.
  2. Then enter the command to query the space
xxxxxxxxxx
df -h

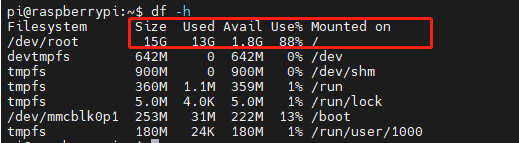

You can see the system space

image-2024112800001

  1. Enter the following command to expand capacity
xxxxxxxxxx
sudo raspi-config

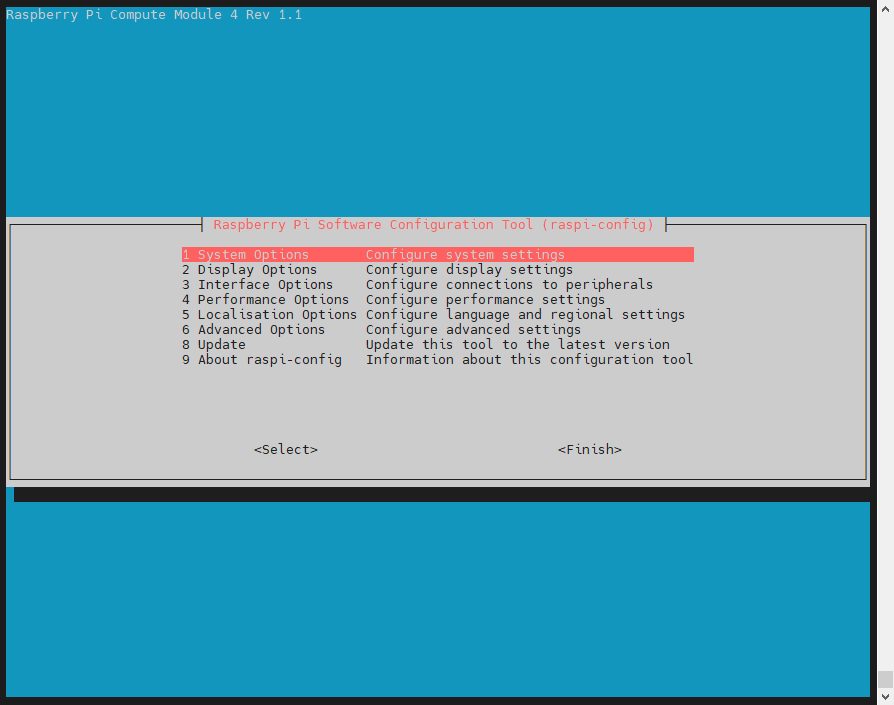

You will enter this interface

image-2024112800002

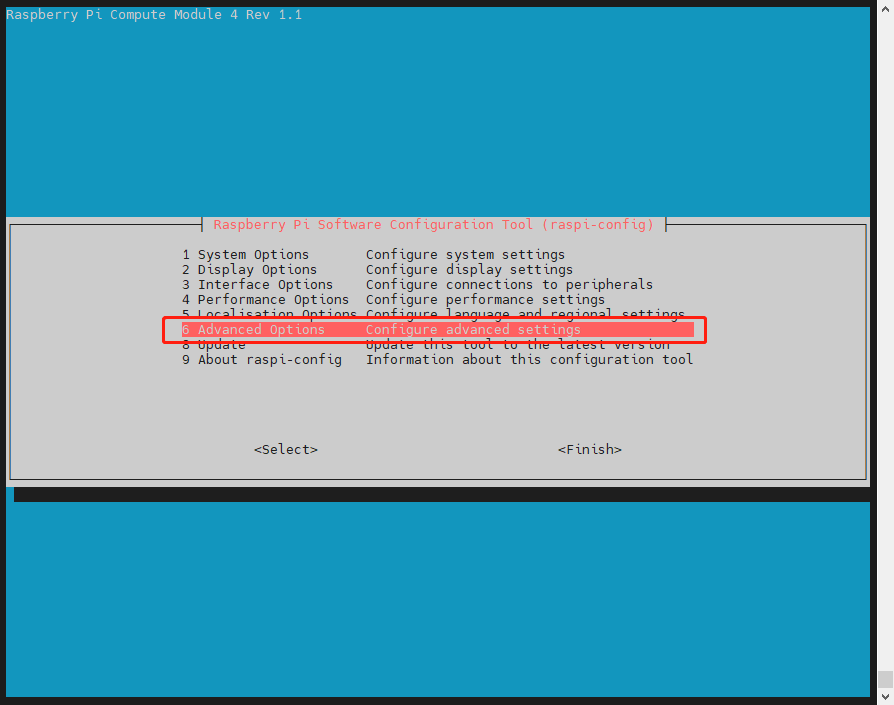

  1. Select option 6 and press Enter

image-2024112800003

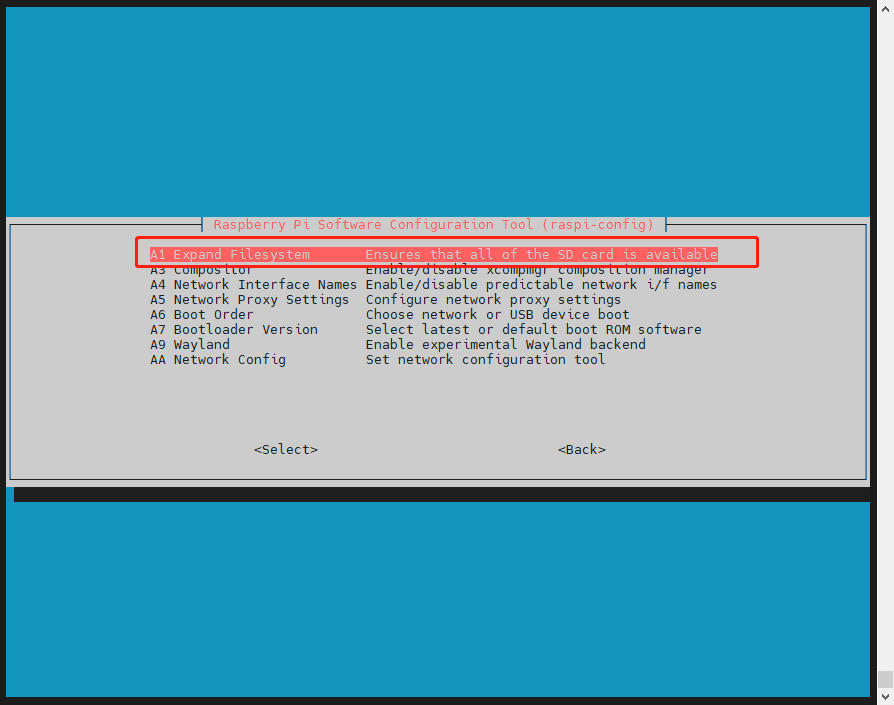

  1. Select the first option and click OK

image-2024112800004

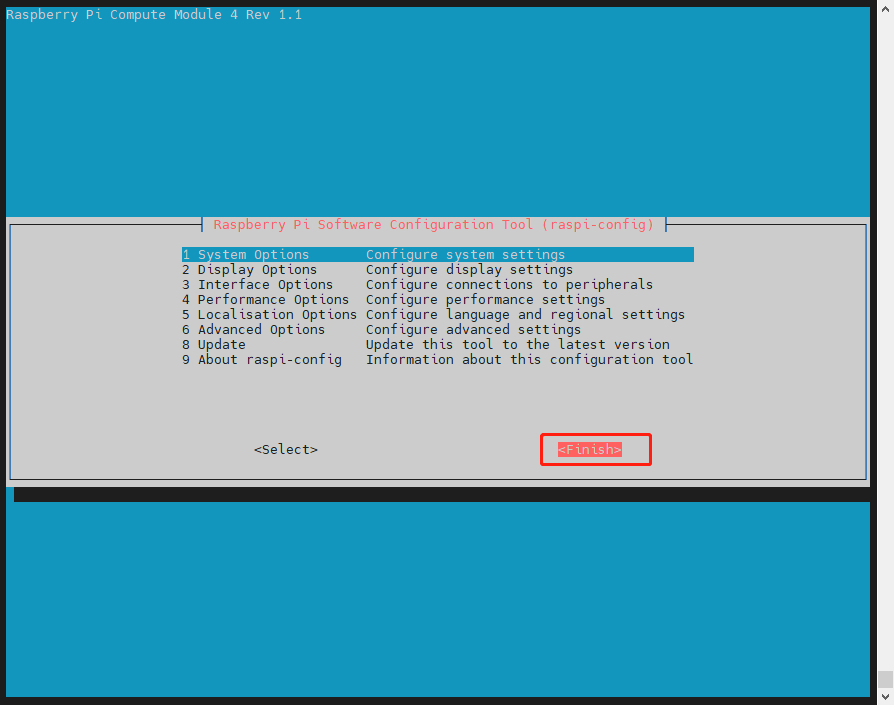

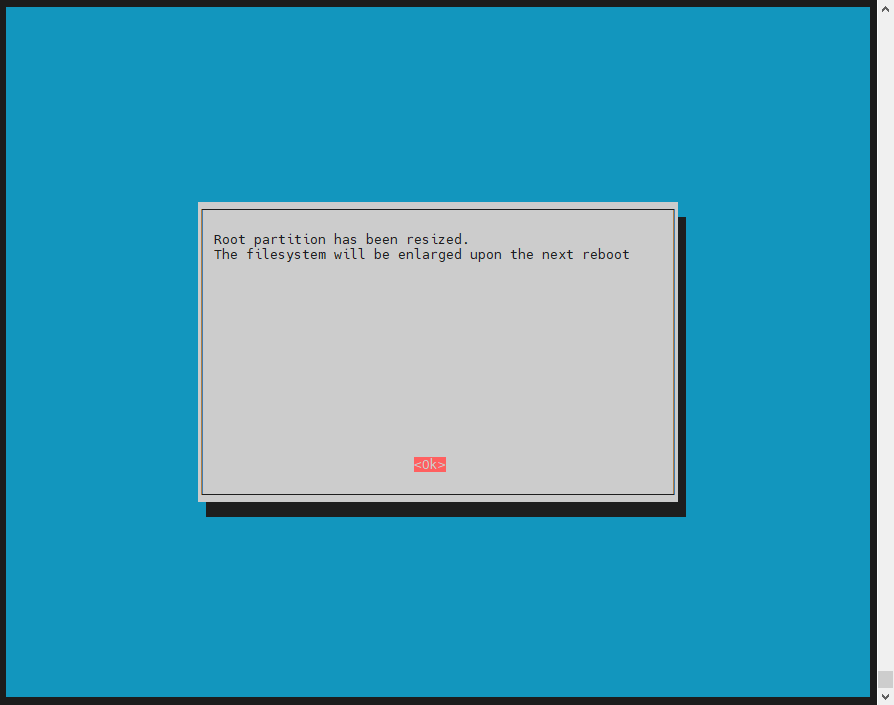

  1. Press Enter on this interface, then select Finish. Then restart the dog.

image-2024112800005

image-2024112800006

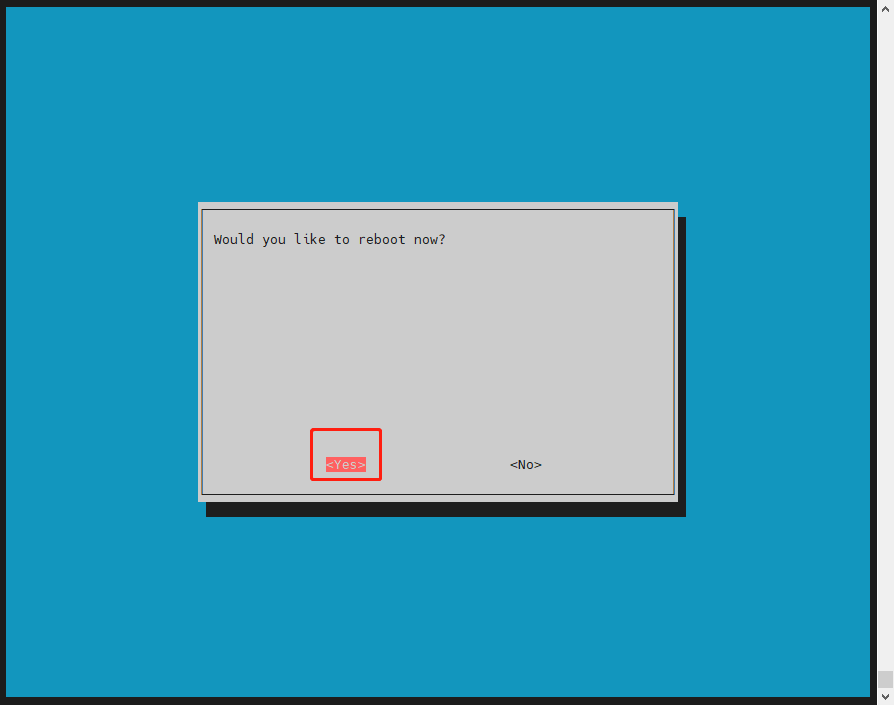

  1. Restart the dog

image-2024112800007

  1. Query the space again.
xxxxxxxxxx
df -h

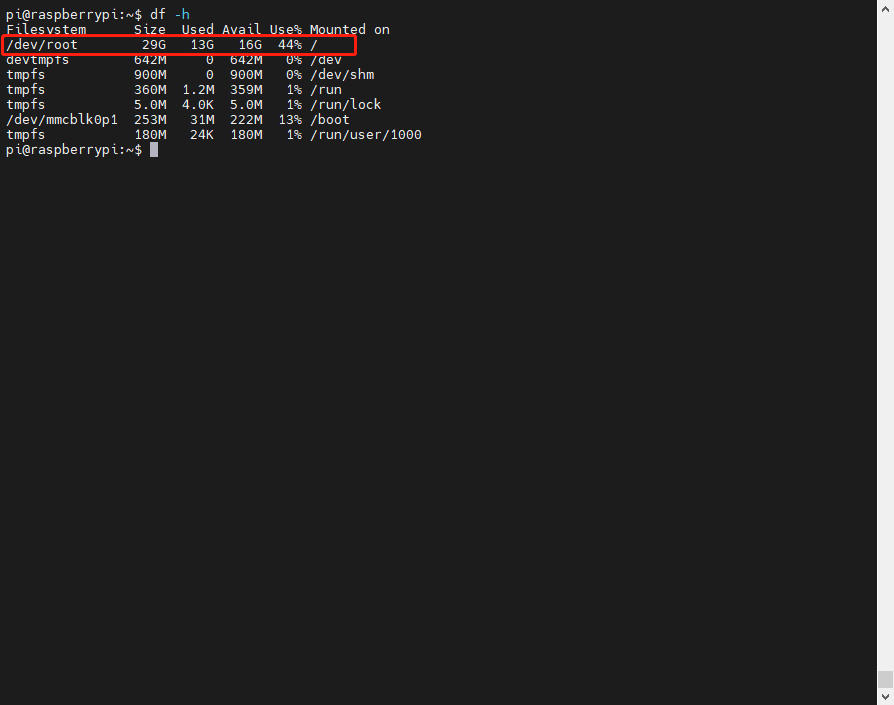

Found that the expansion is complete

image-2024112800008
