6.Robot development environment construction

6.1. Use jupyter lab to access docker

1. Enter the container, see [5. Enter docker container], and execute the following command:

Note: When using jupyter lab in a docker container, you must run the docker container in host networking mode: add the "--net=host" parameter when running the container.

root@ubuntu:/# jupyter lab --allow-root
[I 2023-04-24 09:27:45.265 ServerApp] Package jupyterlab took 0.0001s to import
[I 2023-04-24 09:27:45.277 ServerApp] Package jupyter_server_fileid took 0.0096s to import
[I 2023-04-24 09:27:45.297 ServerApp] Package jupyter_server_terminals took 0.0190s to import
[I 2023-04-24 09:27:45.429 ServerApp] Package jupyter_server_ydoc took 0.1301s to import
[I 2023-04-24 09:27:45.431 ServerApp] Package nbclassic took 0.0001s to import
..................

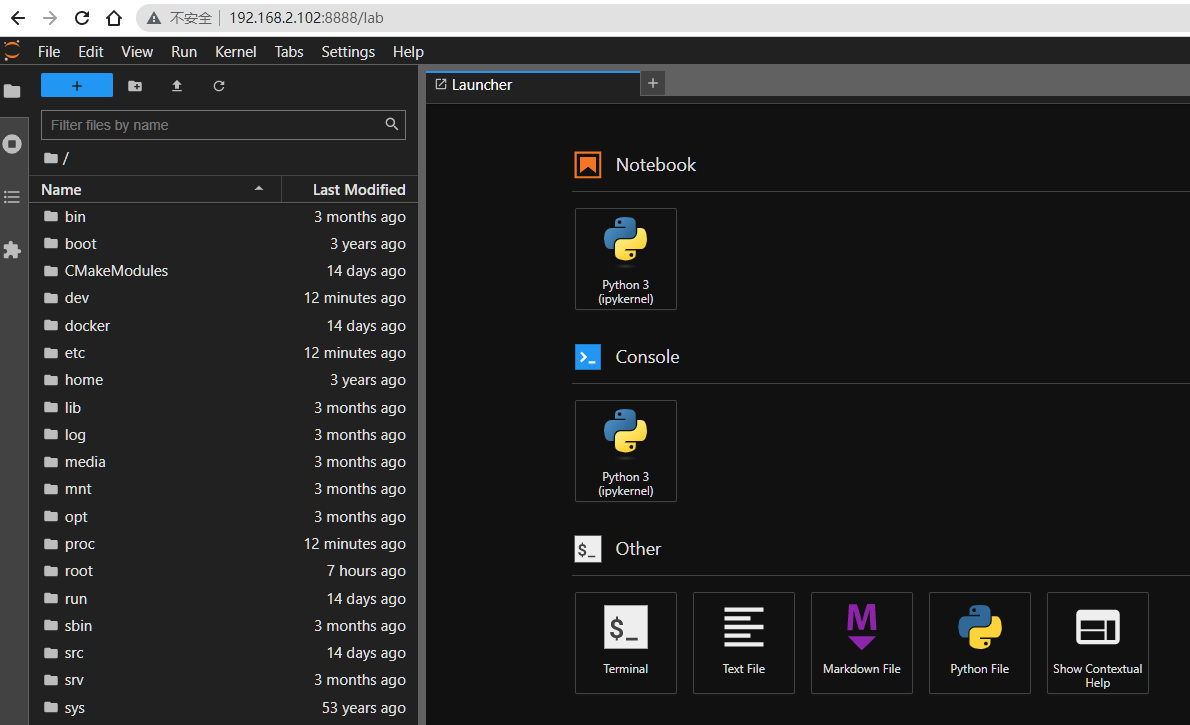

2. To view on other devices, open it in a windows or ubuntu browser (must be on the same LAN, 192.168.2.102 is the IP address in the docker container)

​x
http://192.168.2.102:8888/lab  # Enter the jupyter lab of the host machine
http://192.168.2.102:8889/lab  # Enter jupyter lab inside the container
​
Enter the password: yahboom to enter jupyter lab

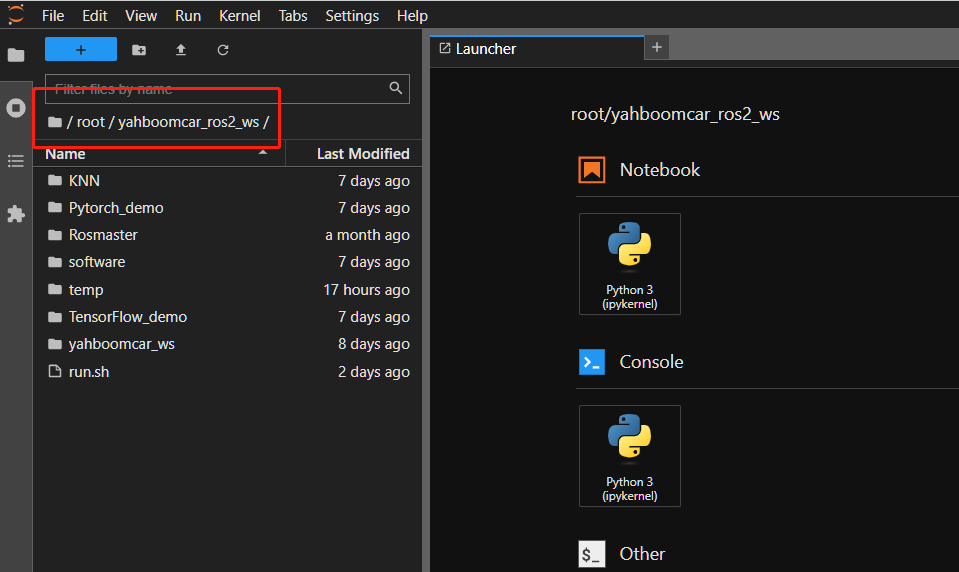

The following directory is the project path of the robot:

6.2. Use vscode to access docker

Here we take configuring vscode to access the docker container in windows as an example to explain. The steps to access docker in ubuntu are basically the same.

6.2.1. Remote configuration

Make sure that windows can remotely log in to the docker host [car]:

xxxxxxxxxx
Open cmd in windows and input ssh command to test：ssh jetson@192.168.2.102  (Change the username and IP to your own)
​
Or use remote tools: putty, xshell, securecrt, winscp, mobaxterm, finalshell, etc. Mobaxterm is recommended.

6.2.2. Configure password-free login

Some of the above steps may require you to enter the host's password. Let's optimize it again and configure password-free login.

1. First, test opening the cmd command on Windows and using ssh to log in to the host [car]. The instructions are as follows:

xxxxxxxxxx
ssh jetson@192.168.2.102   (Change the username and IP to your own)

At this time you will find that you need to enter the host password

2. Next configure password-free login

(1) Add environment variables

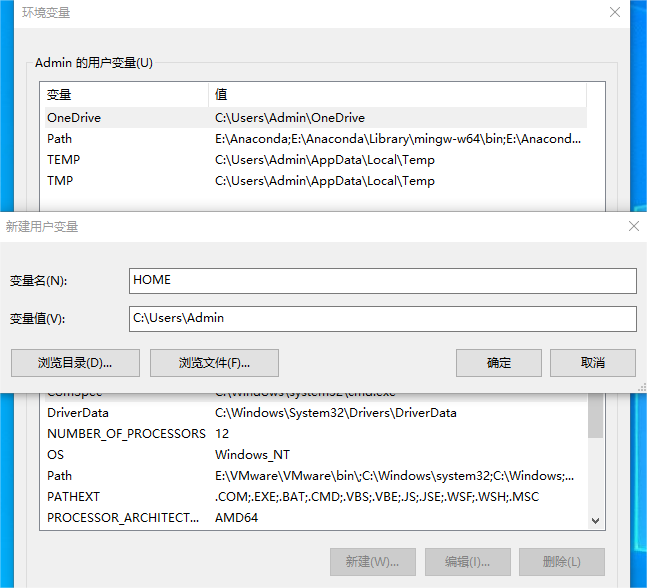

Taking Windows 10 as an example, open: This PC---Properties---Advanced system settings---Environment variables, and open the environment variable properties page. Click New in the user variables section. The variable is HOME and the value is C:\Users\name, where name is the user name. You can check the user name of your computer by yourself. The key pair generated will be saved in this directory by default.

(2) Generating a Key Pair

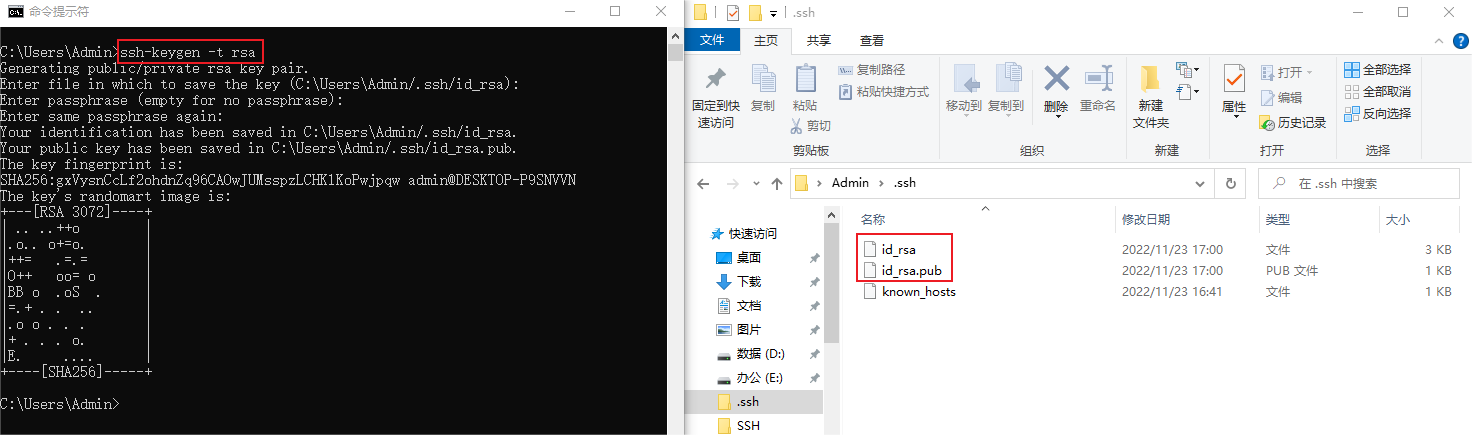

Open the command prompt (cmd) and run the command ssh-keygen -t rsa in the directory where the SSH program is located, or anywhere after adding the system environment. Press Enter repeatedly until you see a rectangular graph generated; this indicates successful key generation. Two new files will then appear in the .ssh folder in your user directory: id_rsa (private key) and id_rsa.pub (public key).

(3) Add the public key to the host machine

First, check if the .ssh directory already exists in the user's root directory on the host machine. If it does not exist, execute the steps in "(2) Generate key pair" above to add the .ssh directory.

Second, check if the authorized_keys file exists in the .ssh directory. If not, execute the following two commands to add it:

xxxxxxxxxx
touch ~/.ssh/authorized_keys
chmod 600 ~/.ssh/authorized_keys

Then, open the Windows command prompt (cmd) and type:

xxxxxxxxxx
ssh username@host "cat >> ~/.ssh/authorized_keys" < C:\Users\name\.ssh\id_rsa.pub
Note: Modify the path <C:\Users\name\.ssh\id_rsa.pub> according to your Windows computer's path.
​
#For example: Modify according to your situation
ssh jetson@192.168.2.102 "cat >> ~/.ssh/authorized_keys" < C:\Users\Admin\.ssh\id_rsa.pub

This command first logs into the host machine, then adds the local Windows public key to the host machine account's personal directory, thus enabling passwordless login. Note that this step requires entering the host machine account password.

(4) Verification

Test again by opening the cmd command on Windows and using SSH to log into the host machine [car]. The command is as follows:

xxxxxxxxxx
ssh jetson@192.168.2.102  (Change the username and IP to your own)

At this time, you will find that you no longer need to enter a password.

6.2.3. vscode configuration

6.2.3.1. Download and install vscode

vscode official website: https://code.visualstudio.com/, just download and install the windows version

6.2.3.2. vscode configures ssh remote login to the host

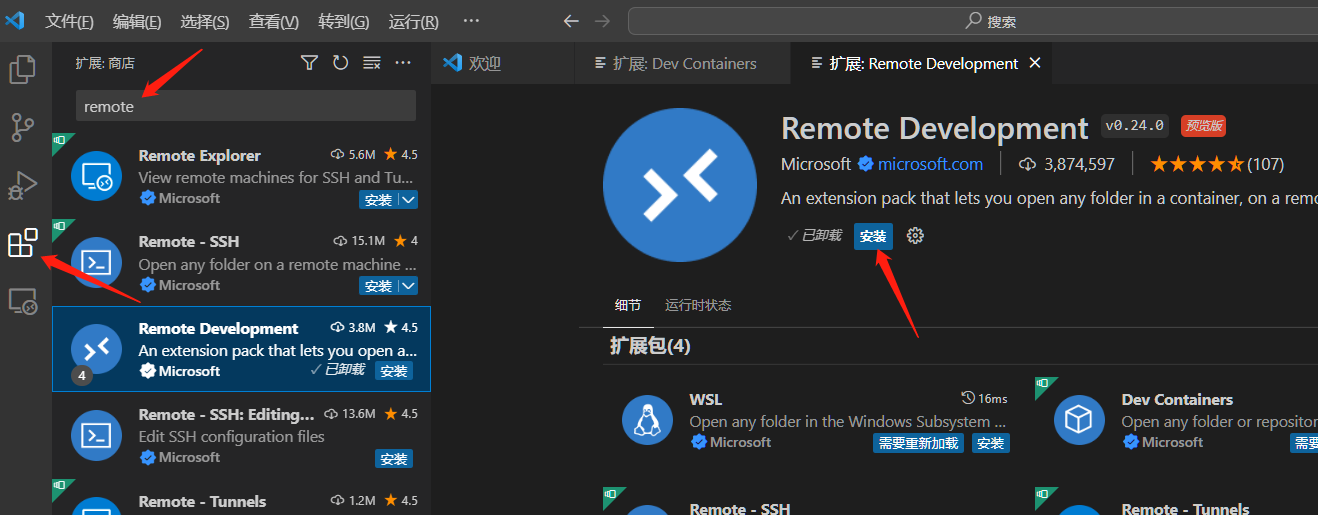

1. Open vscode, click the icon with the arrow below on the left, then enter remote in the search box, select the Remote Development plug-in, and click Install to install the plug-in.

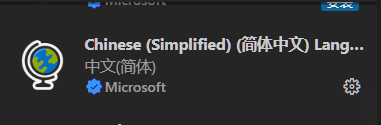

After vscode is installed by default, it is the English version. You can install the Chinese plug-in to localize it:

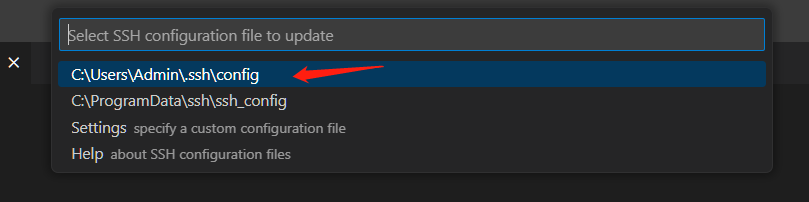

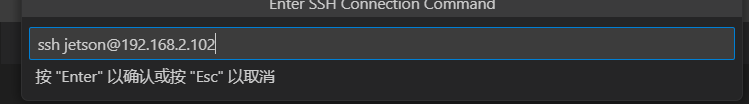

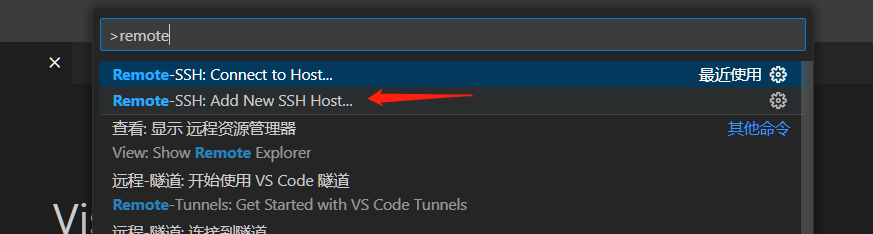

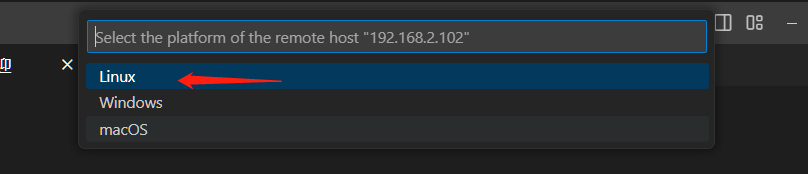

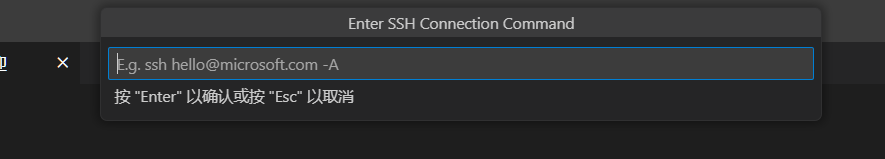

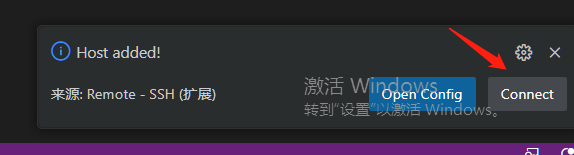

2. Press the shortcut key [ctrl + shift + p] in vscode to open the command input window, enter: remote, and then follow the instructions in the figure below to log in to the remote host [car].

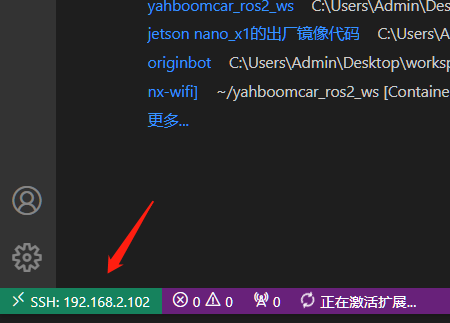

If you see the screen above, it means you have successfully logged in to the host computer remotely.

6.2.3.3. Enter the robot container

See the tutorial in Chapter [5.Enter docker container] to enter.

6.2.3.4. Configure the docker environment on the vscode remote host

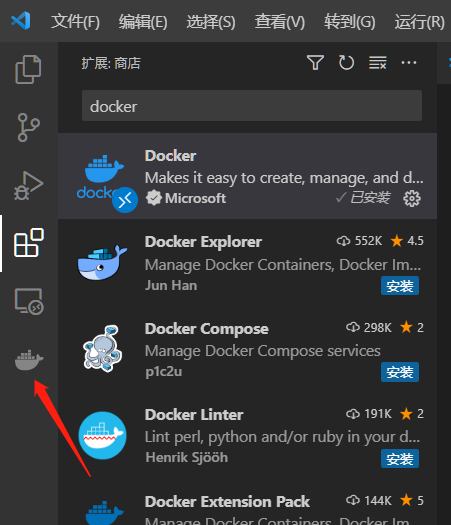

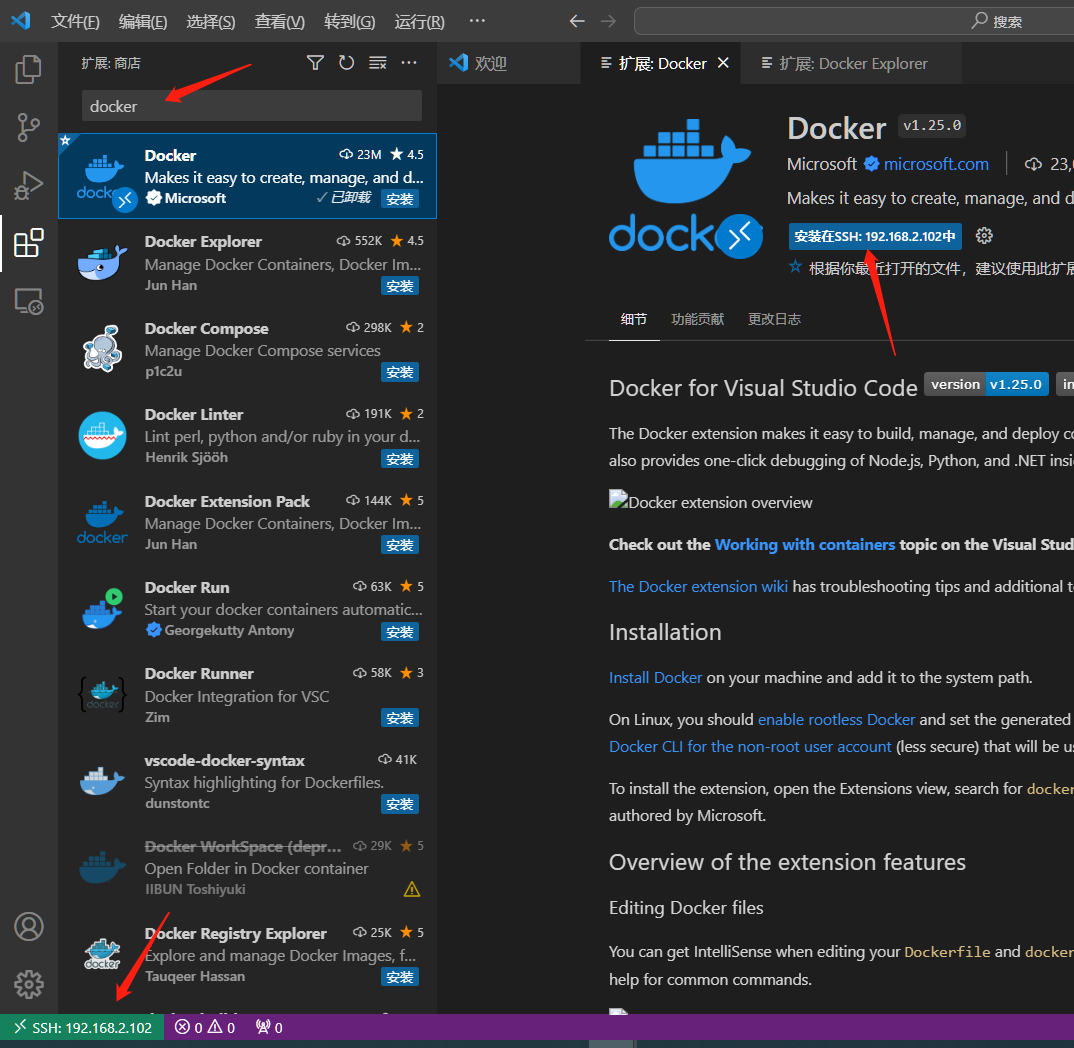

1. Install the docker plug-in on the remote host [car]

2. After the installation is complete, a docker icon will appear in the left navigation bar.

3. Click the docker icon

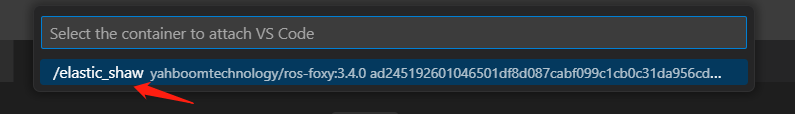

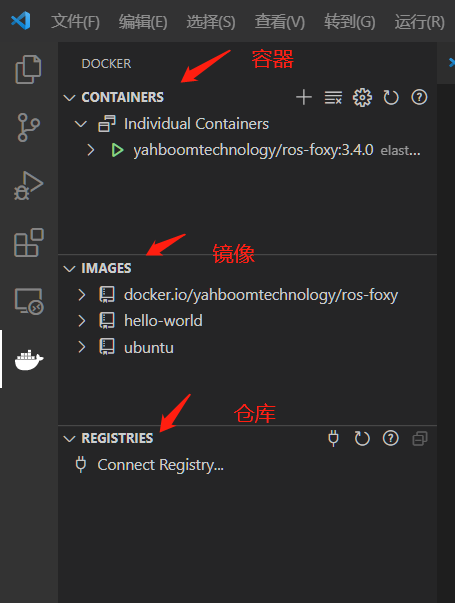

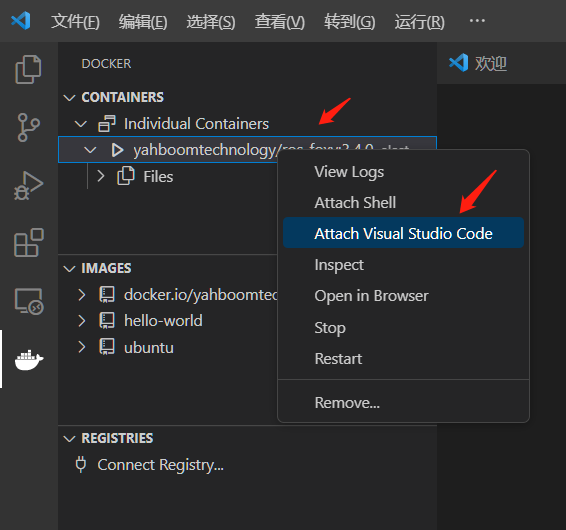

4. Right-click on the running container and follow the steps below:

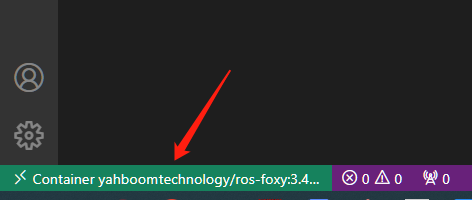

5. A new window will open. When you see the following, you have entered the container.

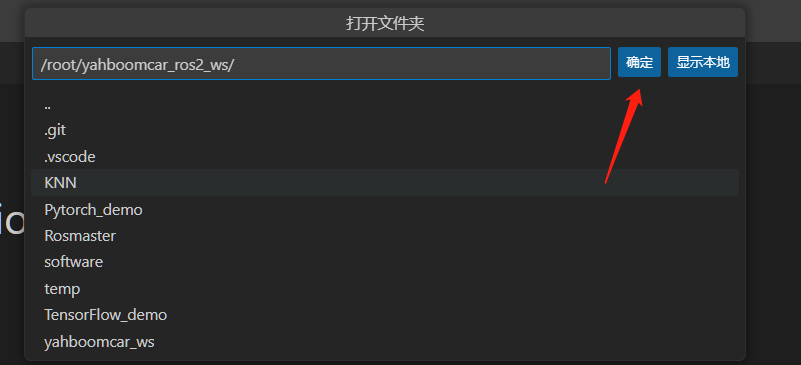

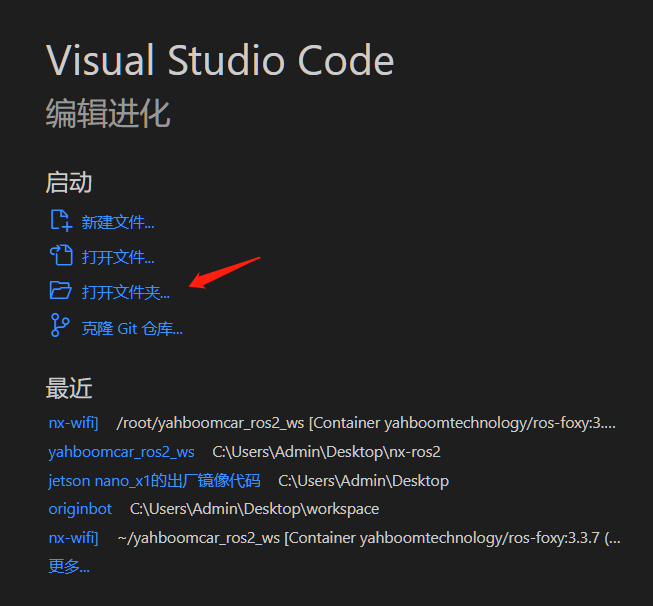

6. Open the folder

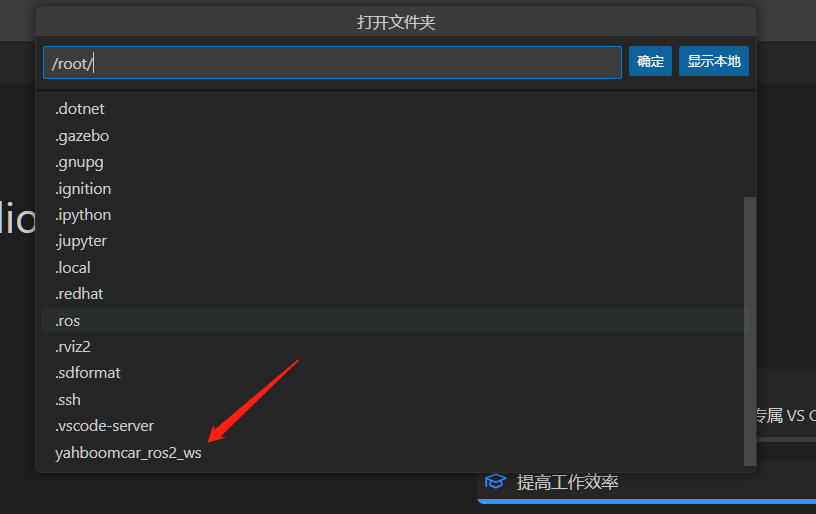

xxxxxxxxxx
/root/yahboomcar_ros2_ws  # This is the project path of the robot

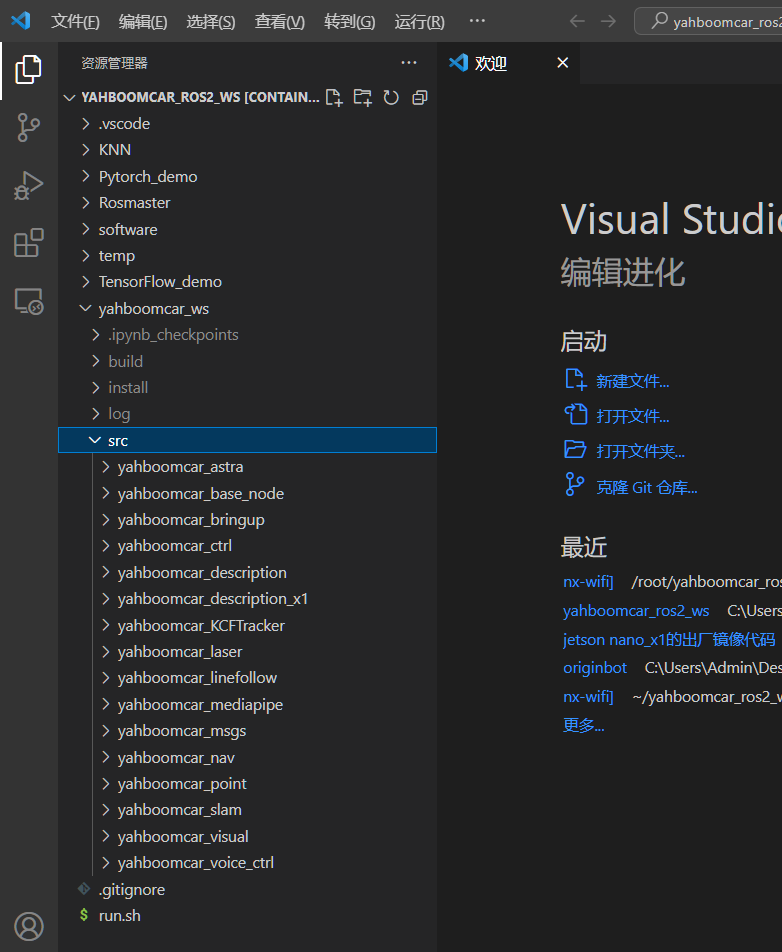

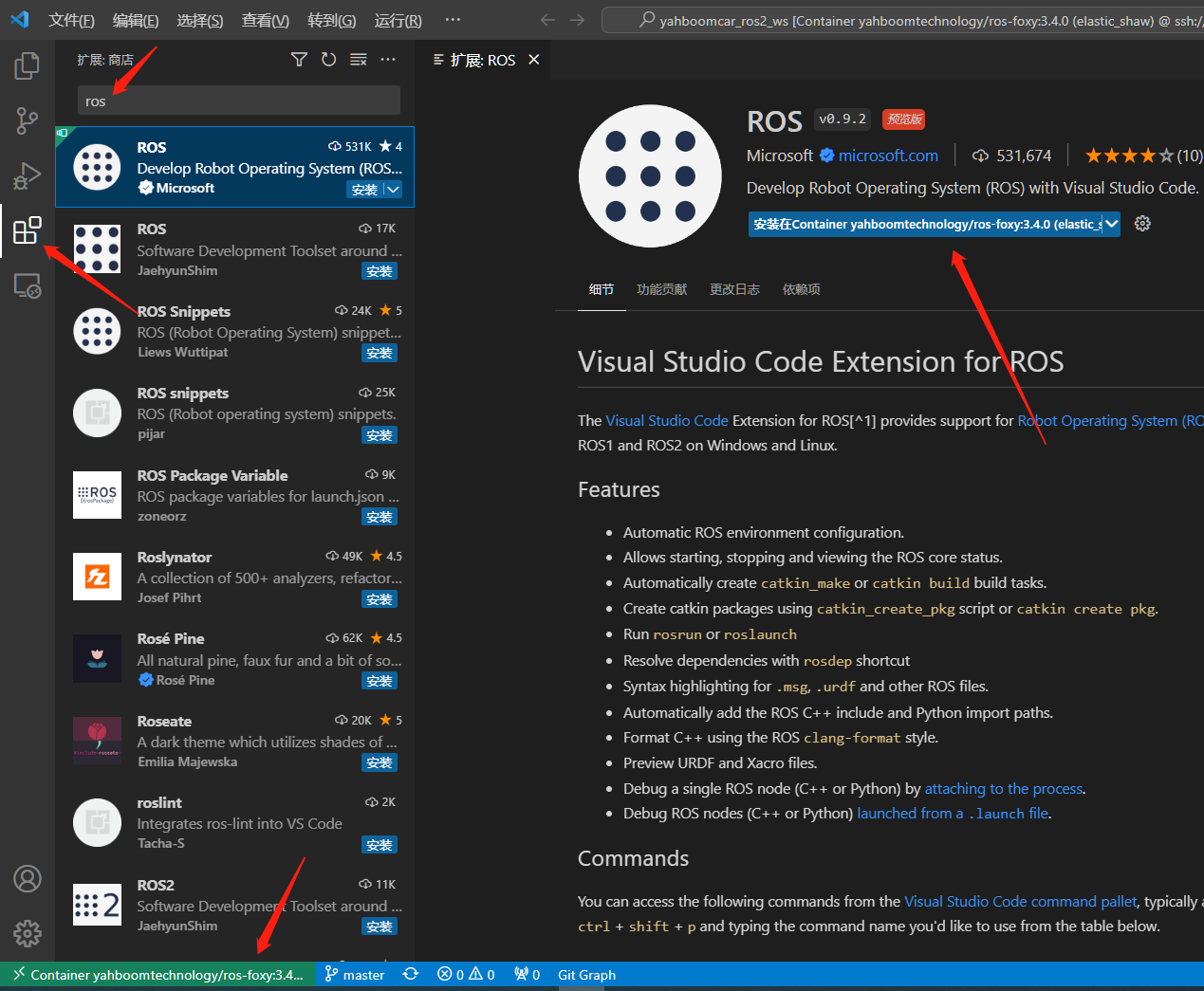

7. Similarly, we can also install the plug-ins we need in the container to facilitate our development.

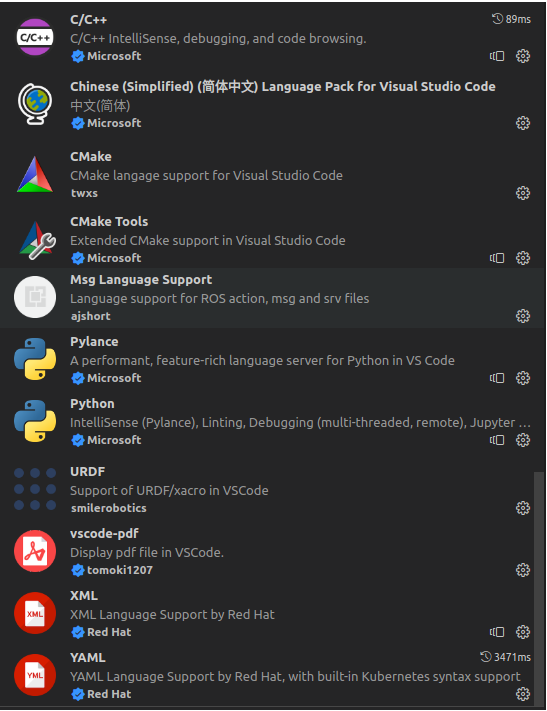

In addition to ros, the recommended plug-ins to install here are:

After completing the above steps, you can operate the code files in the container to develop and learn.
