1. Introduction of voice module
1. Introduction of voice module 1.1. Introduction to the voice module 1.1.1. CSK4002 chip 1.2. Using the voice module 1.2.1. Wiring 1.2.2. Wake-up word 1.2.3. Command words
1.1. Introduction to the voice module
1.1.1. CSK4002 chip
The voice control module on ROSMASTER is developed based on the CSK4002 chip. CSK4002 is an AISoC with higher performance, better computing power, lower power consumption and designed for the AloT field. It can be widely used in smart home, smart home appliances, and emerging consumer electronics industries.
- CSK4002 adopts Andes D1088 core, and its AI/DSP acceleration module MVA supports a variety of Neural Network operators and vector operations, and is deeply adapted to iFLYTEK AI algorithms, with a computing power of up to 128GOPS.
- Comes with 8M Flash, 8M PSRAM, 1M SRAM.
- Supports 8 channels of PDM audio input and 16 channels of I2S Audio Input data processing.
- Integrated rich mainstream peripheral interfaces: GPIO/UART/I2C/SPI/QSPI/SDIO/USB1.1/SDIO, etc.
- Equipped with low-latency embedded operating system Free RTOS, complete BSP driver, and complete development tool resources.
1.2. Using the voice module
1.2.1. Wiring
The module is connected to the ROSMASTER robot (or HUB board) through a Type-c data cable, and the speaker and the module are connected through a PH2.0 data cable.

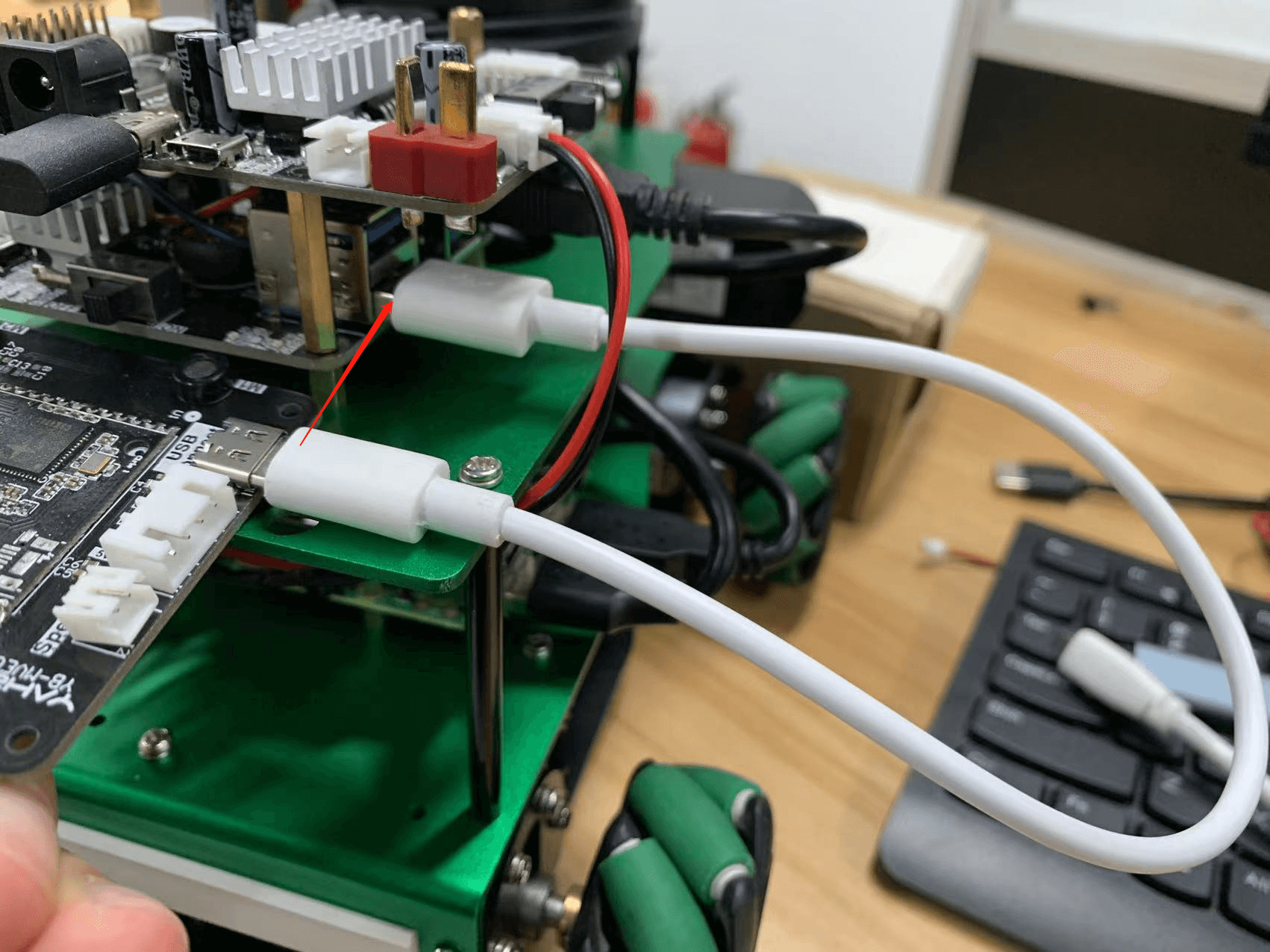

- As shown below, one end of the Micro-USB data cable is connected to the "Program" port of the module, and the other end is connected to the port of the ROSMASTER main control board ( after this is plugged in, it cannot be modified after the rear port is bound). About this, please check the next course).

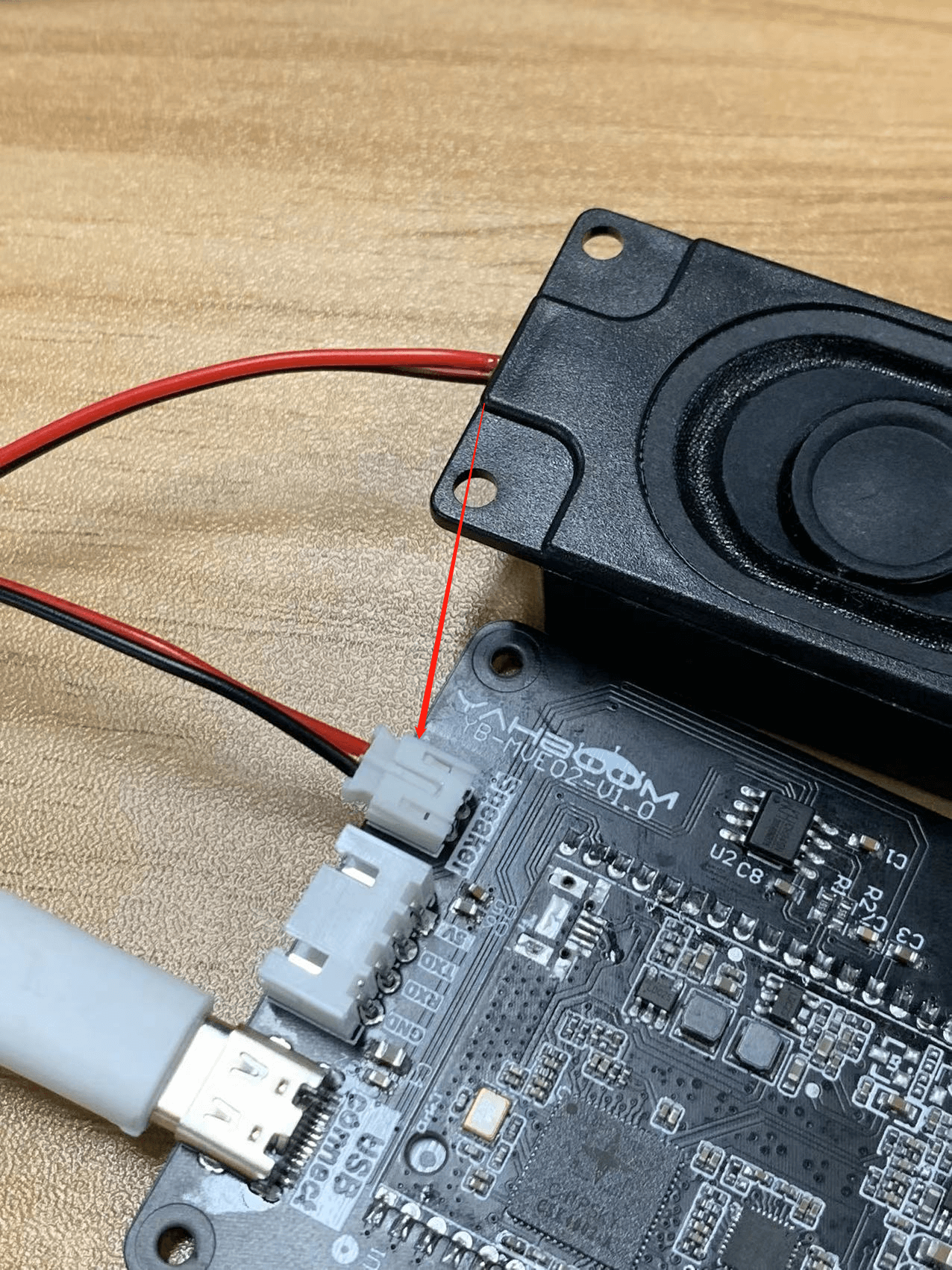

- As shown below, the PH2.0 data cable port is connected to the Speaker port on the module.
1.2.2. Wake-up word
The wake-up word is "Hi, Yahboom". When you wake up, you need to slow down your speech rate. If it is too fast, the module will not recognize it. After the module is woken up, other command words can be recognized later.
Within 20 seconds of waking up, you don't need to wake up again, just say the command word directly.
1.2.3. Command words
1.Voice control car movement
| speech recognition content | The voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Robot stop | $B002# | $A002# | OK , I'm stop. |
| Go ahead | $B004# | $A004# | OK , let's go. |
| Back | $B005# | $A005# | OK , I‘m back. |
| Turn left | $B006# | $A006# | OK , I‘m turning left. |
| Turn right | $B007# | $A007# | OK , I‘m turning right. |
| Enter A mode | $B008# | $A008# | OK, I‘m working on A mode. |
| Enter B mode | $B009# | $A009# | OK, I‘m working on B mode. |
2.Voice control RGB light strip effect
| speech recognition content | The voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Close light | $B010# | $A010# | OK, light is closed. |
| Red light up | $B011# | $A011# | OK, red light is on. |
| Green light up | $B012# | $A012# | OK, green light is on. |
| Blue light up | $B013# | $A013# | OK, blue light is on. |
| Yellow light up | $B014# | $A014# | OK, yellow light is on. |
| light A | $B015# | $A015# | OK, light A is on. |
| light B | $B016# | $A016# | OK, light B is on. |
| light C | $B017# | $A017# | OK, light C is on. |
| Display battery value | $B018# | $A018# | OK, battery value has been display. |
3.Voice control color recognition
| speech recognition content | The voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| What color is this? | $B060# | $A061# | This is red |
| What color is this? | $B060# | $A062# | This is blue |
| What color is this? | $B060# | $A063# | This is green |
| What color is this? | $B060# | $A064# | This is yellow |
4.Voice control color tracking
| speech recognition content | The voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| yellow following | $B072# | $A072# | OK, I found the yellow |
| red following | $B073# | $A073# | OK, I found the red |
| green following | $B074# | $A074# | OK, I found the green |
| follow this color | $B075# | $A075# | OK, I found this color |
| stop following | $B076# | $A076# | OK, it has been stoped |
5.Voice control automatic driving (line patrol)
| speech recognition content | The voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Close tracking mode | $B022# | $A022# | OK, tracking mode is closed |
| Tracking the red line | $B023# | $A023# | OK, I will track the red line |
| Tracking the green line | $B024# | $A024# | OK, I will track the green line |
| Tracking the blue line | $B025# | $A025# | OK, I will track the blue line |
| Tracking the yellow line | $B026# | $A026# | OK, I will track the yellow line |
6.Voice control multi-point navigation
| speech recognition content | The voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Go to the point A | $B019# | $A019# | OK, I'm going to the point A. |
| Go to the point B | $B020# | $A020# | OK, I'm going to the point B. |
| Go to the point C | $B021# | $A021# | OK, I'm going to the point C. |
| Go to the point D | $B022# | $A022# | OK, I'm going to the point D. |
| Return to the original place | $B023# | $A023# | OK, I'm return back. |
7.Basic voice control of robotic arm
| speech recognition content | he voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Warning | $B038# | $A038# | OK |
| Lift the arm up | $B039# | $A039# | OK , the arm has been raised |
| Put the arm down | $B040# | $A040# | OK, the arm is down |
| Arm left | $B041# | $A041# | OK, the arm has turned left |
| Arm right | $B042# | $A042# | OK, the arm has turned right |
| Clamp the clip | $B043# | $A043# | OK, the clip is clamped |
| Open the clip | $B044# | $A044# | OK, the clip has been opened. |
- control of robotic arm
| speech recognition content | he voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Action A | $B045# | $A045# | OK |
| Action B | $B046# | $A045# | OK |
| Action C | $B047# | $A045# | OK |
| Action D | $B048# | $A045# | OK |
| Reset | $B049# | $A045# | OK |
| Action E | $B050# | $A045# | OK |
- action of the robotic arm
| speech recognition content | he voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Dancing | $B052# | $A052# | OK, Let's dance |
| Clip the block | $B053# | $A053# | OK,let me clip them |
- robotic arm memory learning
| speech recognition content | he voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| record it | $B055# | $A055# $A056# | OK, please set the next action. Too many actions, I can't record them |
| Now is over | $B056# | $A057# | OK,Noted it,I've recorded them. |
| Display actions | $B057# | $A058# | OK, Let's do it |
| Clear actions | $B058# | $A059# | OK, actions have been cleared |
- Sort color block
| speech recognition content | he voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| Sort color block | $B061# | $A065# | It has been in its place |
| $A066# | This is yellow | ||
| $A067# | This is green | ||
| $A068# | This is blue | ||
| $A069# | This is red |
- Garbage sorting
| speech recognition content | he voice module is sent to the host | The host sends to the voice module | Voice broadcast content |
|---|---|---|---|
| What garbage is this? | $B094# | $A094# | This is a can, which is recyclable |
| $A095# | This is an old school bag, which is recyclable | ||
| $A096# | This is a newspaper, which is recyclable | ||
| $A097# | This is a book, which is recyclable | ||
| $A098# | This is a syringe, which is toxic waste | ||
| $A099# | This is a waste battery, which is toxic waste | ||
| $A100# | This is a expired cosmetics, which is toxic waste | ||
| $A101# | This is a expired medicine, which is toxic waste | ||
| $A102# | This is a fish bone, which is wet waste | ||
| $A103# | This is a watermelon rind, which is wet waste | ||
| $A104# | This is a apple core, which is wet waste | ||
| $A105# | This is a egg shells, which is wet waste | ||
| $A106# | This is a disposable chopsticks, which is dry waste | ||
| $A107# | This is a cigarette butt, which is dry waste | ||
| $A108# | This is a peach core, which is dry waste | ||
| $A109# | This is a toilet paper, which is dry waste |
