4 Robot keyboard control

According to different models, you only need to set the purchased model in [.bashrc], X1(ordinary four-wheel drive) X3(Mike wheel) X3plus(Mike wheel mechanical arm) R2(Ackerman differential) and so on. Section takes X3 as an example

xxxxxxxxxx
#You need to enter docker first, perform this step more
#If running the script to enter docker fails, please refer to Jetson Orin-Docker/05, Enter the robot's docker container
~/run_docker.sh
#Multiple ros commands require multiple terminals to enter the same docker container for execution, please refer to Jetson Orin-Docker/05, Section 5.8 tutorial

Open the [.bashrc] file

sudo vim .bashrc

Find the [ROBOT_TYPE] parameter and modify the corresponding model

xxxxxxxxxx
export ROBOT_TYPE=X3   # ROBOT_TYPE: X1 X3 X3plus R2 X7

4.1 button description

4.1.1 Direction control

4.1.2 Speed control

4.2 run the program

4.2.1 Keyboard control code yahboom_keyboard.py path:

xxxxxxxxxx
~/yahboomcar_ws/src/yahboom_ctrl/scripts

4.2.2 Operation

xxxxxxxxxx
roslaunch yahboomcar_bringup bringup.launch        # chassis start
roslaunch yahboomcar_ctrl yahboom_keyboard.launch  # keyboard control node

4.2.3 Analysis of yahboom_keyboard.py

1. the topic released: cmd_vel

xxxxxxxxxx
pub = rospy.Publisher('cmd_vel', Twist, queue_size=1)

So, just package the speed and publish it through pub.publish(twist) the speed subscriber of the chassis can receive the speed data, and then drive the car.

2. the main modules used

• The select module is mainly used for socket communication, seeing changes in file descriptions, and completing non-blocking work

• The termios module provides an interface for IO-controlled POSIX calls to ttys

• The tty module is mainly used to change the mode of the file descriptor fd

3. mobile dictionary and speed dictionary

• The mobile dictionary mainly stores the relevant characters of the direction control

  xxxxxxxxxx
  moveBindings = {
      'i': (1, 0),
      'o': (1, -1),
      'j': (0, 1),
      'l': (0, -1),
      'u': (1, 1),
      ',': (-1, 0),
      '.': (-1, 1),
      'm': (-1, -1),
      'I': (1, 0),
      'O': (1, -1),
      'J': (0, 1),
      'L': (0, -1),
      'U': (1, 1),
      'M': (-1, -1),
  }




• The speed dictionary mainly stores the relevant characters of speed control

  xxxxxxxxxx
  speedBindings = {
      'Q': (1.1, 1.1),
      'Z': (.9, .9),
      'W': (1.1, 1),
      'X': (.9, 1),
      'E': (1, 1.1),
      'C': (1, .9),
      'q': (1.1, 1.1),
      'z': (.9, .9),
      'w': (1.1, 1),
      'x': (.9, 1),
      'e': (1, 1.1),
      'c': (1, .9),
  }


  4. get the current key information

  xxxxxxxxxx
   def getKey():
    # tty.setraw(): change the file descriptor fd mode to raw; fileno(): return an integer file descriptor(fd)
    tty.setraw(sys.stdin.fileno())
     # select(): Directly call the IO interface of the operating system; monitor all file handles with the fileno() method
      rlist, _, _  =  select.select([ sys.stdin ], [], [], 0.1)
      # Read a byte from the input stream
      if rlist: key = sys.stdin.read(1)
      else: key = ''
      # tcsetattr sets the tty attribute of the file descriptor fd from the attribute
      termios.tcsetattr(sys.stdin, termios.TCSADRAIN, settings)
      return  key


  5. determine whether t/T or s/S is pressed

  xxxxxxxxxx
   if key=="t" or key == "T": xspeed_switch = not xspeed_switch
              elif key == "s" or key == "S":
                  print ("stop keyboard control: {}".format(not stop))
                  stop = not stop


  6. determine whether the string is in the dictionary

  xxxxxxxxxx
  #Whether the key string is in the mobile dictionary
  if key in moveBindings.keys():
                  x = moveBindings[key][0]
                  th = moveBindings[key][1]
                  count = 0
  #Whether the key character is in the speed dictionary
   elif key in speedBindings.keys():
                  speed = speed * speedBindings[key][0]
                  turn = turn * speedBindings[key][1]
                  count = 0


  6. speed limit

  Both the angular velocity and the linear velocity have a limit value, which cannot be increased all the time. When starting, the program will first obtain the speed limit value, and when increasing the speed, it will judge and process the increased value.

  xxxxxxxxxx
  linear_limit  =  rospy.get_param('~linear_speed_limit', 1.0)
  angular_limit  =  rospy.get_param('~angular_speed_limit', 5.0)

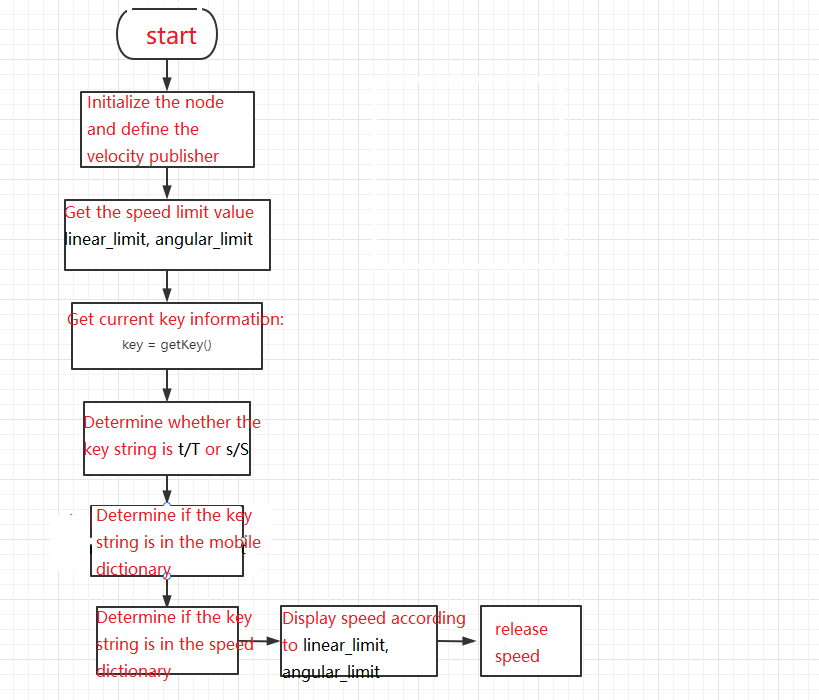

  7. program flow chart
