4. K230 Color Line Patrol

This section will introduce in detail how to use K230 combined with PID algorithm to realize line patrol control of the car.

Note: In this section, we only talk about the K230 part

For the complete code, please refer to: [Source Code/05.Color/04.find_line.py]

1. Environment Preparation

• Hardware:

  • YAHBOOM K230 Vision Module
  • Motor Drive Module
  • Battery Power

• Software:

  • CanMV IDE Environment

2. Code Structure Overview

The code is mainly divided into the following parts:

1. Library Import: Import the required modules.
2. Constant Definition: Define display parameters, LAB color space threshold (that is, the color of the line patrol track), PID parameters.
3. Function Function: Including sensor initialization, PID calculation, image processing, etc.
4. Main loop: Get image, process color, calculate motor speed, and display information.

3. Code explanation

3.1 Import library

​x
import time, os, sys
from media.sensor import *
from media.display import *
from media.media import *
from ybUtils.YbUart import YbUart
​
uart = YbUart(9600)

Here, the necessary libraries are imported, including the time module, media sensor, display, and serial communication libraries. YbUart is used for serial communication with the motor controller.

3.2 Define parameters

xxxxxxxxxx
DISPLAY_WIDTH = 640   # LCD显示宽度 LCD display width
DISPLAY_HEIGHT = 480  # LCD显示高度 LCD display height
​
THRESHOLDS = [
    ((21, 33, -15, 9, -9, 6)),    # 黑线 Black line
    ((40, 86, -44, -20, -24, 25)), # 绿 Green
]
​
KP = 1
KI = 0.1
KD = 0.2
​
BASE_SPEED = 300
SCREEN_CENTER = DISPLAY_WIDTH // 2
​
prev_error = 0
integral = 0

• DISPLAY_WIDTH and DISPLAY_HEIGHT define the display size of the LCD.
• THRESHOLDS defines the thresholds of the LAB color space, which is used to identify objects of different colors.
• The PID control parameters KP, KI, KD are used to adjust the response of the controller.
• BASE_SPEED sets the base speed of the car.

3.3 Initialization function

xxxxxxxxxx
def init_sensor():
    sensor = Sensor(width=1280, height=960)
    sensor.reset()
    sensor.set_framesize(width=DISPLAY_WIDTH, height=DISPLAY_HEIGHT)
    sensor.set_pixformat(Sensor.RGB565)
    return sensor
​
def init_display():
    Display.init(Display.ST7701, to_ide=True)
    MediaManager.init()

• init_sensor() is used to initialize the camera sensor, set the resolution and pixel format.
• init_display() initializes the display module.

3.4 PID calculation

xxxxxxxxxx
def calculate_pid(target, current):
    global prev_error, integral
​
    error = target - current
    integral += error
    derivative = error - prev_error
​
    if integral > 100:
        integral = 100
    elif integral < -100:
        integral = -100
​
    output = KP * error + KI * integral + KD * derivative
​
    left_speed = BASE_SPEED - output
    right_speed = BASE_SPEED + output
​
    prev_error = error
​
    return int(left_speed), int(right_speed)

This function is used to calculate the PID control output:

• Calculate the current error, integral and derivative.
• Limit the maximum value of the integral to prevent integral saturation.
• Calculate the speed of the left and right motors.

3.5 Processing images

xxxxxxxxxx
def process_blobs(img, blobs, color):
    if not blobs:
        uart.send("$0,0#")
        return
​
    largest_blob = max(blobs, key=lambda b: b[4])

    target_x = SCREEN_CENTER
    current_x = largest_blob[0] + largest_blob[2] // 2
    left_speed, right_speed = calculate_pid(target_x, current_x)
​
    uart.send(f"${left_speed},{right_speed}#")
​
    img.draw_rectangle(largest_blob[0:4], color=color, thickness=4)
    img.draw_cross(largest_blob[0] + largest_blob[2]//2, largest_blob[1] + largest_blob[3]//2, color=color, thickness=2)
    img.draw_line(SCREEN_CENTER, 0, SCREEN_CENTER, DISPLAY_HEIGHT, color=(0, 255, 0), thickness=1)
    img.draw_line(current_x, largest_blob[1], current_x, largest_blob[1] + largest_blob[3], color=(255, 0, 0), thickness=2)

• process_blobs() processes the detected blobs.
• Find the largest blob and calculate its position, and then calculate the PID output and send it to the motor.
• Draw the blob and reference lines.

3.6 Main loop

xxxxxxxxxx
def main():
    try:
        sensor = init_sensor()
        init_display()
        sensor.run()
​
        clock = time.clock()
        color_index = 1
        threshold = THRESHOLDS[color_index]
        detect_color = get_closest_rgb(threshold)
​
        while True:
            clock.tick()
            img = sensor.snapshot()
            blobs = img.find_blobs([threshold], roi=(0, DISPLAY_HEIGHT//2, DISPLAY_WIDTH, DISPLAY_HEIGHT//2))
            if blobs:
                process_blobs(img, blobs, detect_color)
            else:
                uart.send("$0,0#")
​
            fps = clock.fps()
            draw_fps(img, fps)
            print(fps)
​
            Display.show_image(img)
​
    except KeyboardInterrupt as e:
        print("用户中断:", e)
    except Exception as e:
        print(f"发生错误: {e}")
    finally:
        if 'sensor' in locals() and isinstance(sensor, Sensor):
            sensor.stop()
        Display.deinit()
        MediaManager.deinit()
​
if __name__ == "__main__":
    main()

• In the main() function, initialize the sensor and display module and enter the main loop.

• In the loop, acquire the image and detect the specified color. Adjust the motor speed based on the detection result and display the image and FPS information.

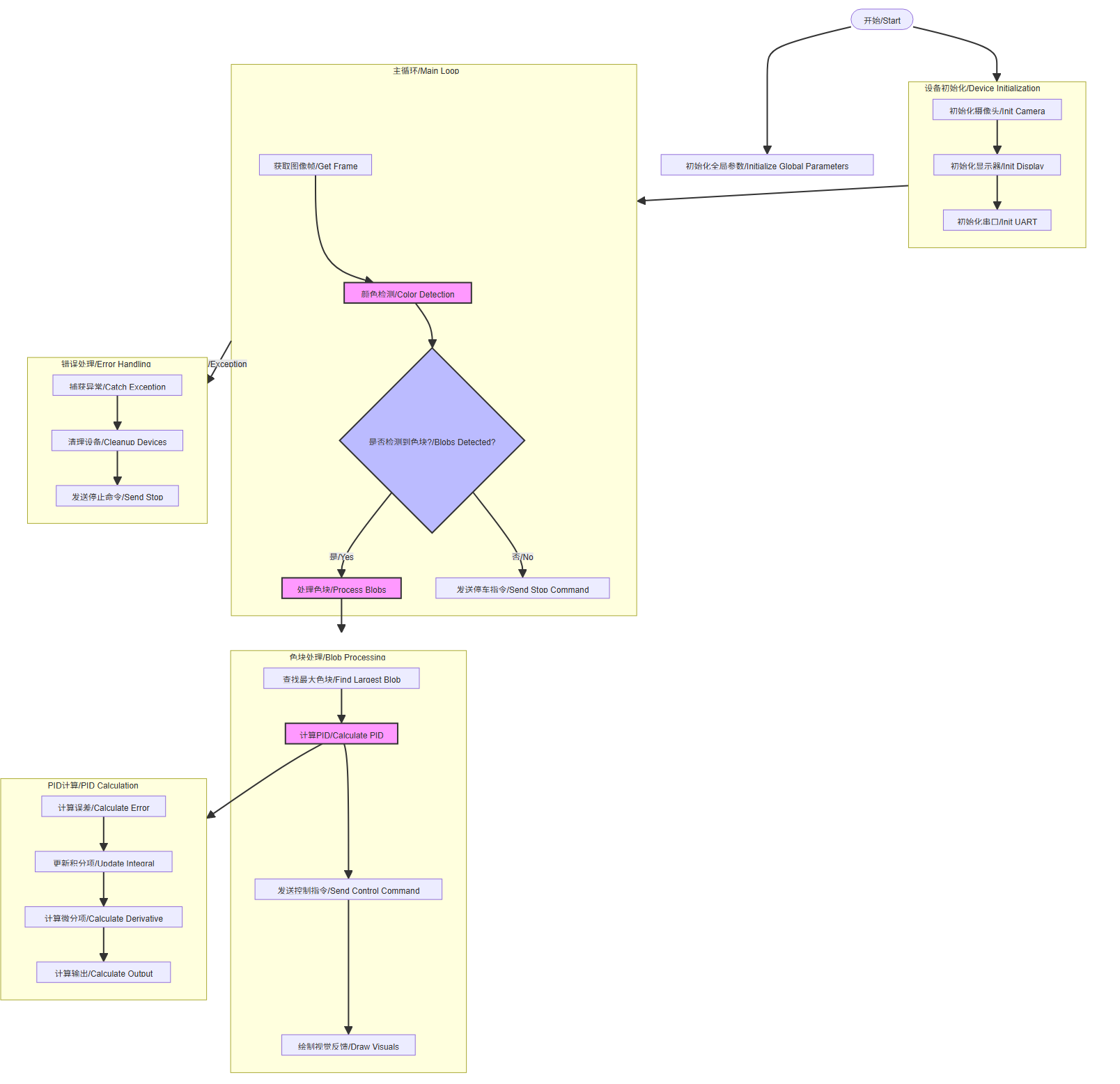

3.7 Flowchart
