k230 barcode recognition

k230 and Jetson Orin communication

1. Experimental Prerequisites

This tutorial uses the Jetson Orin development board, and the corresponding routine path is [14.export\Jetson-K230\02_k230_barcode.py].

K230 needs to run the [14.export\CanmvIDE-K230\02.find_barcodes.py] program to start the experiment. It is recommended to download it as an offline program.

Things you need:

Windows computer, Jetson Orin development board, usb to ttl module, K230 visual module (including TF card with burned image), type-C data cable, connection cable

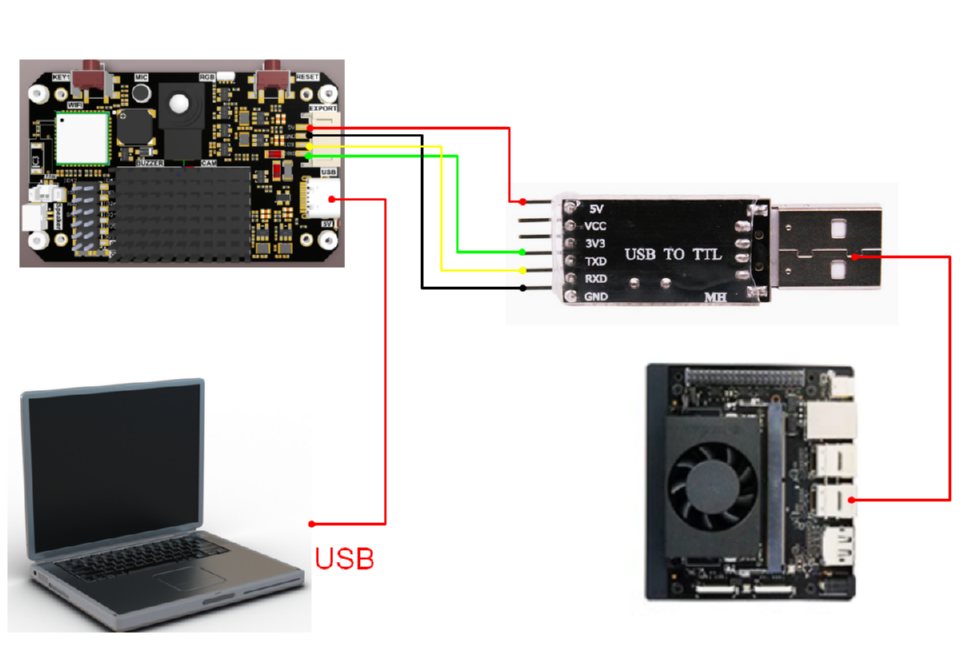

2. Experimental wiring

3. Main code explanation

​x
import serial
•
com="/dev/ttyUSB0"
ser = serial.Serial(com, 115200)
•
FUNC_ID = 2
•
def parse_data(data):
    if data[0] == ord('$') and data[len(data)-1] == ord('#'):
        data_list = data[1:len(data)-1].decode('utf-8').split(',')
        data_len = int(data_list[0])
        data_id = int(data_list[1])
        if data_len == len(data) and data_id == FUNC_ID:
            # print(data_list)
            x = int(data_list[2])
            y = int(data_list[3])
            w = int(data_list[4])
            h = int(data_list[5])
            msg = data_list[6]
            return x, y, w, h, msg
        elif (data_len != len(data)):
            print("data len error:", data_len, len(data))
        elif(data_id != FUNC_ID):
            print("func id error:", data_id, FUNC_ID)
    return -1, -1, -1, -1, ""
​
while True:
    if ser.in_waiting:
        data = ser.readline()
        # print("rx:", data)
        x, y, w, h, msg = parse_data(data.rstrip(b'\n'))
        print("barcode:x:%d, y:%d, w:%d, h:%d" % (x, y, w, h), "payload:", msg)

The above program is for parsing K230 data. Only when it complies with specific protocols can the corresponding data be parsed.

in

• x: is the horizontal coordinate of the upper left corner of the recognized box
• y: is the vertical coordinate of the upper left corner of the recognized box
• w: is the width of the recognized frame
• h: is the length of the recognized frame
• msg: is the content of the barcode

4. Experimental Phenomenon

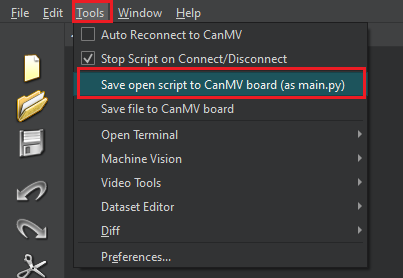

1. After connecting the cables, the k230 visual module runs offline. After K230 is connected to Canmv IDE, open the corresponding program, click [Save open script to CanMV board (as main.py)] on the toolbar, and then restart K230.

2. Transfer the program file to the system, open the terminal and enter the corresponding directory, then run the following command to start the program.

xxxxxxxxxx
python3 02_k230_barcode.py

3. When the K230 camera image recognizes the barcode, the terminal will parse and print out the information transmitted by the K230.

in

• x: is the horizontal coordinate of the upper left corner of the recognized box

• y: is the vertical coordinate of the upper left corner of the recognized box

• w: is the width of the recognized frame

• h: is the length of the recognized frame

• msg: is the content of the barcode

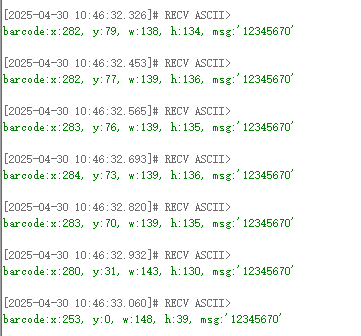

  As shown in the figure below
