Circle Recognition - Color Image

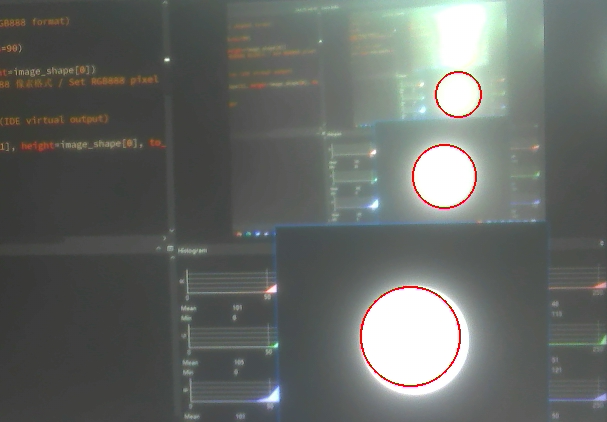

Example Results

Run this section's example code [Source Code/06.cv_lite/4.rgb888_find_circles.py]

In this section, we will use the cv_lite extension module to implement Hough circle detection in RGB888 format on an embedded device.

Code Overview

Importing Modules

import time, os, sys, gc
from machine import Pin
from media.sensor import * # Import the camera interface
from media.display import * # Import the display interface
from media.media import * # Import the media manager
import _thread
import cv_lite # Import the cv_lite extension module
import ulab.numpy as np # MicroPython class NumPy library

Setting the image size

xxxxxxxxxx
image_shape = [480, 640] # Height x Width

Define the image resolution to 480x640 (height x width). The camera and display module will be initialized based on this size later.

Initialize the camera (RGB888 format)

xxxxxxxxxx
sensor = Sensor(id=2, width=1280, height=960, fps=90)
sensor.reset()
sensor.set_framesize(width=image_shape[1], height=image_shape[0])
sensor.set_pixformat(Sensor.RGB888) # Set RGB888 pixel format / Set RGB888 pixel format

• Initialize the camera, set the resolution to 1280x960 and the frame rate to 90 FPS.

Note: Setting the camera resolution to 1280*960 can effectively suppress display distortion, but there is a chance of a purple screen when running this code.

• Resize the output frame to 640x480 and set it to RGB888 format (three-channel color image, suitable for circle detection in color images).

Initialize the display module

xxxxxxxxxx
Display.init(Display.ST7701, width=image_shape[1], height=image_shape[0], to_ide=True, quality=100)

Initialize the display module, using the ST7701 driver chip, with a resolution consistent with the image size. to_ide=True indicates that the image will be simultaneously transmitted to the IDE for virtual display, and quality=100 sets the image transmission quality to a higher level.

Initialize the media manager and start the camera

xxxxxxxxxx
MediaManager.init()
sensor.run()

Initialize the media resource manager and start the camera to capture the image stream.

Setting Hough Circle Detection Parameters

xxxxxxxxxx
dp = 1 # Inverse ratio of accumulator resolution to image resolution
minDist = 30 # Minimum distance between detected centers
param1 = 80 # Higher threshold for Canny edge detection
param2 = 20 # Threshold for center detection in accumulator
minRadius = 10 # Minimum circle radius
maxRadius = 50 # Maximum circle radius
clock = time.clock() # Start FPS timer

• dp: Accumulator resolution ratio. A value of 1 indicates the same resolution as the image. Larger values result in faster detection but potentially lower accuracy.
• minDist: Minimum distance between detected circle centers, used to avoid repeated detection of the same circle.
• param1: The high threshold for Canny edge detection, used to detect image edges. A higher value results in fewer edges being detected.
• param2: The threshold for circle center detection in the Hough transform. A lower value results in more circles being detected (but may contain noise).
• minRadius and maxRadius: Limit the radius of the detected circles, detecting only those that fall within this range.
• clock: Used to calculate the frame rate.

Image Processing and Hough Circle Detection

​x
while True:
    clock.tick()
​
    #Capture a frame
    img = sensor.snapshot()
    img_np = img.to_numpy_ref()  # Get an RGB888 ndarray reference
​
    # Call the cv_lite extended Hough circle detection function, returning a list of circle parameters [x, y, r, ...]
    circles = cv_lite.rgb888_find_circles(
        image_shape, img_np, dp, minDist, param1, param2, minRadius, maxRadius
    )
​
    # Iterate over the detected circles and draw a circle frame
    for i in range(0, len(circles), 3):
        x = circles[i]
        y = circles[i + 1]
        r = circles[i + 2]
        img.draw_circle(x, y, r, color=(255, 0, 0), thickness=2)  # Red circle
​
    # Display image with drawn circles
    Display.show_image(img)
​
    # Garbage collection
    gc.collect()
​
    # Print FPS
    print("findcircles:", clock.fps())

• Image capture: Acquire an image frame using sensor.snapshot() and convert it to a NumPy array reference using to_numpy_ref().
• Hough circle detection: Call cv_lite.rgb888_find_circles() to detect circles and return a list of detected circle information (each circle occupies 3 elements: [x, y, r], i.e., the center coordinates and radius).
• Draw a circle: Traverse each detected circle and draw a red circular outline (color=(255, 0, 0)) on the image to mark the target area.
• Display image: Display the processed image to the screen or IDE virtual window.
• Memory management and frame rate output: Call gc.collect() to clean up the memory and print the current frame rate through clock.fps().

Resource release

xxxxxxxxxx
sensor.stop()
Display.deinit()
os.exitpoint(os.EXITPOINT_ENABLE_SLEEP)
time.sleep_ms(100)
MediaManager.deinit()

Parameter adjustment instructions

• dp: Adjust the accumulator resolution ratio. The larger the value, the faster the detection speed, but some circles may be missed. It is recommended to start the test from 1.
• minDist: Adjust based on the size and distribution of circles. If circles are close together, reduce this value; if duplicate circles are detected, increase it.
• param1: High threshold for Canny edge detection. A higher value detects fewer edges. If the environment is noisy, increase this value appropriately.
• param2: Hough transform threshold. A lower value detects more circles but may include noise; a higher value makes detection stricter but may miss detections.
• minRadius and maxRadius: Adjust the range based on the size of the target circle to ensure that only the expected circles are detected.
