Welcome to MicroROS V2 Robot Car repository

1. Readme Learning Route

User Manual

User Manual1. Battery Charging Notes1.1 Low Battery Voltage Threshold Alarm1.2 Battery Charging2. First-Time Usage Steps2.1 Assemble the Robot Car2.2 Download the Virtual Machine Image2.3 Configure the Virtual Machine to Connect to the Robot3. Viewing the Source Code3.1 Viewing and Editing Source Code with Visual Studio Code3.2 Directory Structure Description3.3 Symbol Conventions3.4 How to Build ROS Packages

1. Battery Charging Notes

1.1 Low Battery Voltage Threshold Alarm

  • When the battery voltage drops below the threshold (10.2V), the buzzer will emit a beep—beep—beep alarm. At this point you should charge the battery using the charger. Click the button on the right to switch to the BATTREY_INFO panel to view the current battery voltage and the voltage threshold.

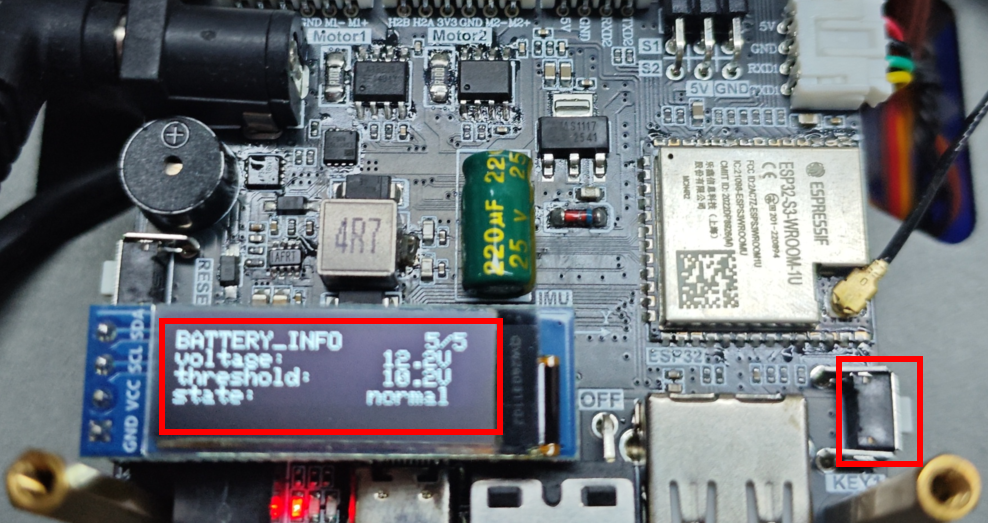

image-20260803150731664

1.2 Battery Charging

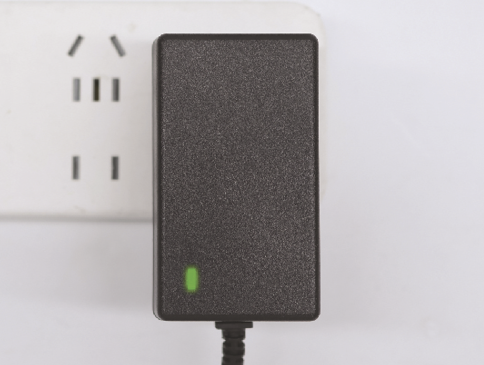

  • Connect the charger provided with the product to the power jack; the charger indicator light turns green

image-20260803145810473

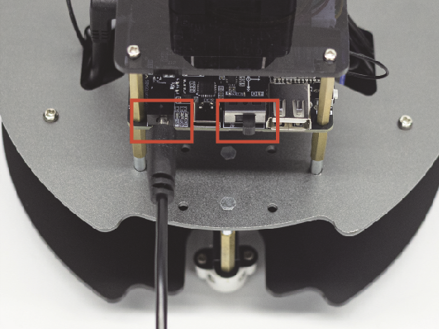

  • Turn off the robot power, then connect the charger plug to the charging port on the controller board

image-20260803145916765

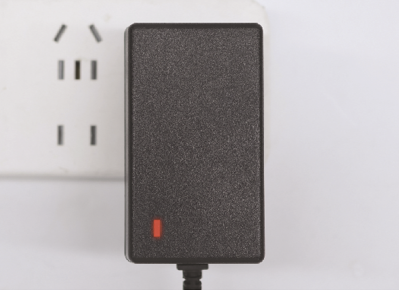

  • During charging, the charger indicator light is red; once the battery is fully charged, the indicator turns green

image-20260803150001725



2. First-Time Usage Steps

  • Follow the steps below to complete basic configuration such as robot assembly and virtual machine installation

2.1 Assemble the Robot Car

  • Refer to [2. Assembly Tutorial] to complete the assembly of the robot car

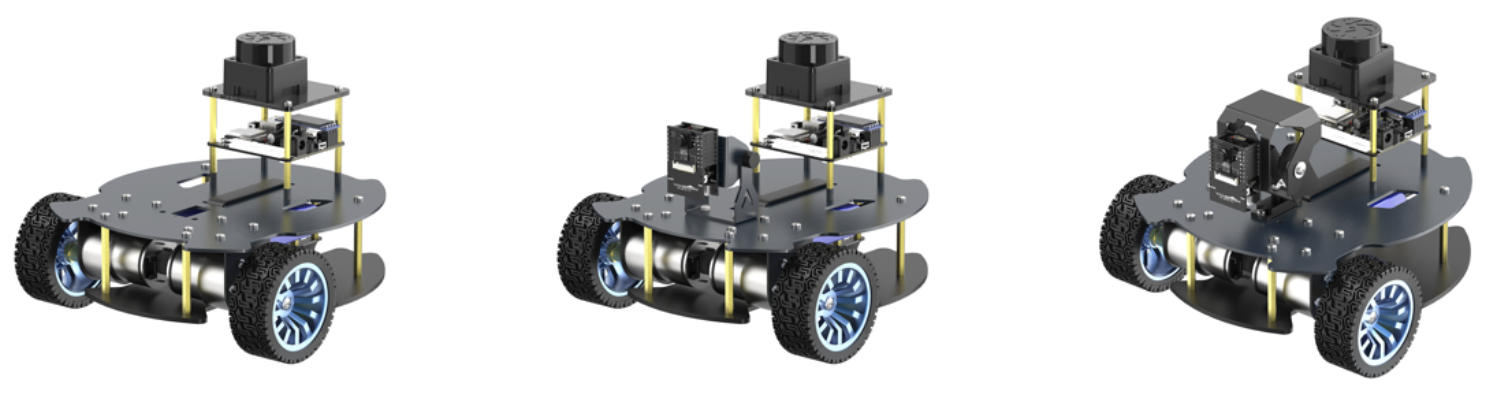

image-20260803151809881

2.2 Download the Virtual Machine Image

  • Refer to the tutorial document [Preparation - Install VM and Start System] to download the virtual machine image provided with the product. The image file is located in the [Virtual Machine Image] folder of the supporting materials



2.3 Configure the Virtual Machine to Connect to the Robot

  • Refer to the tutorial document [Preparation - Configure VM and Connect Robot], and use the RobotManager tool in the virtual machine to complete basic configuration such as the robot model, microROS agent address, and camera IP



3. Viewing the Source Code

[!NOTE]

  • Visual Studio Code is a lightweight, efficient, and extensible tool with integrated core development features at its heart, making it one of the most popular development tools in the world
  • Official website: https://code.visualstudio.com/. If you have not installed Visual Studio Code, you can search for the official website and download and install it

3.1 Viewing and Editing Source Code with Visual Studio Code

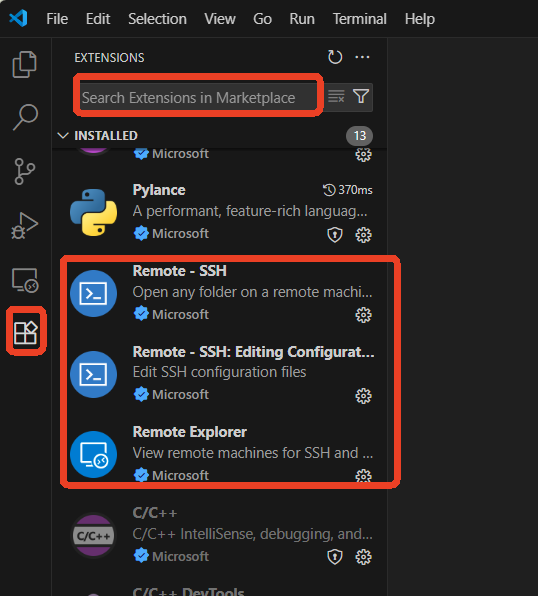

  • Launch Visual Studio Code, click the Extensions icon on the left, and install three remote connection plugins: Remote-SSH, Remote - SSH: Editing Configuration Files, and Remote Explorer

image-20260107173441245

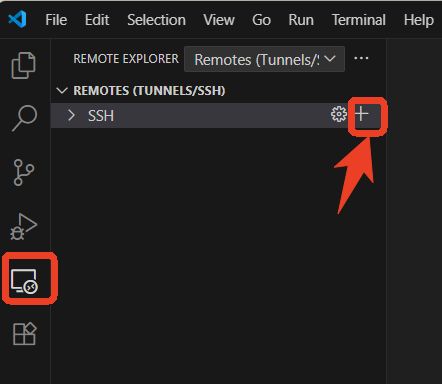

  • Then click Remote Explorer on the left, and click New Remote

image-20260107174218199



  • In the pop-up input box, enter username@IP-address for your board, press Enter, then enter the user password yahboom to log in to the robot car

image-20260803143154675

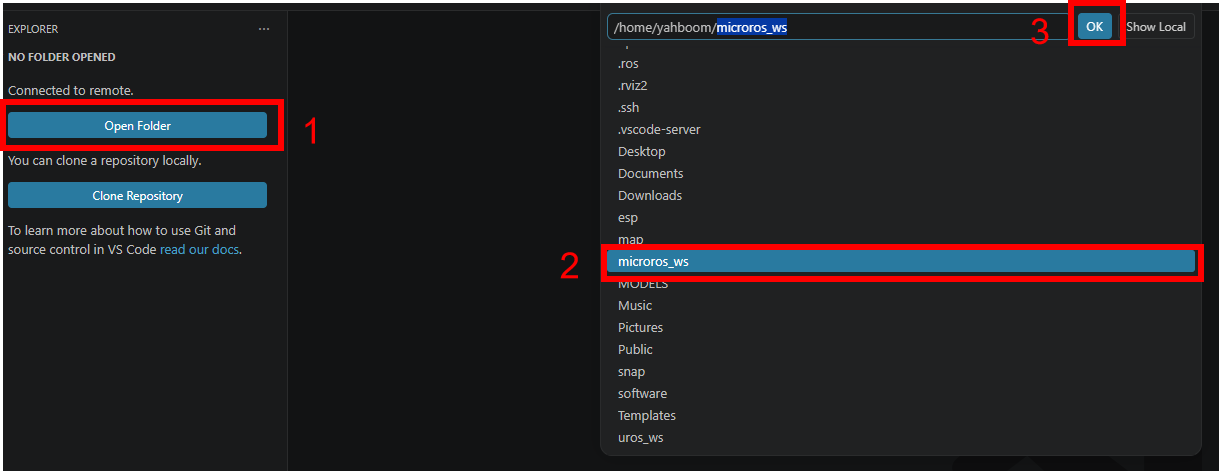

  • Then click Open Folder; in the pop-up window you can select the folder you want to view. Here, select microros_ws as an example, then click OK

image-20260803143950565

  • The code workspace directory structure is as follows

3.2 Directory Structure Description

  • 📁 src/ — Source code directory, containing the source code of all ROS 2 packages; it is the main development area of the entire workspace:
Package nameFunction
interfaces/Custom message/service/action interface definitions (msg, srv, action)
microros_v2_bringup/Robot launch package: launch files, config files, rviz visualization configuration
microros_v2_opencv_visual_pkg/OpenCV vision processing nodes
microros_v2_opencv_base_pkg/OpenCV basic tutorial scripts (geometric transforms, image enhancement, drawing, etc.)
microros_v2_yolo_pkg/YOLO object detection related nodes
yolo_onnx_follow_pkg/Vision following based on the YOLO ONNX model
microros_v2_kcf_follow_pkg/KCF target tracking and following
microros_v2_mediapipe_pkg/MediaPipe human body/gesture perception features
microros_v2_ptz_visual_control_pkg/Pan-tilt (PTZ) vision control
microros_v2_no_ptz_visual_control_pkg/Vision control for the version without a pan-tilt
multi_brains/, multi_brains_pre/Multi-"brain" decision/task planning modules (including LLM/Dify integration related configs)
roadnet/Road network/navigation related (C++ package, containing graph data graphs)
robot_description/Robot URDF model description
robot-control/, ros_robot_app/Robot control and application layer
common_demo/Common example code
scripts/, robot_config/Helper scripts and robot configuration
  • 📁 build/ — Build intermediate artifacts

Intermediate files generated during colcon compilation (CMake cache, object files, etc.), can be deleted and regenerated by rebuilding.

  • 📁 install/ — Build installation output

The installation directory after colcon compilation, containing executables, libraries, Python packages, and launch files. After running source install/setup.bash, you can use the nodes and commands compiled here.

  • 📁 python_env/ — Python virtual environment

An independent Python environment managed by uv, to prevent vision-related dependencies (such as onnxruntime, mediapipe, etc.) from polluting the system environment:

  • mircoros_v2_env/ — main project Python environment, yolo_env/ — YOLO dedicated environment
  • 📁 third_party_library/ — Independent workspace for third-party libraries

An independent colcon workspace dedicated to compiling and installing third-party SLAM-related libraries (cartographer, cartographer_ros, slam_gmapping, openslam_gmapping), isolated from the main workspace for easier maintenance.

  • 📁 cache/ — Runtime cache

Cache files generated during program runtime, such as debug images (llm_camera.jpg, grid_images.png), YOLO model inference verification images (bus_predict_yolo11n/), etc.



3.3 Symbol Conventions

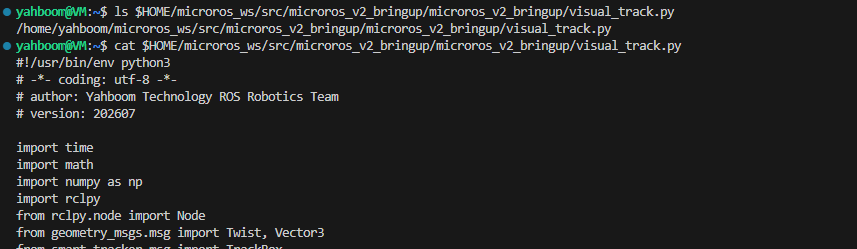

  • In the subsequent tutorial documents, the $HOME and ~ symbols represent the user home directory /home/yahboom. For example:

$HOME/microros_ws/src/microros_v2_bringup/microros_v2_bringup/visual_track.py is equivalent to /home/yahboom/microros_ws/src/microros_v2_bringup/microros_v2_bringup/visual_track.py

image-20260803155819095



3.4 How to Build ROS Packages

Quick Method

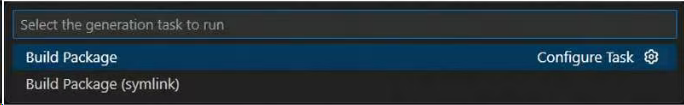

  • Press ctrl+shift+B in the Visual Studio Code interface, and a build selection panel will pop up. When building a normal package, select Build Package

image-20260803160231019

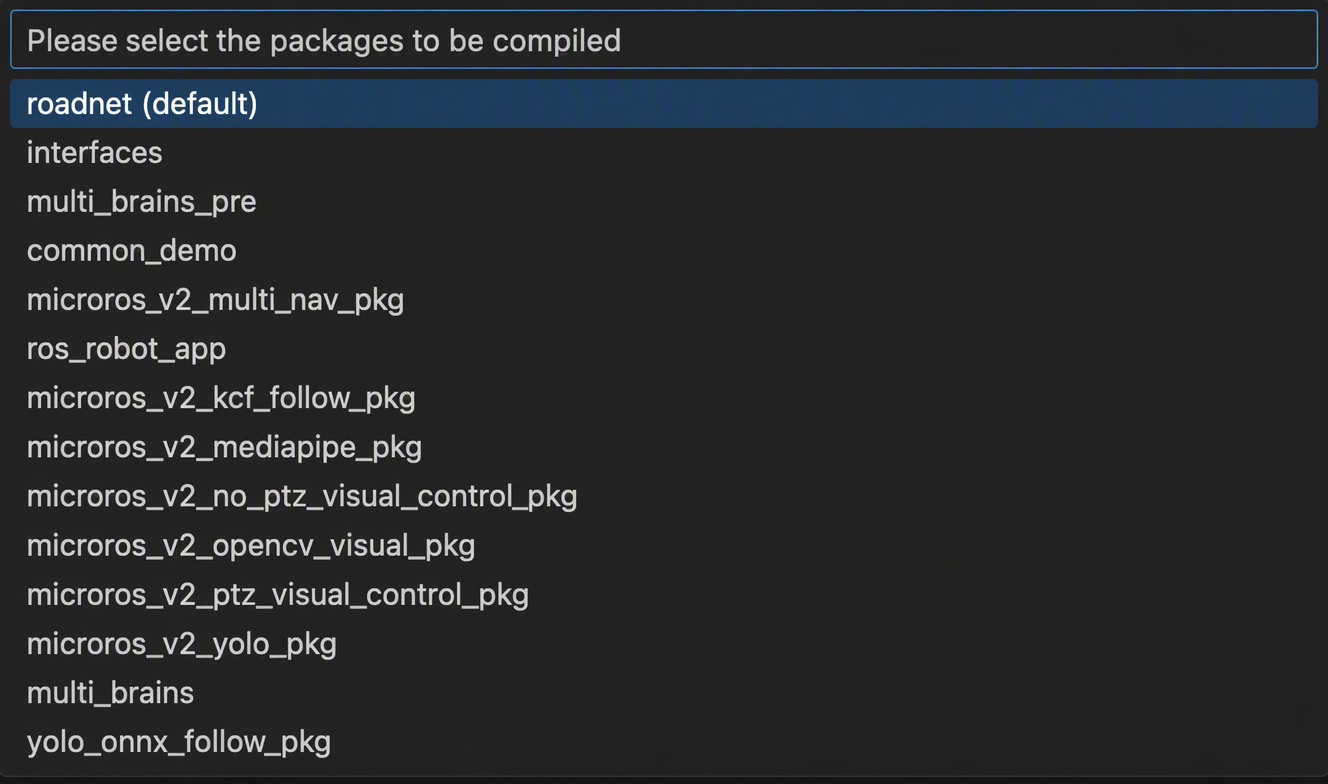

  • Select the package you want to build from the pop-up list

image-20260803160130595

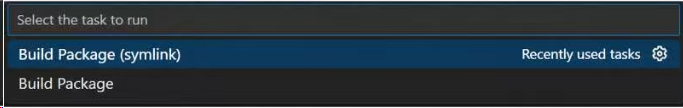

  • When building microros_v2_bringup and robot_description, select Build Package. In subsequent use, modifications to the launch files and configuration in microros_v2_bringup will take effect directly, without needing to rebuild the package

image-20260803155916263



Manual Build Method

cd ~/microros_ws/
colcon build --packages-select <package_name>
  • Example

image-20260803160641022
