OpenCV Geometric Transforms

1. Experiment Objective

Master image geometric transforms: scaling, translation, cropping, mirror flipping, and other basic spatial transform operations.

2. Experiment Principle

1. Keyword Explanation

2. Technical Architecture

This experiment is a pure offline Python script. The core of geometric transforms is coordinate mapping — for each pixel coordinate in the output image, the transform matrix is used to compute its corresponding coordinate in the input image, which is then sampled and filled.

Data flow: local image → cv2.imread() → build the transform matrix (or slice directly) → cv2.warpAffine() / cv2.resize() → side-by-side comparison display in two windows.

3. Experiment Steps

1. Hardware Preparation

2. Startup Method

Mode 1: Translation

python3 ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_image_panning.py

Mode 2: Cropping

xxxxxxxxxx
python3 ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_image_cropping.py

Mode 3: Mirror flipping

xxxxxxxxxx
python3 ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_image_mirroring.py

Mode 4: Scaling (zoom out + zoom in)

xxxxxxxxxx
python3 ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_zoom_out_in.py

3. Operation Instructions

After each script runs, a window pops up displaying the original image and the transformed result side by side:

• opencv_image_panning.py: original image + result translated 30 pixels down and to the right
• opencv_image_cropping.py: original image + cropped ROI region (y=0~100, x=100~200)
• opencv_image_mirroring.py: original image + vertically mirrored flip (vertically stacked)
• opencv_zoom_out_in.py: original image + zoomed out 50% + zoomed in 200%

Press q to exit.

4. Stop Method

Press q to close all OpenCV windows and exit the program.

4. Experiment Phenomena

• Understand geometric operations such as cv2.warpAffine(), cv2.resize(), and NumPy slicing
• Windows display the original image and the transformed result side by side

Original image: The input image for geometric transform operations; all transforms are compared and displayed against this image.

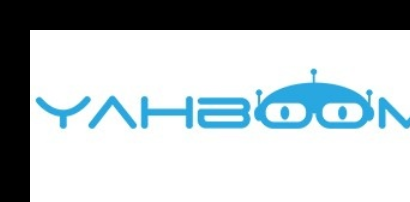

Translation: The image is moved by the specified number of pixels along the x/y axes, with black fill areas appearing on the right and bottom.

Cropping: Crops a local region of the image via NumPy array slicing img[y1:y2, x1:x2].

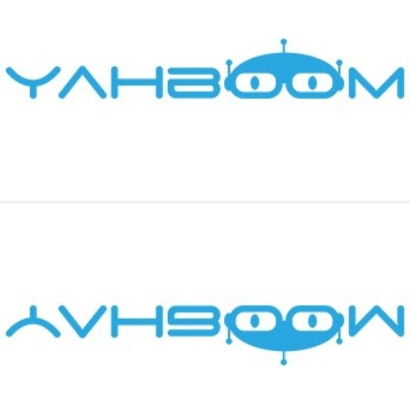

Mirroring: Achieves vertical flipping by copying pixels row by row, producing a top-bottom symmetric effect.

Zoom out: Uses cv2.resize() to scale the image dimensions down proportionally; the pixel count decreases but the main content is preserved.

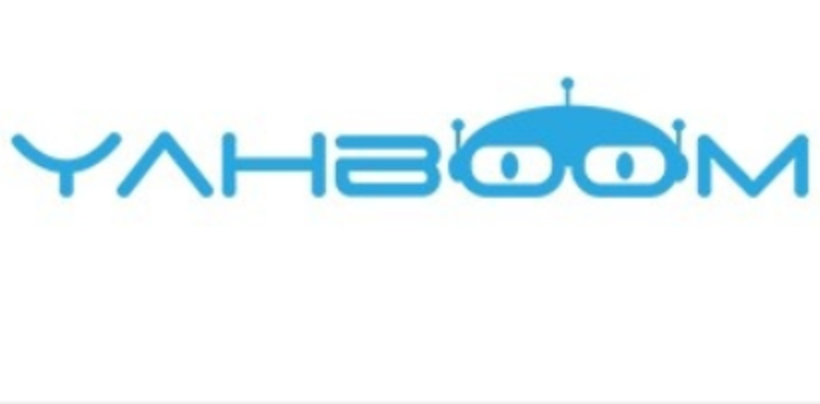

Zoom in: Uses cv2.resize() to scale the image dimensions up proportionally, with the interpolation algorithm filling in the new pixels.

5. Program Analysis

Source code path:

• Script directory: ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/
• Test image: ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/images/yahboom.png

1. Core Logic Analysis

The four geometric transforms share the same execution framework; they differ in the transform parameters and API calls.

Affine translation (opencv_image_panning.py)

​x
# Source file: ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_image_panning.py
import cv2
import numpy as np
​
if __name__ == '__main__':
    img = cv2.imread('~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/images/yahboom.png', cv2.IMREAD_UNCHANGED)
    if img is None:
        print("Image read failed, please check that the images/yahboom.png path is correct")
        exit()
​
    imgInfo = img.shape
    height = imgInfo[0]
    width = imgInfo[1]
​
    # Define the translation matrix: move 30 pixels to the right and 30 pixels down
    matShift = np.float32([[1, 0, 30], [0, 1, 30]])
​
    dst = cv2.warpAffine(img, matShift, (width, height))
​
    while True:
        cv2.imshow("yahboom", img)
        cv2.imshow('yahboom_panned', dst)
        action = cv2.waitKey(10) & 0xFF
        if action == ord('q') or action == 113:
            break
​
    cv2.destroyAllWindows()

Key logic notes:

• np.float32([[1,0,tx],[0,1,ty]]) builds a 2×3 affine translation matrix; tx and ty are the displacement (in pixels) along the x and y directions respectively
• cv2.warpAffine(src, M, dsize) applies an affine transform to the image; the third parameter specifies the output canvas size
• After translation, the areas vacated by the original pixels are filled with black (value 0)

Image cropping (opencv_image_cropping.py)

xxxxxxxxxx
# Source file: ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_image_cropping.py
import cv2
​
if __name__ == '__main__':
    img = cv2.imread('/home/l_jh/microros_ws/src/microros_v2_opencv_base_pkg/scripts/images/yahboom.png', cv2.IMREAD_UNCHANGED)
    if img is None:
        print("Image read failed, please check that the images/yahboom.png path is correct")
        exit()
​
    dst = img[0:100, 100:200]
​
    while True:
        cv2.imshow("yahboom", img)
        cv2.imshow('yahboom_cropped', dst)
        action = cv2.waitKey(10) & 0xFF
        if action == ord('q') or action == 113:
            break
​
    cv2.destroyAllWindows()

Key logic notes:

• img[y1:y2, x1:x2] uses NumPy array slicing to directly extract a pixel subset without calling any OpenCV API
• This is the most efficient of all geometric transforms — a zero-copy view that only changes the access boundaries
• Slice intervals are left-closed and right-open: 0:100 means indices 0~99

Scaling (opencv_zoom_out_in.py)

xxxxxxxxxx
# Source file: ~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/opencv_geometric_transformation/opencv_zoom_out_in.py
import cv2
​
if __name__ == '__main__':
    img = cv2.imread('~/microros_ws/src/microros_v2_opencv_base_pkg/scripts/images/yahboom.png', cv2.IMREAD_UNCHANGED)
    if img is None:
        print("Image read failed, please check that the images/yahboom.png path is correct")
        exit()
​
    print(img.shape)
​
    x, y = img.shape[0:2]
​
    img_zoom_out = cv2.resize(img, (int(y / 2), int(x / 2)))
    img_zoom_in = cv2.resize(img, (y * 2, x * 2))
​
    while True:
        cv2.imshow("yahboom", img)
        cv2.imshow('yahboom_zoom_out', img_zoom_out)
        cv2.imshow('yahboom_zoom_in', img_zoom_in)
        action = cv2.waitKey(10) & 0xFF
        if action == ord('q') or action == 113:
            break
​
    cv2.destroyAllWindows()

Key logic notes:

• cv2.resize(src, dsize) scales the image to the target size; dsize is in (width, height) format
• Note that img.shape returns (height, width), while the second parameter of cv2.resize expects (width, height) — the two orders are reversed
• Bilinear interpolation (INTER_LINEAR) is used by default; zooming out and zooming in share the same API

2. Key Parameters

3. Node Notes

This experiment is a pure Python script and does not use ROS2 nodes. The script uses if __name__ == '__main__': as its entry point and runs independently in a desktop environment.
