QR Code Tracking (No-PTZ)

1. Experiment Objective

The camera tracks a QR code, and the car rotates to keep the QR code at the center of the frame. It supports Tracking mode (rotation only), Follow mode (rotation + distance keeping), and Control mode (decoded content drives actions).

2. Experiment Principle

1. Keyword Explanation

2. Technical Architecture

/camera/image_raw (BEST_EFFORT)
  → qr_tracker_node
    ├── Image processing timer: image conversion → flip → pyzbar/OpenCV QR detection → select the largest code
    └── Body control timer (10Hz): pixel error → PD angular velocity + QR code size distance following → /cmd_vel (BEST_EFFORT)

3. Core Topic Quick Reference

Firmware Uplink

Firmware Downlink

3. Experiment Steps

1. Hardware Preparation

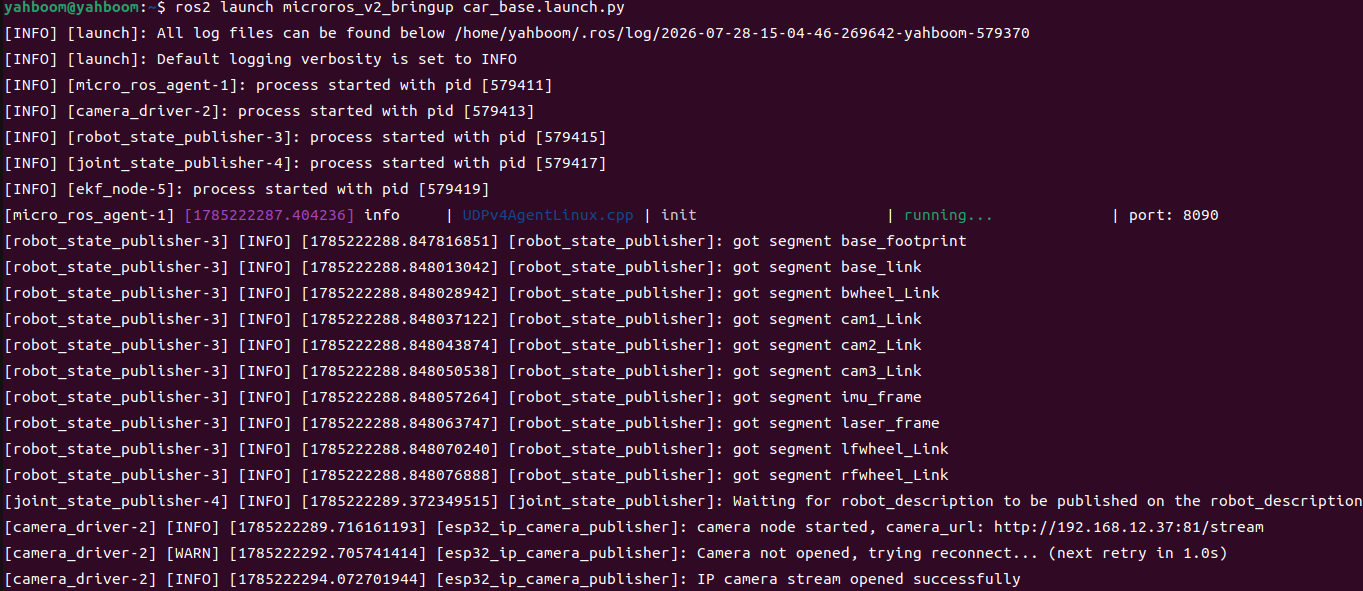

2. Start the Agent + Camera + Joint Model (Terminal 1)

xxxxxxxxxx
ros2 launch microros_v2_bringup car_base.launch.py

3. Start QR Code Tracking (Terminal 2)

Tracking mode (rotation tracking only):

xxxxxxxxxx
ros2 launch microros_v2_no_ptz_visual_control_pkg qr_tracker.launch.py

4. Operation Instructions

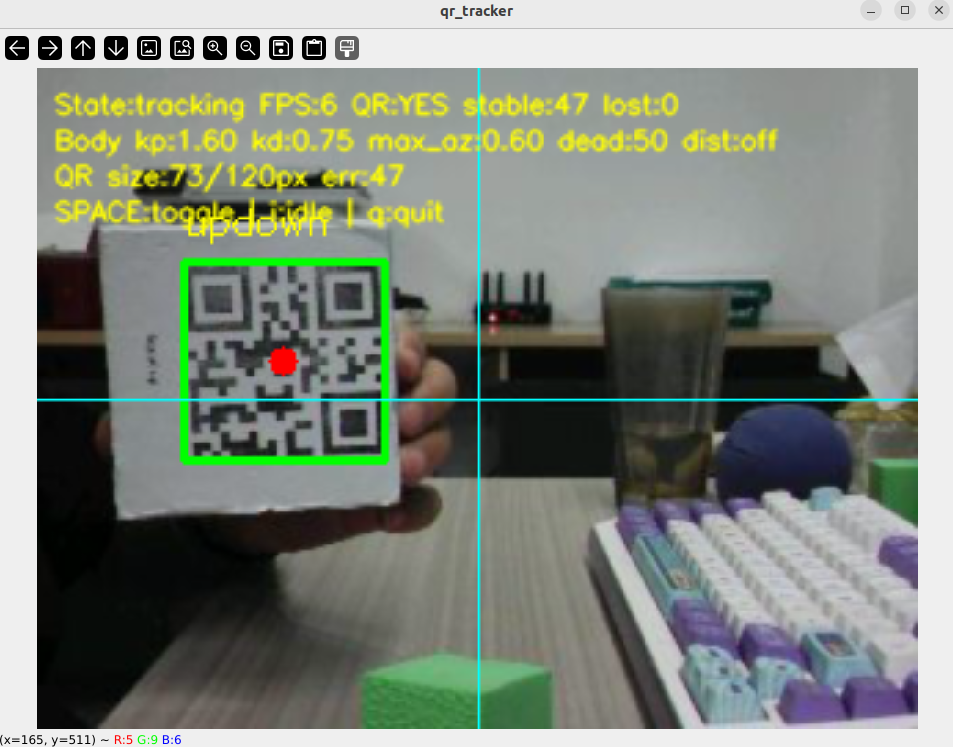

4. Experiment Phenomenon

• When the QR code moves left or right in the frame, the car automatically rotates to track it and keeps it at the center of the frame
• The terminal outputs the decoded QR code content in real time
• Stable-frame gating: tracking is confirmed only after 3 consecutive detections
• After the lost-marker timeout, the car stops moving
• Follow mode: the car backs away when the QR code moves closer and moves forward when it moves away

5. Code Explanation

Source path:

• Launch (track): ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/launch/qr_tracker.launch.py
• Launch (follow): ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/launch/qr_follow.launch.py
• Node source: ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/microros_v2_no_ptz_visual_control_pkg/qr_tracker_node.py

1. Core Node Analysis

qr_tracker_node shares the pyzbar/OpenCV dual-backend QR detection logic with qr_control_node, but uses a tracking architecture (PD rotation + distance following) instead of control-command mapping.

Constructor — declare parameters, create the dual-backend detector and publishers/subscribers:

​x
# Source file: ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/microros_v2_no_ptz_visual_control_pkg/qr_tracker_node.py
​
def __init__(self) -> None:
    super().__init__(DEFAULT_NODE_NAME)
    self._tgt_lock = threading.Lock()
    self._state = STATE_IDLE
    self._has_target = False
    self._lost_frames = 0
    self._stable_count = 0         # Stable-frame gating counter
    self._target_x: Optional[float] = None
    self._target_y: Optional[float] = None
    self._target_size: Optional[float] = None  # QR code bounding rectangle size
    self._payload: str = ""        # Decoded QR code content
​
    self._declare_params()
    self._load_params()
​
    # pyzbar/OpenCV dual backend
    self._opencv_qr = cv.QRCodeDetector()
​
    best_effort = QoSProfile(
        history=QoSHistoryPolicy.KEEP_LAST, depth=1,
        reliability=QoSReliabilityPolicy.BEST_EFFORT,
        durability=QoSDurabilityPolicy.VOLATILE,
    )
    self._img_sub = self.create_subscription(
        Image, self._img_topic, self._on_image, best_effort)
    self._cmd_pub = self.create_publisher(Twist, self._cmd_topic, best_effort)
​
    self._img_timer = self.create_timer(
        1.0 / max(float(self._img_rate), MINIMUM_TIMER_RATE_HZ), self._process_image)
    self._body_timer = self.create_timer(
        1.0 / max(float(self._body_rate), MINIMUM_TIMER_RATE_HZ), self._body_tick)

Body control callback — stable-frame gating + PD tracking:

xxxxxxxxxx
# Source file: ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/microros_v2_no_ptz_visual_control_pkg/qr_tracker_node.py
​
def _body_tick(self) -> None:
    """Body control timer (10Hz)."""
    if self._state != STATE_TRACKING or self._shutdown:
        self._pub_zero()
        return
​
    with self._tgt_lock:
        has = self._has_target
        tx = self._target_x
        ts = self._target_size
​
    # Stable-frame gating: output nothing when consecutive frames are below the threshold
    if self._stable_count < self._follow_stable_frames:
        self._pub_zero()
        return
​
    if not has or tx is None:
        self._pub_zero()
        return
​
    # Horizontal pixel error → PD angular velocity
    cx = self._img_w * 0.5
    err_x = tx - cx
    if abs(err_x) <= self._deadband_x:
        az = 0.0
    else:
        now = time.perf_counter()
        dt = now - self._prev_t if self._prev_t > 0 else 1.0 / self._body_rate
        dt = max(dt, 1e-3)
        d_err = (err_x - self._prev_err) / dt
        self._prev_err = err_x; self._prev_t = now
        az = self._angular_kp * err_x + self._angular_kd * d_err
        az = clamp(az, -self._max_az, self._max_az)
        if self._reverse_body:
            az = -az
​
    cmd = Twist()
    cmd.angular.z = az
​
    # Distance following: QR code size deviation → PD linear velocity
    if self._dist_follow and ts is not None:
        err_s = self._target_qr_size - ts
        if abs(err_s) > self._dist_tol_qr:
            lx = self._dist_kp * err_s
            lx = clamp(lx, -self._max_lx, self._max_lx)
            if self._reverse_linear:
                lx = -lx
            cmd.linear.x = lx
​
    self._cmd_pub.publish(cmd)

Key logic: Stable-frame gating (_follow_stable_frames=3) requires the QR code to be detected for 3 consecutive frames before tracking is confirmed, preventing occasional false detections. A decoding failure (e.g., a blurry QR code) does not affect tracking; it only affects the payload display.

2. Key Parameters

Parameter definition file:

• Launch: ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/launch/qr_tracker.launch.py
• Node: ~/microros_ws/src/microros_v2_no_ptz_visual_control_pkg/microros_v2_no_ptz_visual_control_pkg/qr_tracker_node.py

3. Node Description

6. Common Problems
