LiDAR Patrol

1. Course Content

• Run the demo program, set the patrol route in the dynamic parameter tuner, then click start. The robot moves along the configured patrol route, while the LiDAR scans for obstacles within the configured laser angle and obstacle detection distance. If an obstacle is present, the robot stops and the buzzer sounds; if there is no obstacle, it continues patrolling.

2. Demo

xxxxxxxxxx
ros2 launch microros_v2_bringup lidar_demo.launch.py demo:=laser_patrol

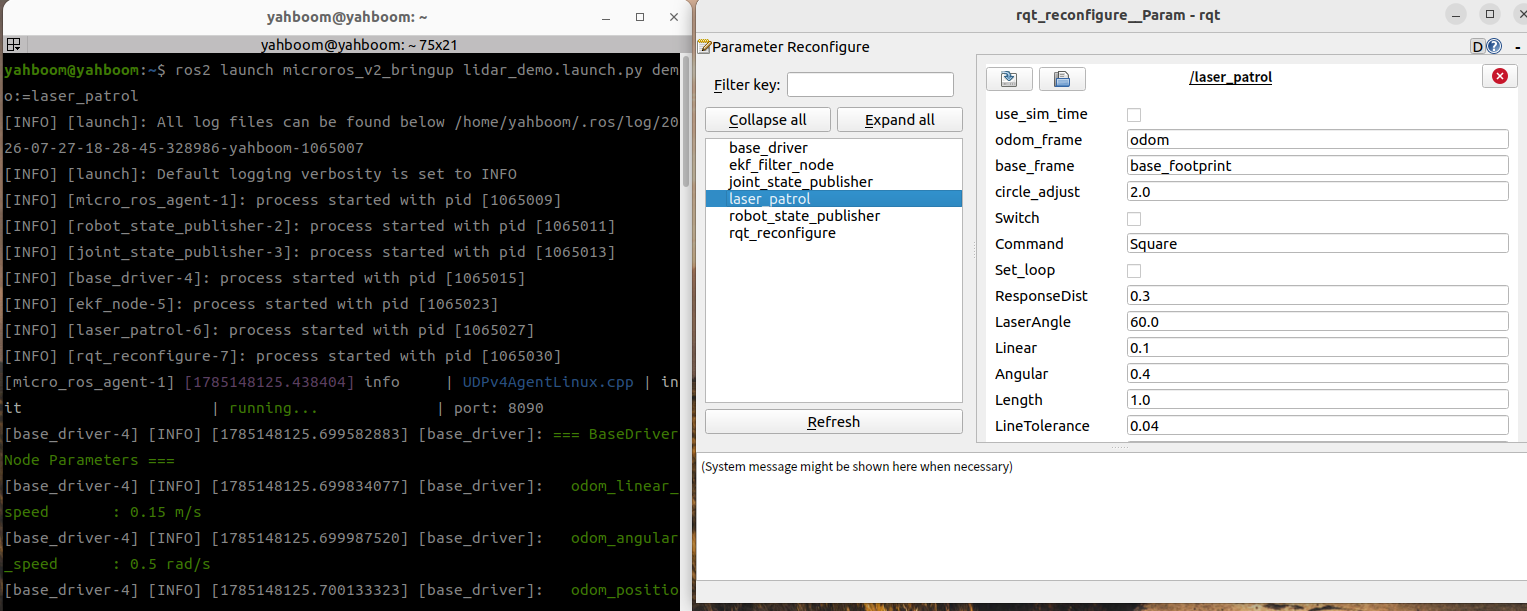

• Click the laser_patrol node in the left options panel of the rqt_reconfigure panel. If there is no node in the left options right after startup, click Refresh below to refresh

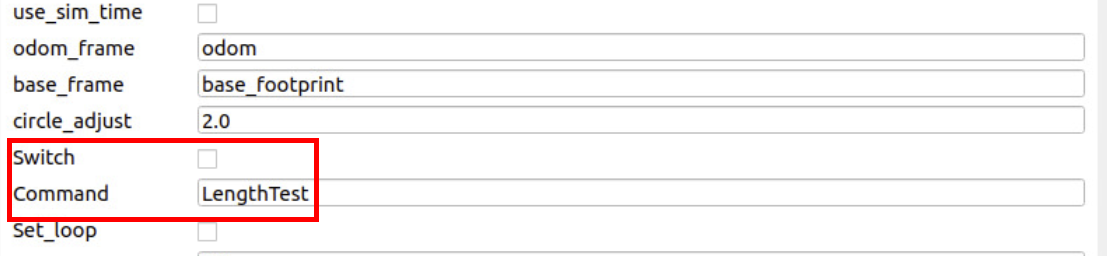

• Fill in the preset patrol route in [Command], then tick Switch to start the robot's patrol state

[!TIP]

rqt_reconfigure panel parameter descriptions:

• odom_frame: name of the odometry coordinate frame
• base_frame: name of the base coordinate frame
• circle_adjust: when the patrol route is a circle, this value can be used as a coefficient to adjust the circle size; see the code for details
• Switch: play mode switch
• Command: patrol route, with the following options: [LengthTest] - line patrol, [Circle] - circle patrol, [Square] - square patrol, [Triangle] - triangle patrol.
• Set_loop: re-patrol switch; when set, the robot will continue looping patrol along the set route
• ResponseDist: obstacle detection distance
• LaserAngle: laser detection angle
• Linear: linear velocity magnitude
• Angular: angular velocity magnitude
• Length: straight-line motion distance
• RotationTolerance: allowed tolerance for rotation error
• LineTolerance: allowed tolerance for straight-line motion error

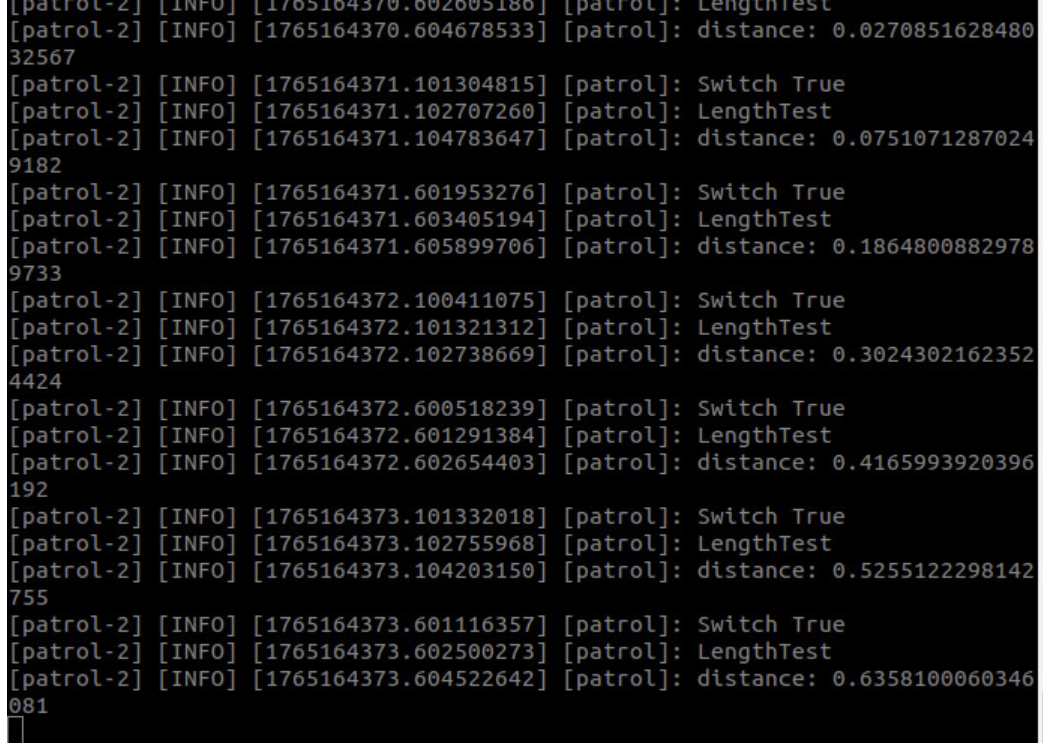

• After setting the route in [Command], click Switch to start patrolling. The terminal prints the following information:

• If there is an obstacle on the patrol path, the robot stops and the terminal displays obstacles

3. Source Code Analysis

Source code path:

xxxxxxxxxx
$HOME/microros_ws/src/common_demo/common_demo/lidar/laser_patrol.py

The patrol node uses a timer-driven + state machine architecture, with the following core logic:

1. Dynamic parameter loading: At the beginning of each cycle, the on_timer callback reads all configurations from the parameter server (Switch, Command, ResponseDist, Linear, Angular, Length, LaserAngle, LineTolerance, RotationTolerance, etc.), supporting real-time adjustment via rqt_reconfigure.

2. Patrol route dispatch: When Switch=True, the corresponding patrol mode is selected according to the Command string:

   • LengthTest: line patrol, calls advancing(self.Length) to move forward the specified distance
   • Circle: circle patrol, calls Spin(360) to rotate 360° in place
   • Square: square patrol, calls Square() to execute the sequence of four sides and four corners
   • Triangle: triangle patrol, calls Triangle() to execute the sequence of three sides and three corners

3. Task completion handling: After each patrol function returns True, Switch is automatically set to False and Command to "finish", entering the stopped state.

4. Loop patrol logic: When Switch=False and Command="finish":

   • If Set_loop=True: restore Command to the original route (command_src), set Switch back to True, and continue the next patrol round
   • If Set_loop=False: remain in the stopped state without auto-restart

Obstacle avoidance mechanism: Inside each patrol function (advancing, Spin, Square, Triangle), laser detection is continuously performed. When the distance to an obstacle ahead is ≤ ResponseDist and the angle is within ±LaserAngle, the robot immediately stops and triggers the buzzer, then continues executing after the obstacle moves away.

​x
    def on_timer(self):
        # print("self.error: ",self.error)
        self.Switch = self.get_parameter("Switch").get_parameter_value().bool_value
        self.Command = self.get_parameter("Command").get_parameter_value().string_value
        self.Set_loop = self.get_parameter("Set_loop").get_parameter_value().bool_value
        self.ResponseDist = (
            self.get_parameter("ResponseDist").get_parameter_value().double_value
        )
        self.Linear = self.get_parameter("Linear").get_parameter_value().double_value
        self.Angular = self.get_parameter("Angular").get_parameter_value().double_value
        self.Length = self.get_parameter("Length").get_parameter_value().double_value
        self.LaserAngle = (
            self.get_parameter("LaserAngle").get_parameter_value().double_value
        )
        self.LineTolerance = (
            self.get_parameter("LineTolerance").get_parameter_value().double_value
        )
        self.RotationTolerance = (
            self.get_parameter("RotationTolerance").get_parameter_value().double_value
        )
        self.RotationScaling = (
            self.get_parameter("RotationScaling").get_parameter_value().double_value
        )
​
        index = 0
​
        if self.Switch == True:
            index = 0
            self.get_logger().info("Switch True")
            if self.Command == "LengthTest":
                self.command_src = "LengthTest"
                self.get_logger().info("LengthTest")
                advancing = self.advancing(self.Length)
                if advancing == True:
                    self.Switch = rclpy.parameter.Parameter(
                        "Switch", rclpy.Parameter.Type.BOOL, False
                    )
                    all_new_parameters = [self.Switch]
                    self.set_parameters(all_new_parameters)
                    self.Command = rclpy.parameter.Parameter(
                        "Command", rclpy.Parameter.Type.STRING, "finish"
                    )
                    all_new_parameters = [self.Command]
                    self.set_parameters(all_new_parameters)
​
            elif self.Command == "Circle":
                self.command_src = "Circle"
                spin = self.Spin(360)
                if spin == True:
                    self.get_logger().info("spin done")
                    # self.Command = "finish"
                    self.Switch = rclpy.parameter.Parameter(
                        "Switch", rclpy.Parameter.Type.BOOL, False
                    )
                    all_new_parameters = [self.Switch]
                    self.set_parameters(all_new_parameters)
                    self.Command = rclpy.parameter.Parameter(
                        "Command", rclpy.Parameter.Type.STRING, "finish"
                    )
                    all_new_parameters = [self.Command]
                    self.set_parameters(all_new_parameters)
​
            elif self.Command == "Square":
                self.command_src = "Square"
                square = self.Square()
                if square == True:
                    self.Command = rclpy.parameter.Parameter(
                        "Command", rclpy.Parameter.Type.STRING, "finish"
                    )
                    all_new_parameters = [self.Command]
                    self.set_parameters(all_new_parameters)
​
            elif self.Command == "Triangle":
                self.command_src = "Triangle"
                triangle = self.Triangle()
                if triangle == True:
                    self.Command = rclpy.parameter.Parameter(
                        "Command", rclpy.Parameter.Type.STRING, "finish"
                    )
                    all_new_parameters = [self.Command]
                    self.set_parameters(all_new_parameters)
​
        else:
            self.pub_cmdVel.publish(Twist())
            self.pub_beep.publish(UInt16(data=0))
            self.get_logger().info("Switch False")
            if self.Command == "finish":
                self.get_logger().info("finish")
                if self.Set_loop == True:
                    self.get_logger().info("Continute")
                    self.Command = rclpy.parameter.Parameter(
                        "Command", rclpy.Parameter.Type.STRING, self.command_src
                    )
                    all_new_parameters = [self.Command]
                    self.set_parameters(all_new_parameters)
                    self.Switch = rclpy.parameter.Parameter(
                        "Switch", rclpy.Parameter.Type.BOOL, True
                    )
                    all_new_parameters = [self.Switch]
                    self.set_parameters(all_new_parameters)
                else:
                    self.get_logger().info("Not loop")
                    self.Switch = rclpy.parameter.Parameter(
                        "Switch", rclpy.Parameter.Type.BOOL, False
                    )
                    all_new_parameters = [self.Switch]
                    self.set_parameters(all_new_parameters)
