LiDAR Tracking

1. Course Content

• Start the demo program: the robot uses the LiDAR to detect the closest object in the surrounding environment and follow it.

2. Demo

xxxxxxxxxx
ros2 launch microros_v2_bringup lidar_demo.launch.py demo:=laser_Tracker

• After startup, the program stays silent by default and does not move the chassis

• The robot automatically recognizes a moving target ahead and keeps following it; when the target turns, the robot automatically adjusts its direction to maintain both heading and distance

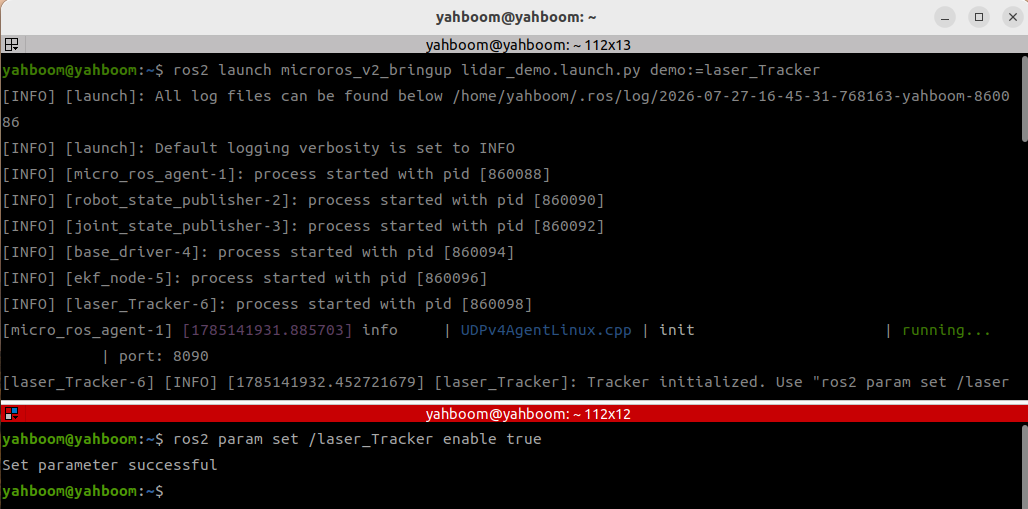

• Place an object near the robot so that its height can be scanned by the LiDAR, then run the following command in the terminal to enable tracking

xxxxxxxxxx
ros2 param set /laser_Tracker enable true

• To stop tracking, disable tracking or simply shut down the program

xxxxxxxxxx
ros2 param set /laser_Tracker enable false

3. Source Code Analysis

Source code path:

xxxxxxxxxx
$HOME/microros_ws/src/common_demo/common_demo/lidar/laser_Tracker.py

Core logic of the tracking node: enable control → nearest obstacle detection → PID closed-loop following.

1. Enable gate: The registerScan callback first checks the is_enabled parameter (toggled dynamically via ros2 param set /laser_Tracker enable true/false). If not enabled, it returns immediately and the robot stays still.

2. TF setup and frame identification: Same as the obstacle avoidance node. On the first LaserScan received, it auto-detects the LiDAR frame_id and establishes the base_link ← laser_frame transform chain via TransformListener, ensuring that subsequent point clouds can be correctly converted to the robot body frame.

3. Nearest obstacle detection:

   • Iterate over all laser points and filter out invalid values (0 or beyond range_max)
   • Convert each point from polar to Cartesian coordinates and transform it to the base_link frame
   • Keep only front points whose angle is within ±LaserAngle, recording their distance and coordinates
   • Select the closest obstacle (minDist, min_angle) from these points

4. PID closed-loop control:

   • Distance deadzone: When |minDist - ResponseDist| < 0.1m, the target distance is considered reached and the linear velocity is set to 0
   • Linear velocity PID: With ResponseDist as the setpoint and minDist as the feedback, lin_pid computes the forward speed; the farther the distance, the faster the speed
   • Angular velocity PID: With 0 (alignment) as the setpoint and min_angle (in radians) as the feedback, ang_pid computes the steering speed
   • Angular deadzone: When |ang_pid_output| < angular_deadzone, output 0 to avoid wheel jitter caused by tiny deviations
   • Angular clamp: When exceeding max_angular, clamp to ±max_angular to prevent overly aggressive steering

5. Logging and publishing: Tracking status (distance, angle, linear/angular velocity) is logged throttled by log_interval, and finally the Twist is published to /cmd_vel.

xxxxxxxxxx
​
    def registerScan(self, scan_data):
        if not isinstance(scan_data, LaserScan): return

        # Skip processing if not enabled
        if not self.is_enabled:
            return

        # Auto-detect laser frame_id
        if not self.laser_frame:
            self.laser_frame = scan_data.header.frame_id
            self.get_logger().info(f'Detected laser frame: {self.laser_frame}')

        # If TF is not ready, try to establish connection
        if not self.tf_ready:
            try:
                self.tf_buffer.lookup_transform(
                    'base_link',
                    scan_data.header.frame_id,
                    rclpy.time.Time(),
                    timeout=rclpy.duration.Duration(seconds=0.1)
                )
                self.tf_ready = True
                self.get_logger().info(f'TF ready: base_link <- {scan_data.header.frame_id}')
            except TransformException:
                # TF not ready, skip this scan
                return

        # Get transform from laser to base_link
        try:
            trans = self.tf_buffer.lookup_transform(
                'base_link',
                scan_data.header.frame_id,
                rclpy.time.Time(),
                timeout=rclpy.duration.Duration(seconds=0.1)
            )
        except TransformException:
            # Throttle TF error logs
            current_time = self.get_clock().now().nanoseconds / 1e9
            if (current_time - self.last_tf_log_time) >= self.tf_log_interval:
                self.get_logger().warn('TF not available, skipping scan')
                self.last_tf_log_time = current_time
            return

        # Iterate through all laser points and find closest obstacle in front
        ranges = np.array(scan_data.ranges)
        minDistList = []
        minDistBaseList = []  # Store positions in base_link frame

        for i in range(len(ranges)):
            if ranges[i] == 0.0 or ranges[i] > scan_data.range_max:
                continue

            # Calculate laser point position in laser coordinate frame
            angle = scan_data.angle_min + scan_data.angle_increment * i
            point_in_laser = PointStamped()
            point_in_laser.header = scan_data.header
            point_in_laser.point.x = ranges[i] * math.cos(angle)
            point_in_laser.point.y = ranges[i] * math.sin(angle)
            point_in_laser.point.z = 0.0

            # Transform to base_link coordinate frame
            try:
                point_in_base = do_transform_point(point_in_laser, trans)
                x = point_in_base.point.x
                y = point_in_base.point.y

                # Only consider obstacles in front (within LaserAngle)
                dist = math.sqrt(x**2 + y**2)
                angle_to_base = math.atan2(y, x) * RAD2DEG

                if abs(angle_to_base) < self.LaserAngle:
                    minDistList.append(dist)
                    minDistBaseList.append((x, y, angle_to_base))
            except TransformException:
                continue

        if len(minDistList) == 0:
            return

        # Find the closest obstacle
        minDist = min(minDistList)
        minIdx = minDistList.index(minDist)
        min_x, min_y, min_angle = minDistBaseList[minIdx]

        # PID control for tracking
        velocity = Twist()

        # Distance deadzone
        if abs(minDist - self.ResponseDist) < 0.1:
            minDist = self.ResponseDist

        # Linear velocity PID (maintain target distance)
        velocity.linear.x = -self.lin_pid.pid_compute(self.ResponseDist, minDist)

        # Angular velocity PID (align with obstacle)
        # Use angle directly in radians for better sensitivity
        angle_rad = math.radians(min_angle)
        ang_pid_compute = self.ang_pid.pid_compute(0, angle_rad)  # Target is 0 (aligned), current is angle_rad

        velocity.angular.z = -ang_pid_compute

        # Reduced deadzone for better responsiveness
        if abs(ang_pid_compute) < self.angular_deadzone:
            velocity.angular.z = 0.0

        # Clamp angular velocity to safe limits
        if abs(velocity.angular.z) > self.max_angular:
            velocity.angular.z = self.max_angular * (1.0 if velocity.angular.z > 0 else -1.0)

        # Throttle logging
        current_time = self.get_clock().now().nanoseconds / 1e9
        if (current_time - self.last_log_time) >= self.log_interval:
            self.get_logger().info(
                f'Tracking: dist={minDist:.2f}m, angle={min_angle:.1f}deg, '
                f'linear={velocity.linear.x:.2f}, angular={velocity.angular.z:.2f}'
            )
            self.last_log_time = current_time

        self.pub_vel.publish(velocity)

• Parameter file path

xxxxxxxxxx
$HOME/microros_ws/src/microros_v2_bringup/config/common.yaml

Parameter descriptions for the laser_Tracker node in common.yaml:

​x
laser_Tracker:
  ros__parameters:
    linear: 0.15                    # Maximum forward linear speed (m/s)
    angular: 1.0                    # Maximum steering angular velocity (rad/s)
    LaserAngle: 45.0                # Half-angle of the target search sector (deg)
    ResponseDist: 0.4               # Following hold distance (m)
    enable: false                   # Whether following is enabled at startup
​
    # ---- PID ----
    lin_pid_P: 1.0                  # Linear velocity PID: proportional
    lin_pid_I: 0.0                  # Linear velocity PID: integral
    lin_pid_D: 1.0                  # Linear velocity PID: derivative
    ang_pid_P: 2.0                  # Angular velocity PID: proportional
    ang_pid_I: 0.0                  # Angular velocity PID: integral
    ang_pid_D: 2.0                  # Angular velocity PID: derivative
​
    # ---- Angular velocity deadzone and limiting ----
    angular_deadzone: 0.02          # Angular velocity deadzone (rad/s), wheels do not turn below this value
    max_angular: 2.0                # Angular velocity limit (rad/s)
...
